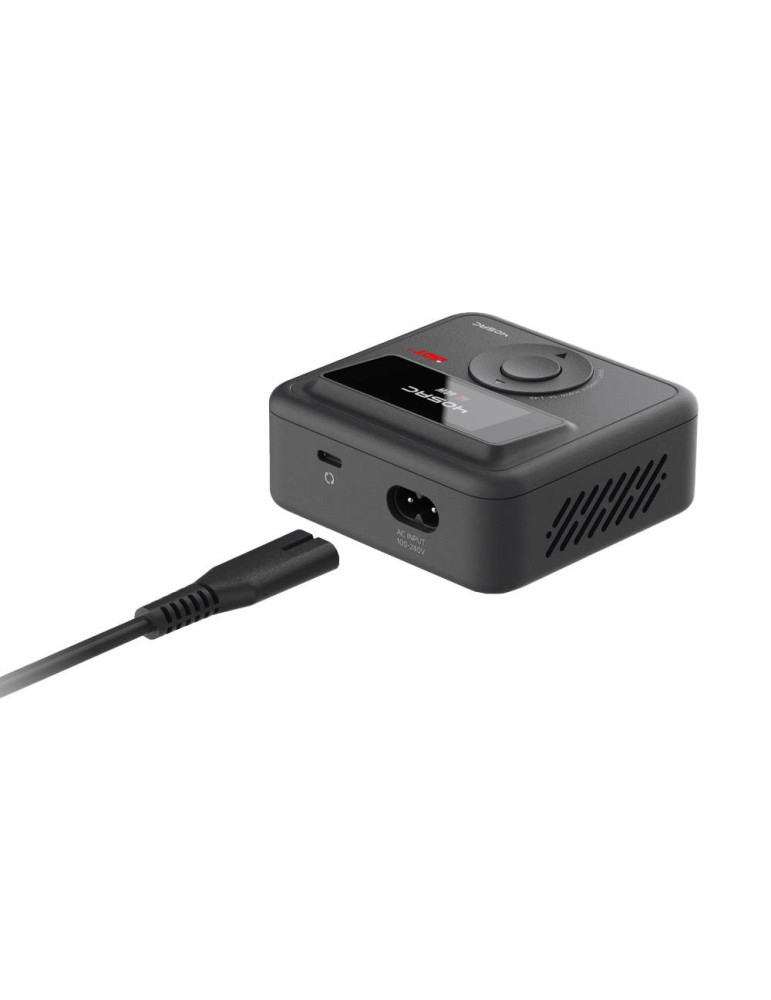

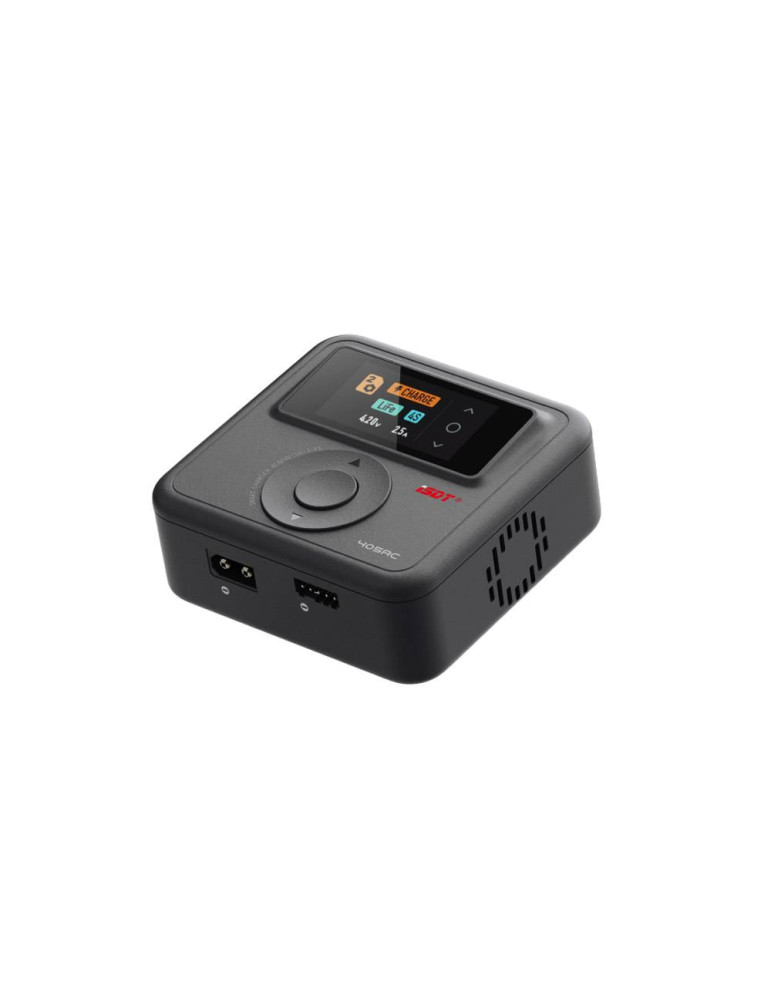

ISDT 405AC Smart Charger

The ISDT 405AC is a practical all-in-one charging solution for the workshop, hobby room and use on the go. Thanks to the integrated AC power supply, no separate power adapter is required: simply connect the charger to the mains, attach the battery and start the desired charging process.

Modern GaN technology enables a compact design while delivering up to 60 W of charging power. The charging current can be adjusted between 0.1 and 5.0 A. The charger supports 1S to 4S LiPo, LiHV and LiFe batteries, as well as NiMH, NiCd and lead-acid batteries.

In addition to standard charging, the 405AC offers discharge and storage functions. LiPo batteries can be brought to a suitable storage voltage of 3.8 V per cell for extended periods of inactivity. The integrated balancer compensates for voltage differences between the individual cells.

All relevant charging information is shown on the easy-to-read IPS colour display. The clear interface ensures straightforward operation, while app connectivity enables smart battery management and OTA firmware updates. Thanks to its universal input voltage range of 100 to 240 V, the charger can also be used while travelling with the appropriate mains cable.

Features

• Integrated AC power supply
• Up to 60 W charging power
• Adjustable charging current from 0.1 to 5.0 A
• Modern, compact GaN technology
• Supports 1S–4S LiPo, LiHV and LiFe batteries
• Compatible with NiMH, NiCd and lead-acid batteries
• Integrated charge, discharge and storage functions
• LiPo storage voltage of 3.8 V per cell
• Balancing current of up to 0.2 A per cell
• Easy-to-read IPS colour display
• App connectivity and OTA firmware updates
• Universal 100–240 V AC input
• Compact dimensions and a weight of only approximately 150 g

Specifications

• Model: ISDT 405AC
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 5–18.5 V DC
• Charging current: 0.1–5.0 A
• Discharge current: 0.1–1.0 A
• Maximum charging power: 60 W
• Maximum discharge power: 5 W
• Balancing current: Maximum 0.2 A per cell
• Lithium batteries: LiPo, LiHV and LiFe, 1S–4S
• NiMH/NiCd batteries: 1–12 cells
• Lead-acid batteries: 1–7 cells
• Operating temperature: 0 to 40 °C
• Dimensions: 88 × 85 × 38 mm
• Weight: Approximately 150 g

Shipping Content

• 1 x ISDT 405AC Smart Charger
