BetaFPV Pavo 20 PRO II Frame Set - Black

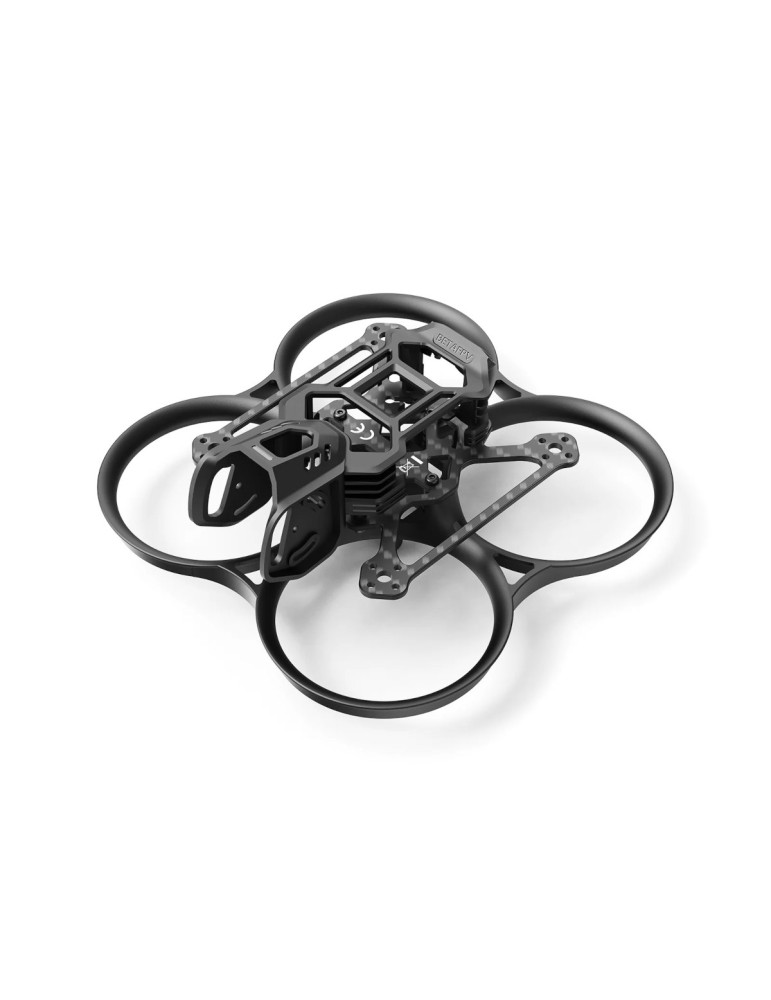

The BETAFPV Pavo20 Pro II Brushless Whoop Frame is designed for the 2.2" Pavo20 Pro II cinewhoop and combines a rigid, impact-resistant duct design with broad DJI O4 compatibility. The redesigned 2 mm carbon top plate supports the DJI O4 Air Unit, O4 Wide Air Unit and O4 Air Unit Pro, making the frame a versatile platform for both cinematic and freestyle FPV builds.

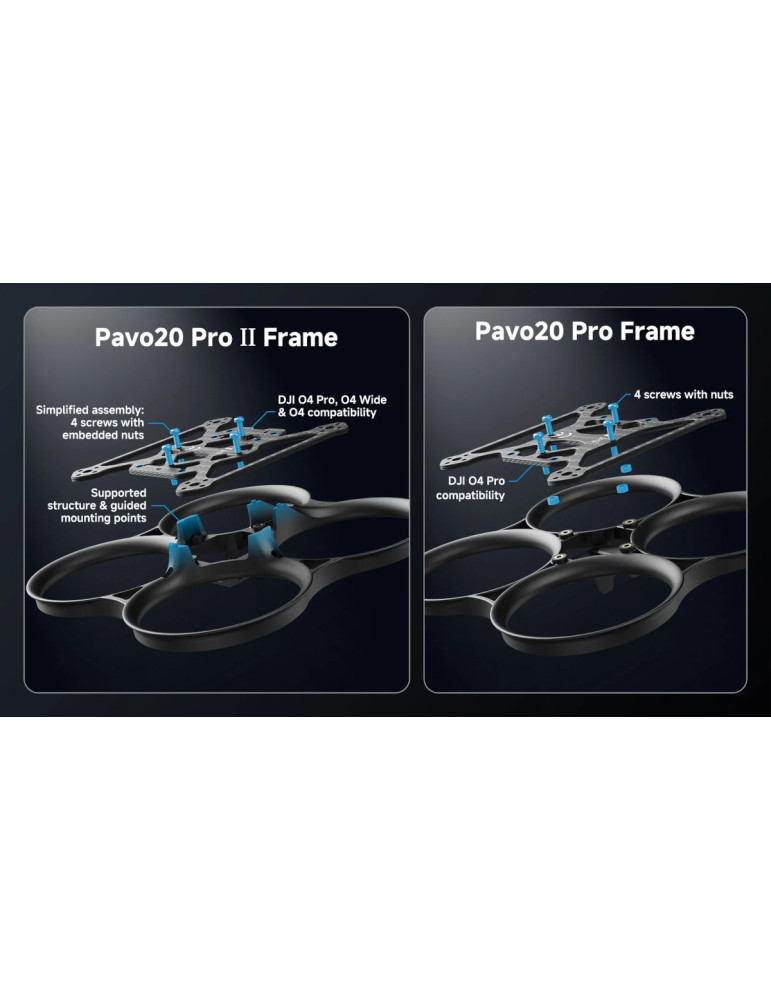

A new four-screw assembly system with embedded nuts and a supported structure simplifies building while improving overall rigidity. The reinforced PA12 whoop ducts are shaped for efficient airflow, with BETAFPV claiming an 8-11% increase in thrust compared with ductless configurations. The 93.9 mm wheelbase is suitable for powerful 3S and 4S setups while remaining compact enough for agile cinewhoop flying.

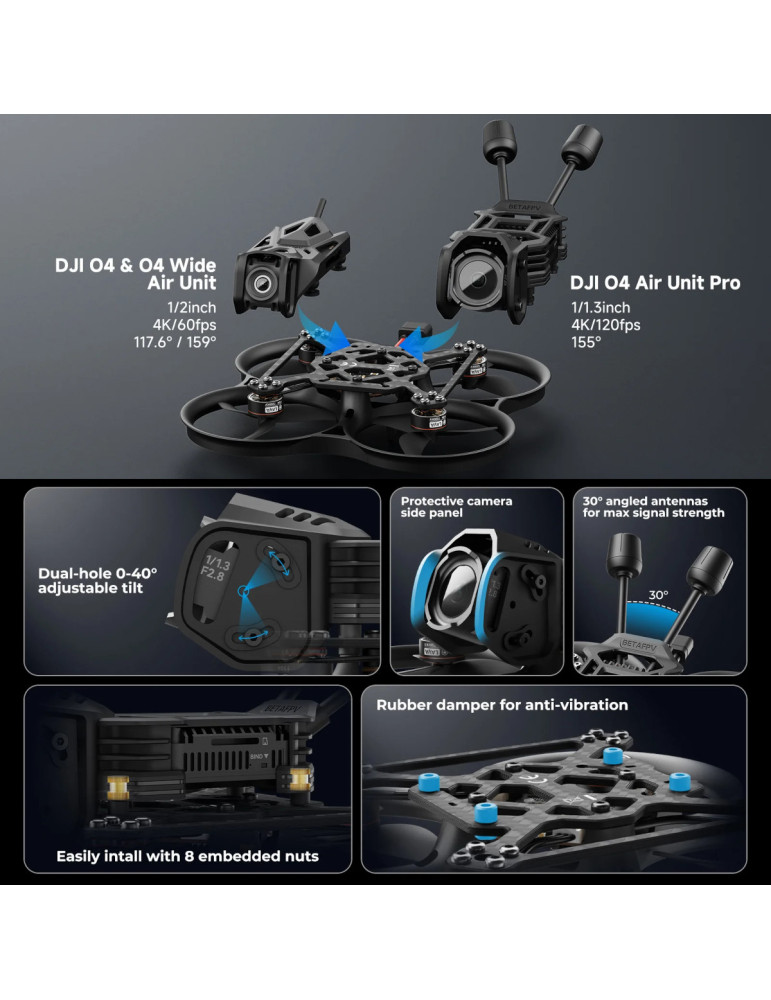

The O4 Air Unit Pro mounting system adds a reinforced camera protection panel, dual camera mounting positions and adjustable 0–40° camera tilt. Its 30° angled antenna mounts are designed to provide a clean antenna position, while the familiar Pavo rubber damping system helps isolate vibrations for smoother HD footage.

Features

• DJI O4 Ready: Compatible with DJI O4 Air Unit, O4 Wide Air Unit and O4 Air Unit Pro.
• Quick 4-Screw Assembly: Embedded nuts and a supported frame structure make installation faster and more secure.
• Reinforced PA12 Ducts: Thickened, impact-resistant ducts provide additional protection around the propellers.
• Optimised Aerodynamics: Duct geometry delivers a manufacturer-rated 8–11% thrust increase compared with ductless designs.
• O4 Pro Camera Protection: Reinforced side panels and dual mounting positions help protect the camera while allowing 0–40° tilt adjustment.
• 30° Antenna Mounts: Angled antenna positioning keeps the installation clean and optimised.
• Vibration Damping: Rubber dampers help isolate the camera and HD system from frame vibrations.
• Secure Battery Mounting: Open-ended battery strap design with lateral locating slots helps prevent battery movement during aggressive manoeuvres.

Specifications

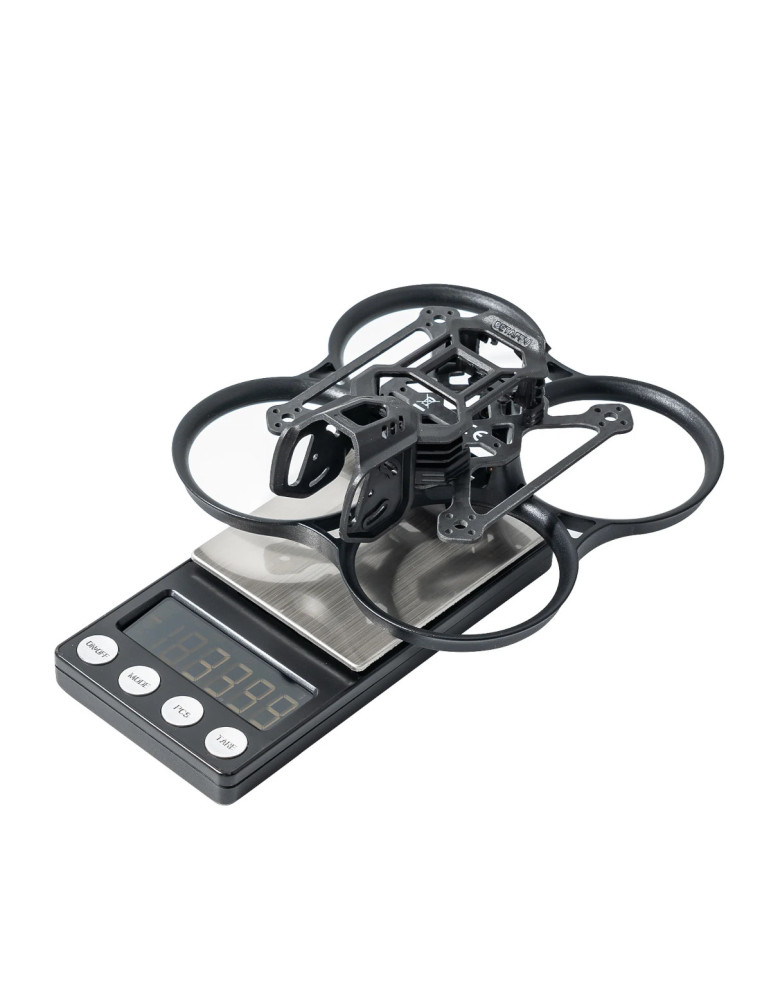

• Weight: 35.7g with O4 Air Unit Pro bracket

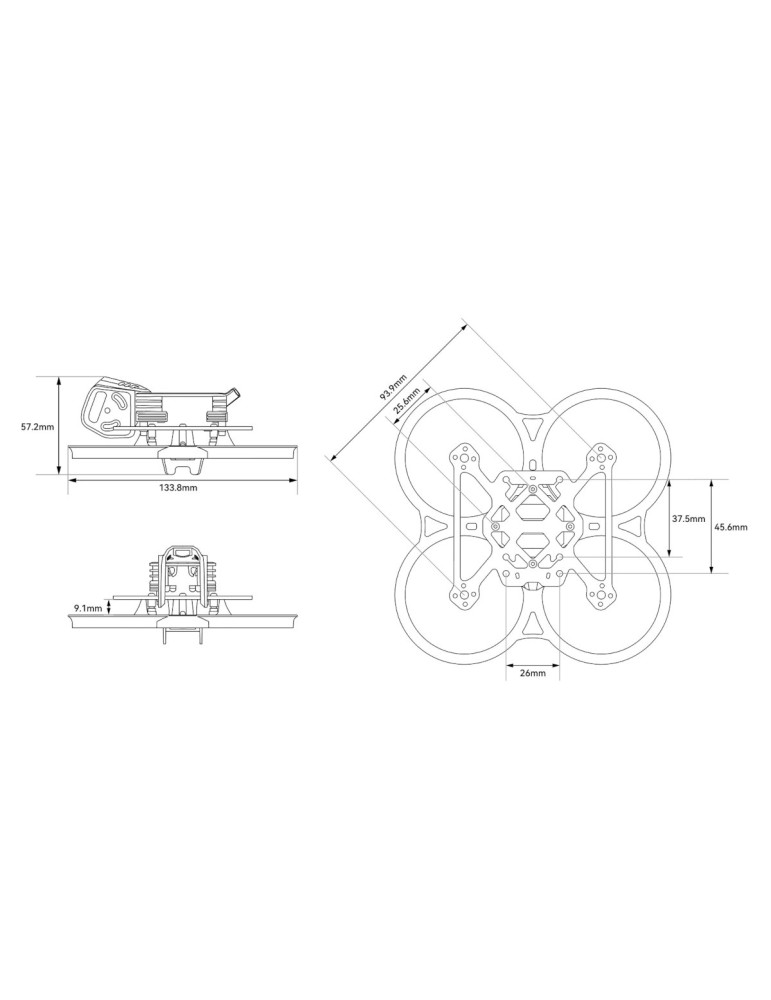

• Diagonal motor to motor distance: 93.9mm
• Material: PA12
• Recommend motors : 1104 Brushless Motor
• Recommend FC: F4 AIO 20A, Cube 30A

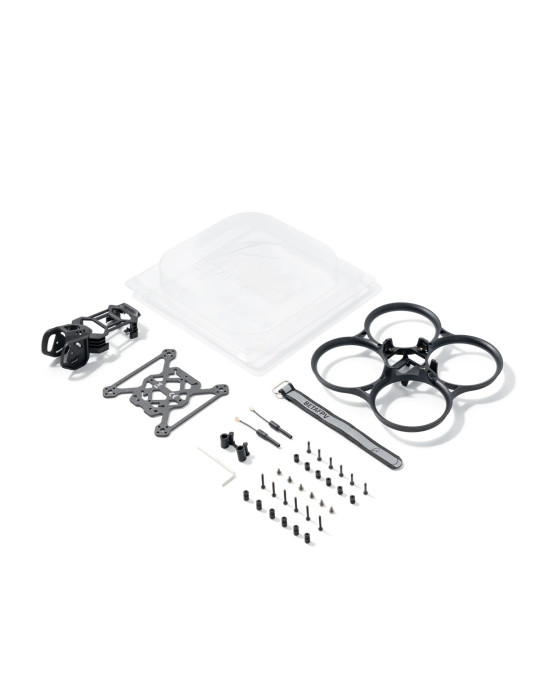

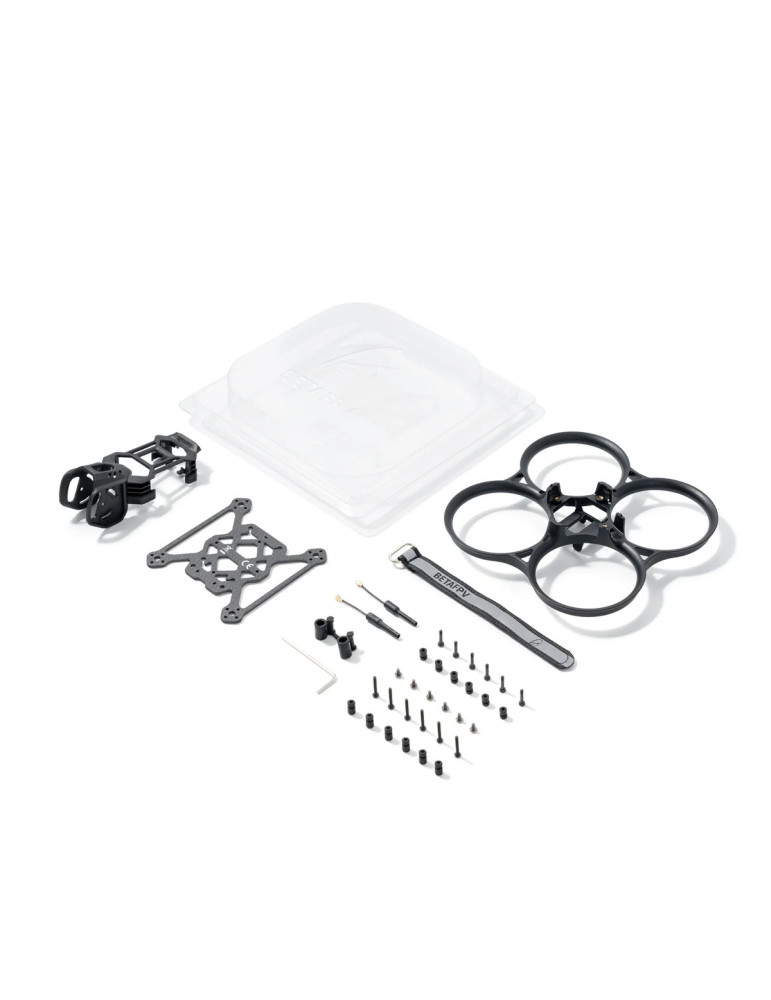

Delivery Content

• 1 x Pavo20 Pro II Top Plate
• 1 x Pavo20 II Whoop Duct
• 1 x O4 Air Unit Pro Bracket
• 6 x Shock-absorbing Balls for Flight Controller (8mm)
• 6 x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
• 6 x M2*10 Screws
• 6 x M2*4 Screws
• 6 x M2*14 Screws
• 1 x 130mm Battery Strap
• 2 x 5.8g Antenna
• 1 x 5.8G VTX Antenna Mount
• 1 x H1.5 Hex Screwdriver
