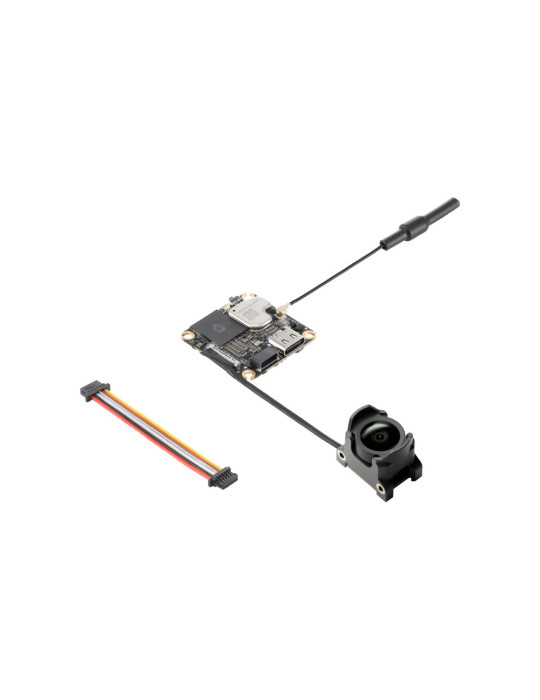

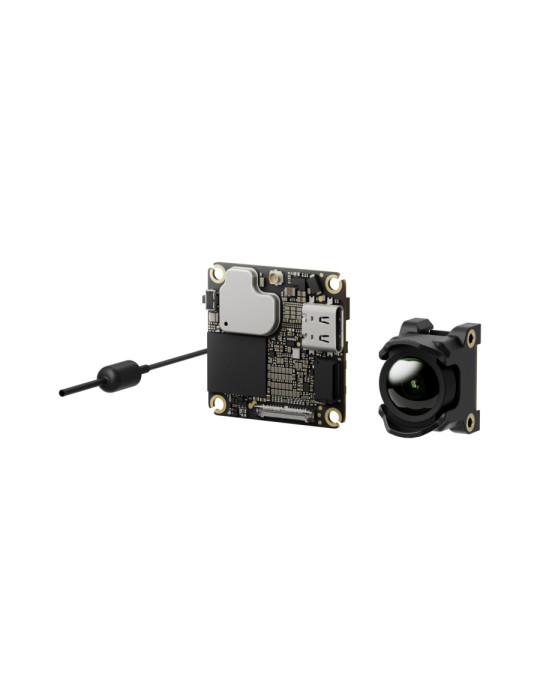

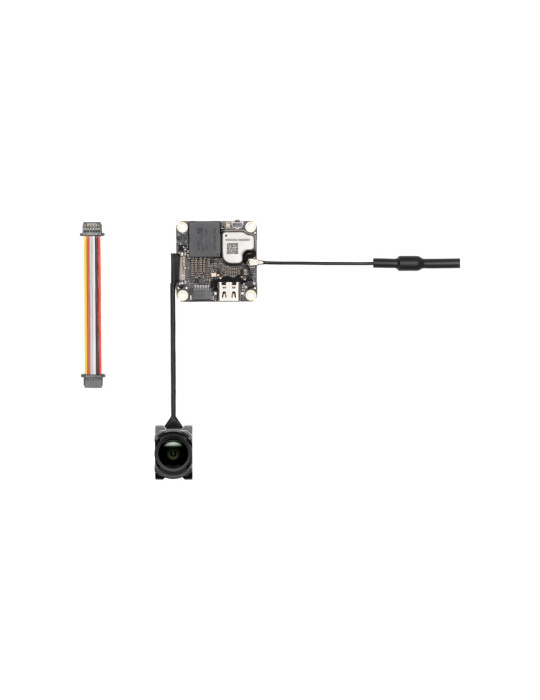

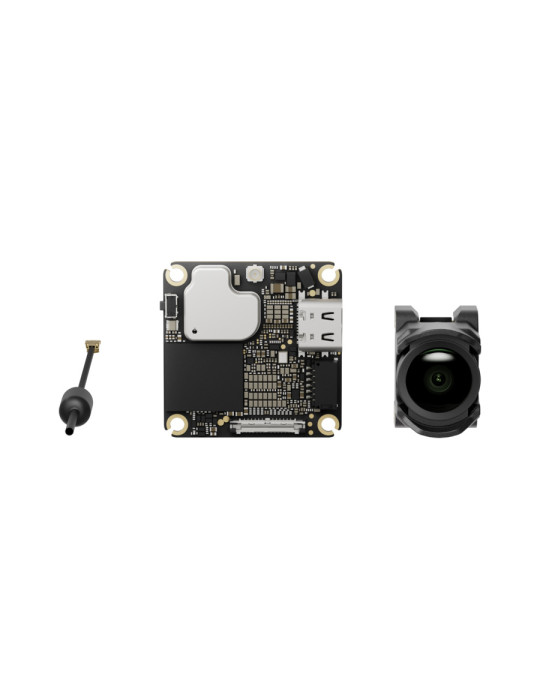

DJI O4 WIDE Air Unit
The DJI O4 Wide Air Unit features a 159° ultra-wide-angle lens, 4K/60fps recording, and 23 GB of storage.
202023
139.00 CHF
Tax included
|
plus shipping costs
Delivered in 1-2 working days
Loyalty Points - You will receive 2.78 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
The DJI O4 Wide Air Unit brings the proven O4 Digital FPV System to a particularly immersive wide-angle version. Its highlight is the ultra-wide field of view of up to 159°, which provides significantly better situational awareness than the standard O4 Air Unit when flying freestyle, racing, or navigating tight spots.
Despite its compact design, the O4 Wide Air Unit delivers powerful digital video transmission with a 1080p/100fps live view, low latency, and reliable range. The 1/2" CMOS sensor records video directly on the Air Unit at up to 4K/60fps. With integrated 23 GB storage, O4 HD transmission, and Canvas Mode, the Wide version is a strong choice for micro FPV builds, cinewhoops, toothpicks, and lightweight freestyle setups.
Features
- Ultra-wide field of view of up to 159° for enhanced visibility and immersion
- Digital DJI O4 FPV video transmission in FHD
- 1080p/100fps live view with H.265 encoding
- Minimum latency from 20 ms with DJI Goggles 3 in Racing Mode
- Range of up to 6 km according to CE standards
- 4K/60fps onboard video recording
- 1/2" CMOS sensor
- 23 GB integrated storage
- No microSD slot required
- Canvas Mode and Betaflight OSD support
- Racing Mode for up to 8 aircraft simultaneously
- Compatible with DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, and DJI Goggles Integra
Specifications:
- Dimensions (L×W×H)
- Air Unite: 30×30×6 mm
- Camera: 20.5×14×20.5 mm
- Coaxial Cable: 50 mm
- 3-in-1 Cable: 50 mm
- Antenna: 80 mm
- Weight: 13.3 g (inc. camera) + approx. 0.75g Antenna
- Operating Frequency:
- 5.725-5.850 GHz
- Transmitter Power (EIRP)
- CE: < 14 dBm
- SRRC: < 30 dBm
- Supported SD Cards: not supported
- Video Format: MP4(H.265)
- Video Resolution:
- 4K (4:3): 3840 x 2880 bei 30/50/60 fps
- 4K (16:9): 3840 x 2160 bei 30/50/60 fps
- 1080P (4:3): 1440 x 1080 bei 30/50/60/100/120 fps
- 1080P (16:9): 1920 x 1080 bei 30/50/60/100/120 fps
- Min. Latency (end-to-end):
- With DJI Goggles 3:
- 1080p/100fps Video Transmission Quality: 20 ms (Racing Mode)
- With DJI Goggles N3:
- 1080p/100fps Video Transmission Quality: 24 ms (Racing Mode)
- With DJI Goggles 2 / Goggles Integra:
- 1080p/100fps Video Transmission Quality: 35 ms.
- With DJI Goggles 3:
- Max Transmission Distance: 6 km (CE), 6 km (SRRC)
- Input Power: 3.7-13.2 V
Comparison
| Feature | DJI O4 Air Unit Pro | DJI O4 Wide Air Unit | DJI O4 Air Unit |
|---|---|---|---|
| Sensor | 1/1.3″ CMOS | 1/2″ CMOS | |
| Max. Video Recording | 4K/120fps | 4K/60fps | |
| Field of View | 155° | 159° | 117.6° |
| Live View | 1080p/100fps | 1080p/100fps | |
| Minimum Latency | from 15 ms | from 20 ms | |
| CE Range | up to 8 km | up to 6 km | |
| Integrated Storage | 4 GB | 23 GB | |
| microSD | supported | not supported | |
| Weight incl. Camera | approx. 32 g | approx. 13.3 g | approx. 8.2 g |
| Air Unit Dimensions | 33.5 × 33.5 × 13 mm | 30 × 30 × 6 mm | |
| Camera Dimensions | 25 × 20 × 23 mm | 20.5 × 14 × 20.5 mm | 13.44 × 12.36 × 16.5 mm |
| Ideal for | 3″ and larger, cinelifters, long range | micro freestyle, cinewhoops, toothpicks | ultralight 2″ builds and racing |
Includes:
- 1 x DJI O4 wide Air Unit
Data sheet
- VTX/Cam Set
