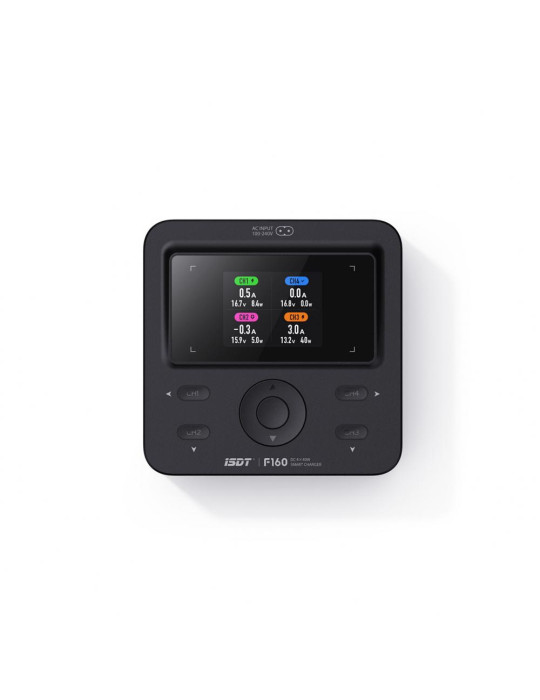

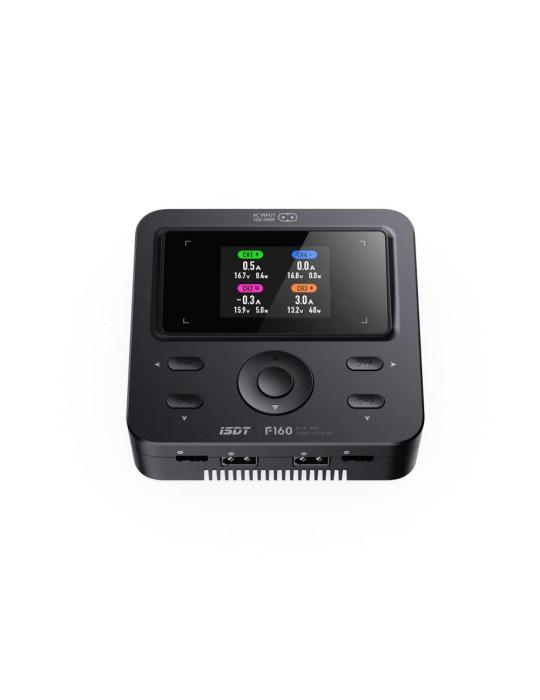

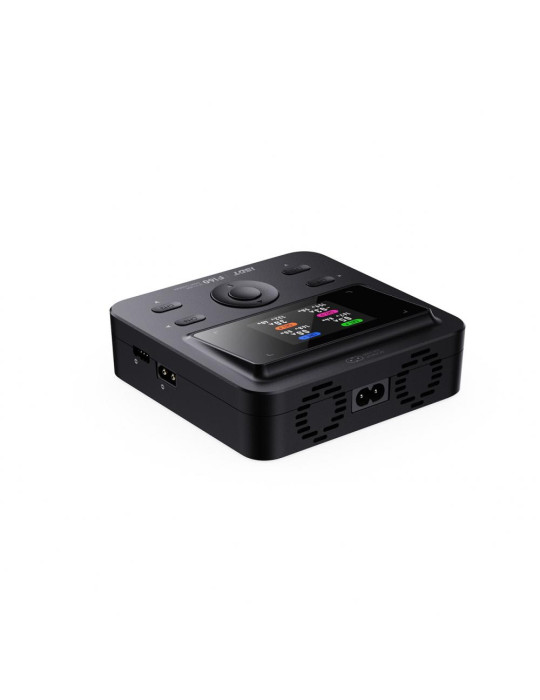

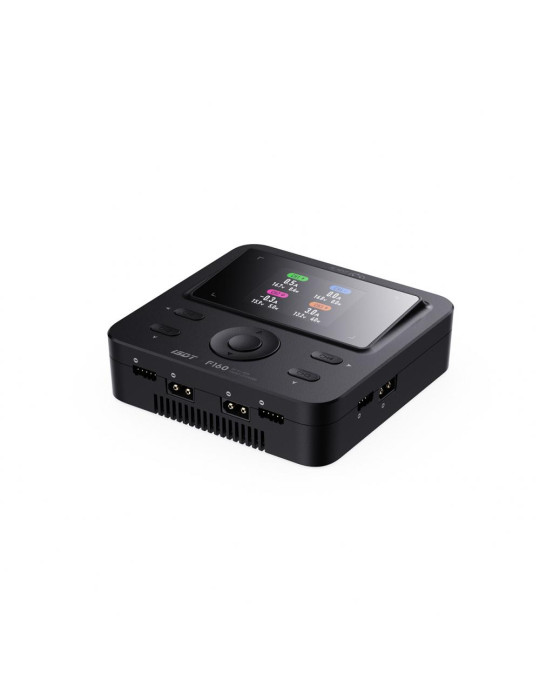

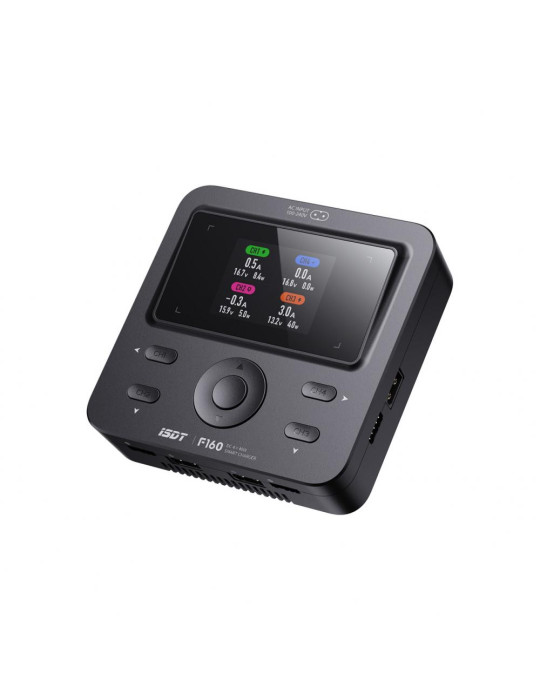

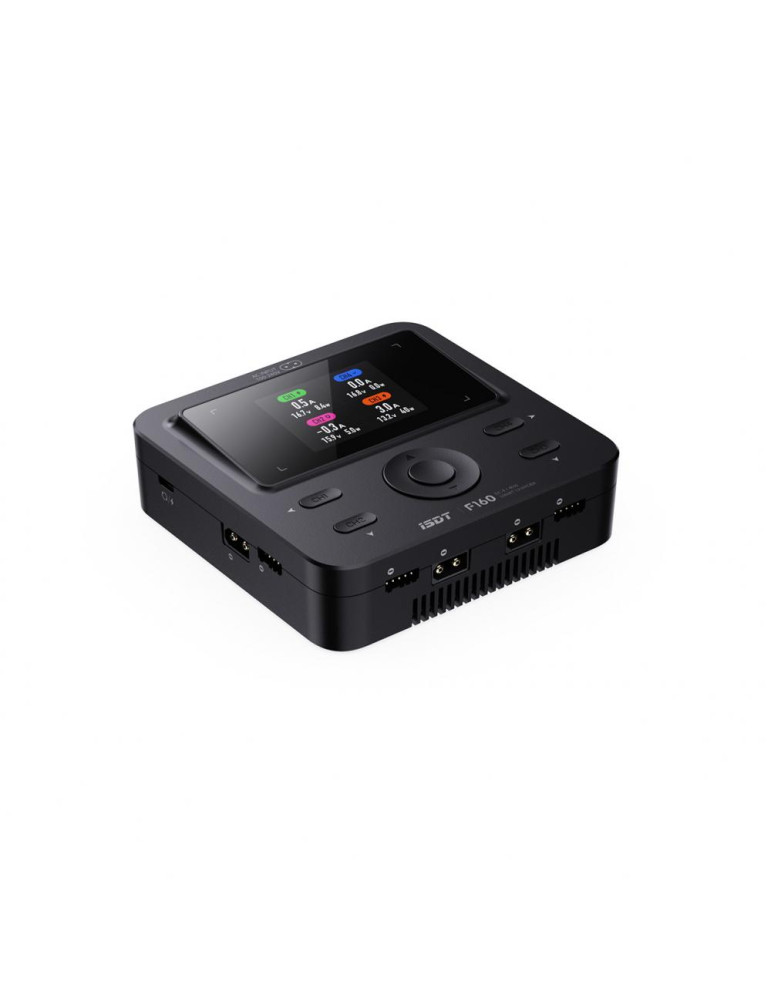

ISDT F160 AC QUAD Smart Charger

The ISDT F160 is a powerful AC charger designed for pilots who need to charge several batteries simultaneously. Its four fully independent channels each provide up to 40 W of charging power, delivering a total output of up to 160 W without requiring the individual channels to share available power.

The charger supports 1S to 4S LiPo, LiHV, ULiHV, Li-ion and LiFe batteries. It can also charge 4- to 12-cell NiMH and NiCd batteries, as well as 2- to 7-cell lead-acid batteries. The charging current can be adjusted from 0.1 to 5.0 A on each channel.

Modern GaN technology enables a compact design while supporting efficient and thermally stable operation. All essential charging information is clearly displayed on the bright 2.4-inch IPS colour screen.

The compatible app can be used to manage the charger and connected batteries. OTA updates also allow the device firmware to be kept up to date. An integrated 5 V/2 A USB output is available when charging channel 1 is not in use.

Features

• Four fully independent charging channels
• Up to 40 W charging power per channel
• Up to 160 W total output
• Simultaneous charging of up to four batteries
• Adjustable charging current from 0.1 to 5.0 A per channel
• Supports LiPo, LiHV, ULiHV, Li-ion and LiFe batteries
• Compatible with NiMH, NiCd and lead-acid batteries
• Balancing current of up to 0.5 A per cell
• Discharge function with up to 5 W per channel
• Bright 2.4-inch IPS colour display
• Modern GaN technology
• App connectivity and OTA updates
• 5 V/2 A USB output

Specifications

• Model: ISDT F160
• Input voltage: 200–240 V AC, 50 Hz, 2.5 A
• Channel 1 output voltage: 5–18.5 V
• Channels 2–4 output voltage: 2.5–18.5 V
• Charging current: 0.1–5.0 A × 4
• Discharge current: 0.1–1.0 A × 4
• Maximum charging power: 40 W × 4
• Maximum discharge power: 5 W × 4
• Balancing current: Maximum 0.5 A per cell
• Lithium batteries: LiPo, LiHV, ULiHV, Li-ion and LiFe, 1S–4S
• NiMH/NiCd batteries: 4–12 cells
• Lead-acid batteries: 2–7 cells
• USB output: 5 V/2 A, available only when channel 1 is not in use
• Operating temperature: 0 to 40 °C
• Storage temperature: −20 to 60 °C
• Dimensions: 130 × 128 × 41 mm
• Weight: 380 g

Shipping Content

• 1 x ISDT F160 AC QUAD Smart Charger
