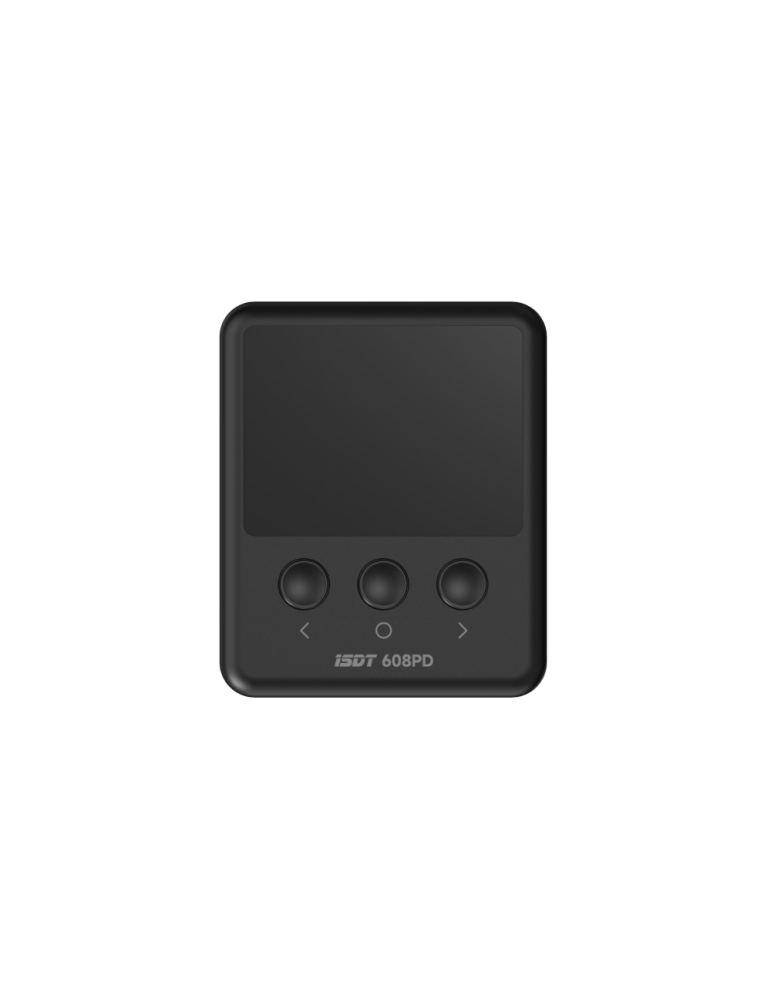

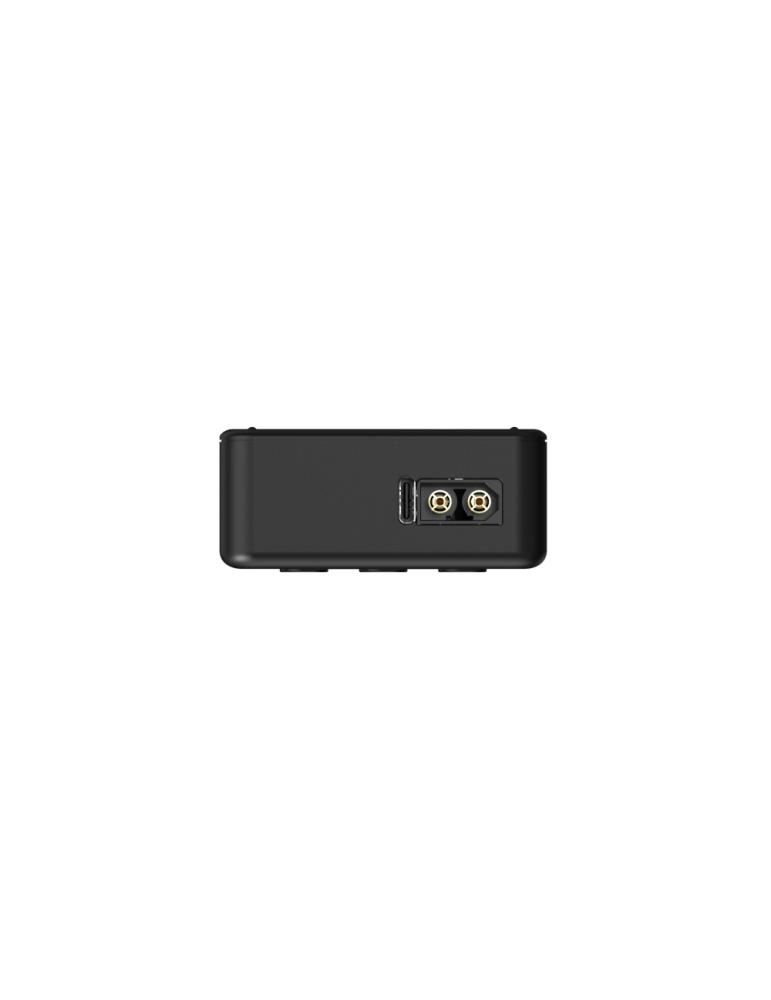

ISDT 608PD Smart Charger

The ISDT 608PD combines the performance of a modern RC battery charger with the flexibility of USB-C Power Delivery. Power can be supplied either via the conventional DC input with an XT60 connector or using a compatible USB-C PD power adapter. This makes the compact charger equally suitable for use in the workshop or at the flying field.

When powered through the DC input, the 608PD delivers a maximum charging power of up to 240 W at 10 A. When using USB-C PD 3.1, up to 140 W or 5 A is available. The charger supports LiPo, LiHV and LiFe batteries with up to six cells, as well as NiMH and lead-acid batteries.

The USB-C port operates bidirectionally: it can be used not only to power the charger but also to provide an output of up to 100 W. This allows a connected RC battery to be used as a powerful energy source for compatible USB-C devices, for example.

In addition to charging, the ISDT 608PD supports battery checking and maintenance functions. The individual cell voltages and balancing status can be monitored via the balance connector. A balancing current of up to 0.8 A per cell ensures effective voltage equalisation within the battery pack.

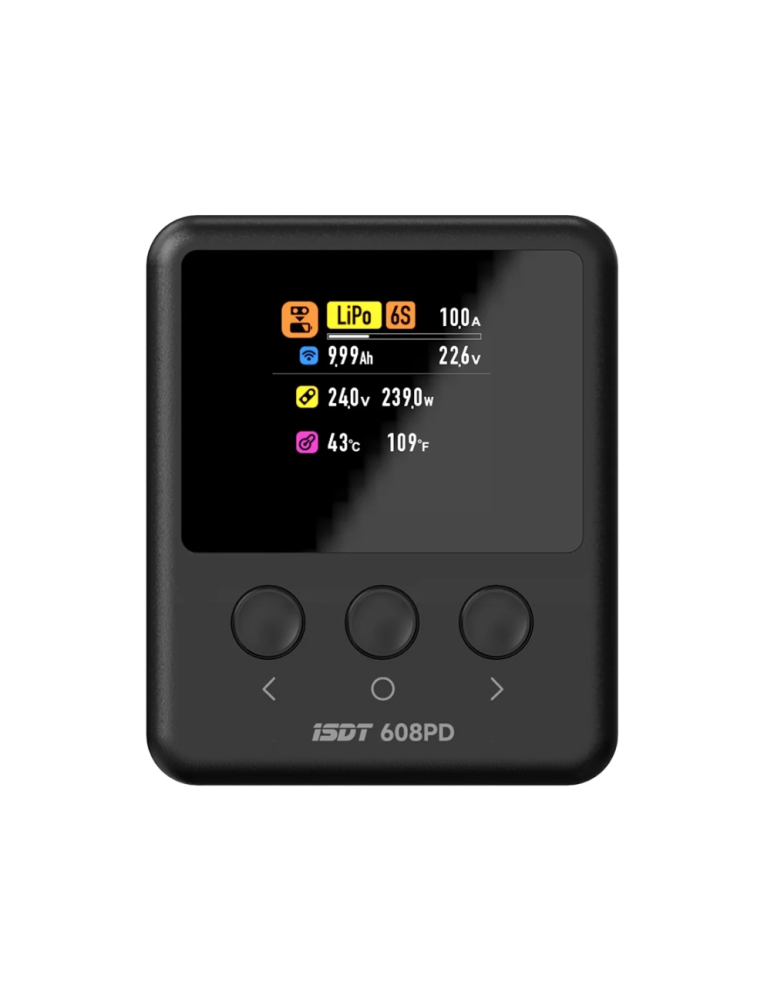

The bright IPS colour display presents all essential charging information clearly. Reliable cooling is provided by a temperature-controlled fan system with lateral airflow. Settings can be managed and OTA firmware updates performed using the ISD-Link app.

Features

• Up to 240 W charging power via the DC input
• Charging current of up to 10 A
• USB-C Power Delivery 3.1
• Up to 140 W input power via USB-C
• Bidirectional USB-C port
• Up to 100 W USB-C output power

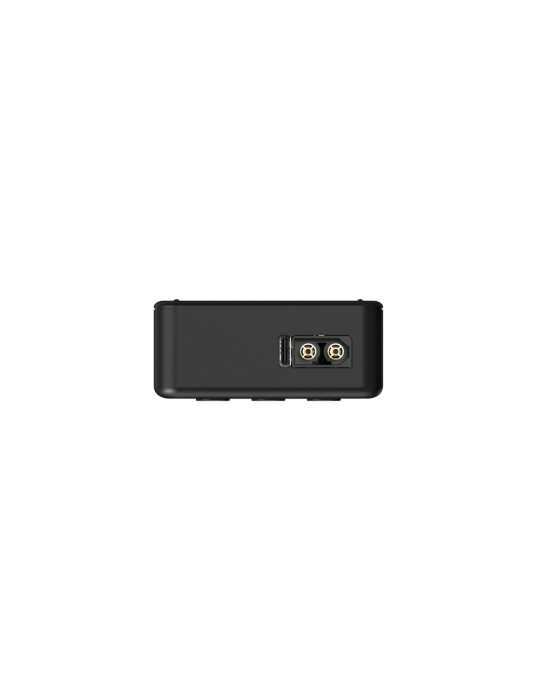

• Choice of power supply via XT60 or USB-C
• Supports lithium batteries with up to 6S
• Compatible with LiPo, LiHV and LiFe batteries
• Supports NiMH and lead-acid batteries
• Balancing current of up to 0.8 A per cell
• Bright IPS colour display
• Temperature-controlled fan cooling
• App control and OTA firmware updates
• Compact dimensions and a weight of only approximately 85 g

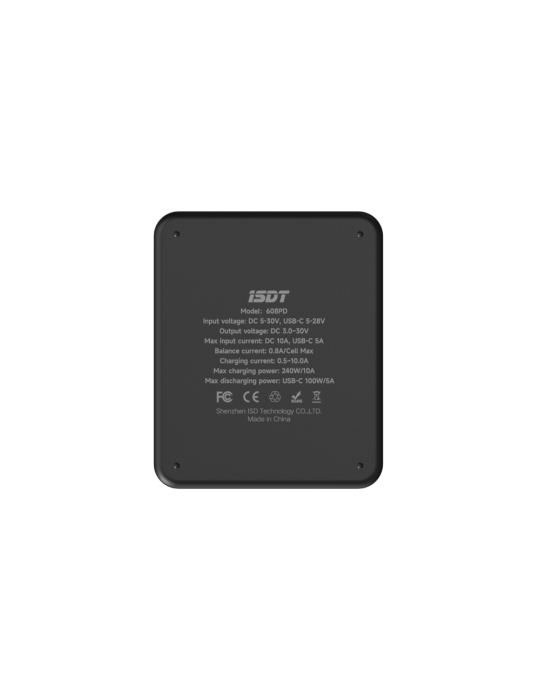

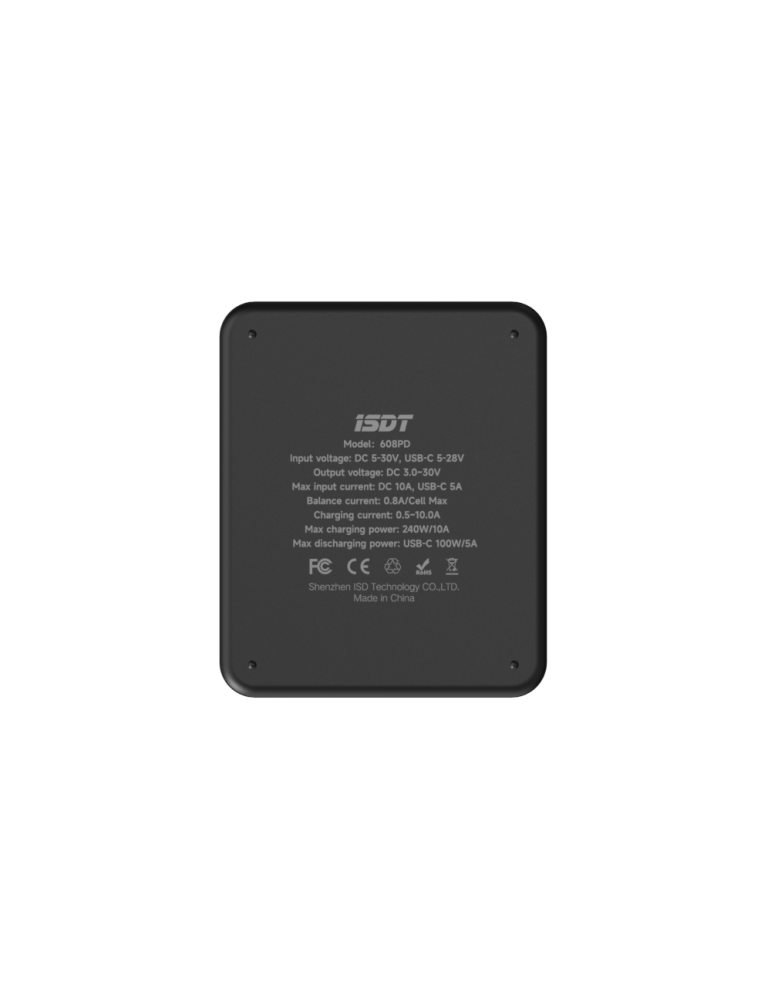

Specifications

• Model: ISDT 608PD
• DC input voltage: 5–30 V
• USB-C input voltage: 5–28 V
• Maximum DC input current: 10 A
• Maximum USB-C input current: 5 A
• Output voltage: 3.0–30 V
• Charging current: 0.5–10.0 A
• Maximum charging power via DC: 240 W / 10 A
• Maximum input power via USB-C: 140 W / 5 A
• Maximum USB-C output power: 100 W / 5 A
• USB-C standard: Power Delivery 3.1
• Lithium batteries: LiFe, LiPo and LiHV, 1S–6S
• Supported LiHV charge termination voltage: 4.35–4.50 V
• NiMH batteries: 1–16 cells
• Lead-acid batteries: 1–12 cells
• Balancing current: Maximum 0.8 A per cell
• Abnormal battery voltage alarm: Supported
• Incorrect cell-count alarm: Supported
• Operating temperature: 0 to 40 °C
• Storage temperature: −20 to 60 °C
• Dimensions: 72.5 × 60 × 26.6 mm
• Weight: Approximately 85 g

Shipping Content

• 1 x ISDT 608PD Smart Charger
