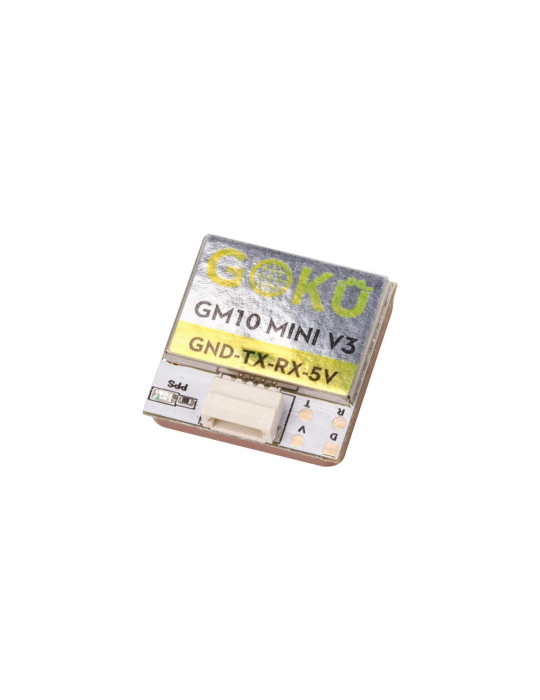

Flywoo GPS GM10 Mini V3

The Flywoo GOKU GM10 Mini V3 is a powerful yet compact GPS module built for serious FPV pilots. Featuring the M10050 GNSS chipset, it supports GPS, GLONASS, Galileo, BeiDou, and more. It delivers fast, stable satellite locks and improved positioning by accessing up to 32 GNSS constellations.

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

BETAFLIGHT: Use firmware above 4.3.0

INAV: Use the latest 6.0.0 configurator, the latest firmware above 5.0.0

GPS Specifications

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Channel: 72
• Baud Rate: 4800bps to 921600bps, Default 115200bps
• Output Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output Frequency: 1Hz-10Hz，Default 10Hz
• Speed Accuracy: 0.05 m/s
• Horizontal position accuracy: 2D ACC1.5m(Weather)
• Timing Accuracy: 30 ns
• Receiving Sensitivity
  • Trace: –162 dBm
  • Capture: –160 dBm
• Dynamic Characteristics :
  • Max Height: 50000m
  • Max Speed: 500m/s
• Max Acceleration: 4G

Specifications

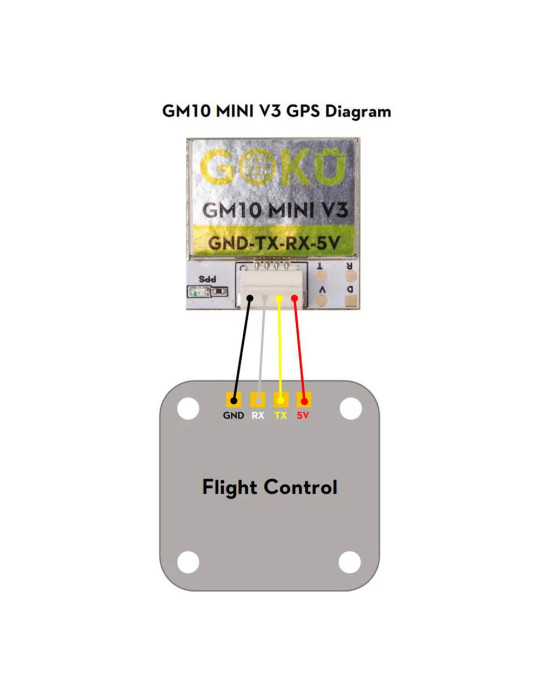

• Output Connector: SH1.0-4P
• Communication Protocol: UART
• Input voltage range: 5V

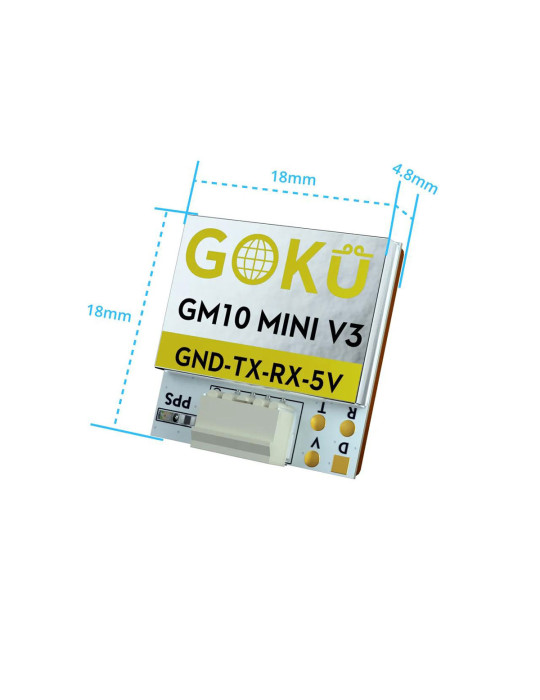

• Dimensions: L18 x W18 x H4.8 mm

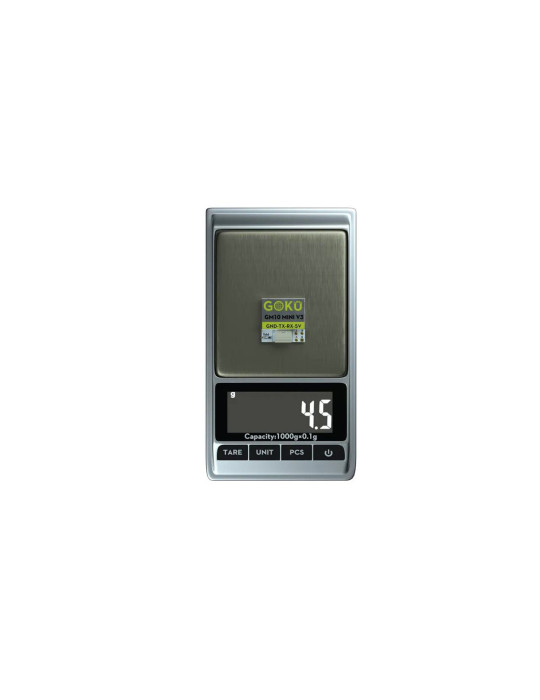

• Weight: 4.7g
• Indicator: PPS LED (LED not bright when GPS not fixed, flashing when fixed)

 Shipping Contents

• 1 x Flywoo GPS GM10 Mini V3
• 1 x 100mm Cable
• 1 x Copper Foil
