BetaFPV Matrix 3in1 AIO 1S Brushless G4 FC 12A Bluejay ESC (for HD FPV)

AIO with 12A Bluejay ESC, G4 FC, 2.4 GHz ERLS RX, and HD-Port.

BetaFPV
143006
44.90 CHF
Tax included | plus shipping costs Delivered in 1-2 working days
Loyalty Points - You will receive 0.90 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
Close
HomeBuild partsAIOElectronics
Description

The Matrix 1S 3-in-1 AIO is suitable for both beginners and FPV enthusiasts. Its robust 1 mm thick PCB ensures durability during intensive training sessions, while integrated motor connectors simplify installation and eliminate the need for soldering. Featuring the powerful G473 processor, it delivers 55% higher performance compared to the F411, allowing for more precise control in racing and freestyle applications.



The 3-in-1 version of the Matrix series is specifically designed for digital whoops and allows for easy plug and play of the DJI O4 Air Unit.



Features

  • Robust and Durable: The 1 mm thick PCB ensures high durability during training sessions.
  • Whoop-ready installation: The 3-in-1 comes equipped with motor connectors and features HD-Port for digital FPV System.
  • Enhanced Performance: The G473 processor delivers 55% more computing power than the F411, enabling fast responses for racing and freestyle.
  • Integrated ELRS RX: Saves space and weight, making installation and adjustments easier.
  • 16MB Blackbox Storage: Provides comprehensive flight data recording and analysis to optimize performance and efficiently diagnose issues.



Specifications FC

  • CPU: STM32G473CEU6 (168MHz)
  • Six-Axis: BMI270
  • Mounting-Size: 25.5mm x 25.mm
  • Firmware version: Betaflight_4.5.2_BETAFPVG473_V2
  • OSD: -
  • Receiver: 2.4GHz ELRS
  • Connecter: BT2.0
  • Weight: 3.8g



Specifications ESC

  • D-shot300, D-shot600
  • Input voltage: 1S Lipo
  • Continue current: 12A (18A Peak)
  • Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay hardware



Useful Links

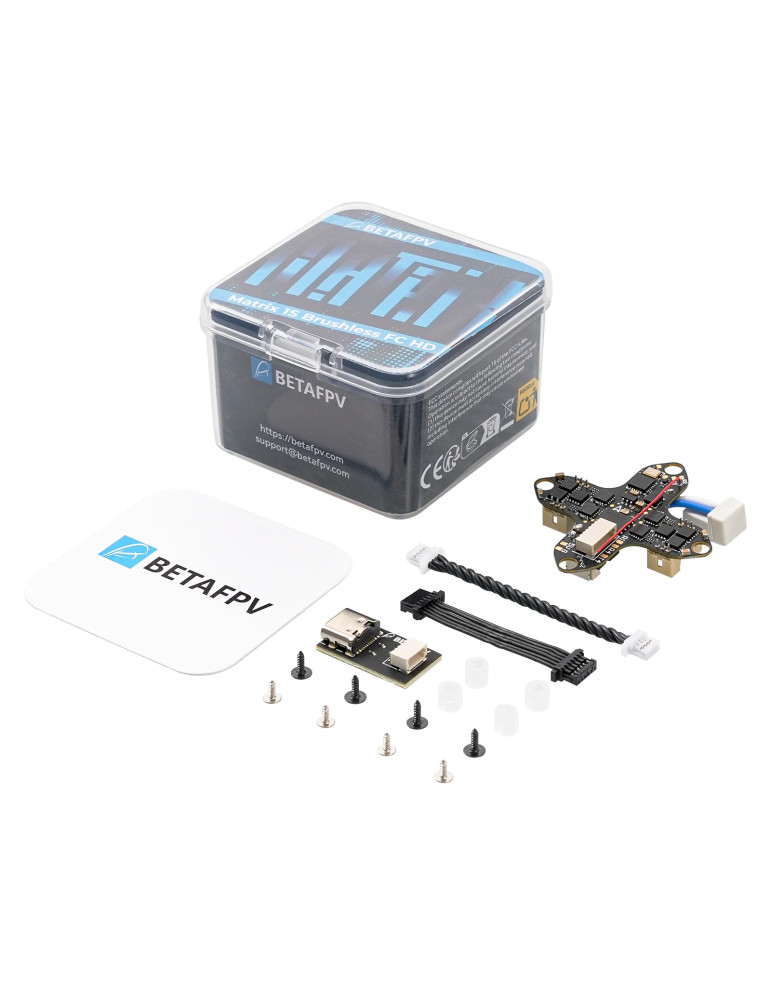

Delivery Content

  • 1 x BetaFPV Matrix 3in1 AIO
  • 4 x USB-C to SH1.0 Adapter
  • 1 x SH1.0-4Pin Adapter Cable
  • 1 x SH1.0-6Pin Adapter Cable
  • 4 x M1.2*4 Self-tapping Screws
  • 4 x M1.4*5 Self-tapping Screws
  • 4 x Anti-vibration rubber dampers
Product Details
BetaFPV
143006

Data sheet

  • 3.6g
  • BMI270
  • Yes
  • 12A
  • 25.5x25.5mm
  • 1S
  • Yes
  • Yes
  • 4
  • Betaflight
  • No
  • 16MB
  • Brushless
  • STM32G473
  • Dshot300, Dshot600
  • 4-in-1
