Flywoo GPS GM10 Nano V3.1

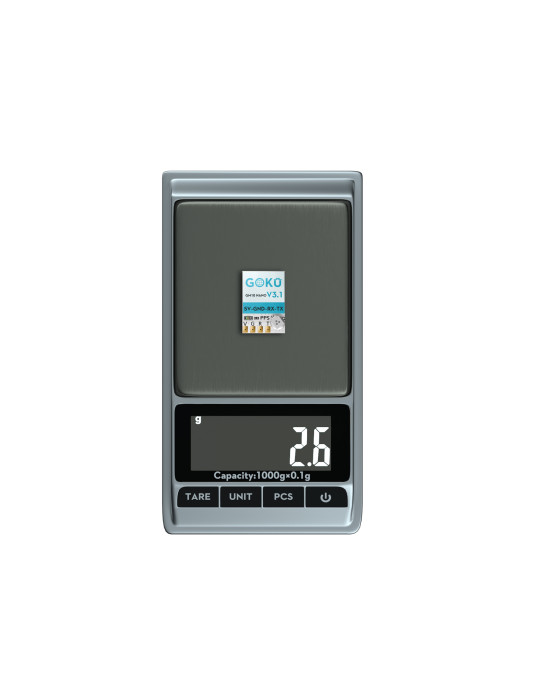

The Flywoo GOKU GM10 Nano V3.1 is an extremely compact and lightweight GPS module for FPV drones where every gram matters. Weighing only 2.5g and measuring 12 × 16 × 4.5mm, the module is especially suitable for micro, toothpick, and lightweight long-range builds.

The V3.1 version uses the M10050 GNSS chipset and supports multiple satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS. This provides stable positioning and fast GPS data updates. Thanks to the new plug-and-play connector, installation is particularly simple and requires no soldering.

Note: The chip of GOKU GM10 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

BETAFLIGHT: Use firmware above 4.3.0

INAV: Use the latest 6.0.0 configurator, the latest firmware above 5.0.0

GPS Specifications

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Channel: 72
• Baud Rate: 4800bps to 921600bps, Default 115200bps
• Output Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output Frequency: 1Hz-10Hz，Default 10Hz
• Receiving Sensitivity
  • Trace: –162 dBm
  • Capture: –160 dBm
• Dynamic Characteristics :
  • Max Height: 50000m
  • Max Speed: 500m/s
• Max Acceleration: 4G

Specifications

• Output Connector: SH1.0-4P
• Communication Protocol: UART
• Input voltage range: 3.3-5V
• Dimensions: L12 x W68 x H4.5 mm
• Weight: 2.5g
• Indicator: PPS LED (LED not bright when GPS not fixed, flashing when fixed)

 Shipping Contents

• 1 x Flywoo GPS GM10 Nano V3.1
• 1 x 100mm Cable
• 1 x Copper Foil
