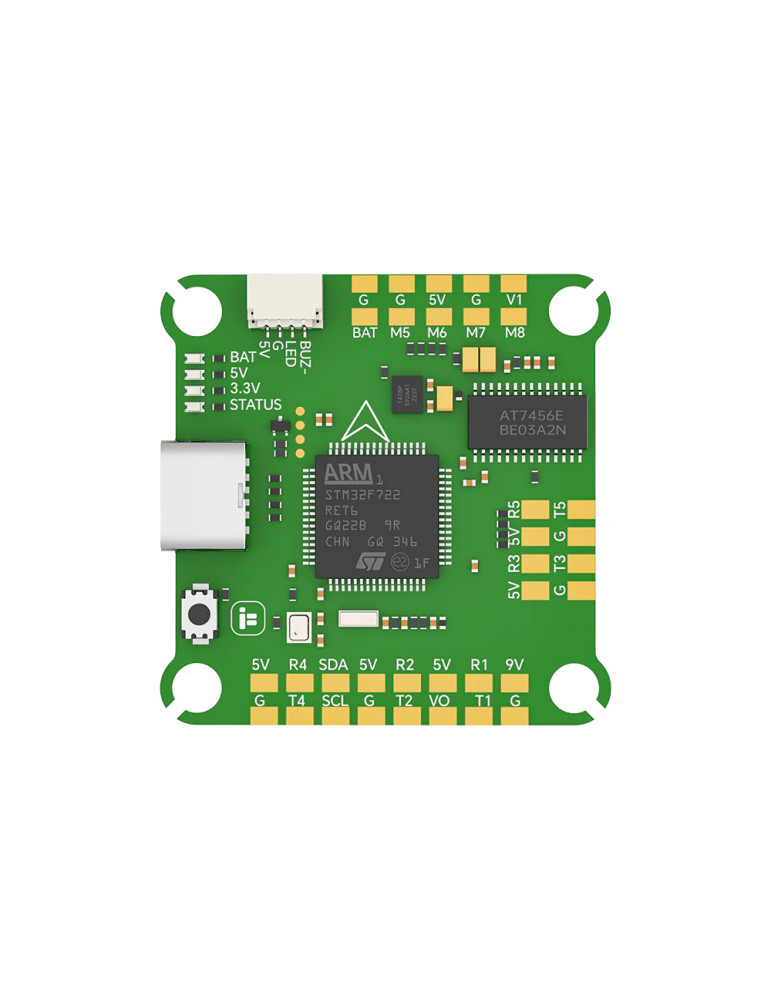

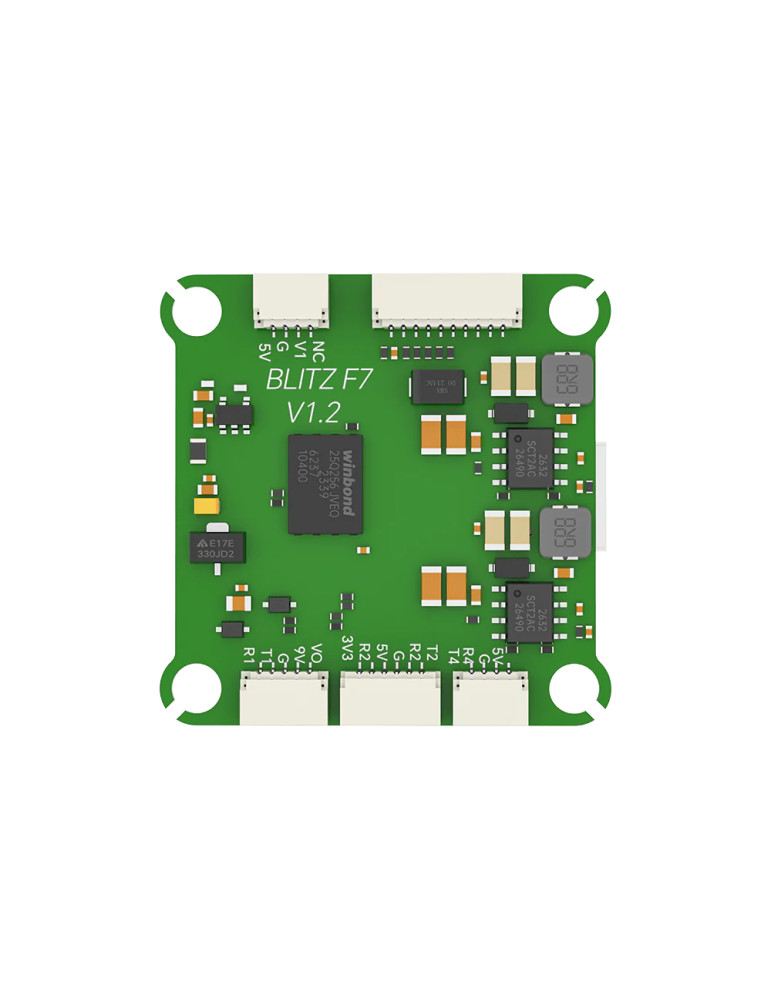

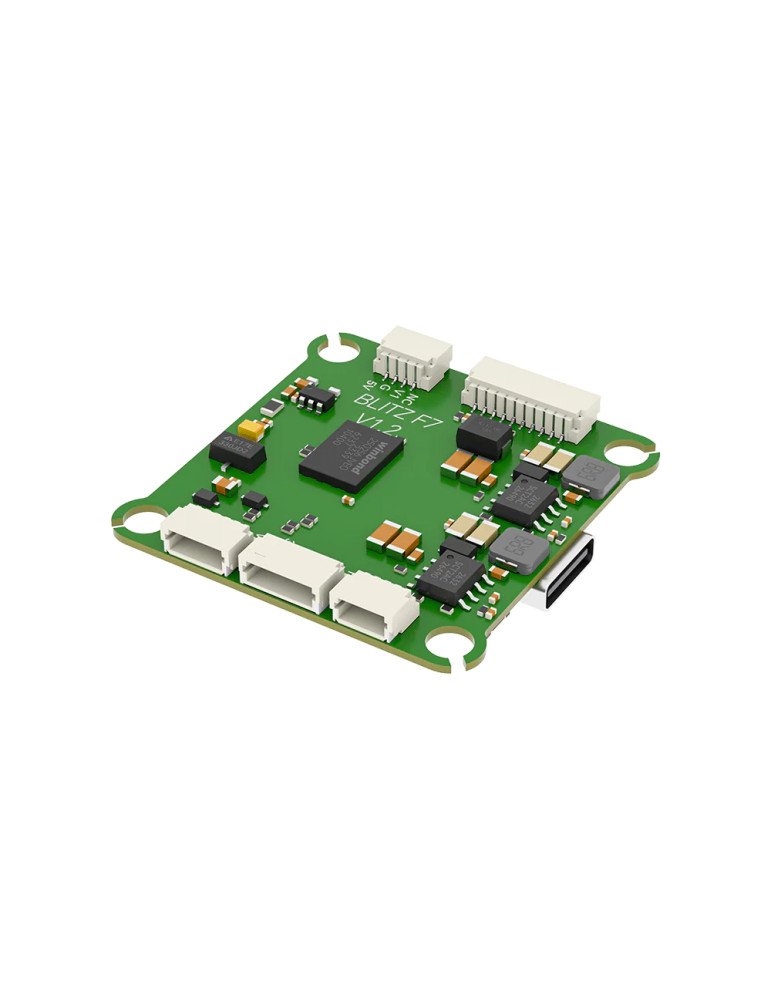

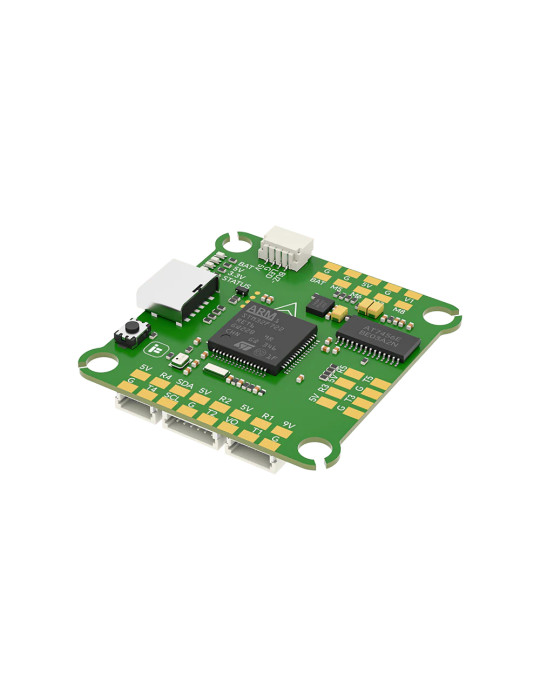

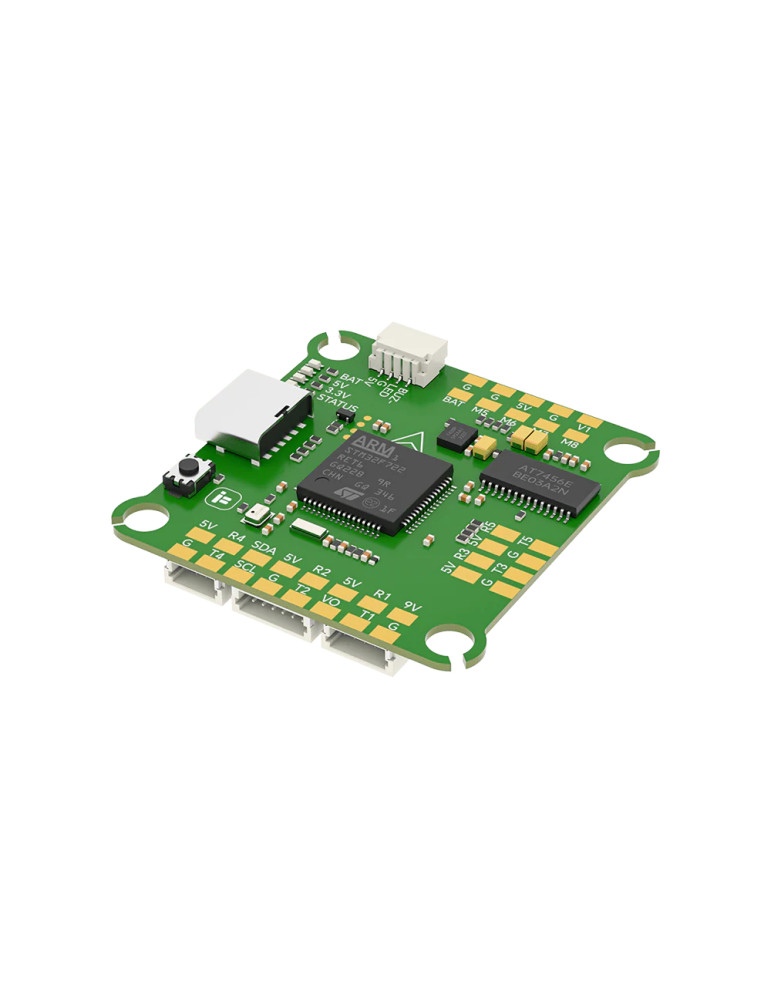

iFlight BLITZ F7 V1.2 Flight Controller

The iFlight BLITZ F7 V1.2 Flight Controller is a powerful foundation for modern FPV builds, whether for freestyle, racing, or long range. With a fast STM32 F722 processor, clean layout, and improved circuit design, this FC delivers reliable performance and low electrical noise.

Thanks to its 30.5 × 30.5 mm mounting pattern, the BLITZ F7 fits perfectly into many 5-inch and larger FPV frames. The integrated DJI HD VTX connector enables a simple plug-and-play connection with compatible HD systems, with no additional soldering required at the VTX port. An LC filter is also integrated to ensure clean voltage and a more stable video signal.

With 6 UARTs, 32 MB Blackbox flash, a barometer, OSD chip, and 5V and 9V BECs, the BLITZ F7 V1.2 offers everything needed for a clean, powerful FPV copter build.

Specifications

• MCU: STM32 F722
• Gyro: ICM42688
• Barometer: DPS310
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)

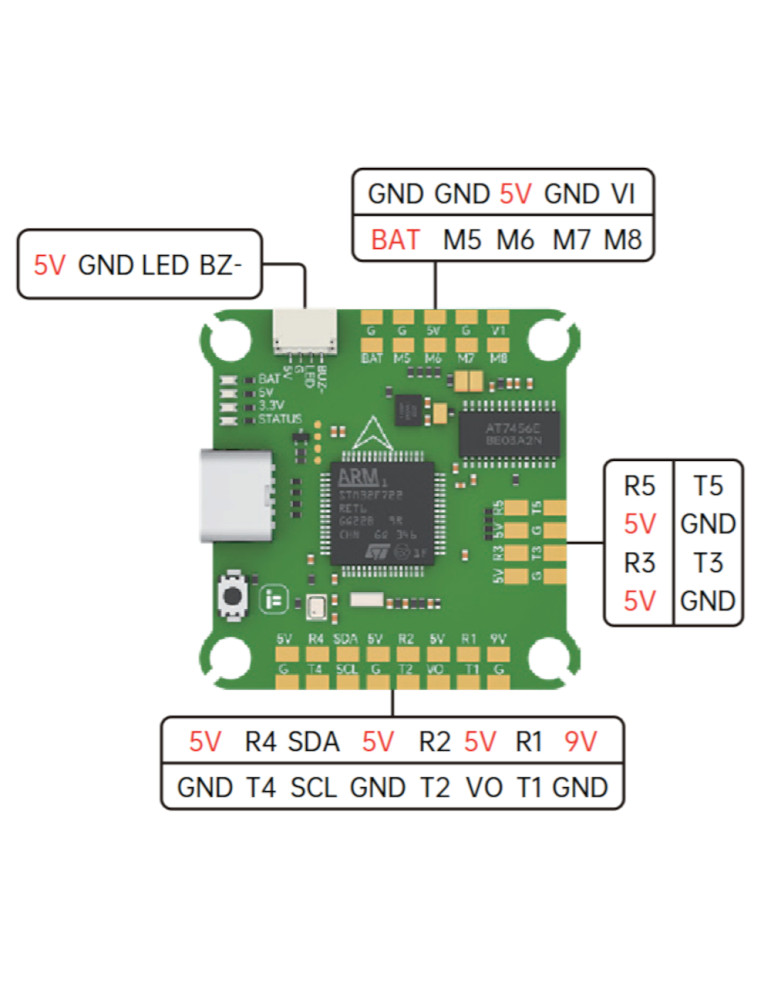

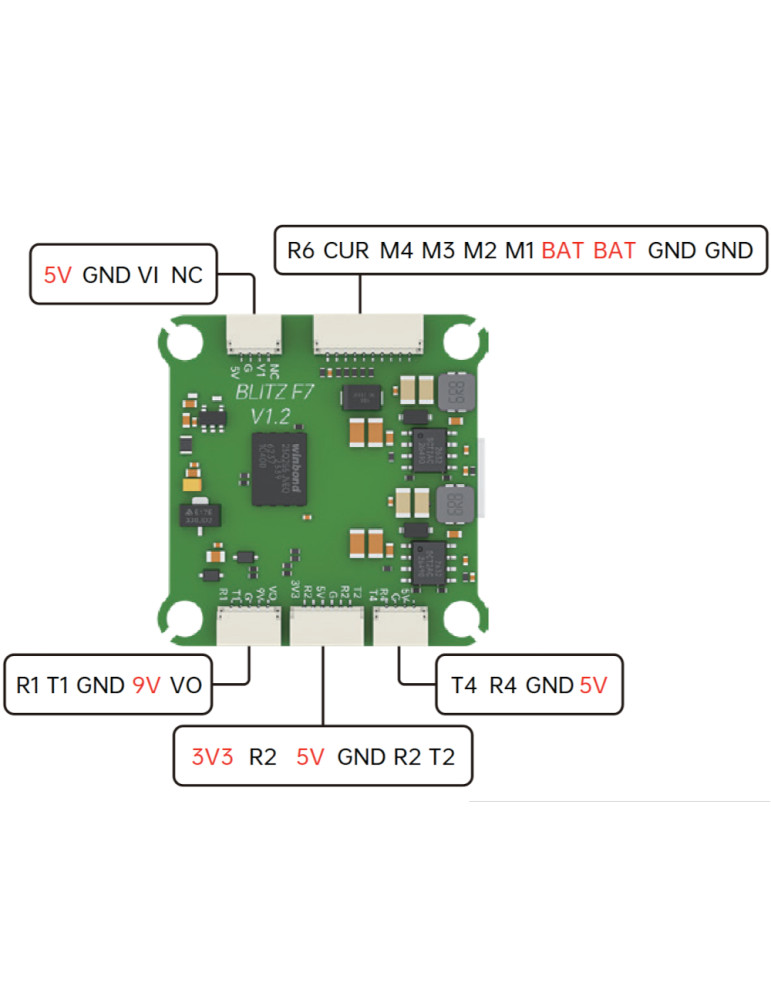

• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio: IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722

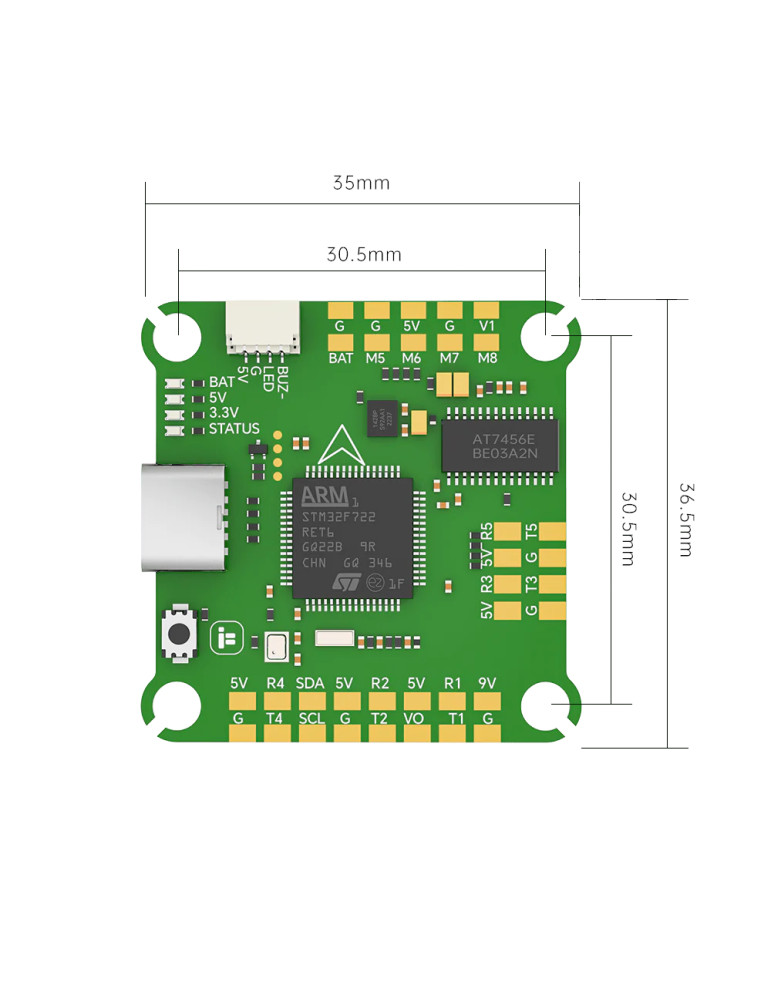

• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• BEC: 5V 2.5A / 9V 2A
• Dimensions: 36.5*35 mm
• Weight: 7.8g

Package Contents

• 1 x BLITZ F7 V1.2 Flight Controller
• 1 x FC connectors
• 1 x silicon grommets
