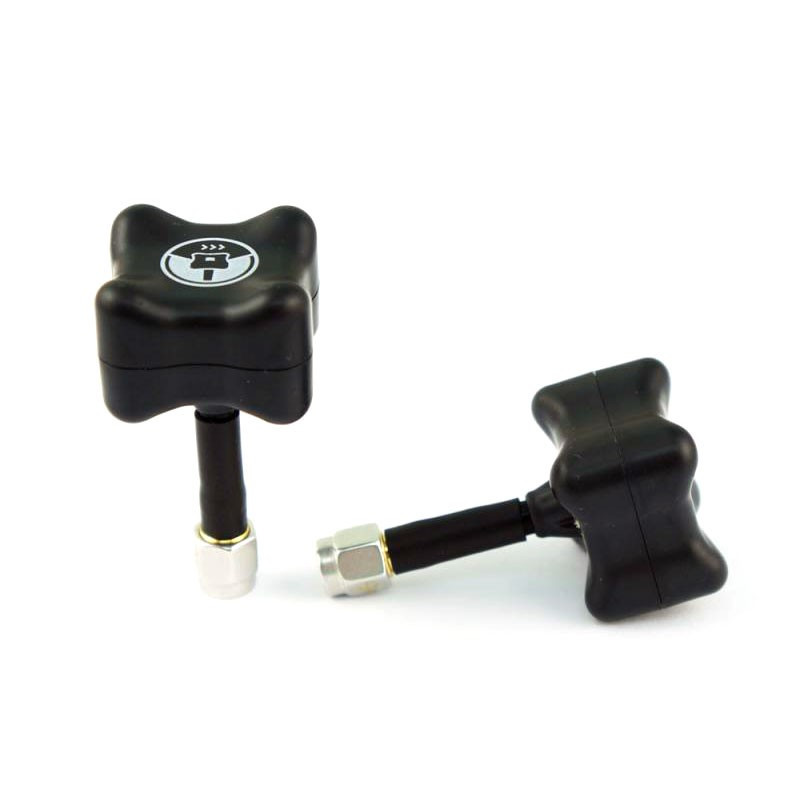

TBS TRIUMPH-STUB RP-SMA Antenna (2PCS)

While other antennas rely on copycat designs the TBS Triumph takes a giant leap in 5.8 GHz antenna technology. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.

Team Black Sheeps quest for the cleanest video signal and best range possible, we have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.

After extensive design and testing, TBS focused on making  sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from Pro pilots, TBS decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection TBS created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects :)

Features

• Manufactured and tested to highest standards
• Best in class range and signal quality
• Extra compact and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

Specifications

• Frequency range: 5500-6000 MHz
• Gain: 1.26 dBiC
• Axial Ratio: 0.74
• Cable: RG402 (heavy duty)
• Weight: 8.5-9.8g

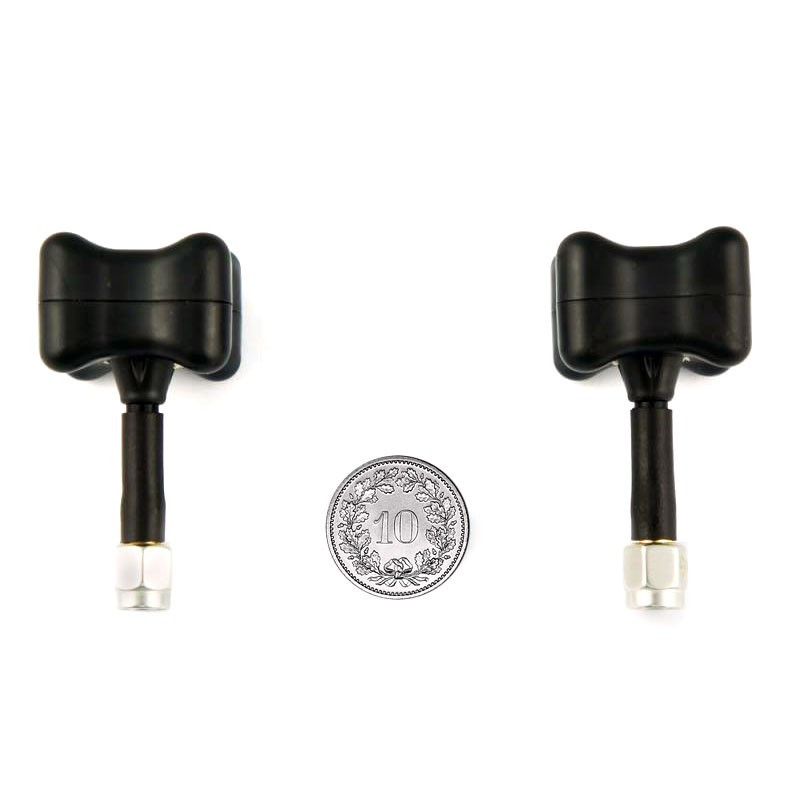

• Height: 50mm, 1.97 in

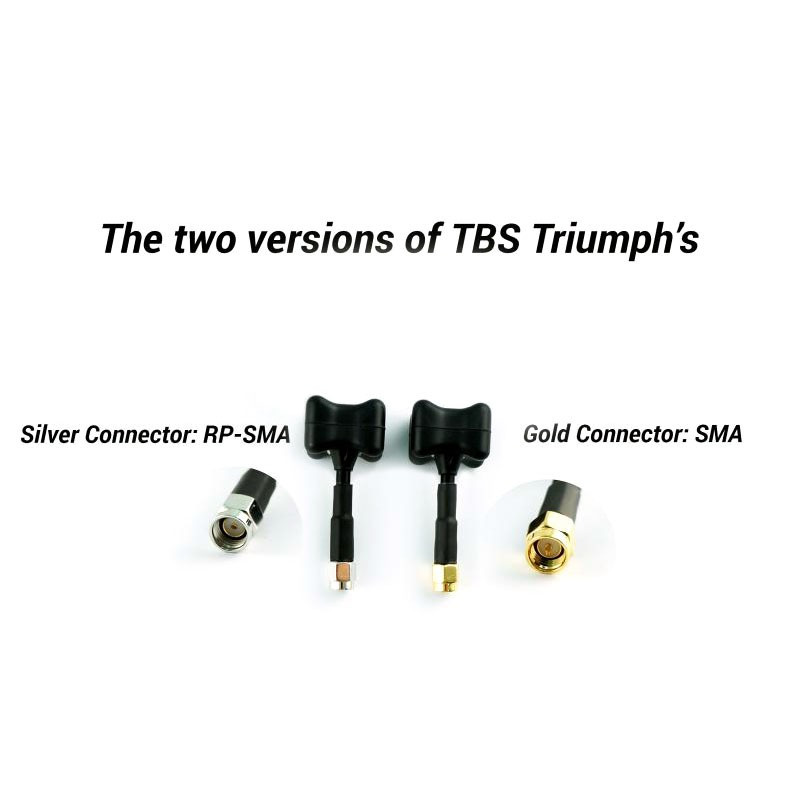

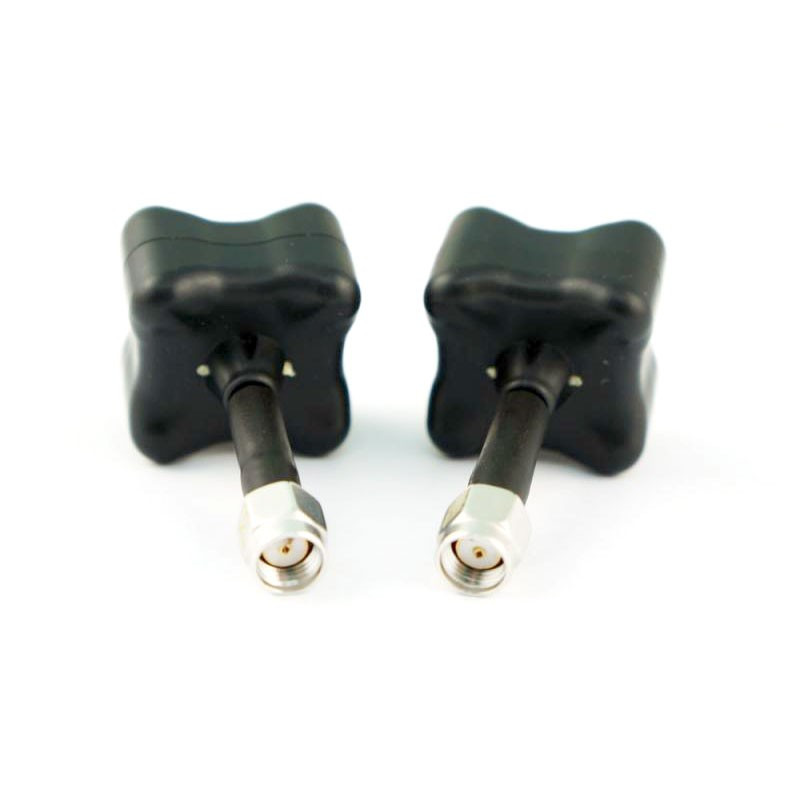

• Connector: RP-SMA

Shipping Contents

• 2x TBS Triumph-STUB antenna RP-SMA
