The iFlight Borg F7 Mini Flight Controller brings powerful F7 performance, clean power delivery, and flexible connectivity options in a compact 20 × 20 format.

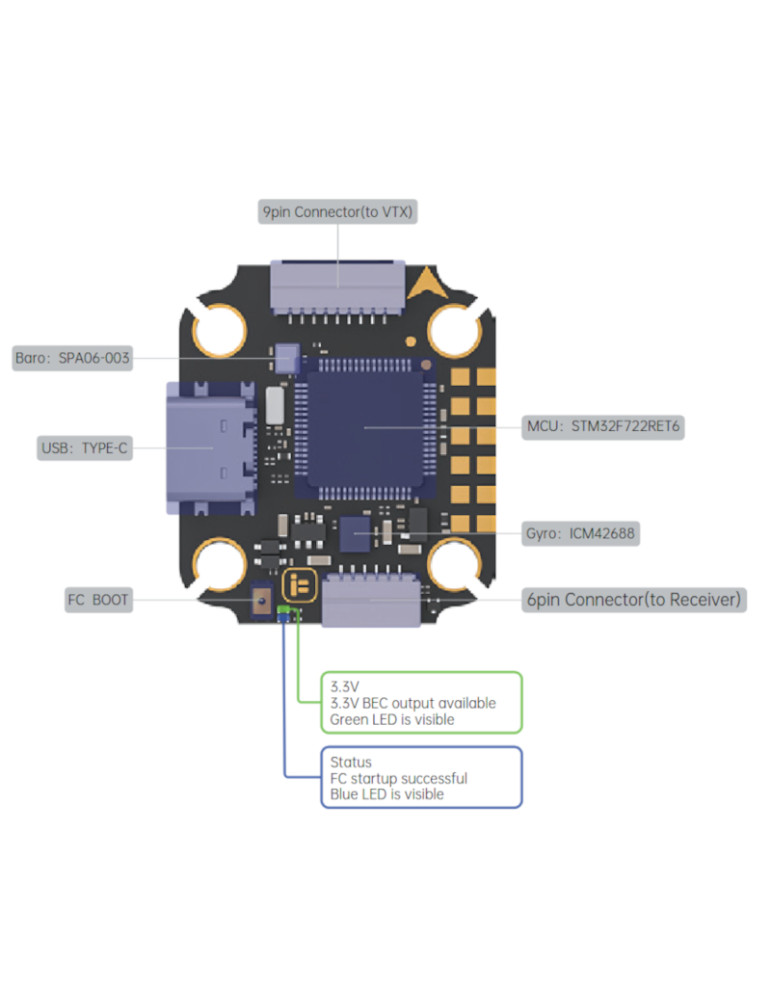

The iFlight Borg F7 Mini Flight Controller is a compact and powerful flight controller for FPV racing and freestyle drones. With its STM32F722 processor, ICM42688 gyro, and 32 MB Blackbox flash memory, it provides a strong foundation for precise tuning, reliable flight performance, and detailed post-flight data analysis.

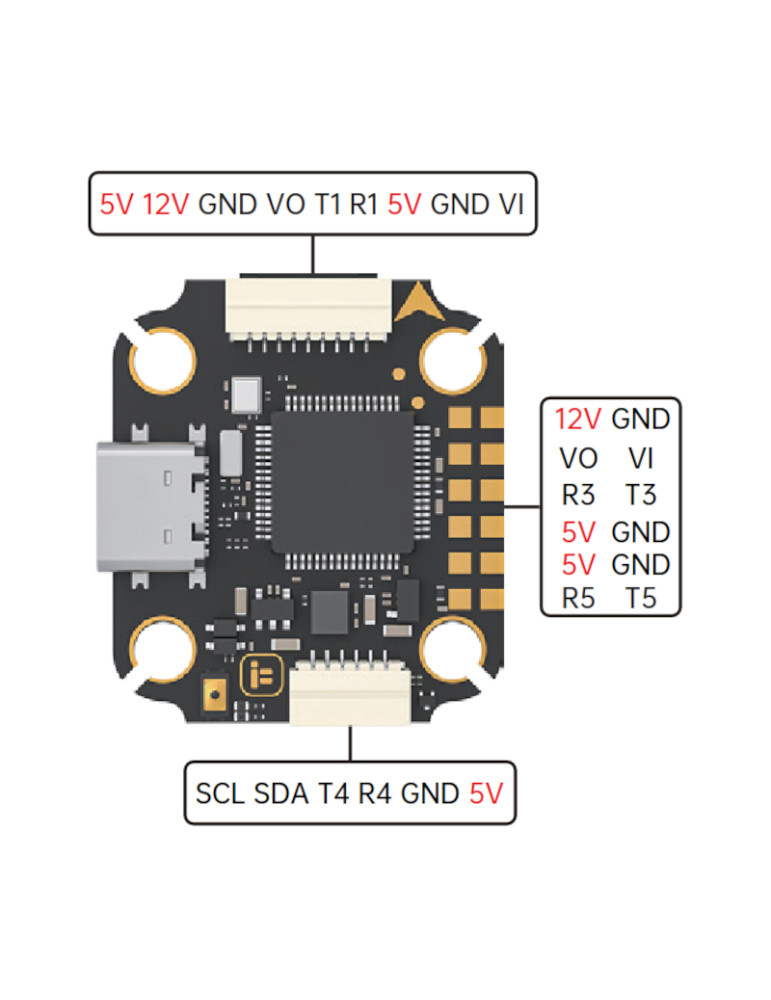

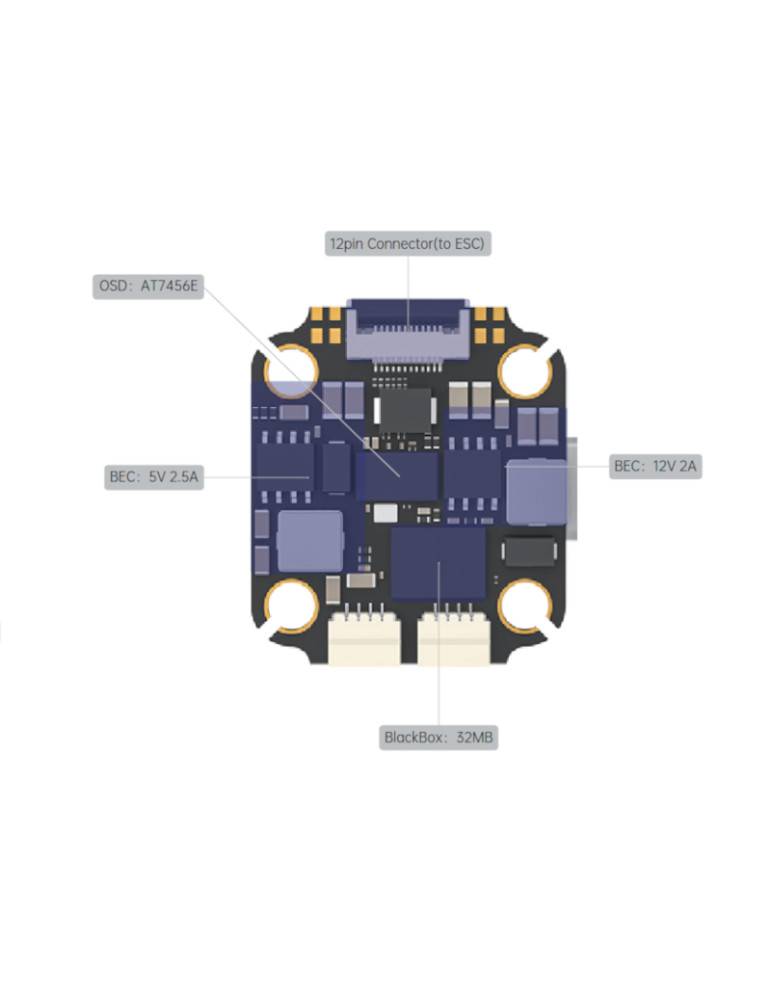

Thanks to 4–8S LiHV support, the Borg F7 Mini is suitable for a wide range of high-performance setups. The integrated 5V/2.5A and 12V/2A BECs provide stable power for your electronics, while the 12V VTX switch allows you to turn your video transmitter on and off via remote control. With 6 UARTs, support for DJI MSP, SmartAudio, IRC Tramp, and HDZero, as well as LED and beeper connections, this flight controller is highly versatile and ready for both analog and digital FPV systems.

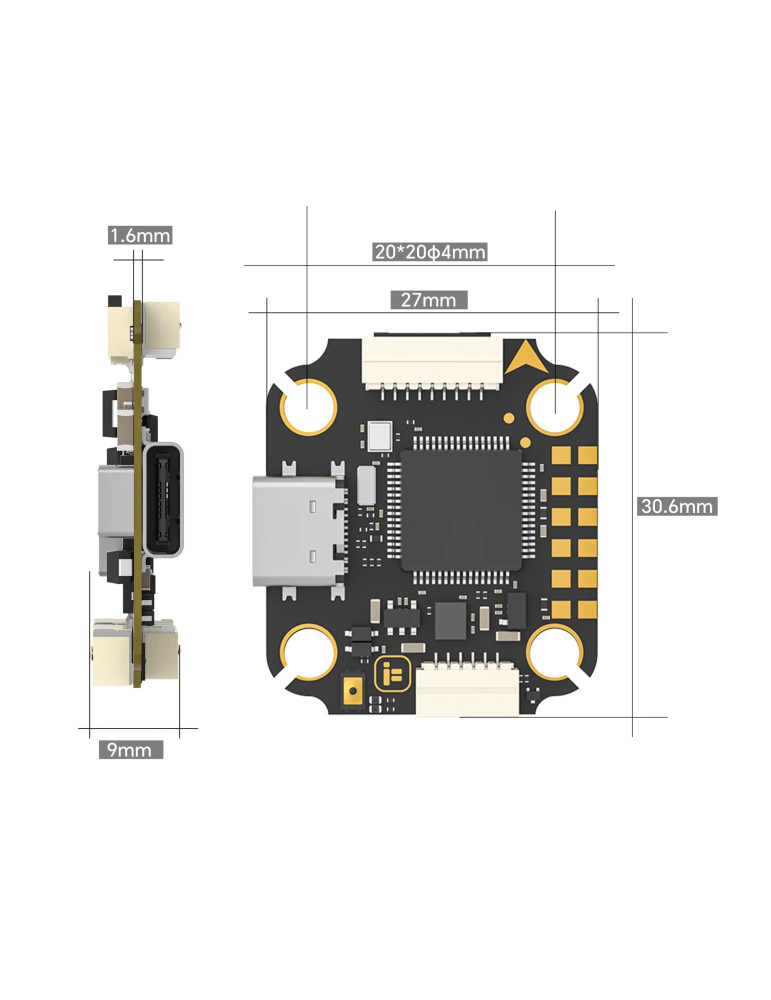

The 20 × 20 mm mounting pattern and low weight of only approx. 6.8 g make it particularly appealing for compact, lightweight, and high-performance FPV builds.
Specifications
*VTX_ON_OFF Mode Command
resource PINIO 1 PC0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Package Contents
Data sheet
