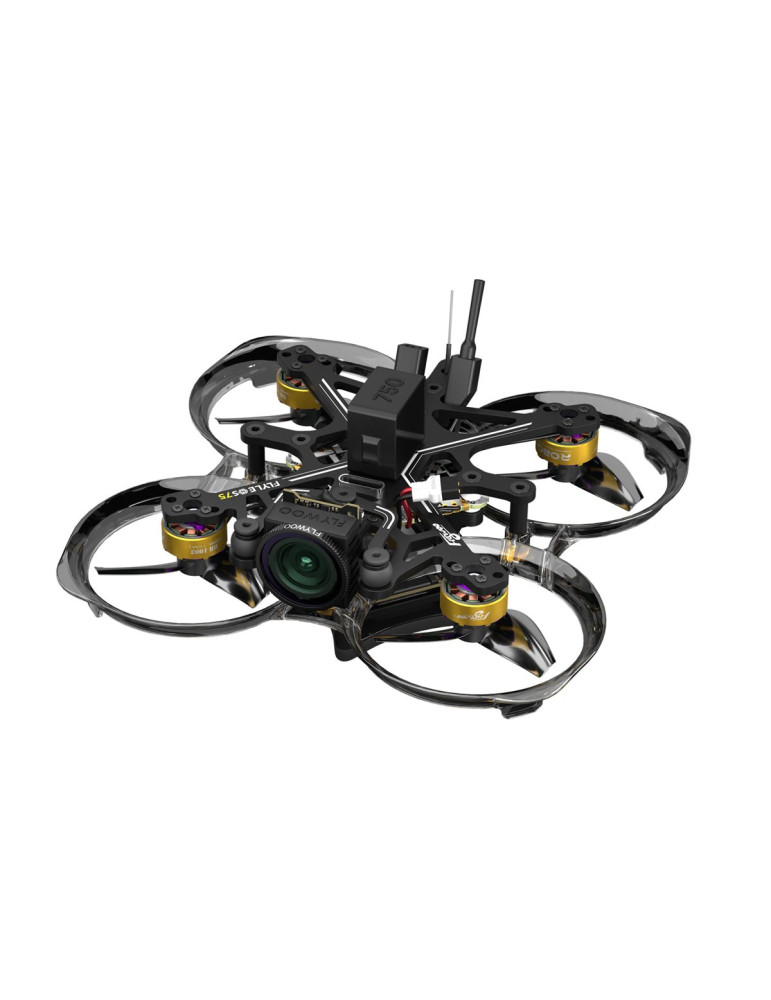

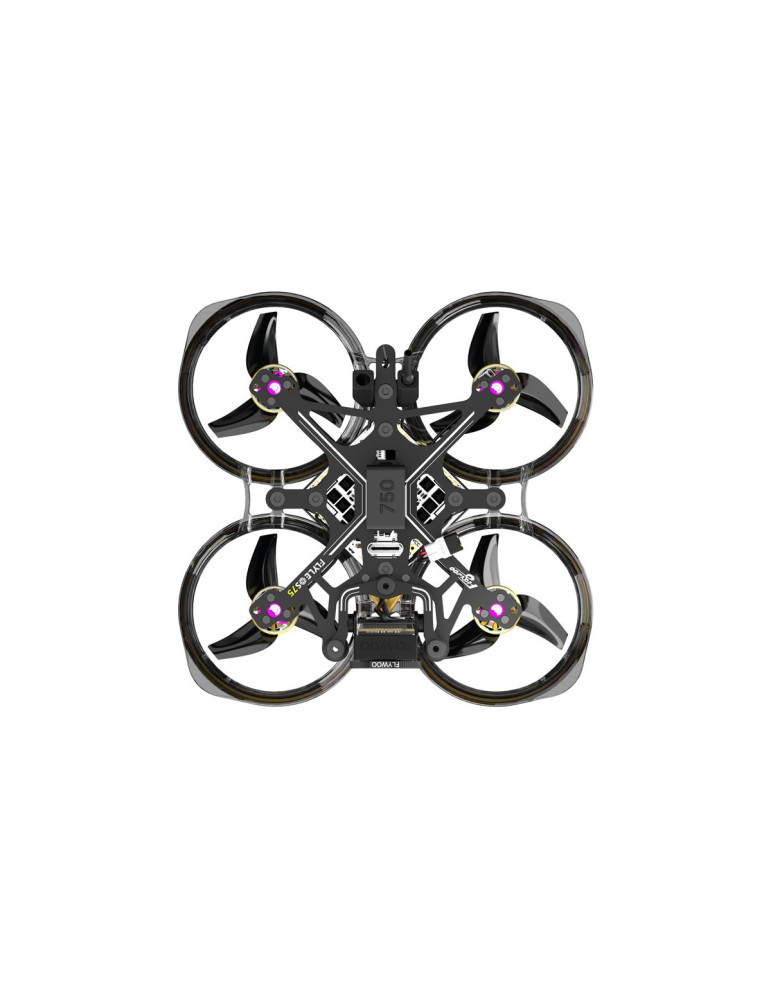

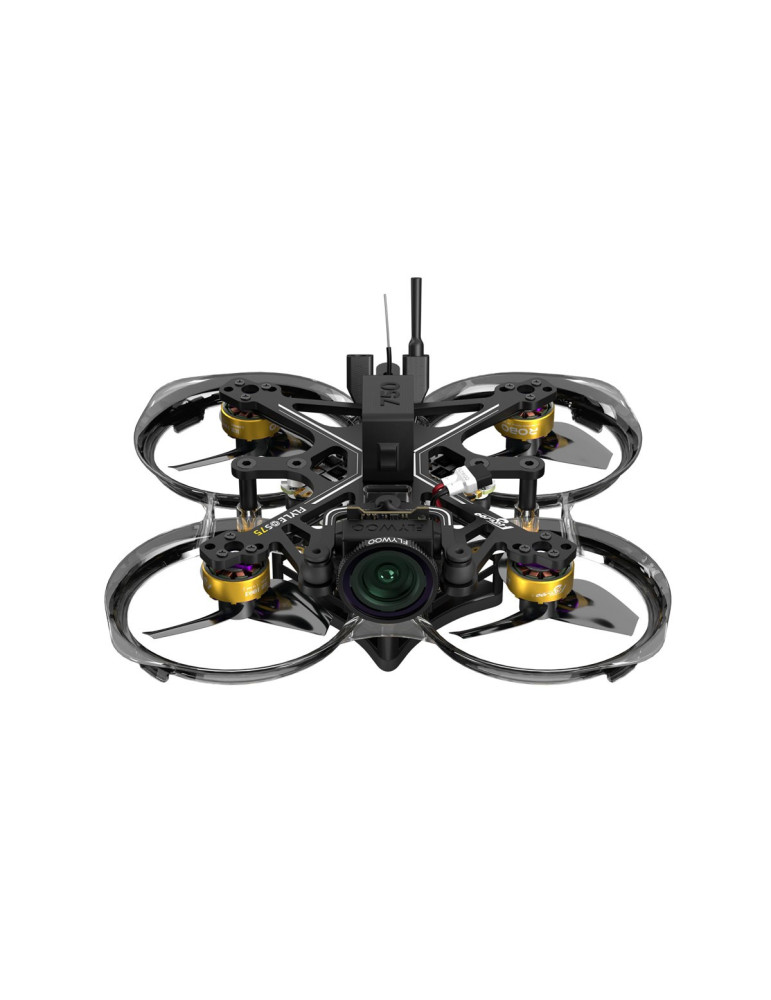

Flywoo FlyLens 75 HD O4 2S (ELRS 2.4G)

Flylens75 is one of the smallest DJI O4 Whoop drone on the market, meticulously designed by the FLYWOO team. This compact and portable drone features a durable body combining carbon fiber and PC materials, and carries O4 Air Unite for image transmission as well as for high-definition 4K 120fps video recording. Its unique shock-absorbing gimbal design allows for high-quality, non-jelly 4K video recording.

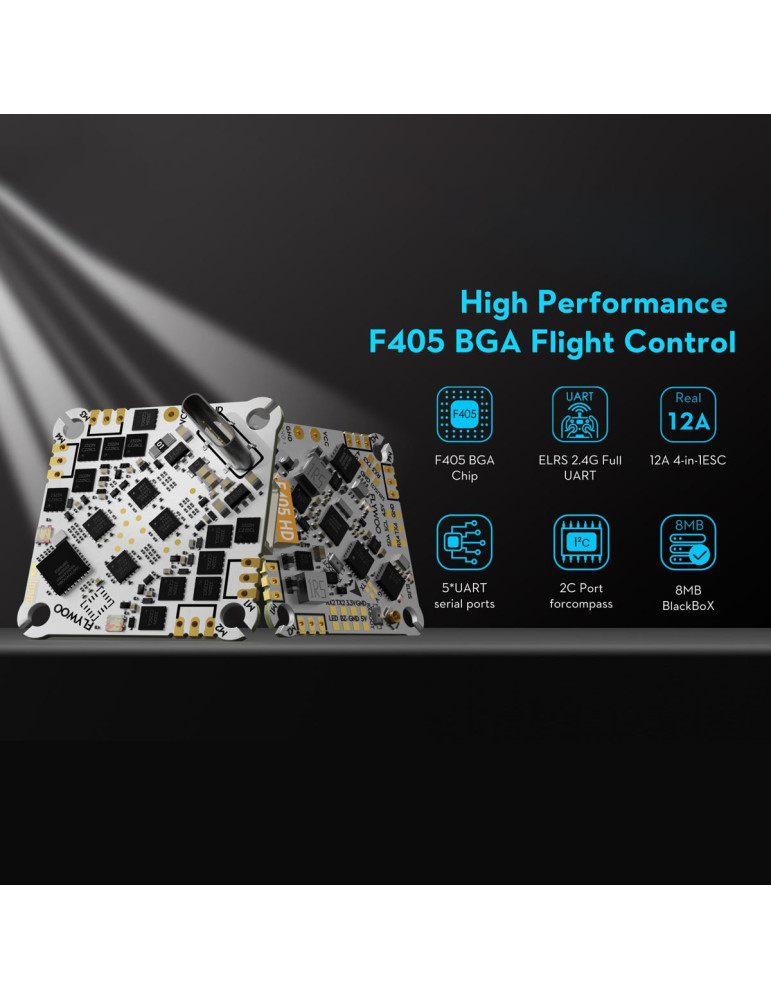

Equipped with a 405 BGA flight controller, 1003 power motor, and the new 1611-3 propellers, the Flylens75 is suitable for both stable indoor filming and dynamic outdoor flights.

Features

• Compact and Lightweight Design: The newly designed Flylens75 features a compact and lightweight body, making it easy to carry and operate.
• O4 Air unit: Paired with the O4 version, the total weight is only 68g, ensuring a takeoff weight of less than 100g!
  High-definition Video Recording: The O4 digital image transmission system version can record high-definition 4K 120fps video, allowing you to capture spectacular moments.

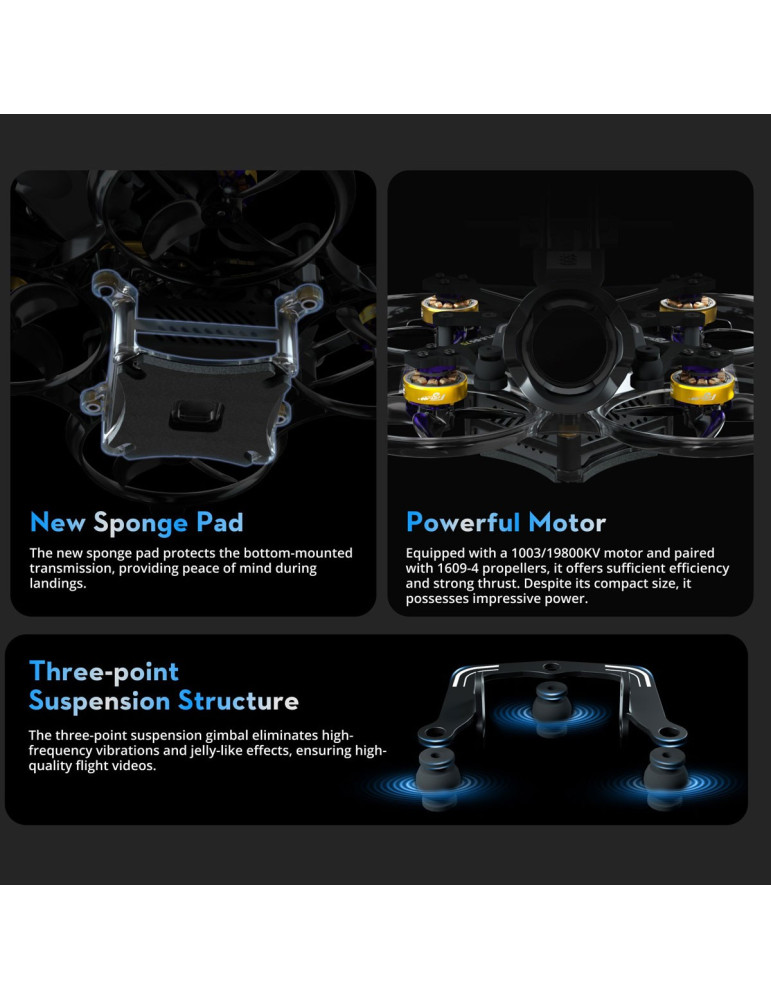

• Shock Absorption Platform Design: Equipped with a unique CNC camera shock absorption platform, it effectively reduces camera vibration, eliminates jelly effects, and provides stable shooting footage.
• Quick-release Structure: Designed with a quick-release structure, it facilitates user maintenance and component replacement, enhancing usability.
• Reverse Thrust Power System: Utilizing a reverse thrust power system, it enhances the stability and flight time of the aircraft, allowing you to enjoy longer flight experiences.

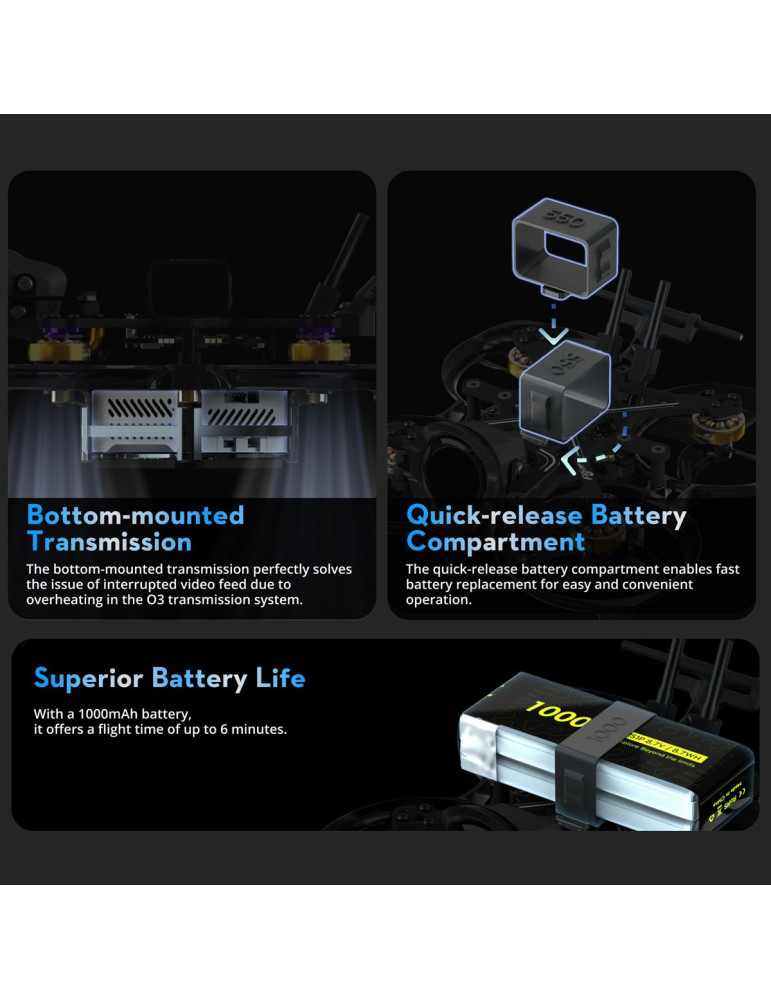

• Quick-release Battery Compartment: Equipped with a quick-release battery compartment, it accommodates various battery models, allowing users to easily replace batteries as needed.
• Durable Materials: The body is constructed with a combination of carbon fiber and PC materials, delivering durability to withstand certain impacts and falls.

Specifications

• Frame
  • Frame Kit:  Flylens 75 O3lite / O4 Frame kit

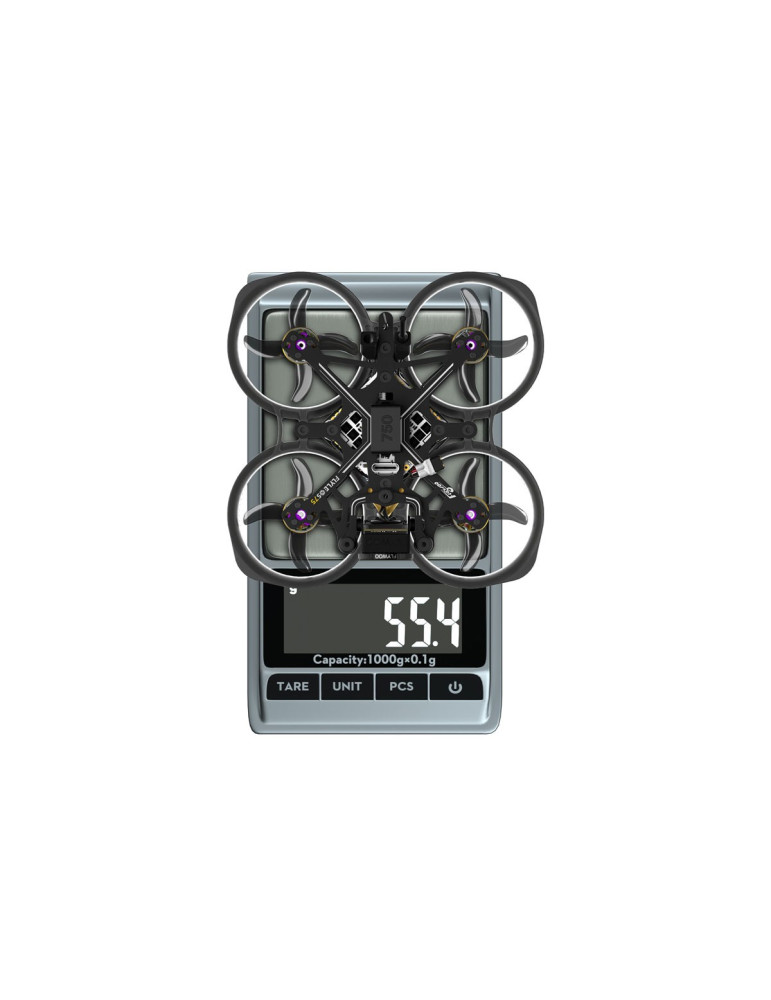

  • Weight: 55.4g (No battery)
• Propeller
  • Diameter: 1.6"
  • Blades: 3
  • Pitch: 1.1"
  • Shaft: 1.5mm

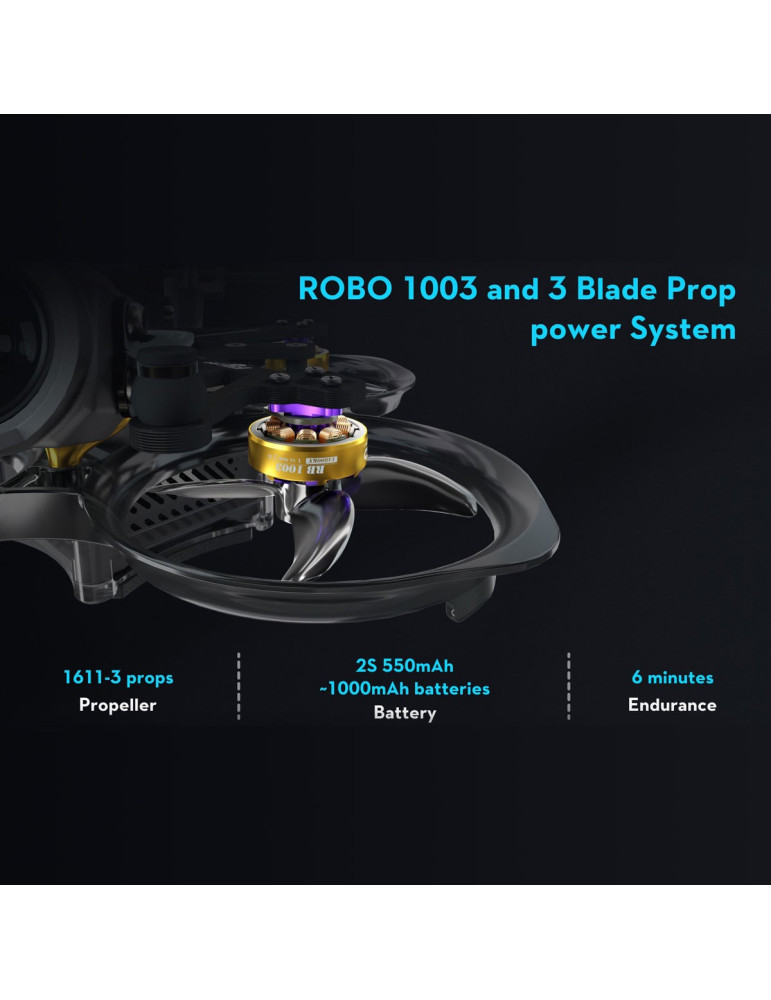

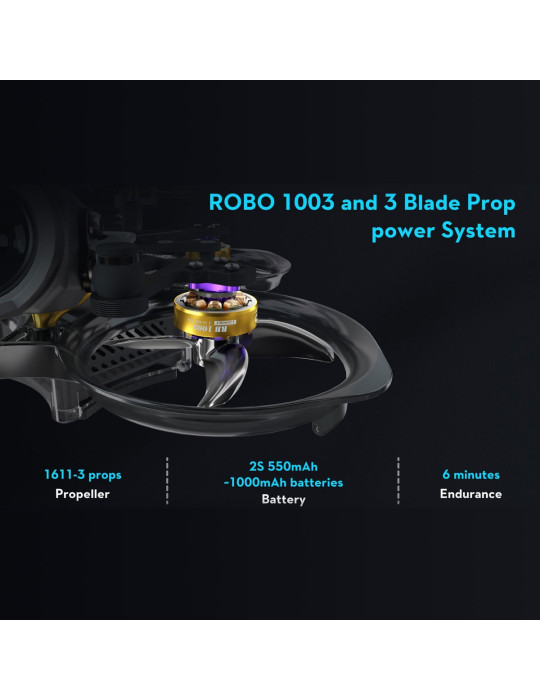

• Motors
  • Stator: 10mm x 3mm (1003)
  • Kv: 14800kv
  • Shaft Diameter: 1.5mm
  • Propeller Mount: T-mount
• AIO FC
  • Flight Controller/ESC: GOKU F405 HD 1-2S ELRS AIO V2 (42688)
  • Receiver: ELRS 2.4GHz
  • Battery Connector: XT30
• Camera and VTX
  • DJI O4 Air Unit
• Recommended Batteries (not included)
  • Explorer 2S 550mAh: approx. flight time: 4min
  • Explorer 2S 750mAh: approx. flight time: 5:30min
  • Explorer 2S 1000mAh: approx. flight time: 6:30min

Package Contents

• 1 x Flylens 75 HD O4 2S Whoop FPV Drone
• 1 x USB Data Cable For 04 Air Unit 90° Type C

• 1 x 2S 550mah battery tpu mount

• 1 x 2S 750mah battery tpu mount

• 1 x 2S 1000mah battery tpu mount

• 1 x O4 UV Filter

• 8 x 1611-3 Props

• 1 x Screwdriver

• 1 x hardware set
