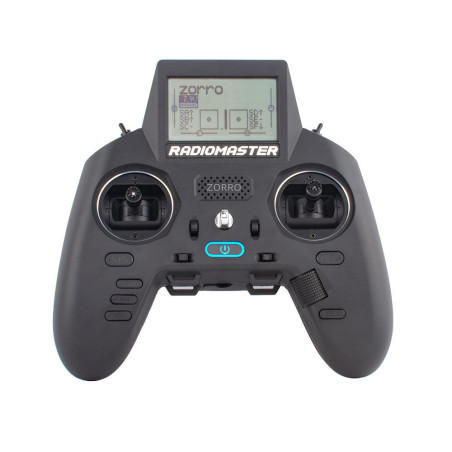

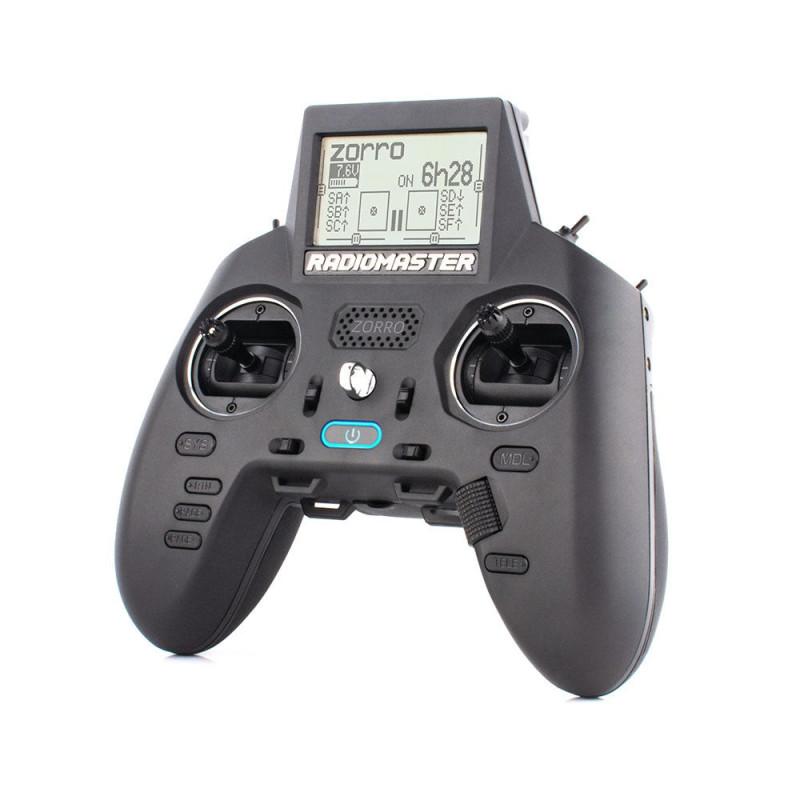

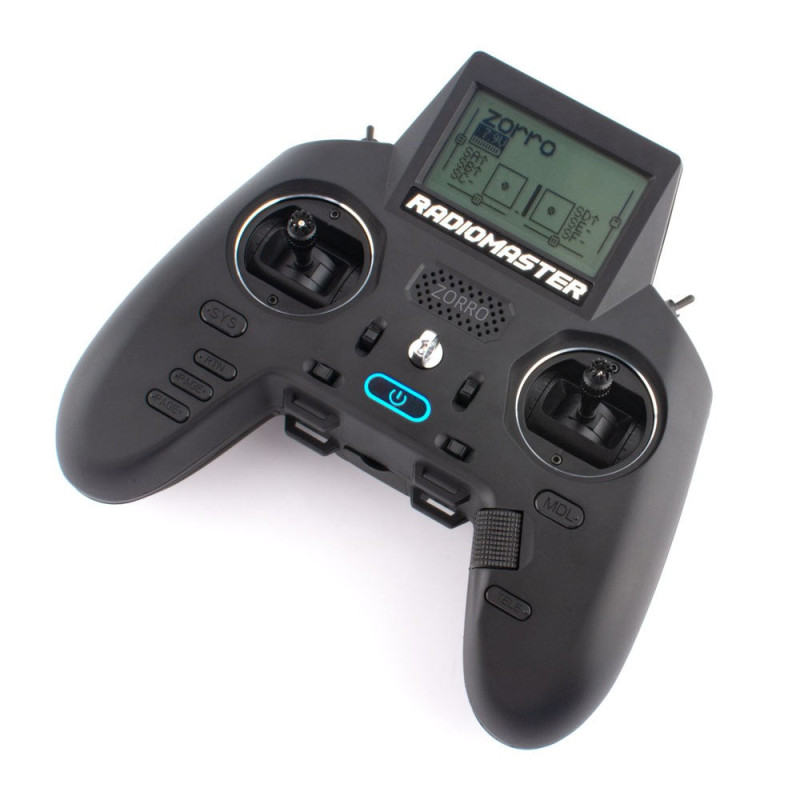

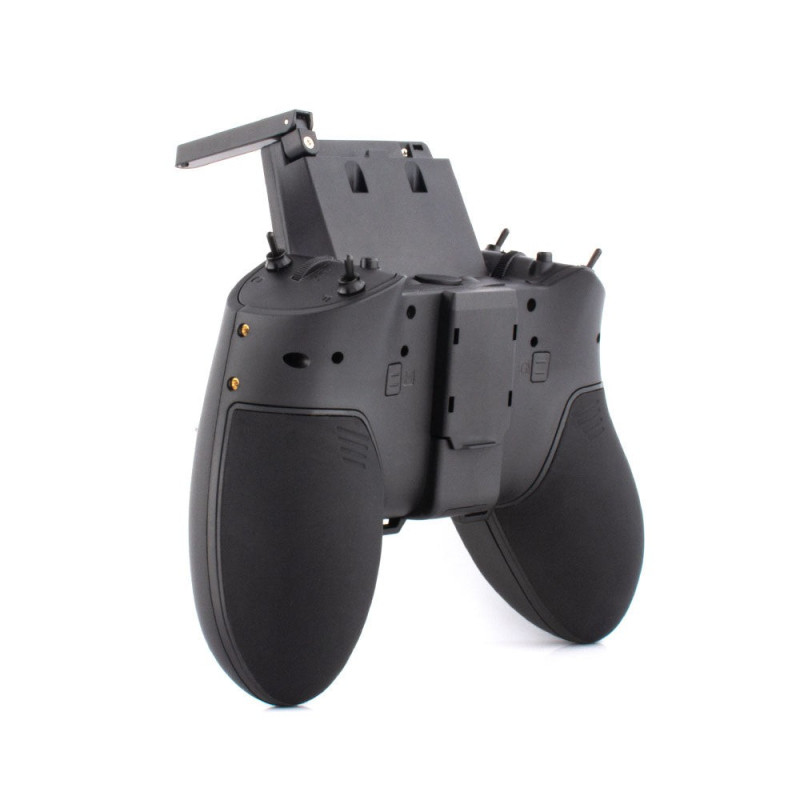

RadioMaster Zorro ELRS Radio Controller

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

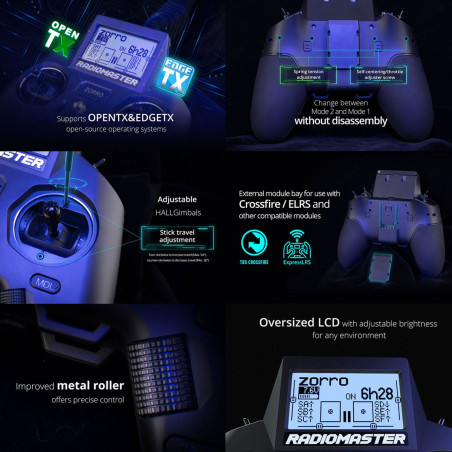

Features

• External Module Bay (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
• Improved Metal Roller for Precise Control
• Supports External 2S Power Supply
• Supports USB-C direct charging
• Supports OPENTX & EDGETX
• 18350 Battery Compartments
• Ergonomically Designed
• Adjustable Hall Gimbals (Stick travel adjustement)
• Oversized LCD Screen
• Soft Leather Grips
• Foldable Antenna
• ELRS Model
• Switching between Mode 1 and Mode 2 without disassembly.

Specifications

• Size: 170*159*108mm
• Weight: 350g
• Frequency: 2.400GHz-2.480GHz
• RF Module: ELRS
• Protocol Options: ELRS
• Transmission power: Up to 250mw
• Antenna gain: Folding 2db
• Range: Receiver and Power Output dependant
• Battery: 2 x 18350 (Not included)
• Charging: Built in USB-C charging
• Firmware: Independent development system
• Channels: Up to 16 channels (depending on the receiver)
• Gimbal: Hall-effect
• Operational Current: 160mA@8.4V
• Operational Voltage: 6.6-8.4V DC
• Operating system: OpenTX / EdgeTX Compatible
• Display: 128*64 Monochrome LCD
• Firmware Upgrade Method: Via USB or SD card

Shipping Contents

• 1 x RadioMaster Zorro Radio Controller ELRS Version

Note: Receiver not included! Battery not included!
