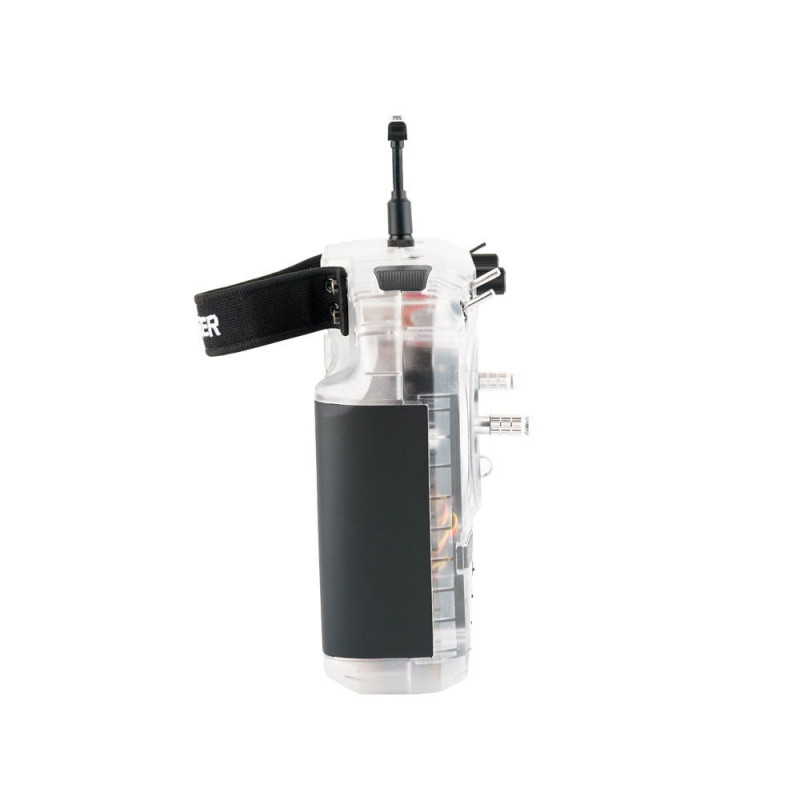

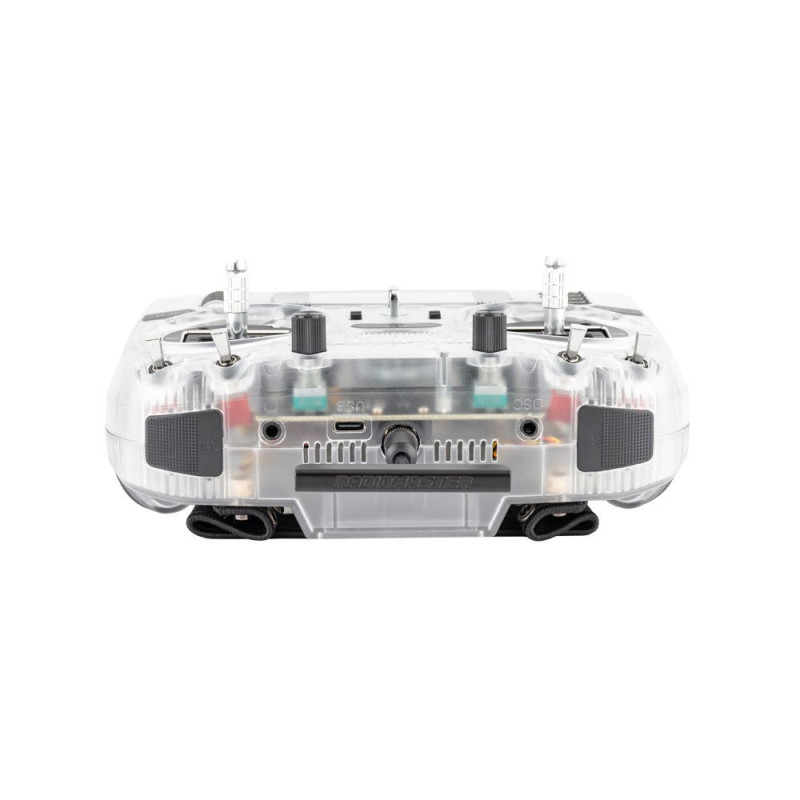

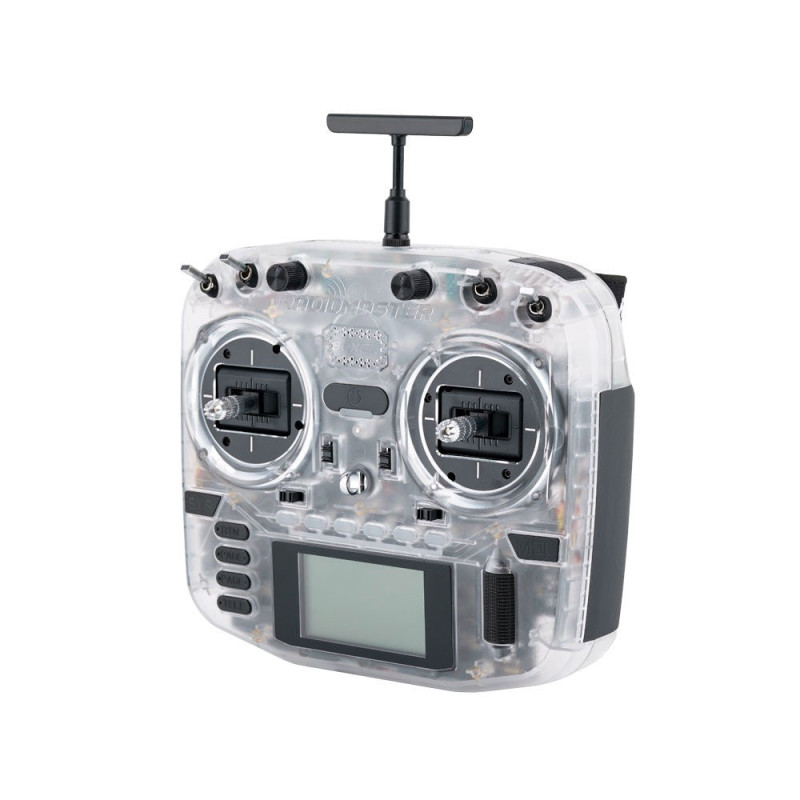

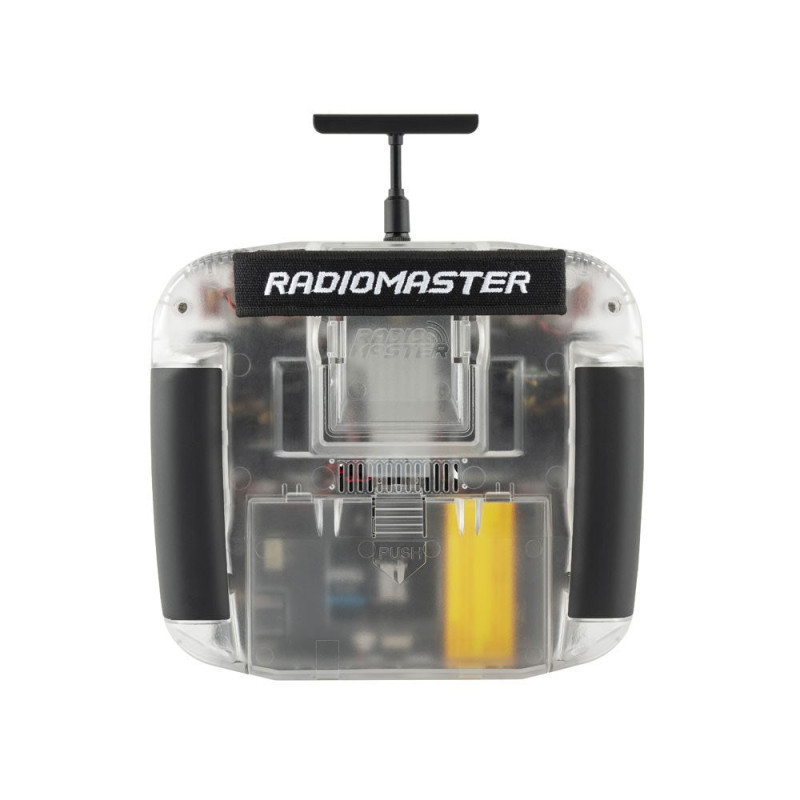

RadioMaster Boxer Radio Controller (ELRS) - Transparent

The perfect combination of size and ergonomics make the BOXER the ideal choice for pilots on the go. Equipped with a full-size Hall gimbal for precise control and an intuitive button layout, the BOXER offers a compact radio without compromising comfort and function.

Bonus with the Transparent Version

• White Gimbal LED set included but not installed
• Radiomaster neck strap

Features

• ExpressLRS RF module
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ELRS module capable of 1,000Hz refresh rate
• Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
• QC3.0 fast charging support 2.0A MAX
• Compact design with excellent ergonomics
• New low-profile latching SE switch and momentary SF switch
• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Full sized V4.0 Hall effect gimbals as standard
• Standard JR module compartment
• Internal module cooling fan built in
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access
• Adjustable and Removable T-shape Antenna
• Industry first fabric handle for improved portability
• Changeable, ergonomic grips
• Redesigned SD card slot with pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

• Size: 235x178x77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• RF Module: ELRS 2.4GHz
• Transmission power: Max 20dBm (EU LBT)
• SD card: Slot with pre-loaded SD card included
• Battery: 1 x 5000mAh 2S Li-Ion (Not included) or 2 x 18650 Li-Ion (Not included)
• Charging: QC3.0 fast charging (USB-C)
• Firmware: EdgeTX
• Channels: Up to 16 channels (depending on the receiver)
• Gimbal: Full size V4.0 Hall sensor with Aluminium fascia
• Operational Voltage: 6.6-8.4V DC
• Operating system: EdgeTX
• Display: 128*64 Monochrome LCD display
• Module Bay: Standard JR compatible module bay
• Firmware Upgrade Method: USB/SD card & EdgeTX Companion PC software

EU LBT Version

• ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Shipping Contents

• 1 x RadioMaster Boxer Radio Controller ELRS LBT (Mode 2) - Transparent

Note: Receiver not included! Battery not included!
