RadioMaster Boxer MAX Radio Controller (ELRS)

The perfect combination of high-quality craftsmanship and ergonomics makes the BOXER MAX the ideal choice for users with the highest demands on performance and comfort. Equipped with enhanced AG01 Hall effect gimbals made from aluminum and CNC-machined buttons and rollers, the BOXER MAX offers an unparalleled user experience. The elegant carbon fiber design housing, the length-adjustable, foldable CNC metal handle, and the high-quality leather grips ensure maximum comfort even during extended use. With all these features, the BOXER MAX radio is the perfect choice for anyone seeking top-notch performance, comfort, and a premium feel.

Features

• CNC Aluminum AG01 Hall-effect Gimbal
• Carbon fiber pattern case
• CNC buttons and roller as standard
• Upgraded black leather grips
• ExpressLRS RF module
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ELRS module capable of 1,000Hz refresh rate
• Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
• QC3.0 fast charging support 2.0A MAX
• Compact design with excellent ergonomics
• New low-profile latching SE switch and momentary SF switch

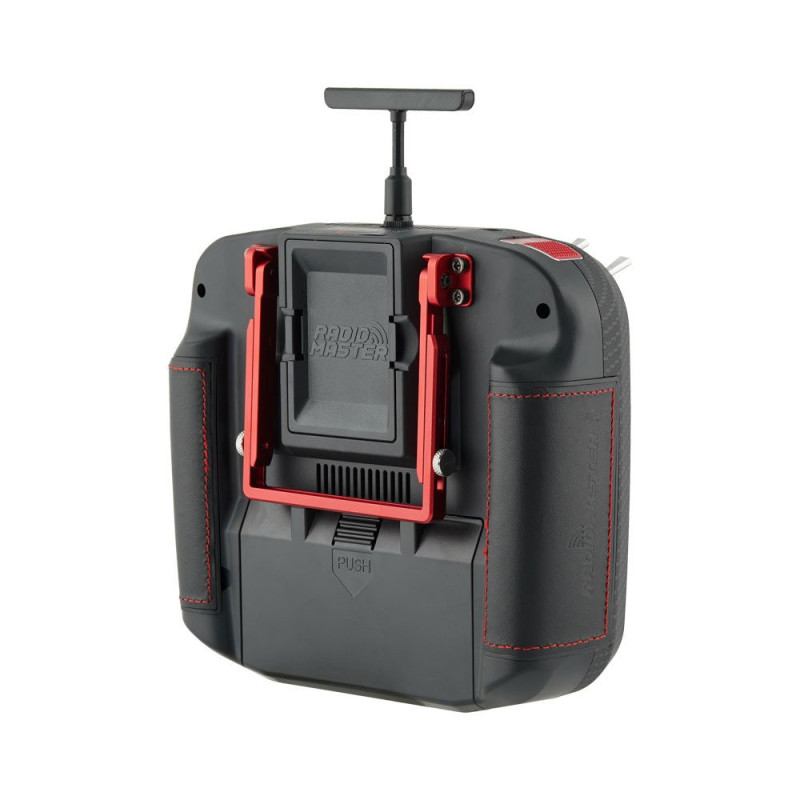

• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR module compartment
• Internal module cooling fan built in
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access

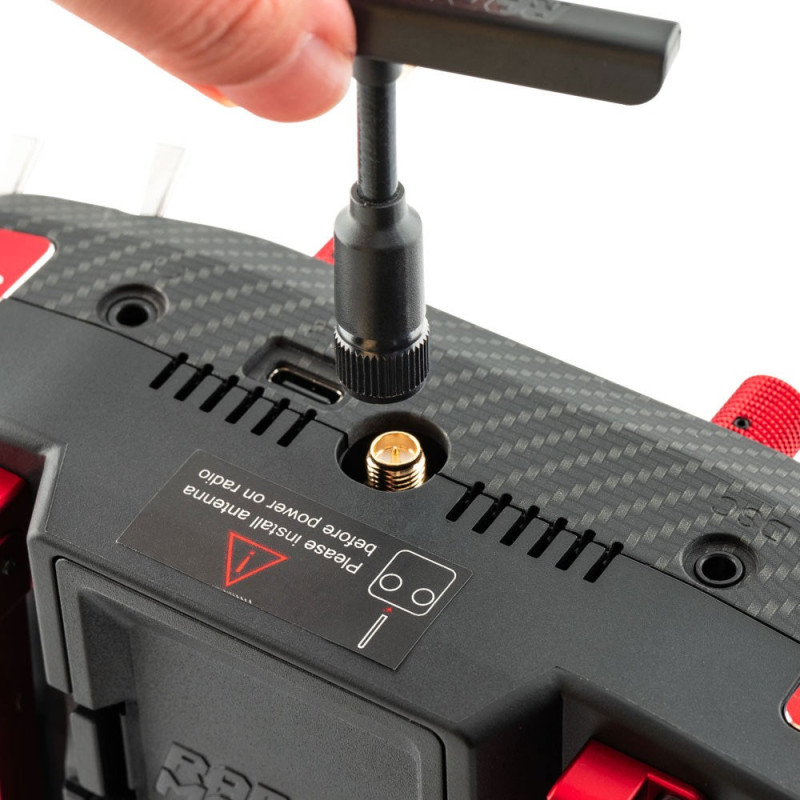

• Adjustable and Removable T-shape Antenna
• Changeable, ergonomic grips
• Redesigned SD card slot with pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

• Size: 235x178x77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• RF Module: ELRS 2.4GHz
• Transmission power: Max 20dBm (EU LBT)
• SD card: Slot with pre-loaded 512MB SD card included
• Battery: 1 x 6200mAh 2S Li-Po (Not included) or 2 x 18650 Li-Ion (Not included)
• Charging: QC3.0 fast charging (USB-C)
• Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Up to 16 channels (depending on the receiver)
• Gimbal: AG01 CNC Hall Gimbal
• Operational Voltage: 6.6-8.4V DC
• Display: 128*64 Monochrome LCD display
• Module Bay: Standard JR compatible module bay
• Firmware Upgrade Method: USB/SD card & EdgeTX Companion PC software

EU LBT Version

• ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Shipping Contents

• 1 x RadioMaster Boxer MAX Radio Controller ELRS LBT (Mode 2)

Note: Receiver not included! Battery not included!
