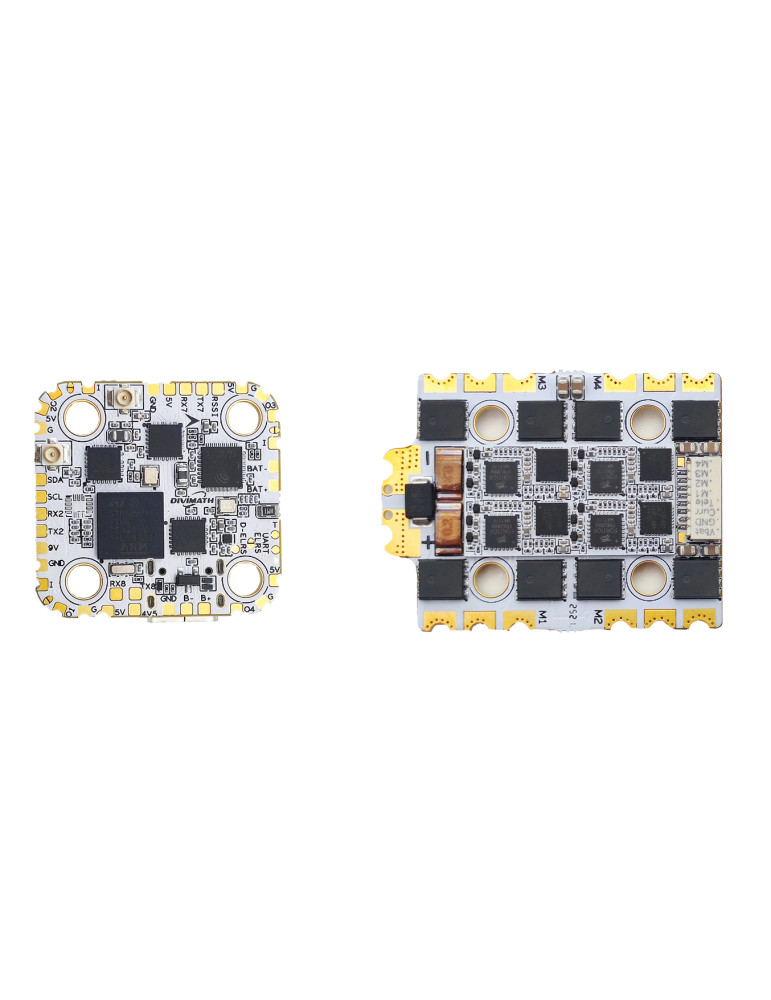

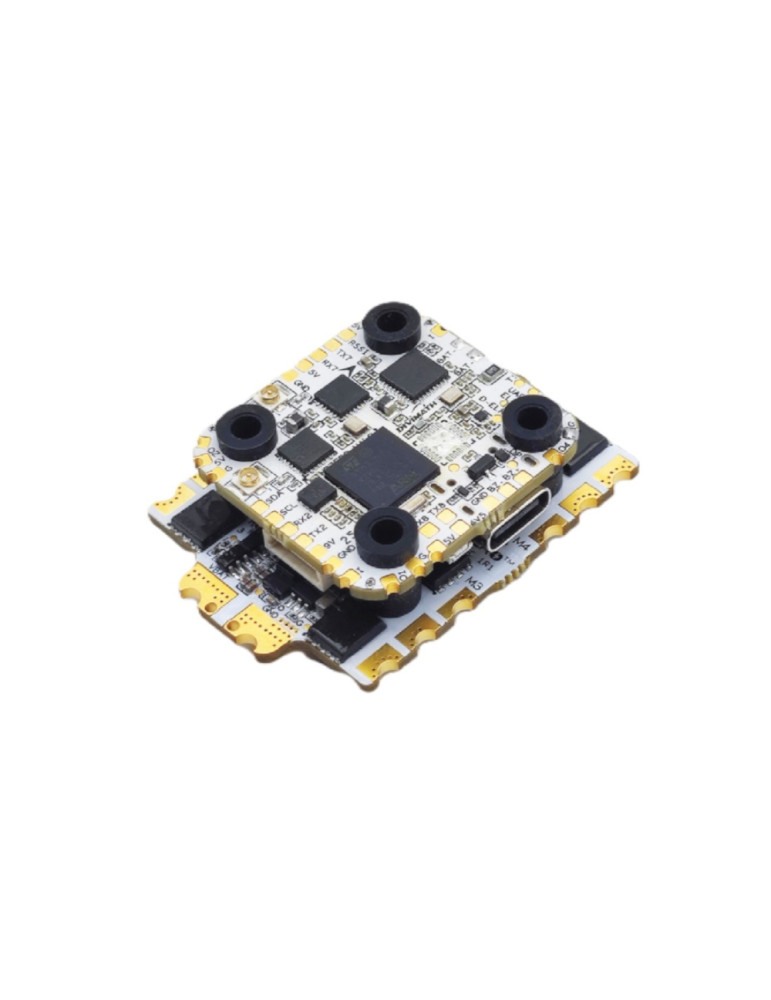

HDZero Halo H7+70A+2.4GHz ELRS Stack

HDZero Halo Stack – H7 Flight Controller with ICM42688 Gyro and 70A AM32 4in1 ESC

The HDZero Halo Stack combines the Halo Flight Controller and the Halo 4in1 70A ESC into a race-ready power stack designed for digital builds. Featuring an H7 processor, integrated Gemini ELRS True Diversity with TXCO (temperature-compensated crystal oscillator), and fully pluggable connectors (no soldering required), this stack allows for a clean, fast, and service-friendly build. The flight controller is optimized for HD setups: there's no need for analog OSD, the HDZero Race v3 VTX can be mounted low in the stack, and it includes a switchable 9V BEC (for VTX power via Betaflight) along with a separate 5V/4A BEC for LEDs and peripherals—ideal for both racing and freestyle demands, all within a minimal build height.

At its core, the 4in1 70A AM32 ESC (100A burst) features a split-board design, 24 MOSFETs on an 8-layer PCB with 3oz copper per layer, and an integrated copper rail to ensure low temperatures, reduced voltage drops, and extremely responsive throttle behavior. A conformal coating protects against moisture, dust, and corrosion.

The result: maximum reliability, clean wiring, and genuine weight and cost advantages thanks to the integrated ELRS receiver. A professional, compact stack built for uncompromising performance.

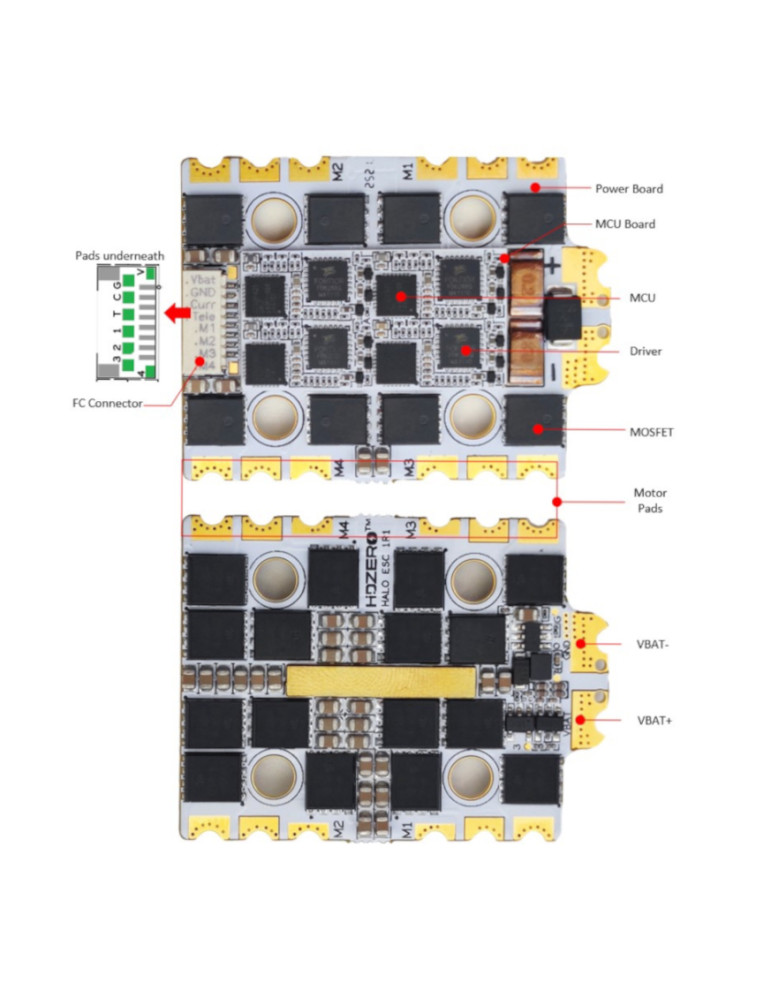

Features Halo 4in1 70A ESC

• Split-board architecture with copper power rail for optimized burst throttle response
• 8-layer PCB with 3oz copper per layer and 24 MOSFETs
• Continuous current of 70A per motor / 100A burst (3 seconds)
• Exceptionally clean power delivery protects the flight controller from voltage spikes
• Conformal coating for protection against moisture, dust, and corrosion
• Dual-sided motor solder pads enable flexible build configurations
• Firmware: AM32
• Telemetry support
• Compatible with 3S to 8S batteries (9V–40V input voltage)

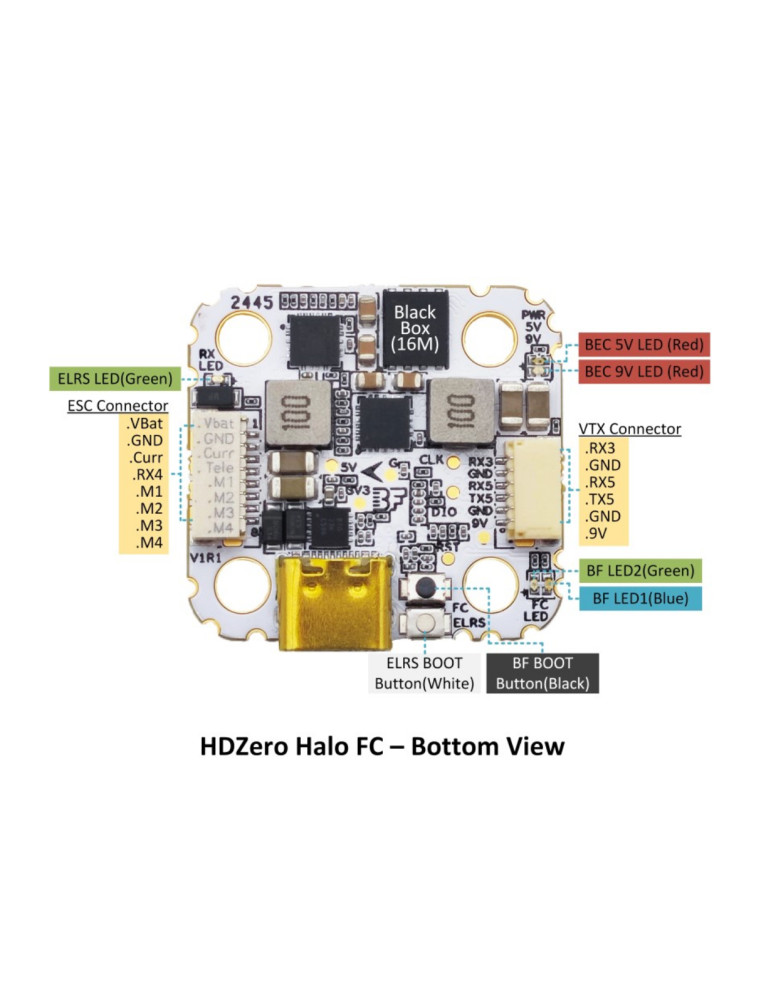

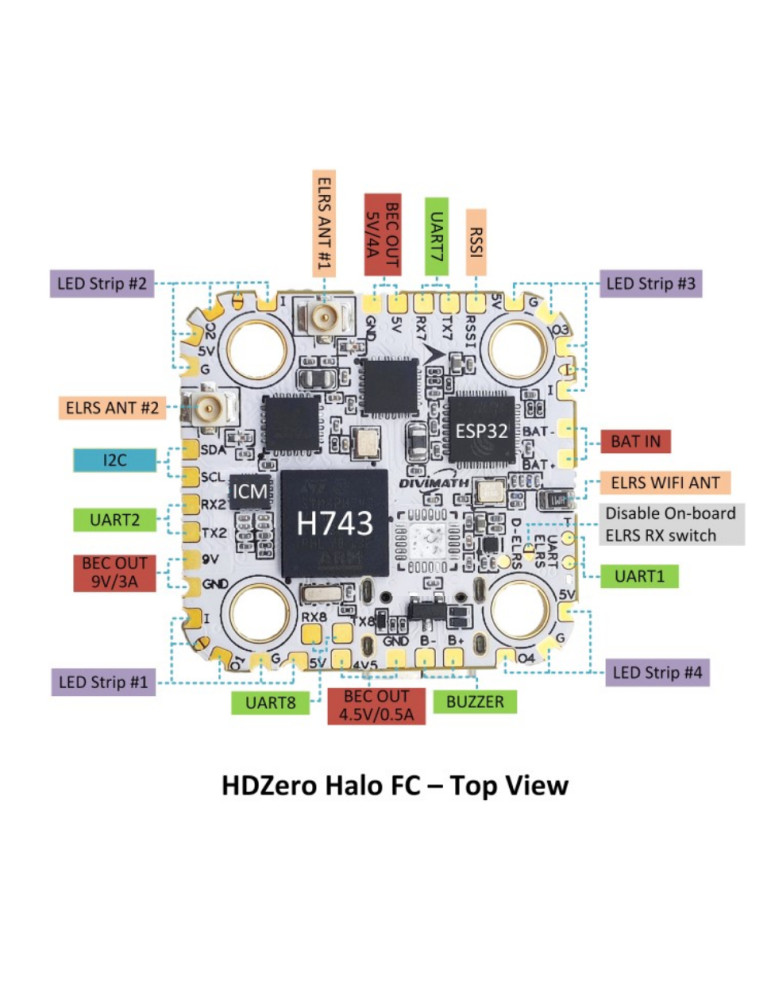

Features Halo Flight Controller

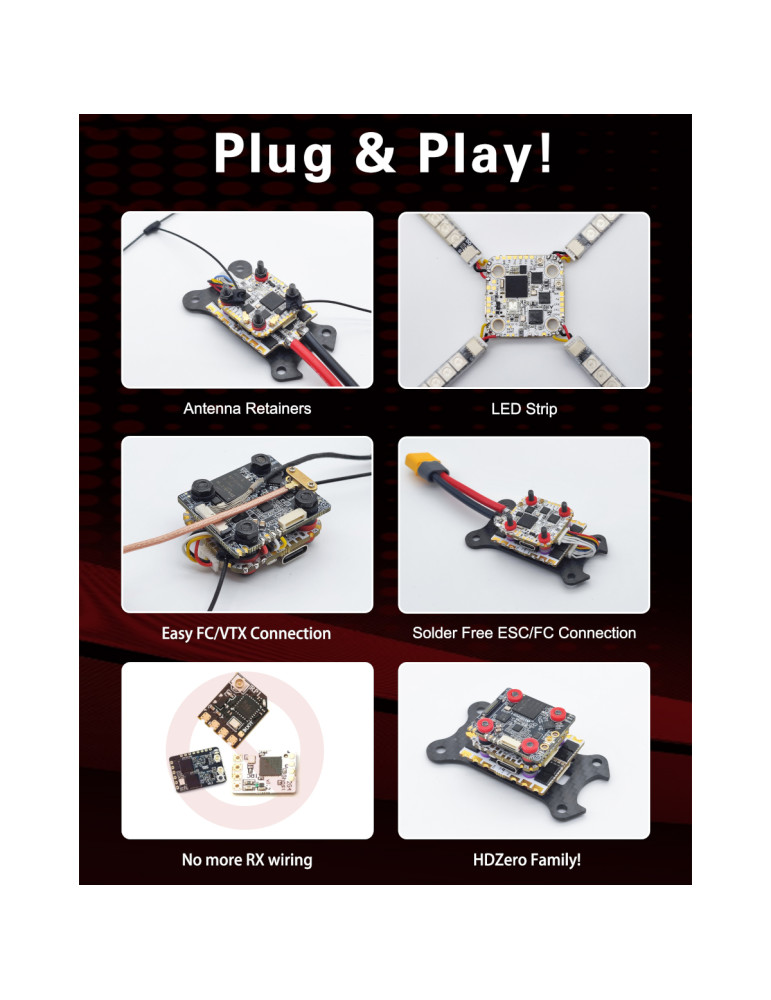

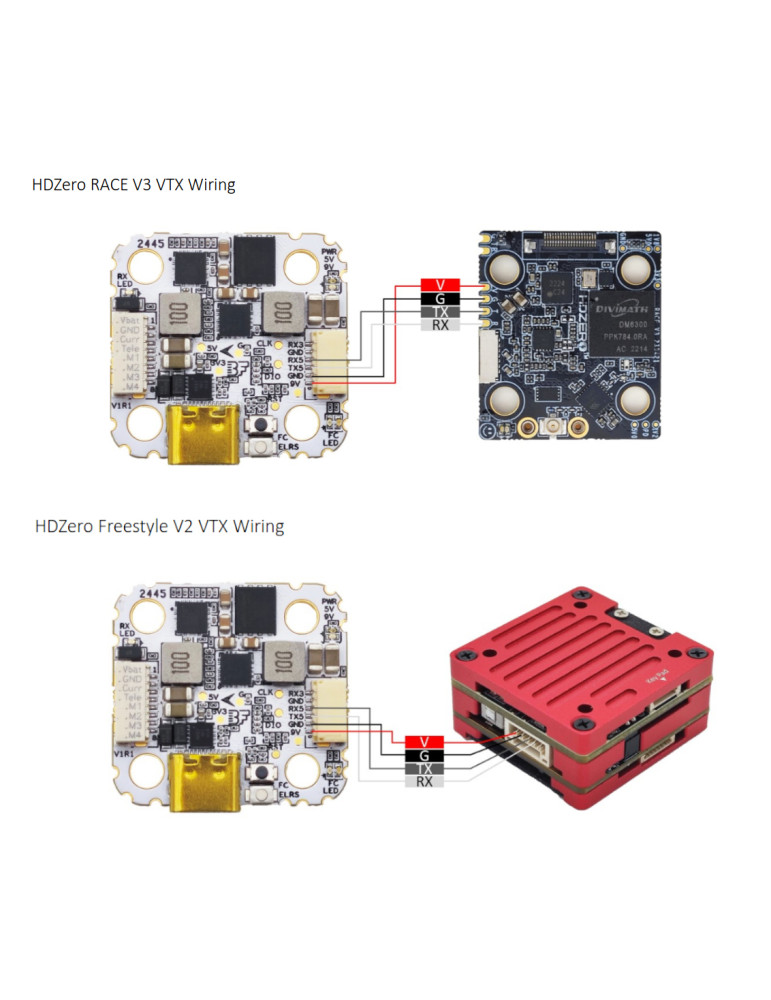

• Plug-and-play HDZero race build – no soldering required for RX, VTX, or ESC connections
• Integrated Gemini True Diversity ELRS receiver for an exceptionally stable control link
• TXCO-optimized ELRS performance for heat-intensive race environments
• H7 processor for fast and precise control
• Dedicated, switchable 9V/3A BEC for powering the HDZero VTX, controllable via Betaflight
• High-performance 5V/4A BEC supports full LED competition setups
• Optimized for low-profile stack builds with HDZero VTX
• Gyro: ICM42688
• Betaflight firmware (HDZERO_HALO target)

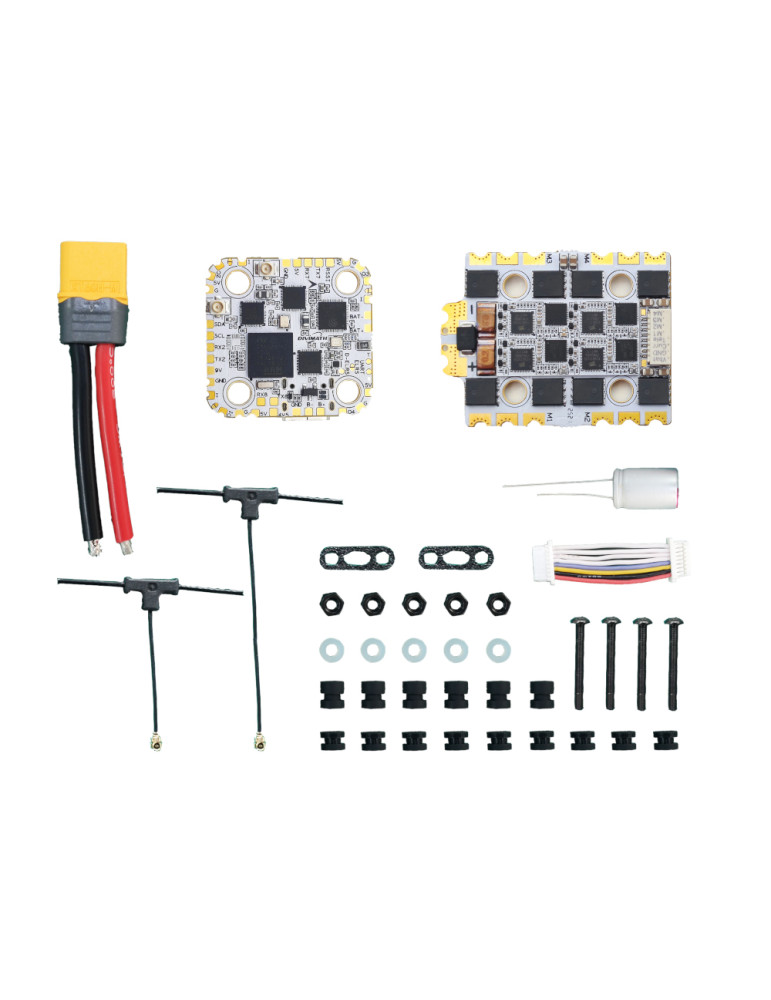

Shipping Contents

• 1 x HDZero Halo Flight Controller
• 1 x HDZero Halo ESC
• 1 x ESC cable (8-pin SH1.0, 30 mm)
• 1 x XT60 cable (70 mm, 12AWG)
• 1 x 35V/1000µF capacitor
• 9 x rubber dampers (4.5 mm height)
• 6 x rubber dampers (6.6 mm height)
• 5 x nylon washers (M3, 1.0 mm thick)
• 5 x M3 nuts made of 304 stainless steel (2.3 mm thick)
• 4 x M3 screws made of 12.9-grade carbon steel (25 mm length)
• 1 x ELRS T-shaped short antenna (40 mm)
• 1 x ELRS T-shaped long antenna (90 mm)
• 2 x ELRS antenna retainers
