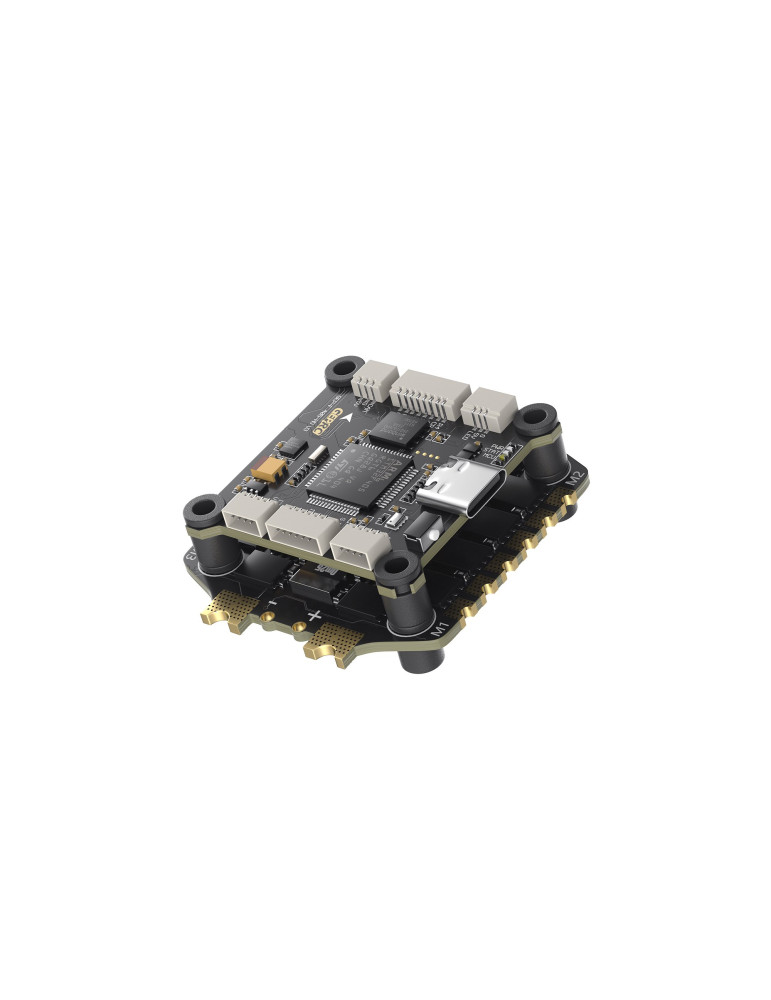

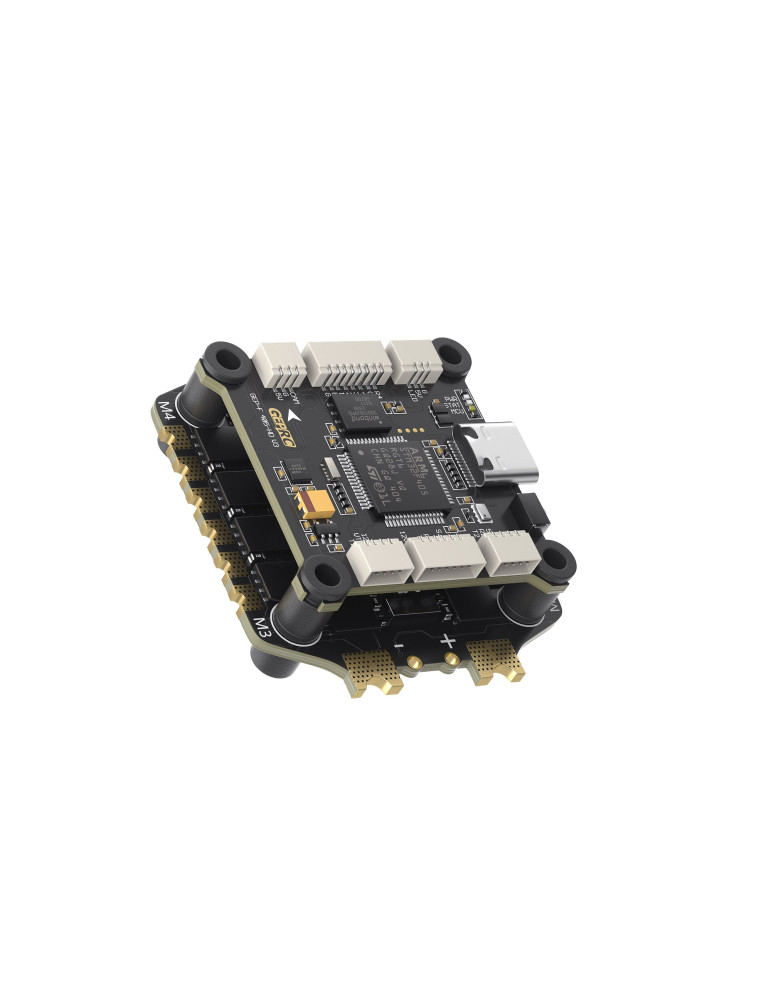

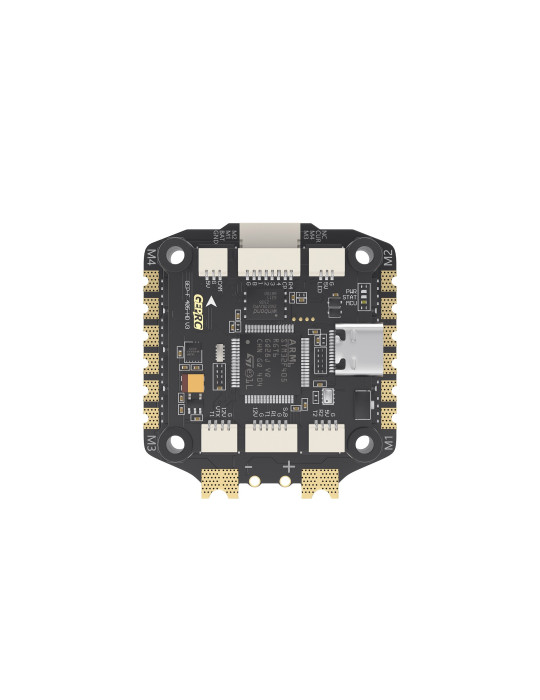

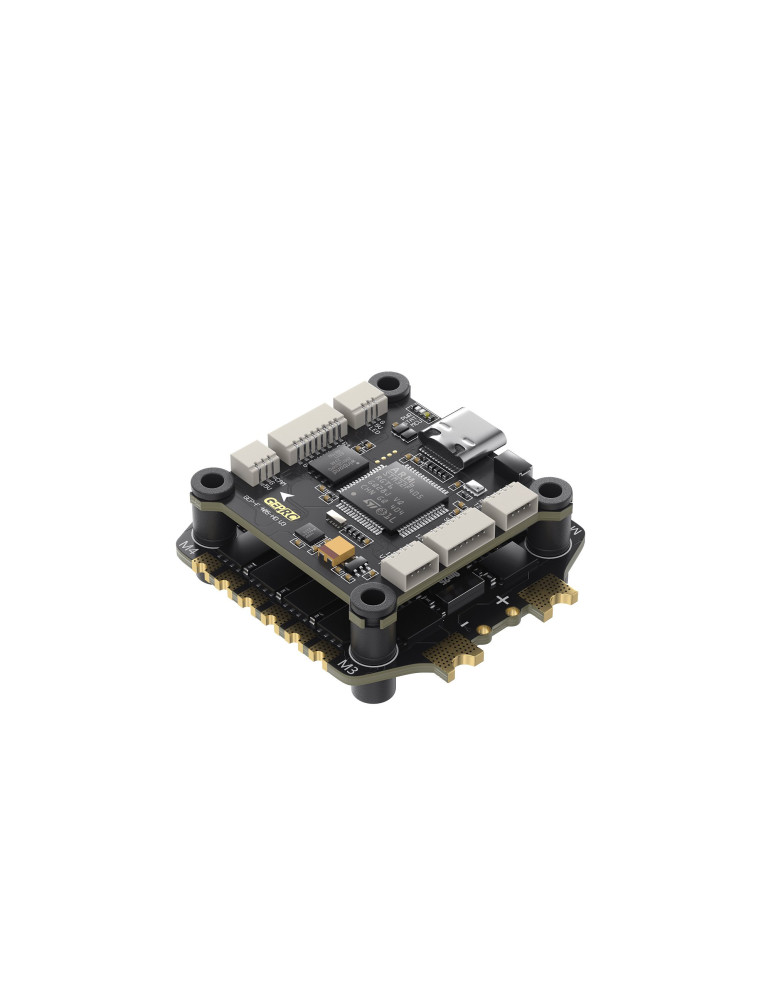

GepRC Taker F405+65A V2 Stack (HD&Analog)

GepRC Stack – GEP-F405-HD V3 Flight Controller and Taker H65_8S_BLS ESC

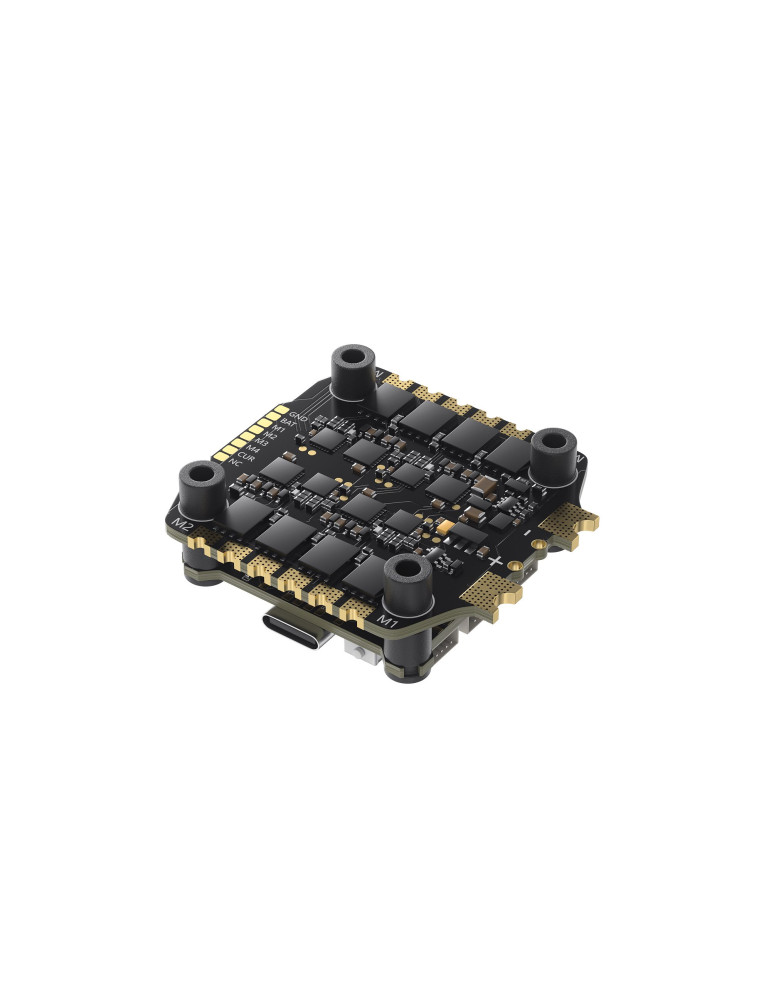

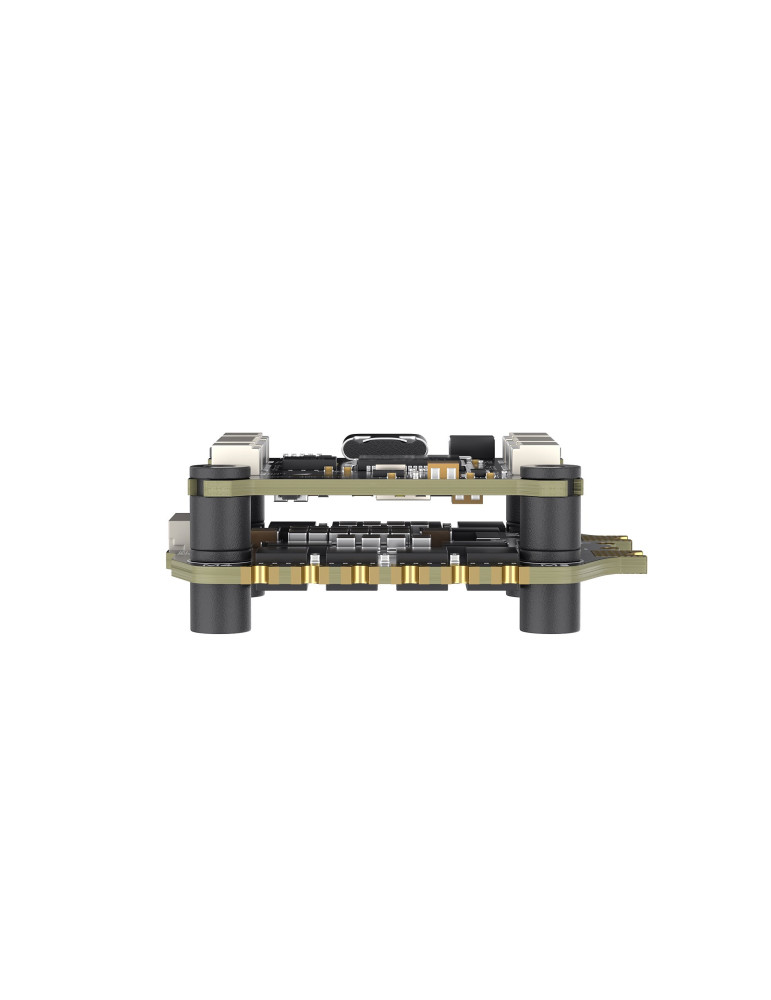

The GEPRC TAKER F405 BLS 65A V2 Stack supports both HD setups and analog FPV systems.
Equipped with the F405 flight controller featuring the ICM42688-P gyro and 16 MB Blackbox, it ensures precise control and efficient tuning. Two independent BECs (12 V & 5 V) provide clean power for HD units, receivers, and peripherals.

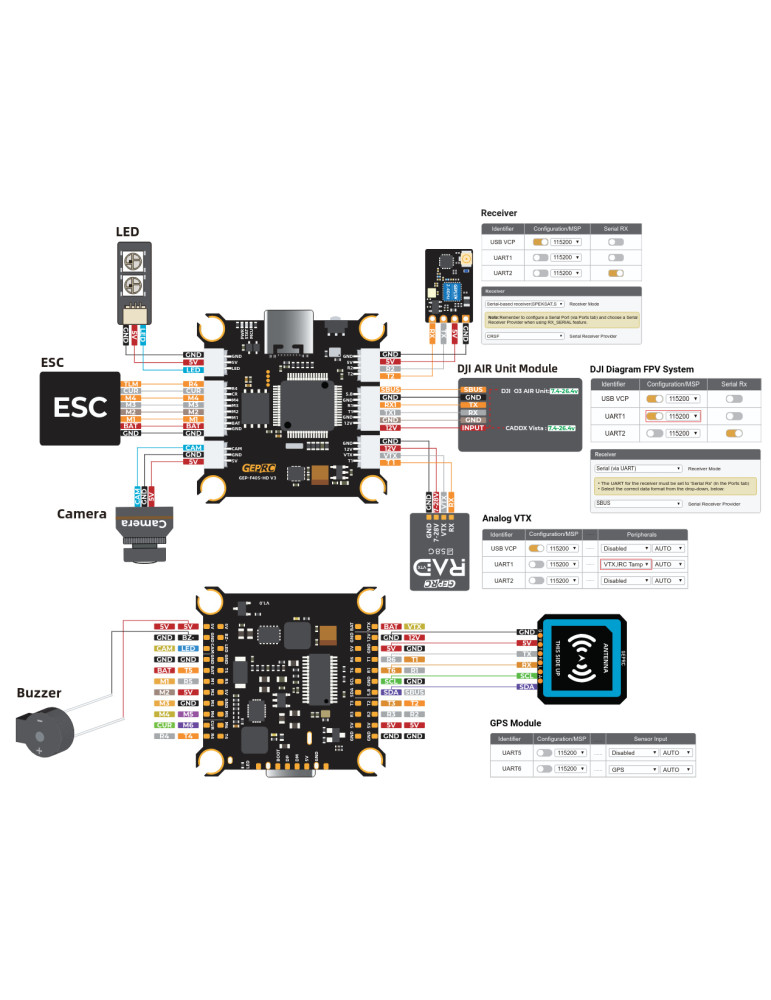

A direct plug-in port for the DJI Air Unit, as well as dedicated connections for analog cameras and VTXs, simplify wiring. The 30.5 × 30.5 mm mounting pattern, paired with included silicone dampers, isolates vibrations and ensures stable tuning.

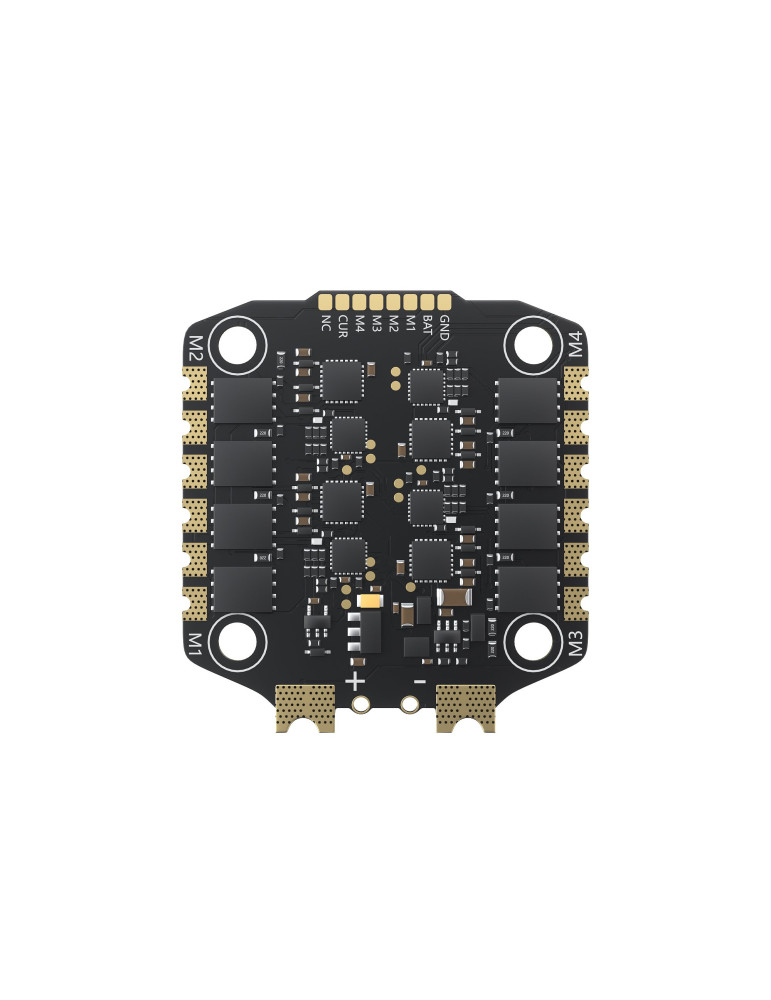

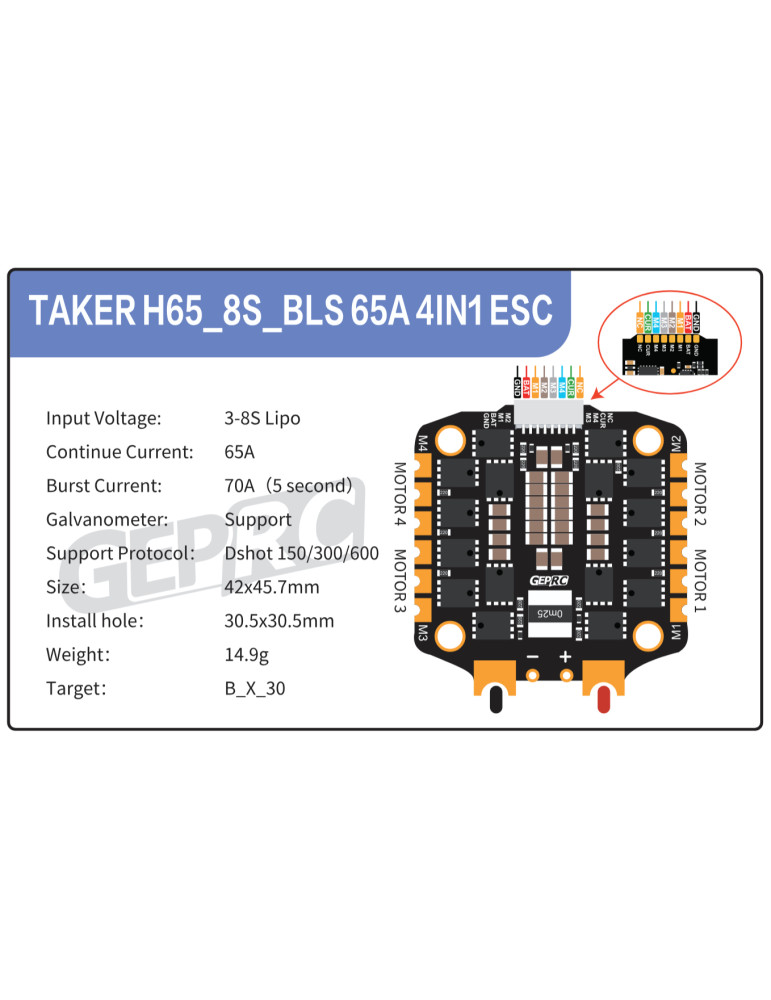

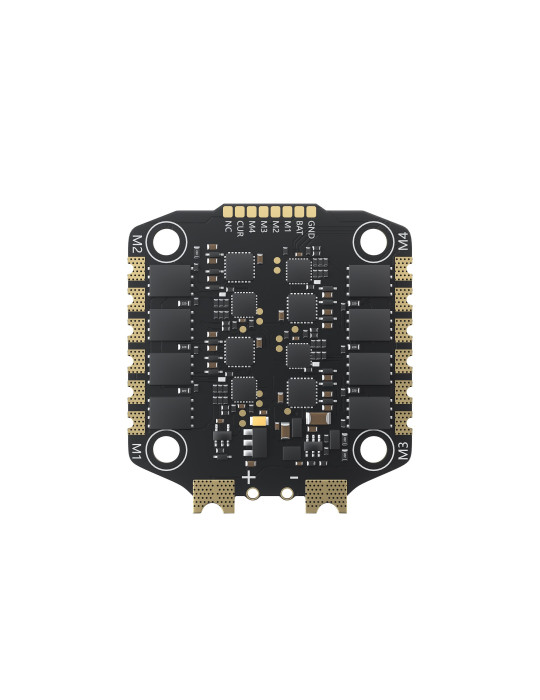

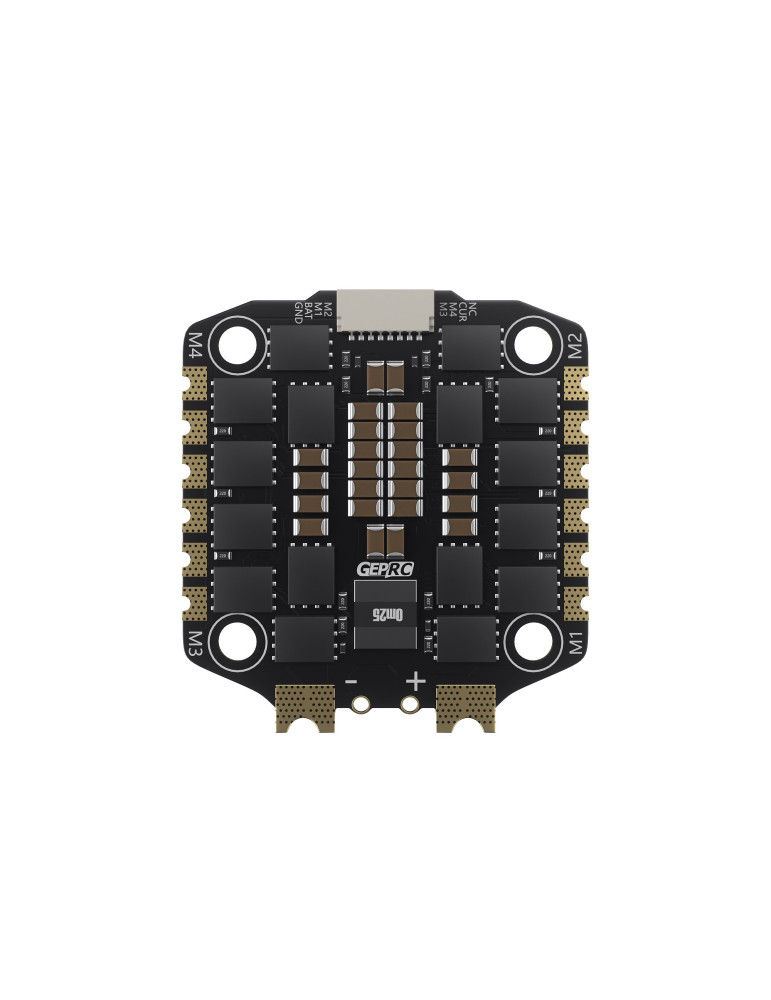

Features GEPRC TAKER H65_8S_BLS 65A 4IN1 ESC

• Supports 3–8S LiPo input
• Delivers 65A continuous current with 70A burst for up to 5 seconds
• Compatible with DShot150/300/600 under BLHeli-S; uses the B_X_30 target
• Integrated current sensor for power consumption monitoring
• 30.5 × 30.5 mm mounting pattern; φ4 mm mounting holes can be reduced to φ3 mm with silicone grommets

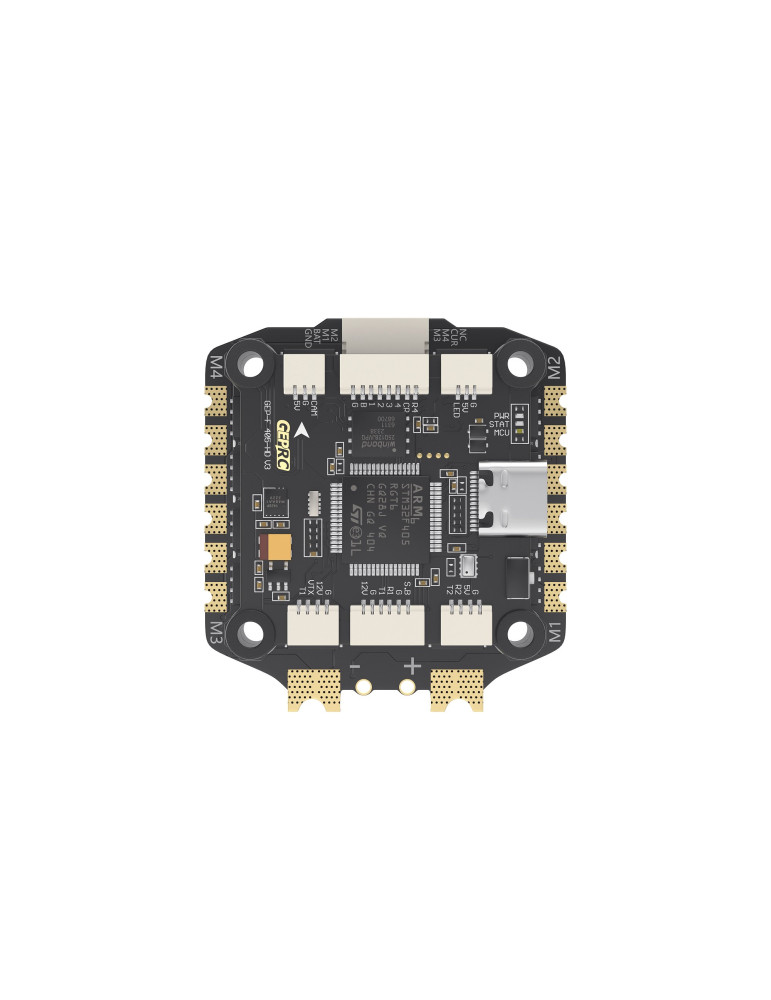

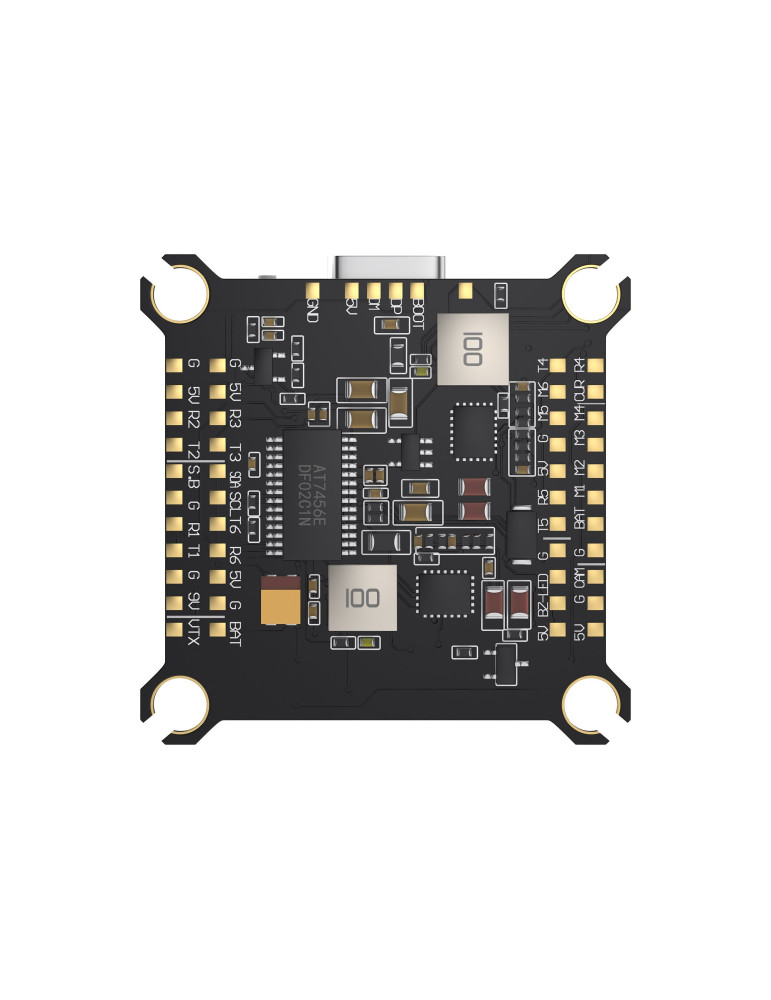

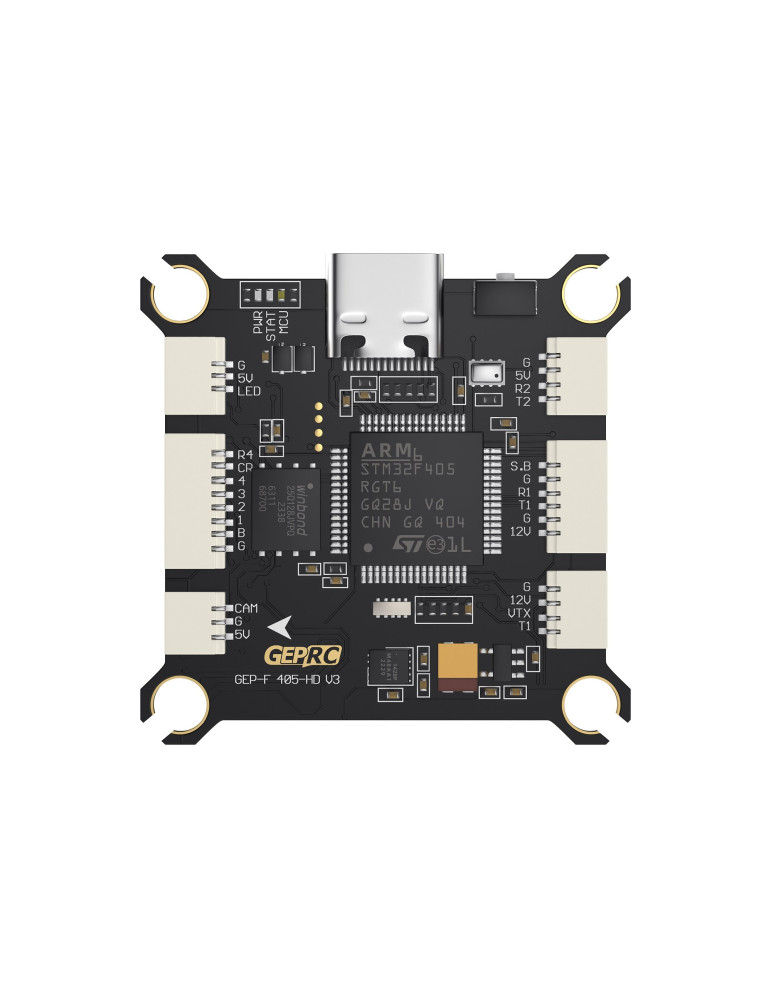

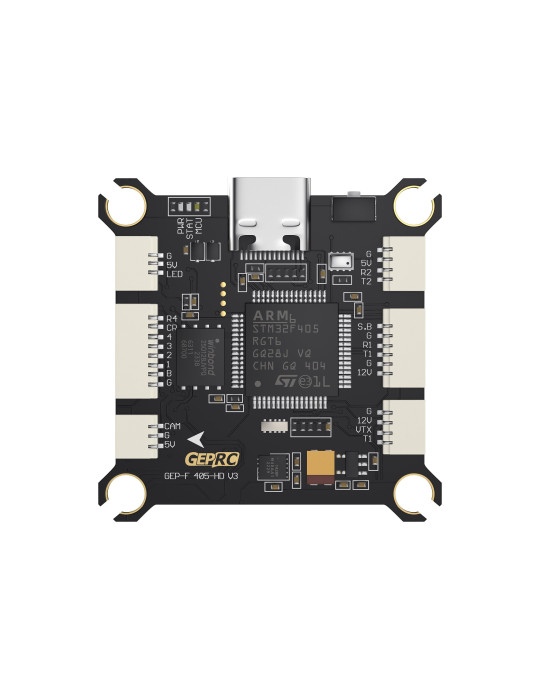

Features GEP-F405-HD V3 Flight Controller

• STM32F405 microcontroller combined with the ICM42688-P gyro for precise control
• 16 MB integrated Blackbox memory for detailed tuning
• Clean power supply via two BECs: 12 V @ 2.5 A and 5 V @ 3 A, enhanced with an integrated LC filter
• Direct connection to the DJI Air Unit for clean HD wiring
• Includes Betaflight OSD with AT7456E and integrated barometer (BMP280)
• Six UARTs available for peripheral devices
• USB-C interface for configuration and firmware flashing
• 30.5 × 30.5 mm mounting with silicone grommets
• Supports both analog and digital VTX/OSD

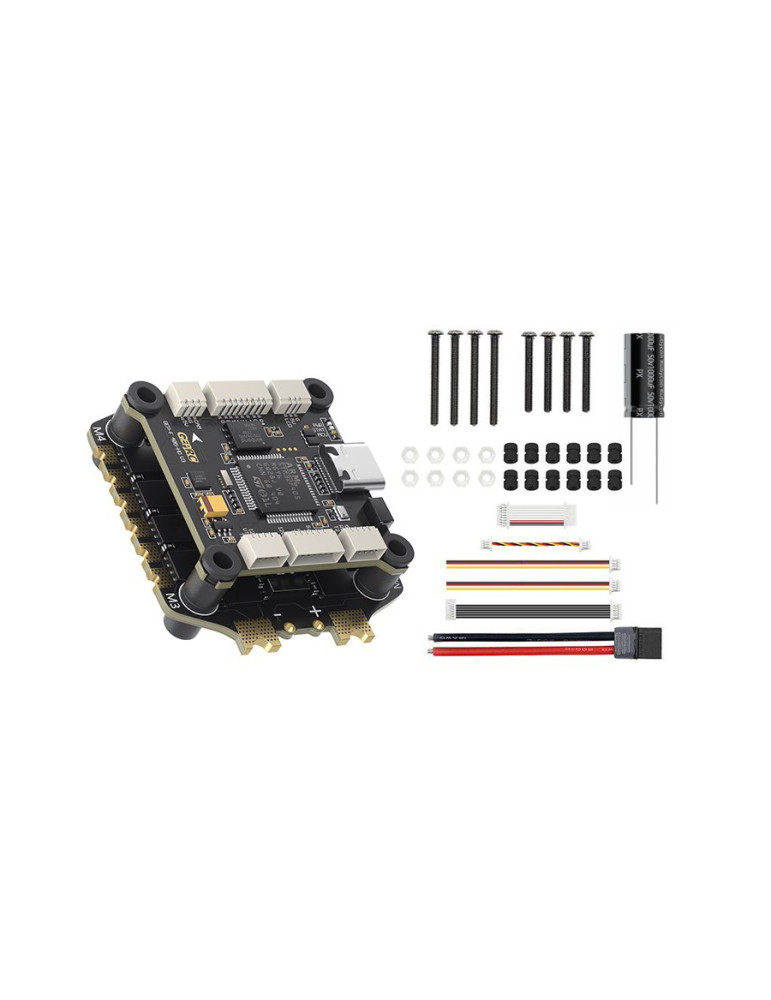

Shipping Contents

• 1 x GEP-F405-HD V3 Flight Controller
• 1 x TAKER H65_8S_BLS 65A 4-in-1 ESC
• 1 x Capacitor
• 1 x DJI Air Unit adapter cable
• 1 x Flight controller adapter cable
• 1 x XT60 power cable
• 4 x M3x30 screws
• 4 x M3x25 screws
• 8 x Nylon nuts
• 8 x Silicone grommets
• 2 x SH1.0 4-pin silicone cables
• 1 x Camera connection cable
