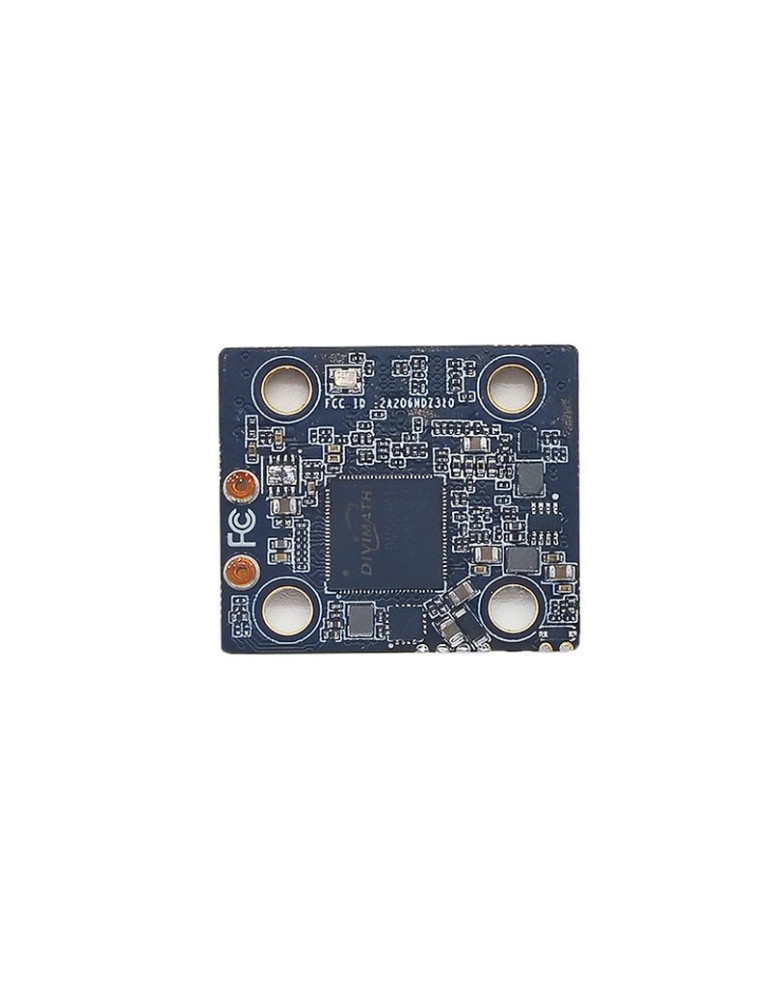

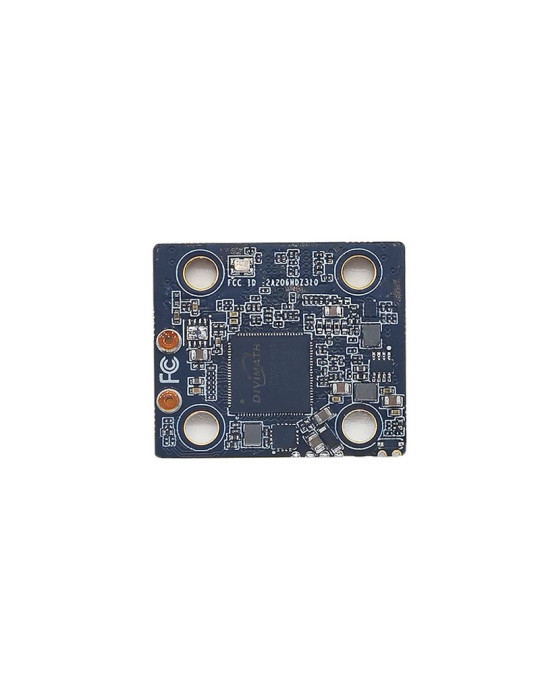

HDZero Race V3 VTX

The HDZero Race V3 VTX - Crafted to meet the demands of high-speed racing, this VTX combines exceptional durability with top-tier video performance in a lightweight, compact design.

Key Features:

• Versatile Power Options:
  Operates with a wide voltage range starting at 4V, making it compatible with 5V 1.5A regulators on most flight controllers (FCs) or up to 12V for HD VTX-equipped FCs.

• Compact and Lightweight:
  Measuring just 28x32x5mm and weighing only 5.5 grams, the Race V3 VTX aligns seamlessly with most FCs, reducing weight and enhancing durability.

• Durable Construction:
  Built with a 1.6mm thick PCB (compared to the 1.0mm used in the Whoop Lite VTX) for increased resilience. Large package components enhance stability, while smaller components are coated with glue for superior crash protection.

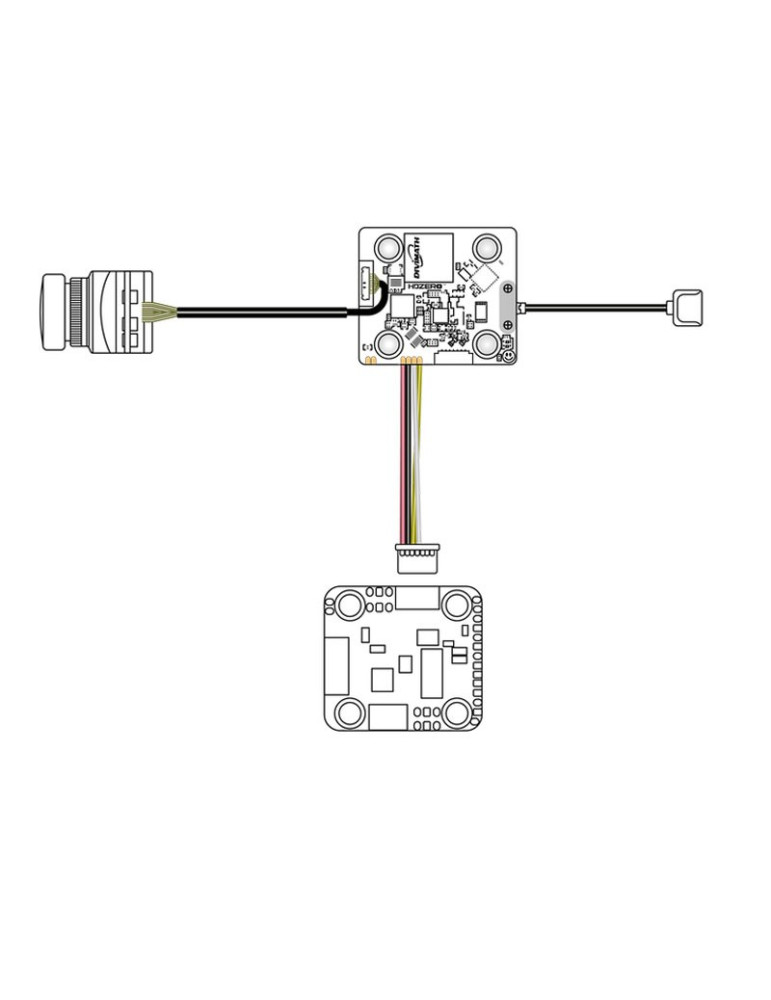

• Easy Installation:
  No soldering required. The antenna is secured with a robust metal bar and screws, and a plug-and-play wire harness connects directly to compatible HD-ready FCs.

• Advanced Safety Features:
  Includes a reverse polarity protection circuit for peace of mind, safeguarding your equipment during setup and use.

Stunning Video Performance:

Enjoy sharp, high-quality visuals with support for multiple resolutions:

• 540p at 90fps
• 720p at 60fps
• 1080p at 30fps

Why Choose the HDZero Race V3 VTX?

The HDZero Race V3 VTX strikes the perfect balance between durability and performance, making it the ideal choice for competitive FPV racing pilots. Its robust design, combined with high-resolution video capabilities, ensures a seamless and immersive flying experience every time.

Specifications

• Frequency: 5.725-5.850GHz
• Resolution: 540p90/720p60/1080p30
• RF Connector: Secured U.FL
• Interface: MIPI
• Video Connector: 20 Position 0.30mm Pitch
• Size: 32mm x 28mm x 5mm
• Weight: 5.5g
• Harness length: 40mm
• Power input: 4V-12V
• Mounting: 20mm x 20mm M4 with rubber grommets

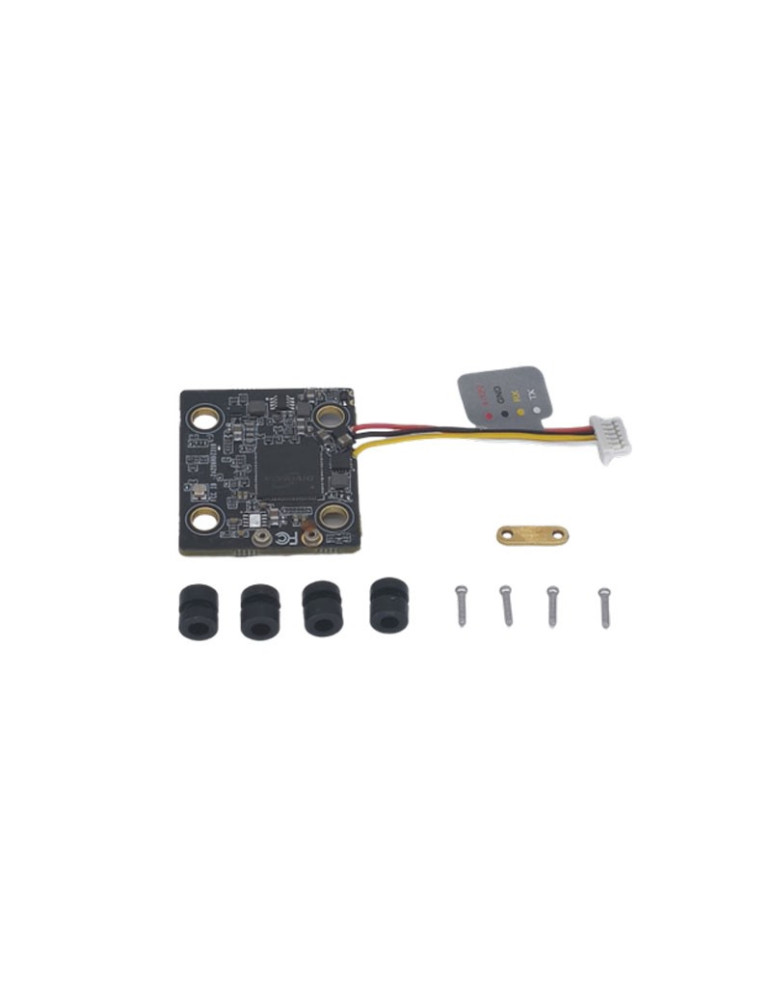

Package includes

• 1 x VTX-R3 board with pre-soldered harness
• 1 x Rubber Grommet (M4 to M3)
• 4 x u.FL Antenna Retention Screws
• 1 x Metal bar
