HDZero Monitor

The HDZero Monitor enables seamless display of both HDZero and analog video feeds. Similar to the HDZero Event VRX used at major racing events, the monitor automatically detects the transmission type and instantly displays the corresponding feed. With an instant power-on function and compatibility with a wide range of flight batteries (2s–6s voltage), nothing stands in the way of immediate FPV operation. The ultra-bright, anti-reflective 800-nit display ensures excellent visibility even in outdoor environments.

The integrated DVR function and HDMI output make it easy to share the FPV experience. Analog video signals are upscaled to 720p and de-interlaced to deliver enhanced image quality both via HDMI and in DVR recordings.

Whether as a reliable field monitor for experienced FPV users or as an affordable entry-level solution, the HDZero Monitor offers a well-balanced combination of performance, flexibility, and user-friendliness.

Features

• Instant boot-up – just flip the red slide switch similar to HDZero Goggle
• HDZero/Analog auto-switching (like Event VRX)
• Shared antennas for HDZero and Analog
• 4.3-inch high-brightness (800 nits) 720p LCD with anti-glare screen protector
• Deinterlaced/Up-scaled analog video with adaptive comb filter
• HDMI output for both HDZero and Analog
• Built-in DVR for HDZero and Analog including deinterlaced/up-scaled analog video
• Open-source CAD files, including additional battery case and sunshield to 3D print on your own
• Open-source software so you can customize the monitor to fit your needs

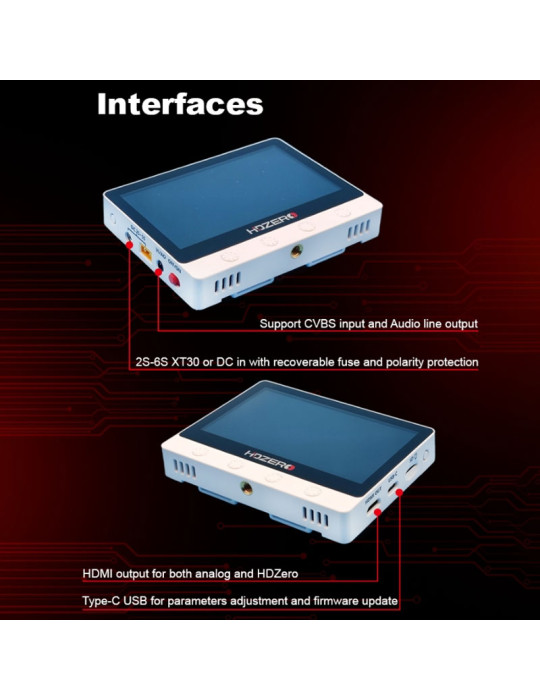

• Supports CVBS input and Audio line output
• Type-C USB port for parameter adjustment and firmware updates
• 2S-6S XT30 or DC in with recoverable fuse and polarity protection
• Tripod mount with the 1/4‐20 threaded insert on the bottom

Shipping Contents

• 1 x HDZero Monitor
• 2 x Lipo Strap
• 1 x Anti-glare screen protector
