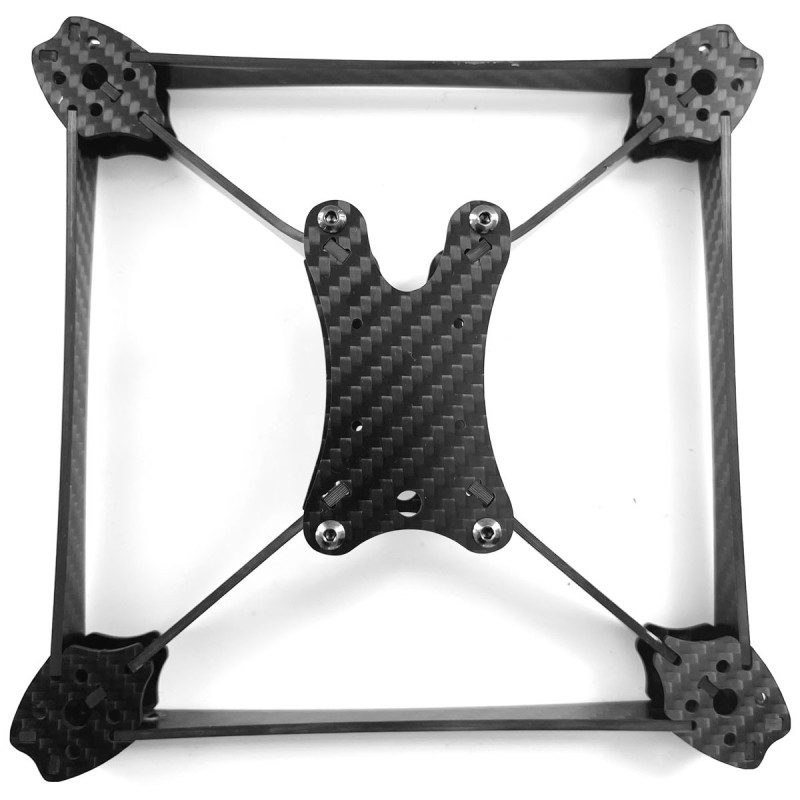

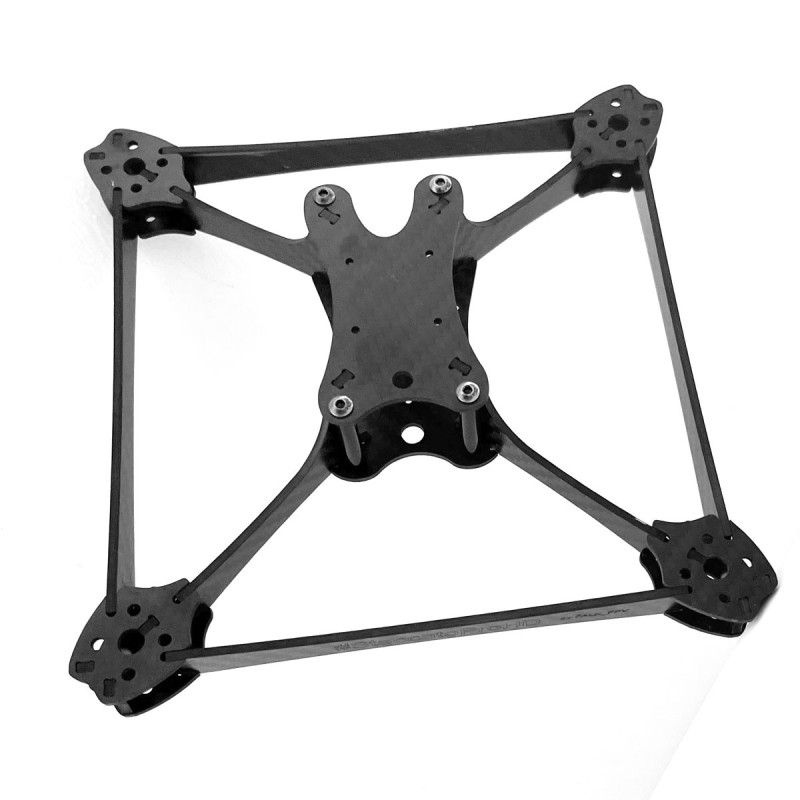

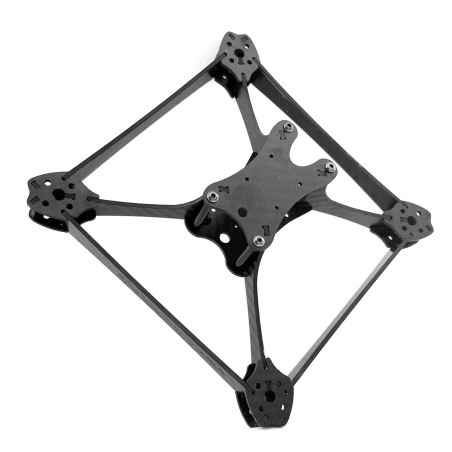

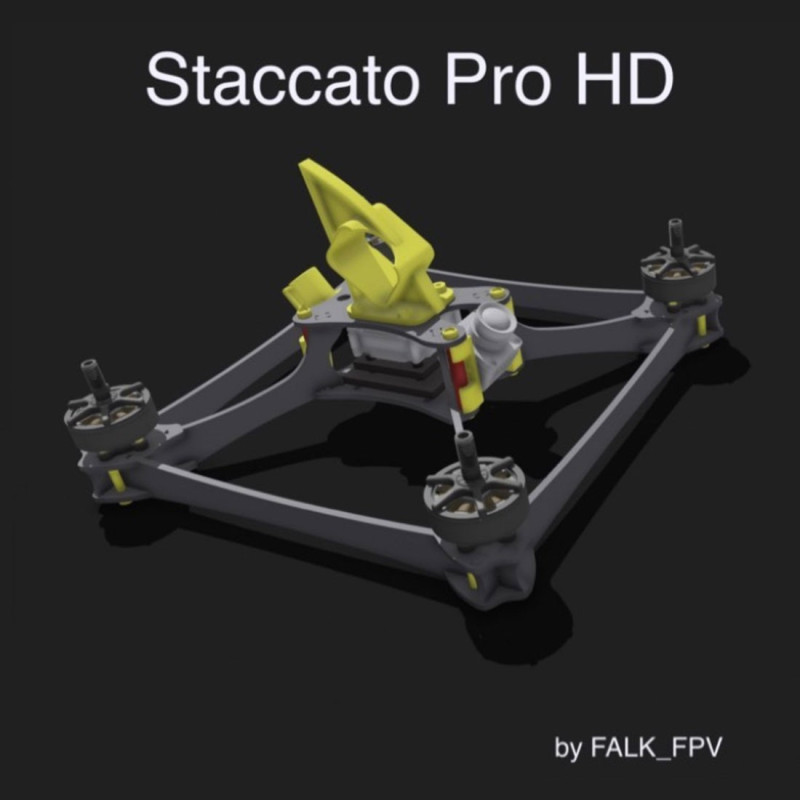

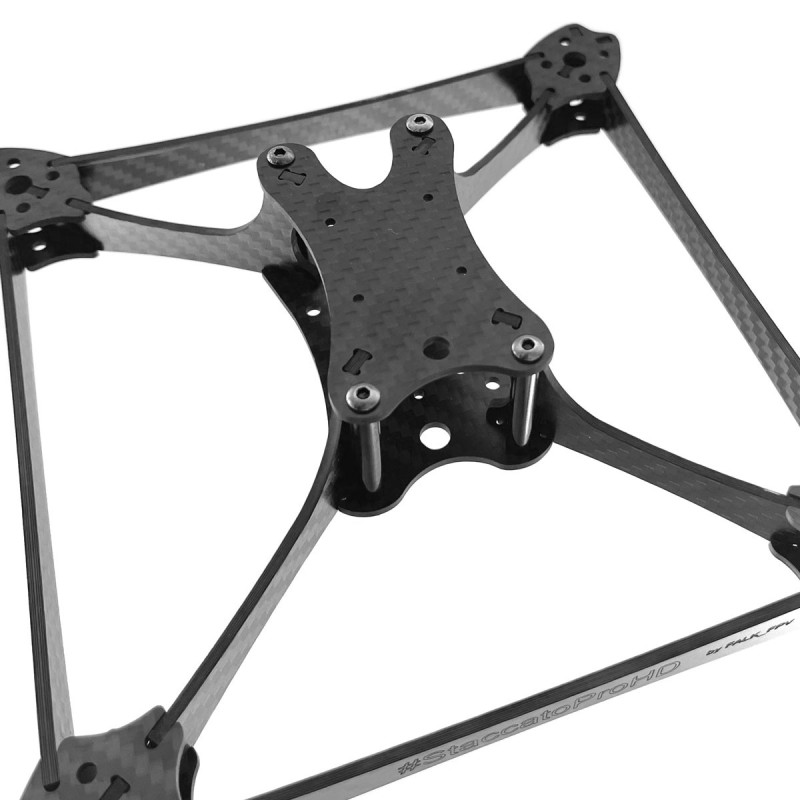

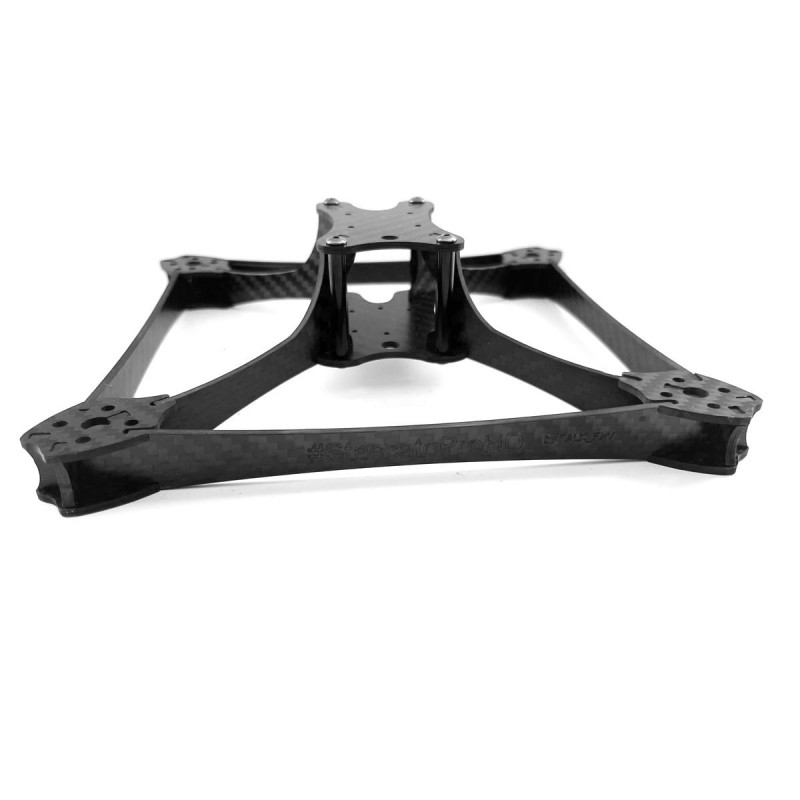

FALK_FPV StaccatoProHD Race Frame

Stability and high stiffness, thanks to FEM and long testing by TOP pilots (Nick Nolte and Niklas Kuphal). Precise fit, thanks to German manufacturing.

The StaccatoProHD allows maximum speed and flying the ideal line thanks to vertical struts.

30mm build height provides enough space for FC/ESC stack combination and DJI Air Units / Caddx Vista Units / Runcam Link Units. The HD-Unite can be attached to the top plate (20x20mm mounting).

The bottom plate has mounting holes for 20x20mm, 25x25mm, as well as 30.5x30.5mm stacks.

NOTE: 3D parts like camera mount are not included. The STL files can be downloaded from the following page: https://www.thingiverse.com/thing:5477269

Link to the Blueprint

Specifications

• Material: Carbon T300
• Engine mounting holes: 16mm(M3)
• FC/ESC mounting: 20x20 mm(M2) / 25x25 mm(M2) / 30.5x30.5 mm(M3)
• DJI mounting: 20x20 mm(M2) in top plate
• Maximum props size: 5,1"
• Weight: 80-85g with M3 aluminum standoffs and M3x18mm steel screws

Shipping content

• 1 x Frame consisting of
  • 4 x arms
  • 1 x top plate
  • 1 x bottom plate
  • 4 x identical struts
  • 8 x motor plates
• 4 x standoff / aluminum / 30mm(M3)
• 8 x screw / steel / 6mm(M3)
• 16 x motor screw / steel / 18mm(M3)
