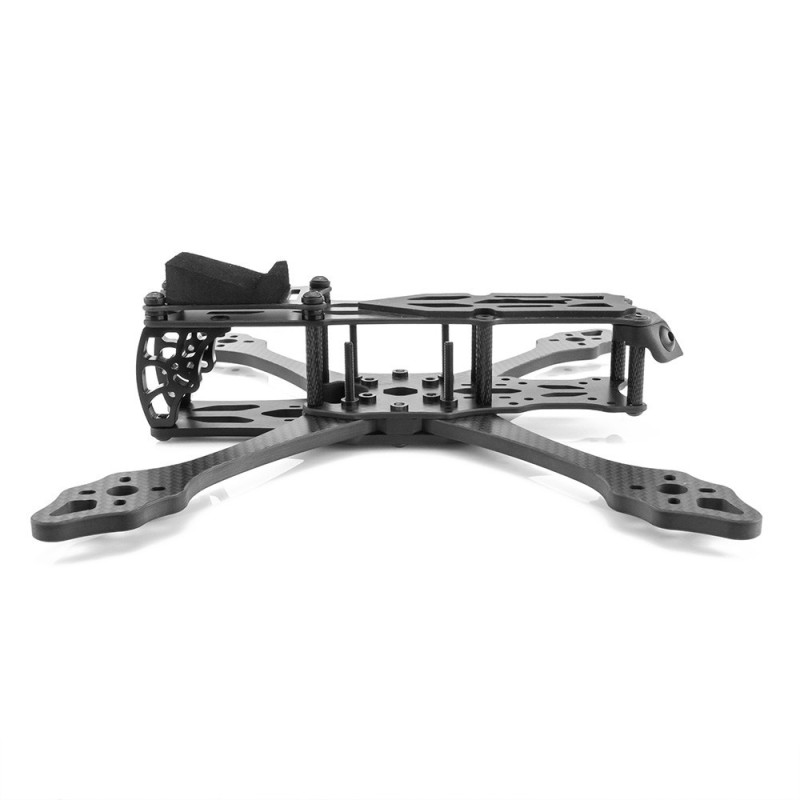

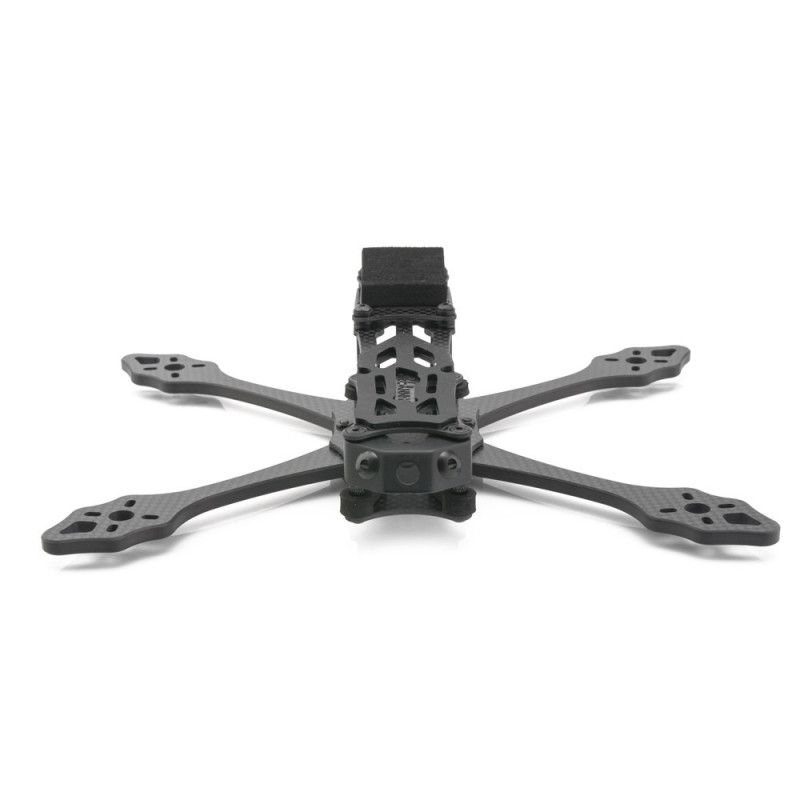

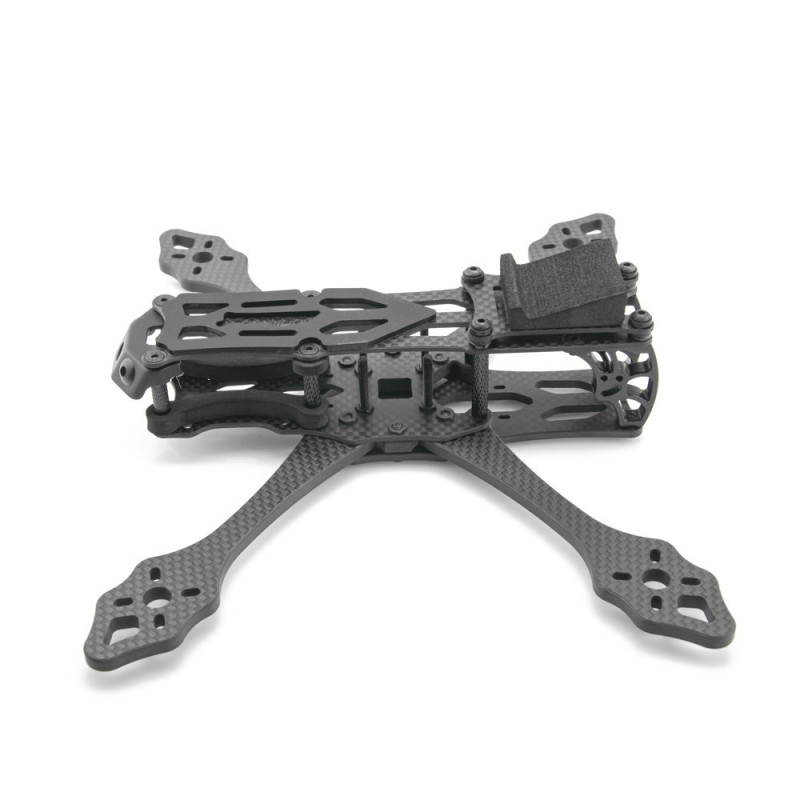

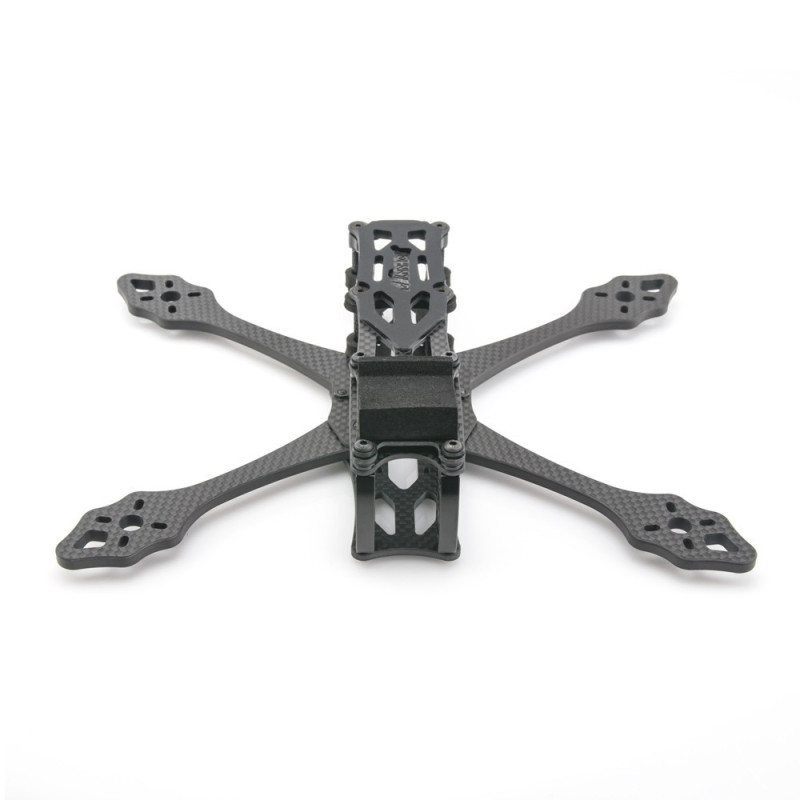

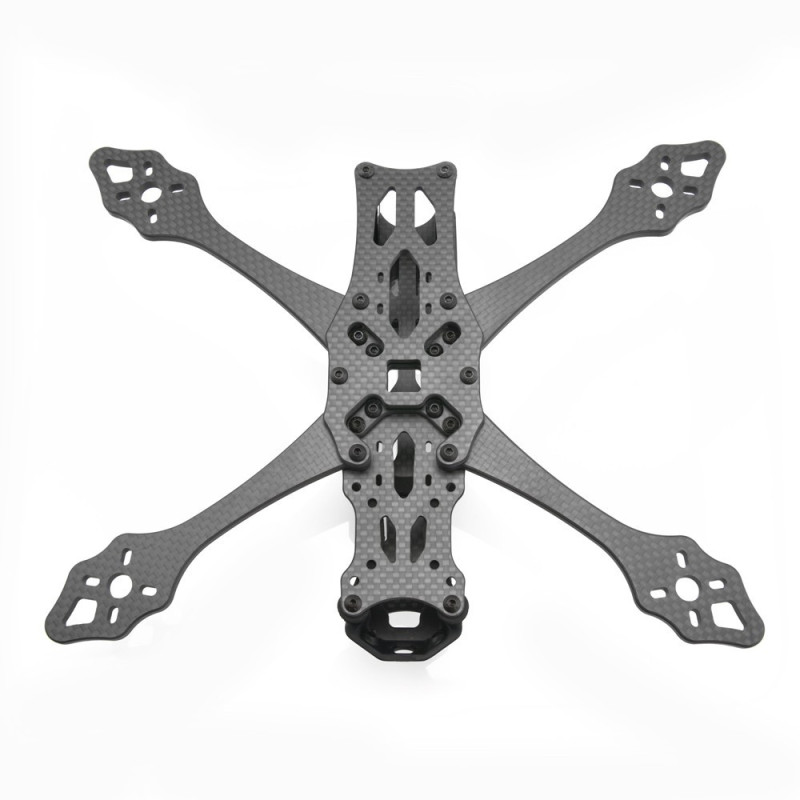

LUMENIER QAV-S JohnnyFPV SE Freestyle Frame (5")

342001

Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone Airframe is the ultimate Freestyle and Cinematic flying frame for FPV. Capture incredibly smooth footage with the vibration isolated design, and at the same time fly with confidence with a truly robust carbon fiber design.

More details

Lumenier

Delivery: out of stock

99.00 CHF

incl. 8.1% VAT

Data sheet

Manufacturer Lumenier
Type Complete
Weight 129g
Suitable propeller 5"
Material Carbon Fiber
Frame Configuration Wide X
Intended Use Freestyle
Supported Camera Types Micro Cameras (19mm), Mini Cameras (21mmii)
Arm Thickness 5mm
Mounting Holes 20x20mm, 30.5x30.5mm

More info

Introducing the Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone Airframe. Released by Lumenier in collaboration with world-renowned FPV pilot Johnny Schaer (AKA Johnny FPV), the new addition to the QAV-S line features special details that enhances the performance, functionality, versatility, and ease of work.



Johnny's passion for FPV flying is as strong as ever, but his flying style and requirements have continued to evolve over the years. With this in mind, he wanted to work on a new concept for a frame that serves all his needs for his current flying style: Stable Cinematic lines, gigantic dives, and full-speed acrobatic maneuvers.



After multiple revisions the Lumenier team, along with Johnny, created the Johnny FPV QAV-S edition Airframe perfectly meeting all his requirements. Features like an isolated HD camera anti-vibration platform, rapid in-field repairs with 1 screw arm swaps, custom foam mounting solution specifically for the DJI Air Unit, rubber molded antenna mounting solution for both HD and Analog setups, and much more make this frame the perfect platform for pilots who need a reliable and versatile rig for cinematic freestyle.



Features

  • Premium Lumenier carbon fiber with finished and chamfered edges

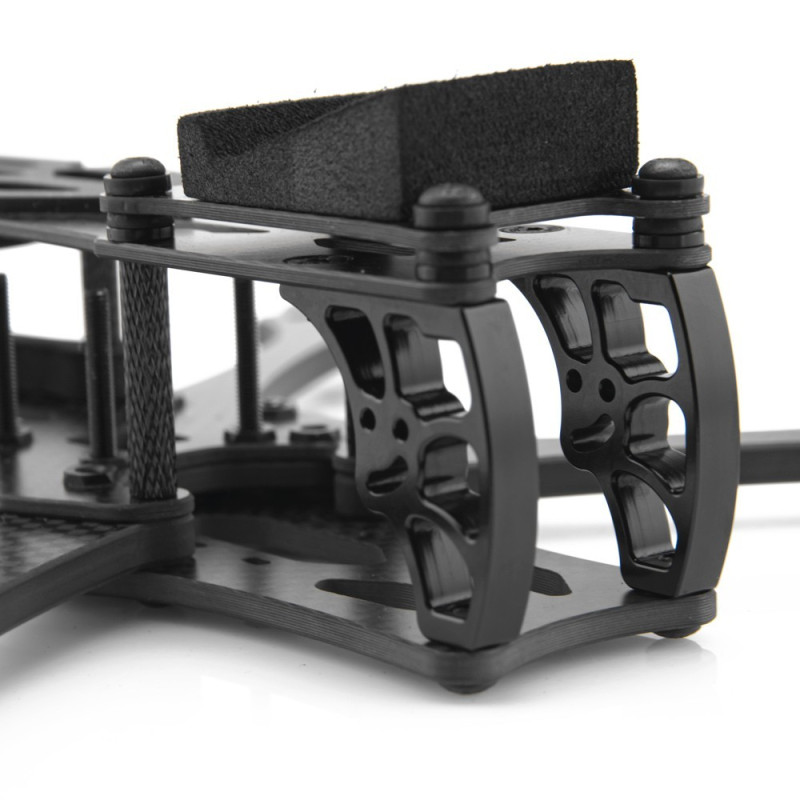

  • FPV camera mounting solution from CNC anodized aluminum that can be reversed to give versatility for the different camera sizes (mini size / dji size / micro size)
  • HD camera vibration damping system with custom CNC aluminum spacers mounted on rubber grommets to achieve a vibration free platform for your HD recording camera

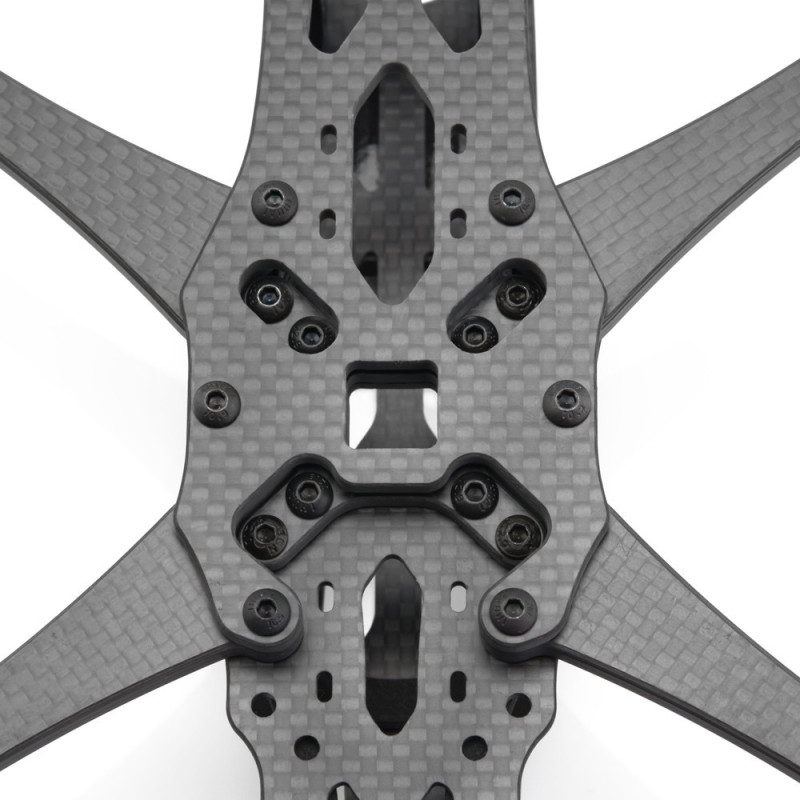

  • The QAV-S arm locking system includes a unique hinge + press nut that elegantly secures the arms while requiring only one screw to swap the arm (does not effect electronic's stack, separate mounting system)
  • Split (2-piece) bottom plate that gives enough room for a mini camera, while also reducing the rear deck space for components
  • An isolated 20x20 and 30x30 stack mounting that lets you take care of your electronics stack without the need to alter the frame structure and overall build

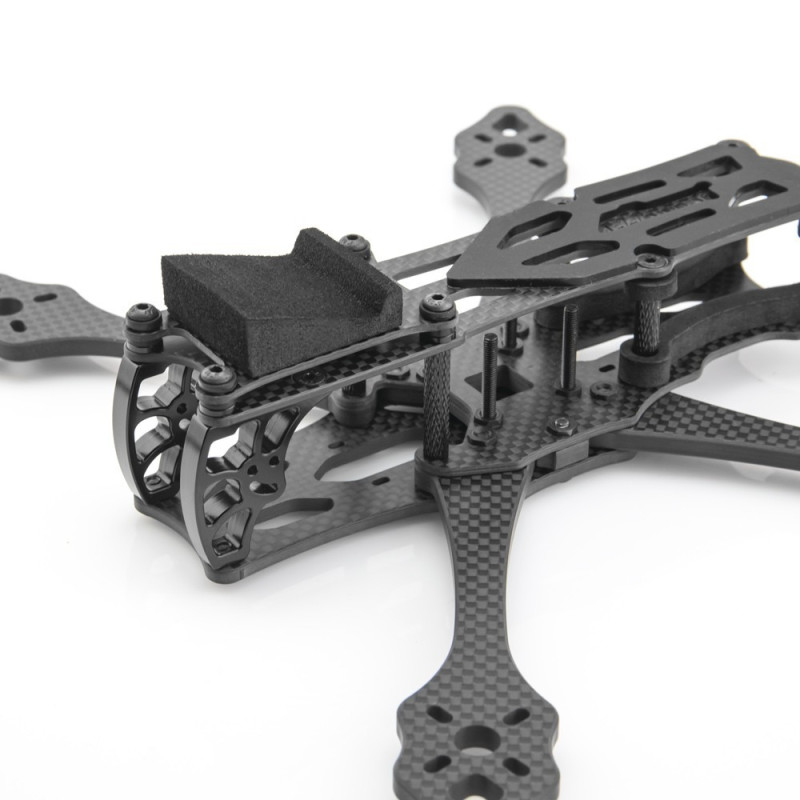

  • Dji compatibility, including a custom mounting solution that secures the Air Unit in place without any additional hardware

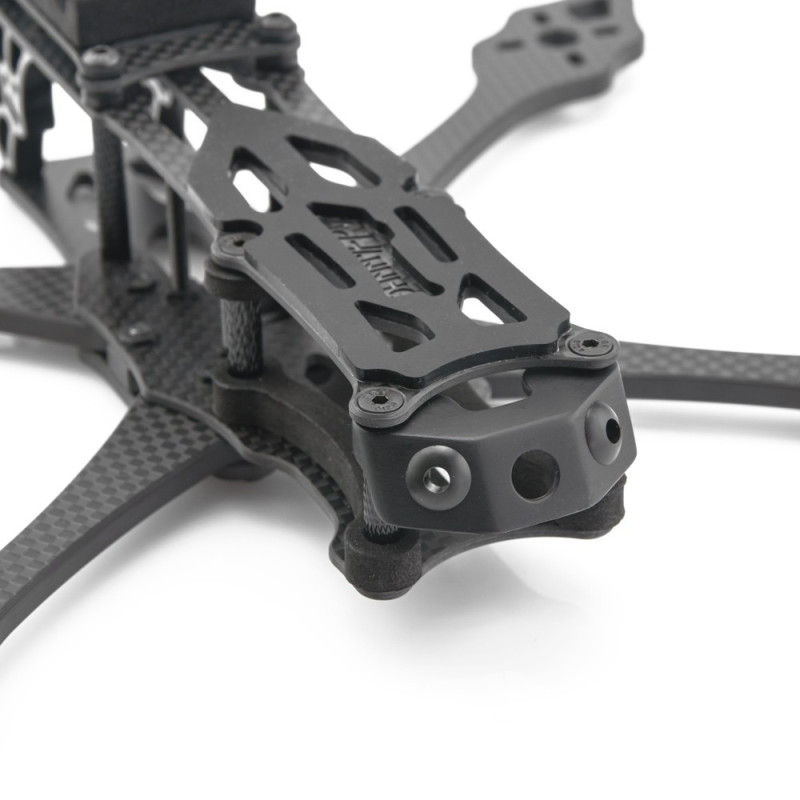

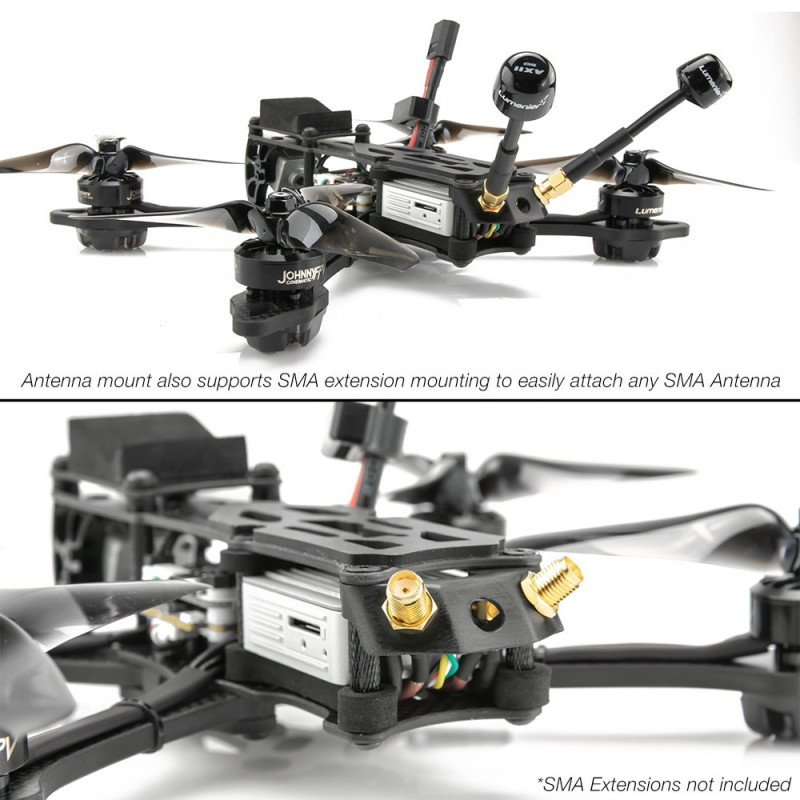

  • Antenna mounting versatility, allowing for both HD and Analog antenna mounting, as well as SMA extension mounting all on the same semi-flexible molded rubber mount
  • Dedicated space and tie down slots for capacitor and / or radio receiver behind FPV camera



Specifications

  • 129g Airframe + Hardware
  • 139g Airframe + Hardware + HD Camera Plate / Foam

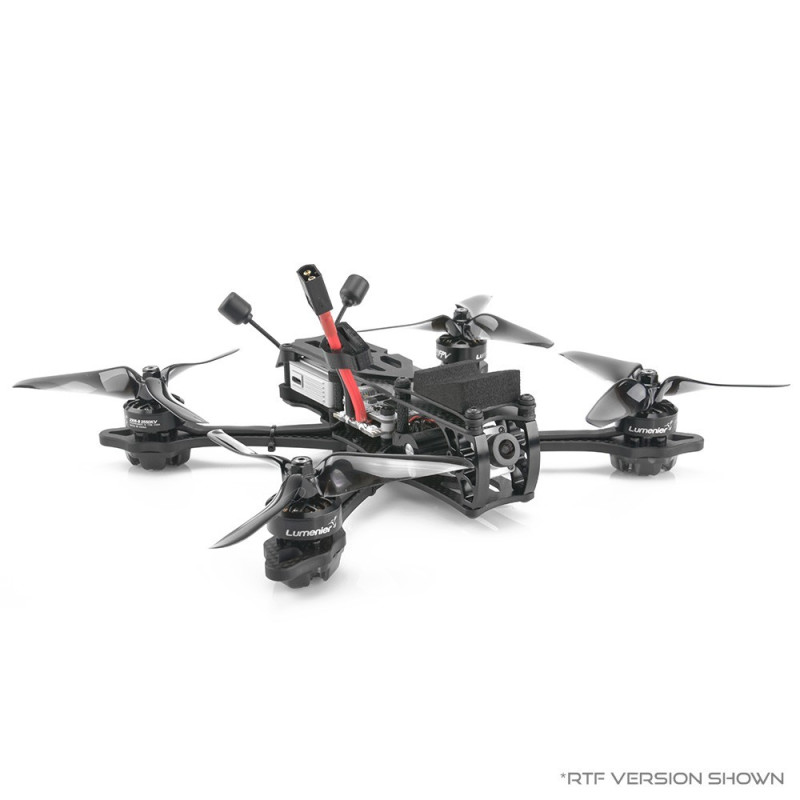

  • 398g Typical RTF with DJI Air Unit (excluding battery)

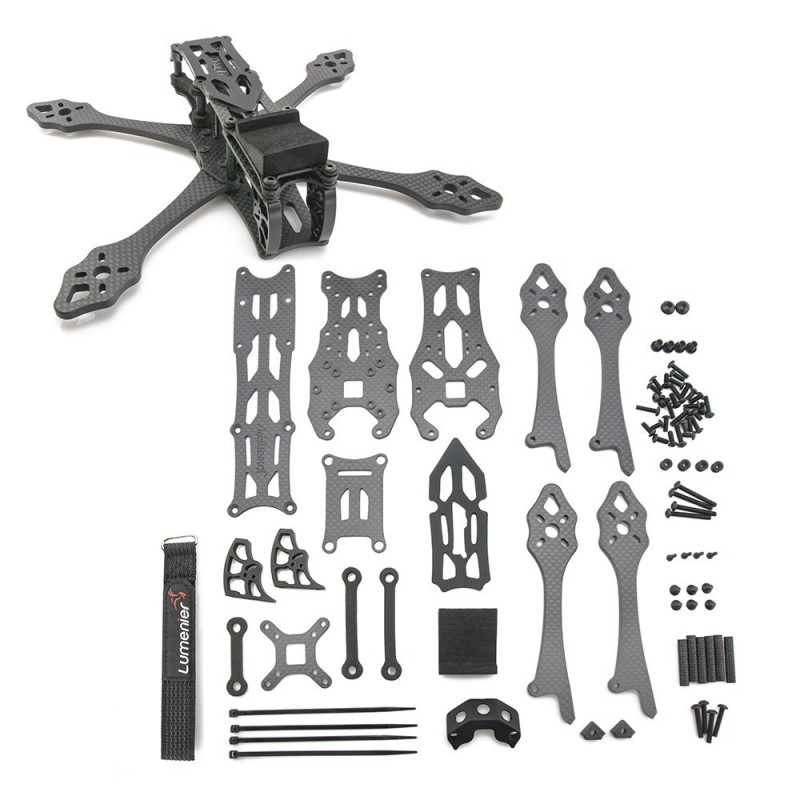

Shipping Contents

  • 1 x LUMENIER QAV-S JohnnyFPV Special Edition Freestyle Frame (5")
