Speedybee V3 F7+50A Combo

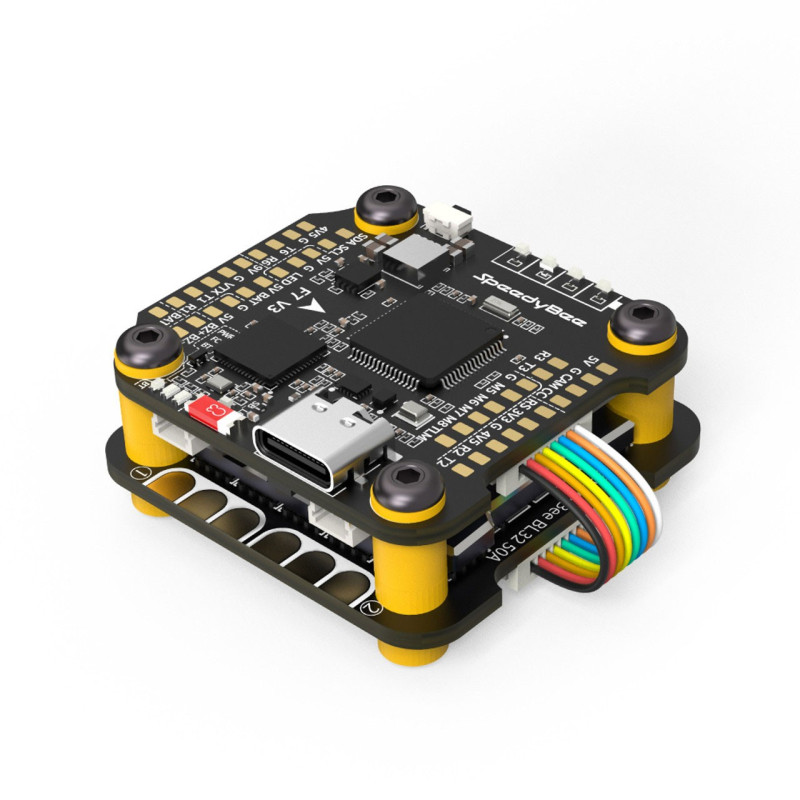

The SpeedyBee F7 V3 Stack includes an F722 flight controller and a 50A 128K ESC.
202020
139.90 CHF
Tax included
|
plus shipping costs
You will receive 2.80 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
The SpeedyBee F7 V3 Stack includes an F722 flight controller and a 50A 128K ESC. Featuring a BMP280 barometer, OSD, 500MB Memory Blackbox, a built-in FC LiPo monitoring system, and many more features, this stack is the perfect addition to your FPV build.
 Â

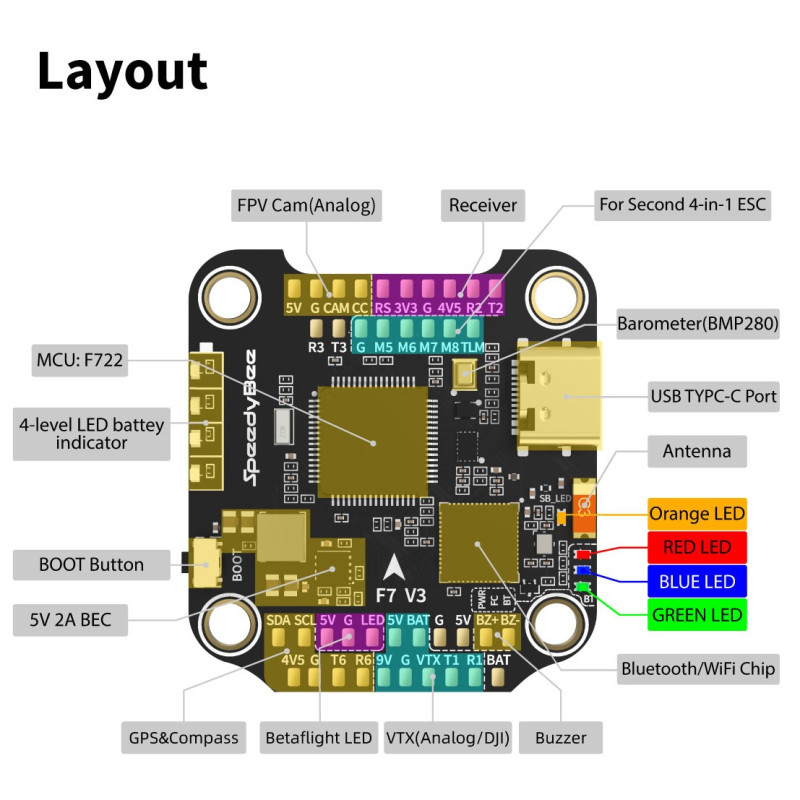

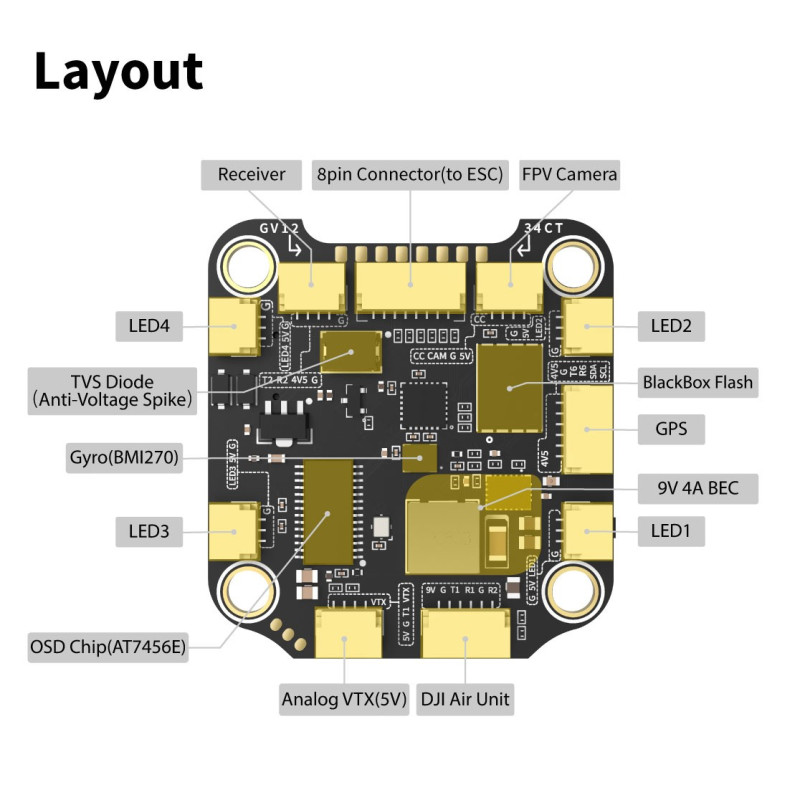

Features FC
- World's first wireles flashing, and Blackbox analysis.
- Supports Flight Controller Firmware BetaFlight(Default), EMUFlight
- SmartPort Use any TX pad of UART for the SmartPort features.
- BLE Support, used for Flight Controller configuration
- DJI Air Unit slot A full DJI Air Unit JST slot onboard
- WiFi Support, used for data transfer, e.g firmware
- Boot button Used to easy enter DFU mode
- LED pin Used for WS2812 LED
- Wifi/Bluetooth Capabilities
 Â

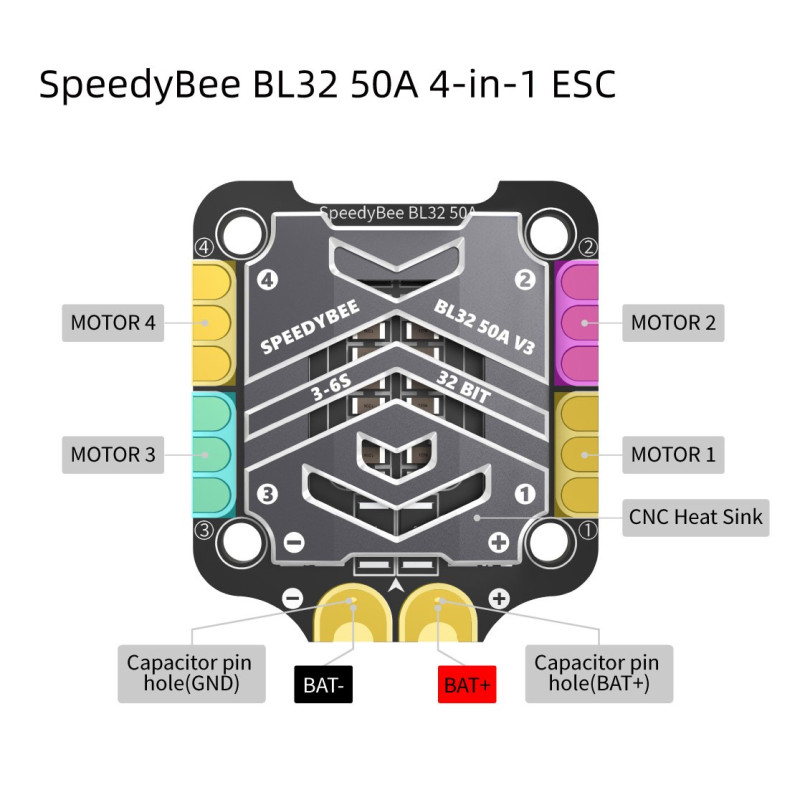

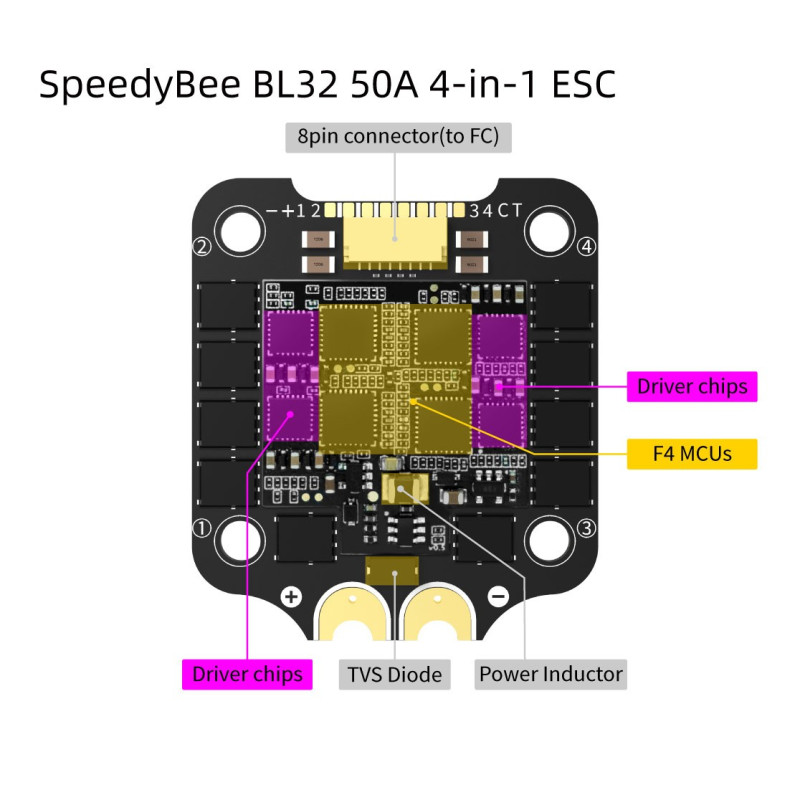

Feature ESC
- 1500uF Low ESR Capacitor with TVS Protective Diode

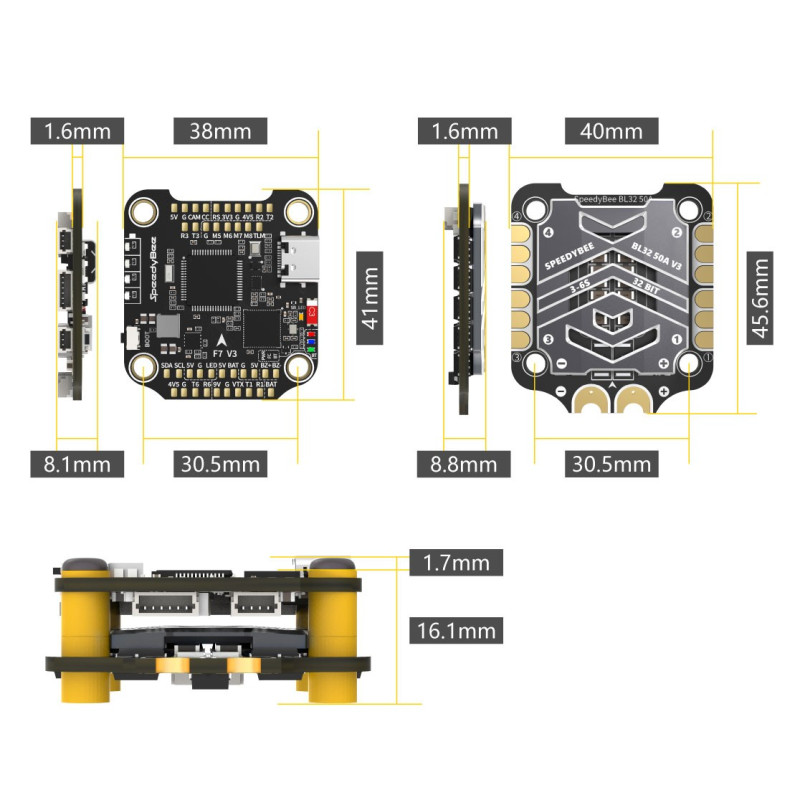

- 30.5 x 30.5mm Mounting Pattern
- CNC Heatsink Shield
- 128KHz PWM
- 50 Amperage
Â

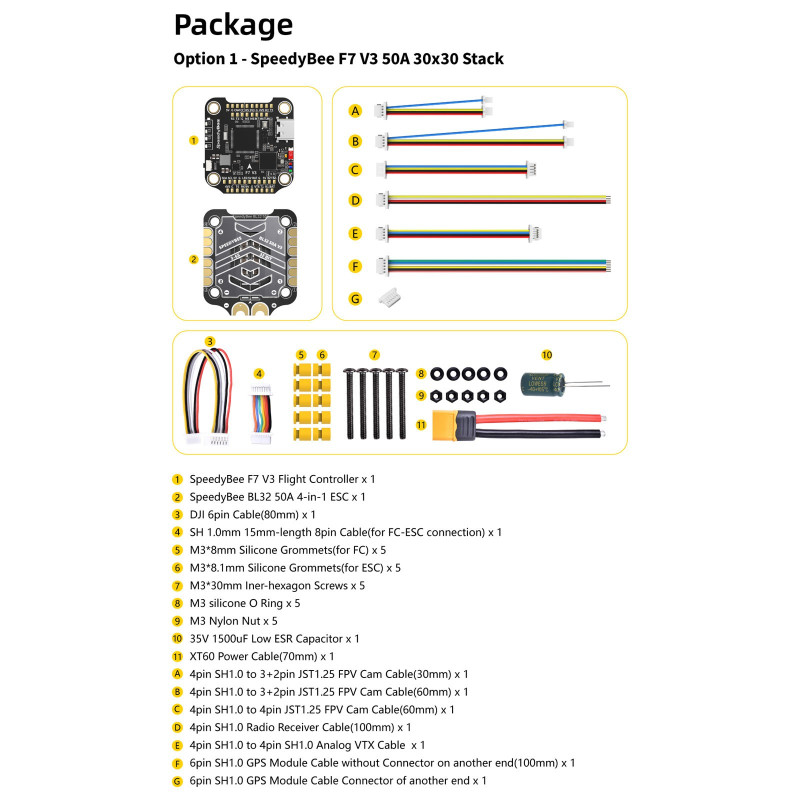

Package Contents
- 1 x SpeedyBee F7 V3 FC + 50A ESC Stack
- 5 x M3 6.6mm Antivibration Silicone Grommets
- 5 x M3 8mm Antivibration Silicone Grommets
- 5 x M3 30mm Inner-Hexagon Screws
- 1 x JST 8PIN Cable (15mm)
- 1 x DJI 6PIN Cabel (80mm)
- 1 x 35V 470uf Capacitor
- 5 x M3 Silicone O Rings
- 1 x XT60 Power Cable
- 5 x M3 Nylon Nuts
Data sheet
- 29.8g
- BMI270
-
3S
4S
5S
6S - Yes
- 45A
- 55A
- 30.5x30.5mm
- Yes
-
Betaflight
EMUFlight
iNav - No
- 500MB
- Brushless
- STM32F722
- DSHOT300/600/1200
- 4-in-1
- 41x45x14mm
