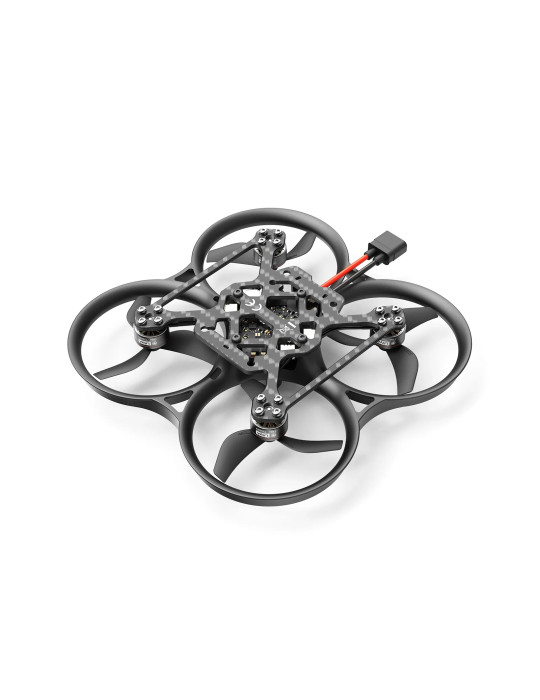

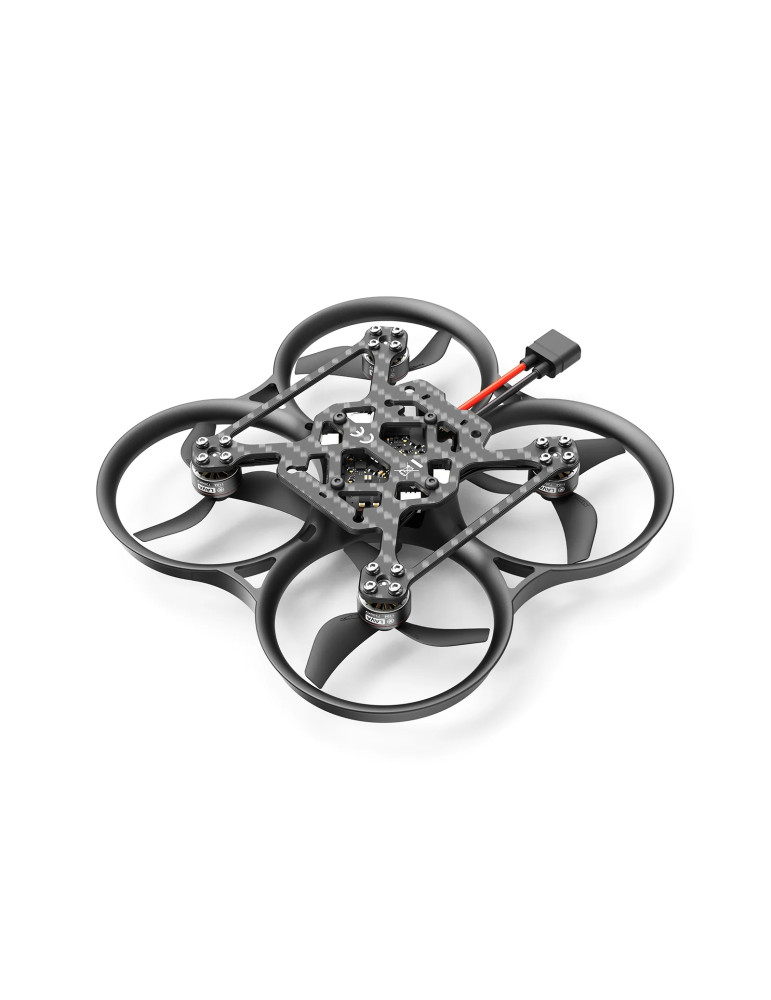

BetaFPV Pavo20 PRO II 3S Whoop for DJI O4 (BNF ELRS 2.4GHz)

The Pavo 20 PRO II is designed as a 2.2" DJI O4 Cinewhoop under 110g. It comes without an FPV system but offers easy installation of the DJI O4 and DJI O4 Air Unit Pro VTX module and camera.

The 2.2" Pavo20 Pro II redefines lightweight freestyle flight, now offering seamless compatibility with both the DJI O4 (79 g) and the O4 Pro (107.7 g). This next-generation model features the upgraded II frame with reinforced structural support and a 4-screw mounting system – for increased rigidity and easier assembly. An integrated RGB LED strip enhances visibility while adding a touch of style.

Engineered for cinematic agility, the Pavo20 Pro II combines the powerful thrust of LAVA 1104 7200KV brushless motors and co-developed Gemfan 2218 tri-blade propellers with an aerodynamic frame that delivers a thrust gain of 8-11%. The O4 Air Unit Pro mount ensures vibration-free stability for ultra-smooth footage, while the ultra-light F4 2-3S 20A flight controller enables precise digital performance. The Pavo20 Pro II is the ultimate whoop for pilots seeking professional-grade freestyle capabilities.

 Features:

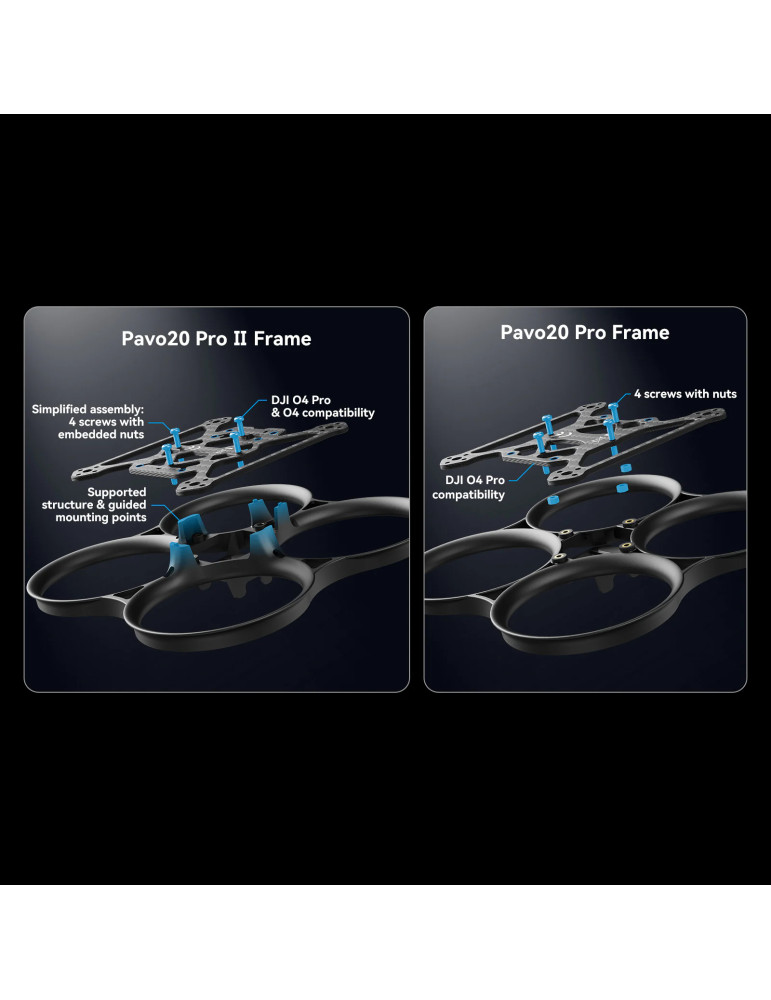

• Next-Gen Frame: The reinforced structure with guided mounting points and 4-screw design allows for quick assembly while maintaining high rigidity.

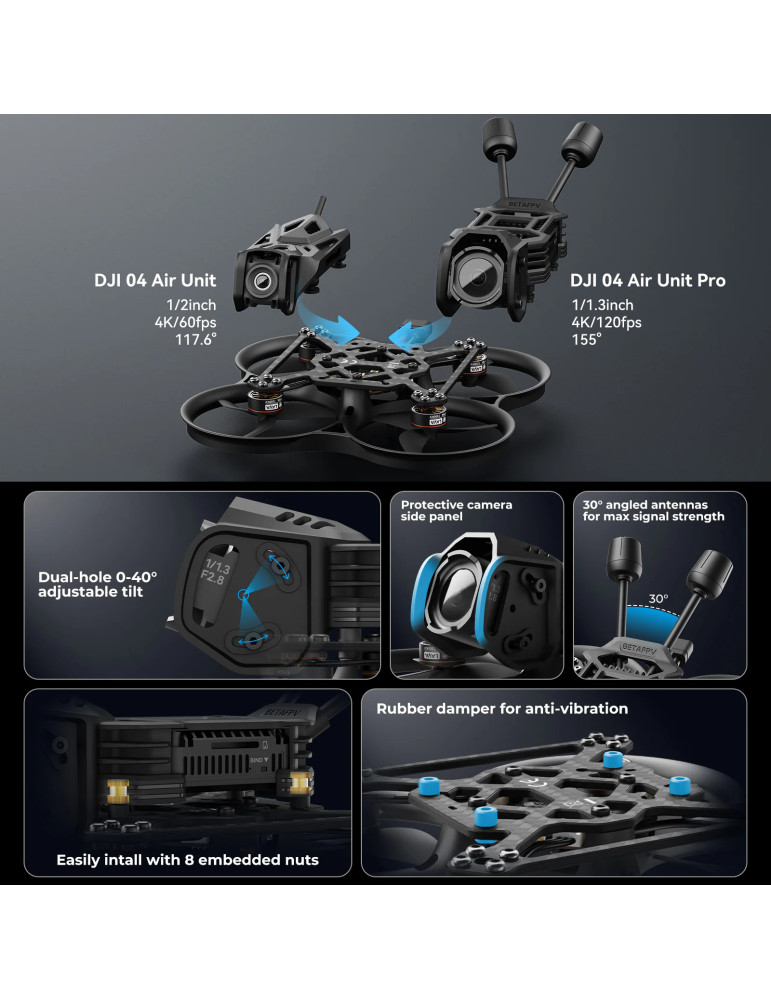

• O4 & O4 Pro Compatibility: A newly designed carbon plate integrates both the O4 and O4 Pro units seamlessly, enabling stunning HD footage and maximum build flexibility.

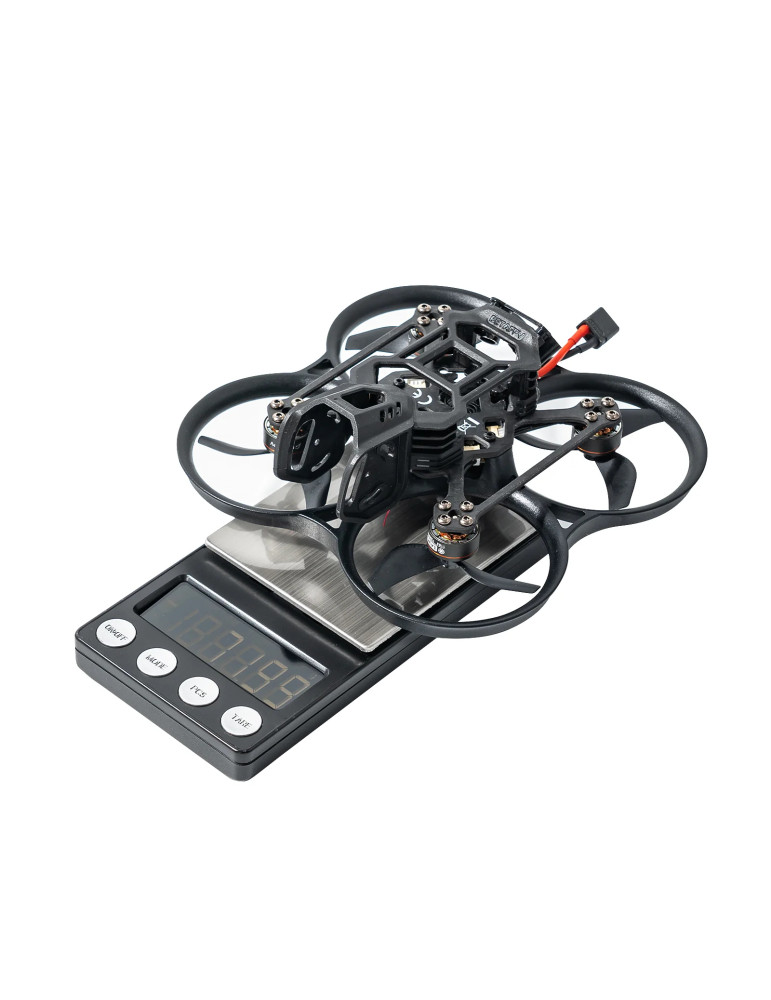

• Lightweight Powerhouse: Weighing just 107.7 g (O4 Pro version), this 2.2″ Cinewhoop is the ideal entry point into the FPV world for DJI pilots.
• Freestyle-Optimized Powertrain: Co-developed GF 2218 tri-blade propellers and LAVA 1104 | 7200KV brushless motors deliver superior thrust, while the aerodynamic frame provides an additional 8–11% performance boost for dynamic maneuvers.
• Cinematic Stability: The integrated O4 Air Unit Pro mount ensures every shot is crisp and free of vibrations.

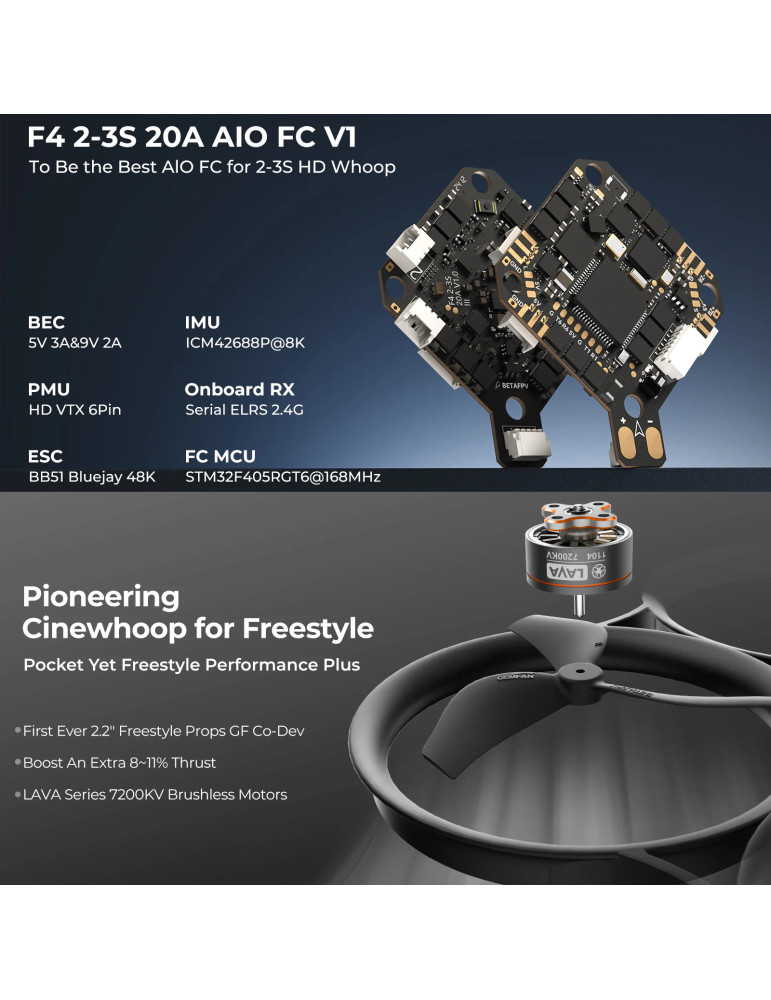

• Flight Controller: The ultra-light F4 2–3S 20A AIO FC V1 (5.92 g) is engineered for precise digital performance, offering increased processing power and rapid response for accurate freestyle control.
• New RGB LED Strip: Enhances in-air visibility and adds a bold visual signature.
• ND Filter Compatible: ND/UV filters for the O4 Pro enable perfect footage in any lighting conditions.
• Plug-and-Play Tuning: Preconfigured PID settings for O4 & O4 Pro—simply select via OSD and start flying.

Specifications:

• Weight: 65.2g (without battery and FPV-System)
• FC&ESC: F4 2-3S 20A AIO FC V1
• Frame: Pavo20 Pro II Brushless Frame
• Motors: 1104 7200KV
• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• VTX & Camera: None (compatible with DJI O4 and O4 PRO Air Unit)
• Receiver: Serial ELRS 2.4GHz
• Recommended Battery: 450-550mAh 3S 75C (XT30)
• Flight time: ~6min30 (with LAVA 550mAh 3S)

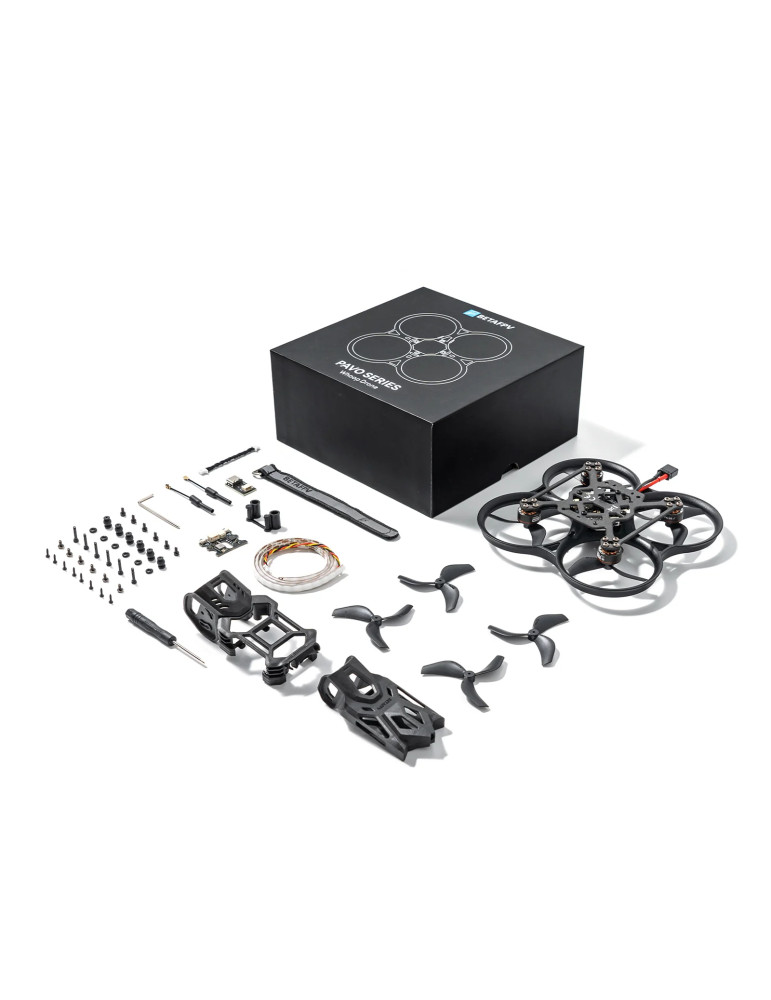

Shipping Contents

• 1 x Pavo20 Pro II Brushless Whoop Quadcopter (PNP)
• 1 x Top Plate for O4 Air Unit Bracket II
• 1 x Bottom Plate for O4 Air Unit Bracket II
• 1 x O4 Air Unit Pro Mount
• 4 x Gemfan 2218 Tri-Blade Propellers (1.5 mm shaft)
• 1 x Type-C to SH1.0 Adapter
• 1 x SH1.0 4-Pin Adapter Cable
• 1 x RGB LED Strip (500 mm)
• 1 x RGB Control Board
• 6 x Damping Balls for O4 Air Unit Pro Mount (6.6 mm)
• 6 x Damping Balls for O4 Air Unit Bracket (8.8 mm)
• 6 x Damping Pads for O4 Air Unit Bracket (1.5 mm)
• 6 x M2x10 Hex Socket Cap Screws
• 6 x M2x4 Hex Socket Button Head Screws
• 6 x M2x4 Hex Sheet Metal Screws
• 8 x M1.4x6 Phillips Flat Head Screws with Washer
• 2 x 5.8G VTX Antenna
• 1 x 5.8G VTX Antenna Mount
• 1 x Phillips Screwdriver
• 1 x H1.5 Hex Driver
