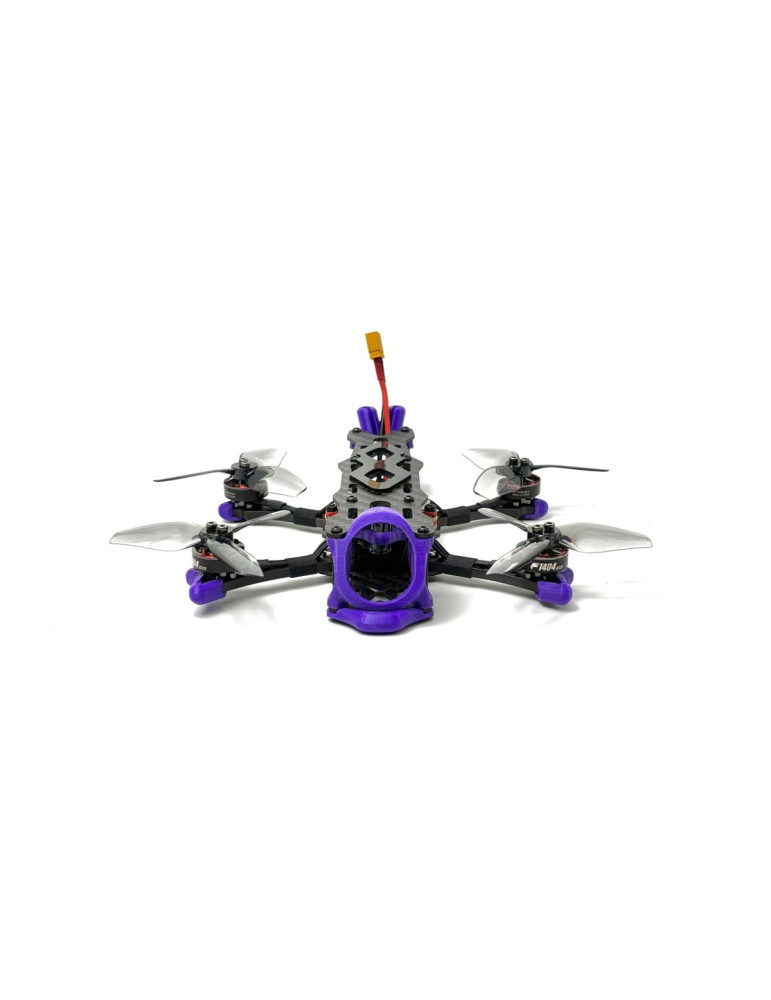

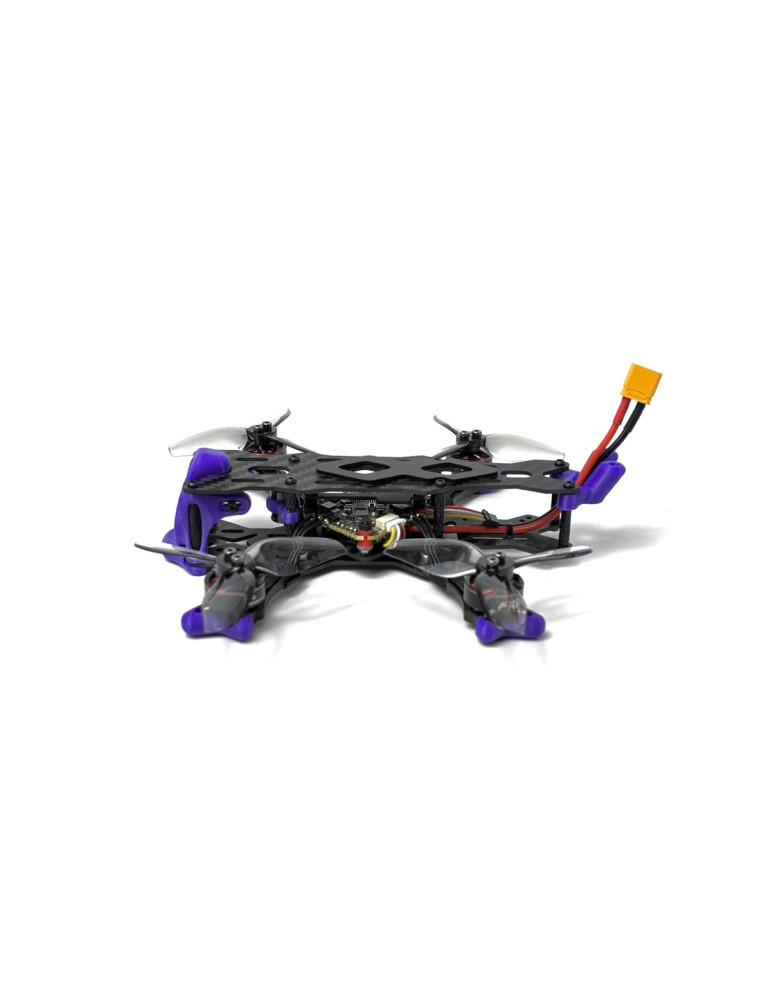

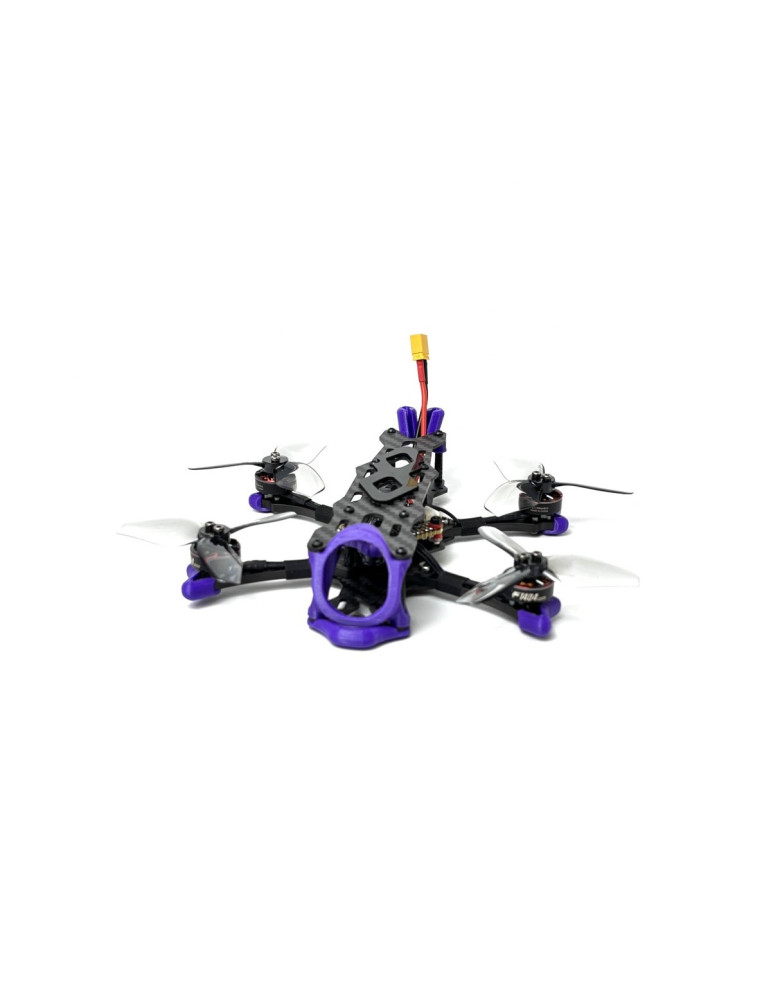

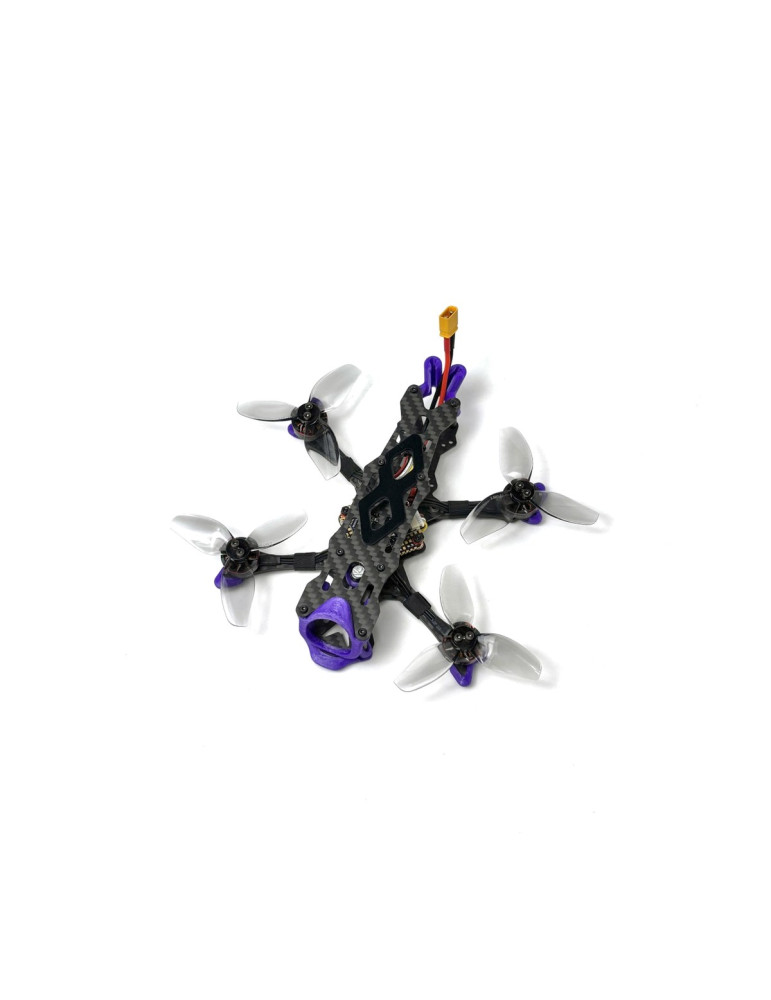

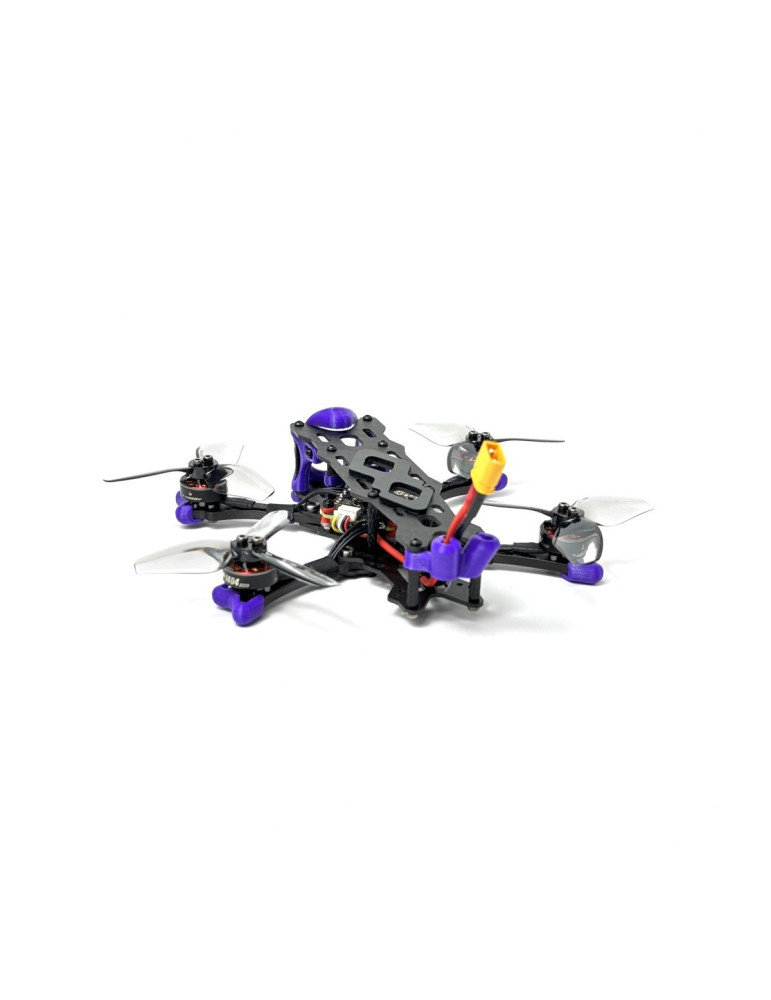

AvionRC Nexa 2.8 EVO PRO 4S (ELRS - Without DJI O4 PRO)
The Nexa 2.8 EVO PRO delivers agile freestyle performance in a small format.
413003
259.00 CHF
Tax included
|
plus shipping costs
Loyalty Points - You will receive 5.18 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
AvionRC Nexa 2.8 EVO PRO FPV drone for DJI O4 Pro Air Unit - mini drone for maximum agility
The Nexa 2.8 EVO PRO brings full HD performance to an ultra-compact 2.8" format. Delivered without the DJI O4 Air Unit, but factory-prepared for installation: cables, fasteners, and TPU mounts are conveniently integrated, making O4 installation quick and easy. At its heart is a lightweight 2.8" Nexa frame with 3.5 mm thick carbon arms and a "no-prop-in-view" camera position, combined with the JHEMCU GHF405AIO-HD (40 A, 2-6 S) and T-Motor F1404-4600KV motors. A setup that in practice stands for very direct responses, clean HD images, and efficient flight times.
The total weight is approximately 114 g (without air unit and battery). This makes the copter ideal for building a lightweight, high-performance 4S setup with 550–850 mAh. TPU mounts, Gemfan props, LiPo strap, and anti-slip pad are included in the scope of delivery—ideal for anyone who wants to combine maximum performance with a well-thought-out design.
 Â
Features
- Prepared for use with the DJI O4 Air Unit. All mounts, cables, and mounting frames are already integrated.

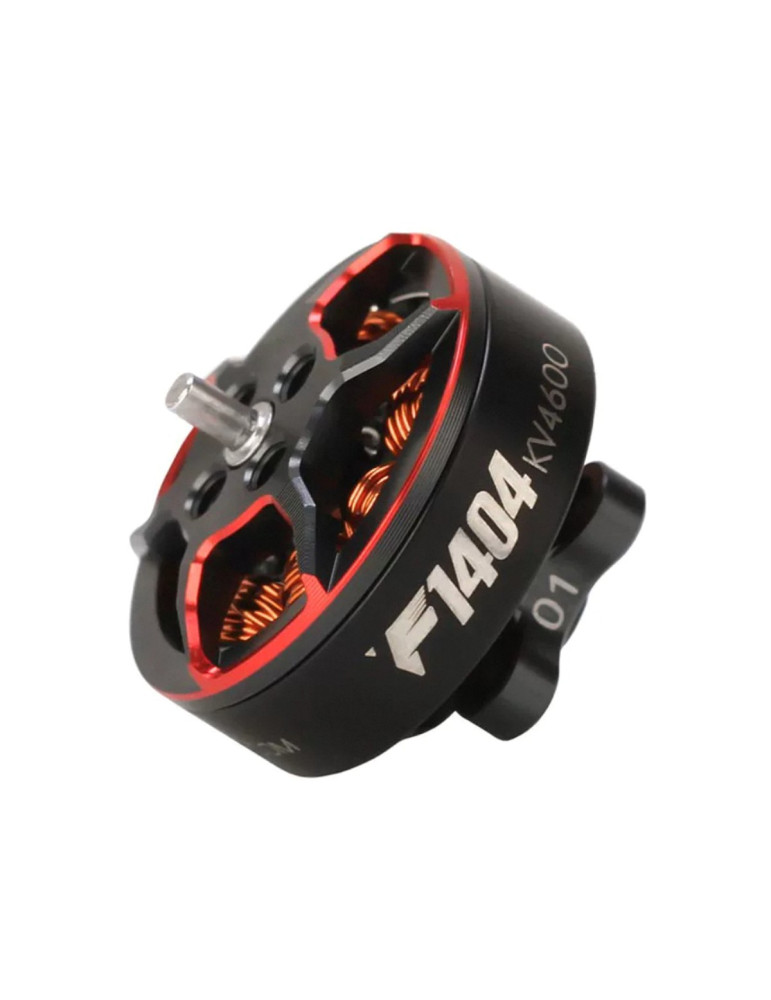

- T‑Motor 1404‑4600KV motors deliver powerful and responsive performance on 2.8″ propellers.

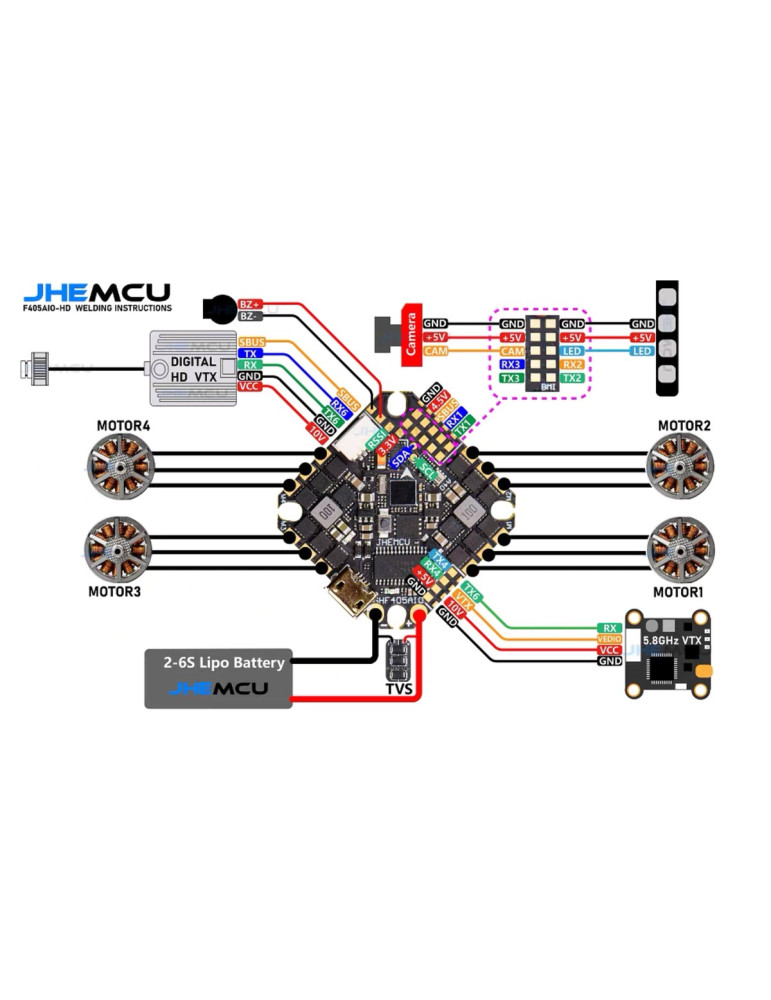

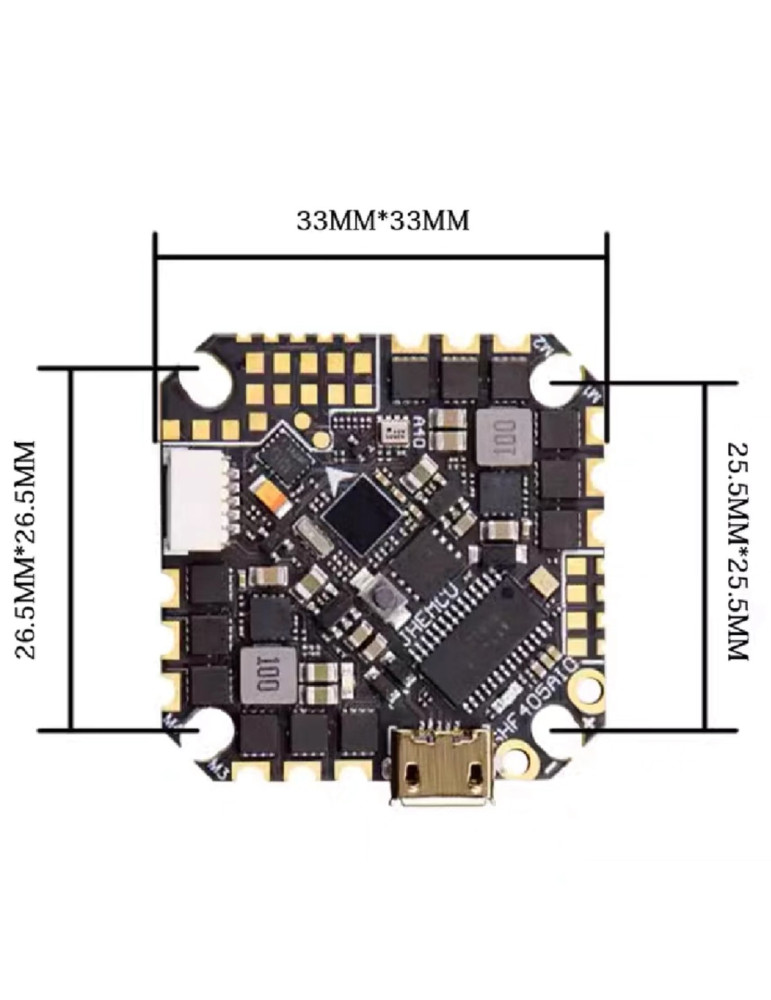

- The JHEMCU GHF405AIO-HD flight controller (40A, 2-6S) is pre-flashed with Betaflight 4.5.1 for modern features such as RPM filtering and OSD.
- The "No Prop in View" camera position allows for a clean HD image without distracting propellers in the field of view.
- Robust 3.5 mm carbon arms and precision CNC-machined parts provide stability while keeping weight low.
- Extensive TPU equipment with camera and antenna mounts, arm guards, front bumper, LiPo strap, and anti-slip pad included.
- Equipped with HQProp T2.8x1.6x3 propellers for efficient thrust development and controlled flight behavior.
- Weighs only approx. 114 g without DJI O4 Air Unit and without LiPo. Ideal for custom 4S builds in the 550–850 mAh range.
- Each copter is individually assembled and fully tested by AvionRC before shipping.
  Â
Specifications
- Weight: ~114g ± 3g (Without Air Unit, without LiPo)
- FC/ESC: JHEMCU GHF405AIO-HD 40A
- Motors: T-Motor 1404-4600KV
- Props: HQProp T1.8x1.6x3
- VTX/Camera: -
- Frame: Nexa 2.8 EVO PRO
- Receiver:Â Radiomaster RP1 ELRS2.4GHz
- Connector: XT30
- Battery: Recommended 4S 550mAh - 850mAh  (NOT included)
  Â
Shipping contents
- 1 x AvionRC Nexa 2.8 EVO PRO 4S (ELRS - Without DJI O4 PRO)
- 1 x LiPo Strap
- 2 x HQProp T2.8x1.6x3 (Set)
- 1 x Screw Set
Data sheet
- 114g (w/o battery)
- 1404 Brushless
- 4S
- 2.8"
- Carbon Fiber
- 4600
- 40A
- ELRS
- None
No customer reviews for the moment.
Configurator
Radio Control
The best just got better! The TX16S Mark II is the ultimate open-source radio! |
RadioMaster TX16S Mark II Max Radio Controller (ELRS) |
|
The RadioMaster Zorro Radio Controller ELRS is the best RC in its class. This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. (Batteries sold separately) |
RadioMaster Zorro ELRS Radio Controller |
|
The RadioMaster Boxer MAX Radio Transmitter with AG01 Hall Effect Gimbals and CNC Buttons! (Batteries sold separately) |
RadioMaster Boxer MAX Radio Controller (ELRS) |
|
The RadioMaster Boxer CRUSH Radio Transmitter with AG01 Hall Effect Gimbals and in different colors! (Batteries sold separately) |
RadioMaster Boxer CRUSH Radio Controller (ELRS) |
|
The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful! Transparent Version! (Batteries sold separately) |
RadioMaster Boxer Radio Controller (ELRS) - Transparent |
|
The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful! (Batteries sold separately) |
RadioMaster Boxer Radio Controller (ELRS) |
|
The RadioMaster Pocket is a small, lightweight radio that comes preinstalled with EdgeTX firmware. New available in different colors. (Batteries sold separately) |
RadioMaster Pocket CRUSH Radio Controller (ELRS) |
|
The RadioMaster Pocket is a small, lightweight radio that comes preinstalled with EdgeTX firmware. Available in Transparent or Charcoal (Batteries sold separately) |
RadioMaster Pocket Radio Controller (ELRS) |
|
The RadioMaster TX15 Radio Transmitter with V5.0 Hall Effect Gimbals and Color Touchscreen Display. Available in different colors! (Batteries sold separately) |
RadioMaster TX15 Radio Controller (ELRS) |
|
The RadioMaster TX15 MAX Radio Transmitter with AG02 Hall Effect Gimbals and Color Touchscreen Display. Available in different colors! (Batteries sold separately) |
RadioMaster TX15 MAX Radio Controller (ELRS) |
|
| None |
FPV Goggles
The DJI Goggles 3 with an integrated battery and lightweight design, they feature dual micro-OLED screens for stunning 1080p clarity as you navigate the sky! Now supports DJ O3 Air Unit (since FW v01.00.0300) |
|
|
The DJI Goggles N3 feature an integrated battery, a practical design, and Micro-OLED displays for impressive 1080p clarity! Designed for O4 FHD video transmission. |
|
|
The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables. |
|
|
| None |
Flight Battery
Auline 650mAh 95C 4S1P lipo battery pack designed for FPV racing and Freestyle. |
AULINE SR 650mAh 4S 95C (XT30) |
|
Tattu R-Line 650mAh 95C 4S1P LiPo - Suitable for 2.5-3" Cinewhoop |
TATTU R-Line 650mAh 4S 95C (XT30) |
|
GepRC 660mAh 90C 4S1PÂ LiHv - Suitable for 2-3" Cinewhoops |
|
|
Tattu R-Line 750mAh 95C 4S1PÂ LiPo - Suitable for 2.5-3" Cinewhoops |
TATTU R-Line 750mAh 4S 95C (XT30) |
|
Auline 850mAh 95C 4S1P lipo battery pack designed for FPV racing and Freestyle. |
AULINE SR 850mAh 4S 95C (XT30) |
|
Tattu R-Line 850mAh 150C 4S1P LiPo - Suitable for 2.5-3" Cinewhoops |
TATTU R-Line 850mAh 4S 150C V5.0 (XT30) |
|
Tattu 850mAh 75C 4S1P lipo battery pack |
|
Propeller Selection
3-Blade Durable Propeller by HQProp. Suitable for micro drones with T-Mount motors . |

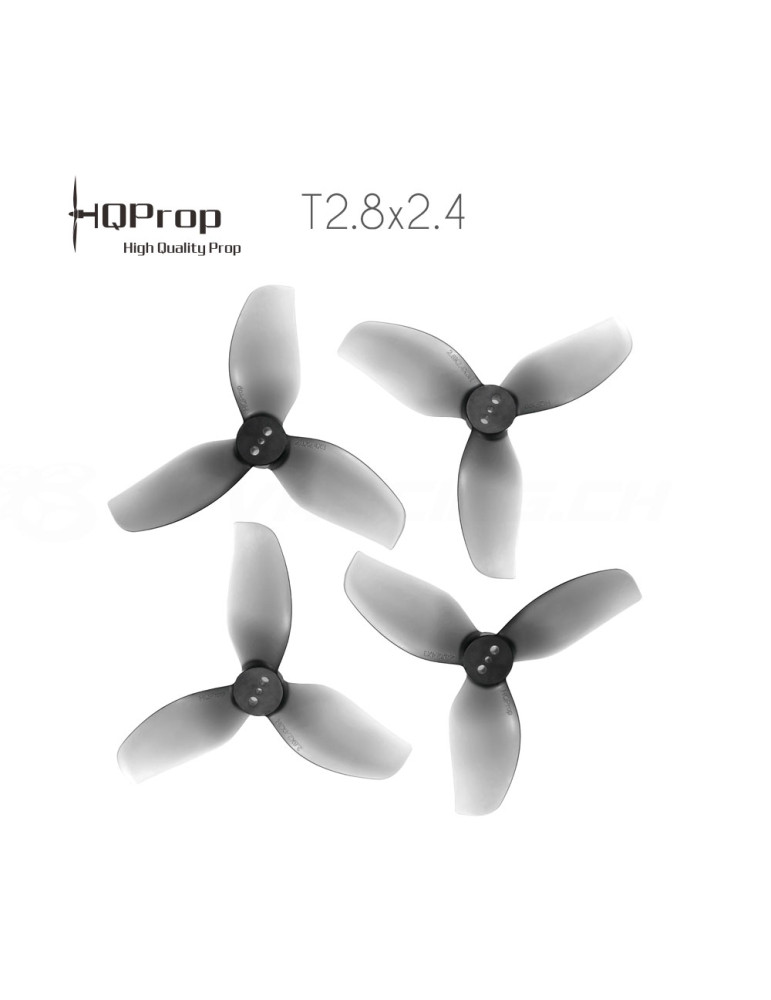

HQProp T2.8x2.4x3 Durable Propeller - Grey |
Radio Control Batteries
18650 cell, designed for areas where powerful batteries are used. |
Samsung INR18650-35E 3,6V - 3,7V 3500mAh (Flat Top) |
|
The GNB 6500mAh 2s Li-Po battery pack is the perfect battery for the Radiomaster Boxer and TX16S. |
GNB 6500mAh 2S Li-Po for Boxer and TX16S MKII |
|
18650 cell (BUTTON TOP VERSION), designed for areas where powerful batteries are used. |
Samsung INR18650-30Q 3,6V - 3,7V 3000mAh (Button Top) |
|
18350 cell, designed for areas where powerful batteries are used. |
Keeppower IMR18350 3,7V 1200mAh (Flat Top) - 2 Pcs. |
Customers who bought this product also bought:

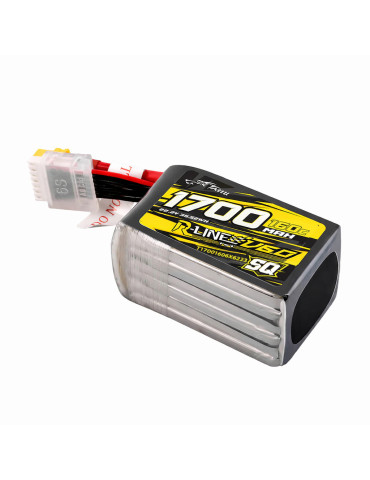

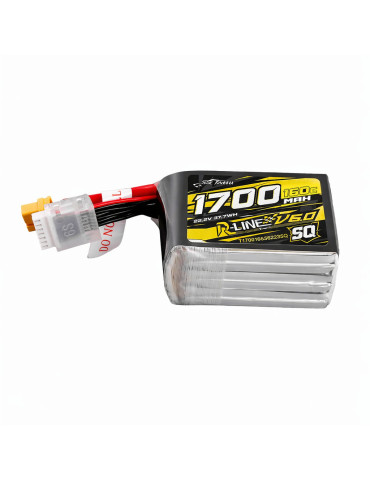

![TATTU R-Line 1700mAh 6S 160C V6.0 [SQ] (XT60) 2](https://fpvracing.ch/19859-home_default/tattu-r-line-1700mah-6s-160c-v60-sq-xt60.jpg)
