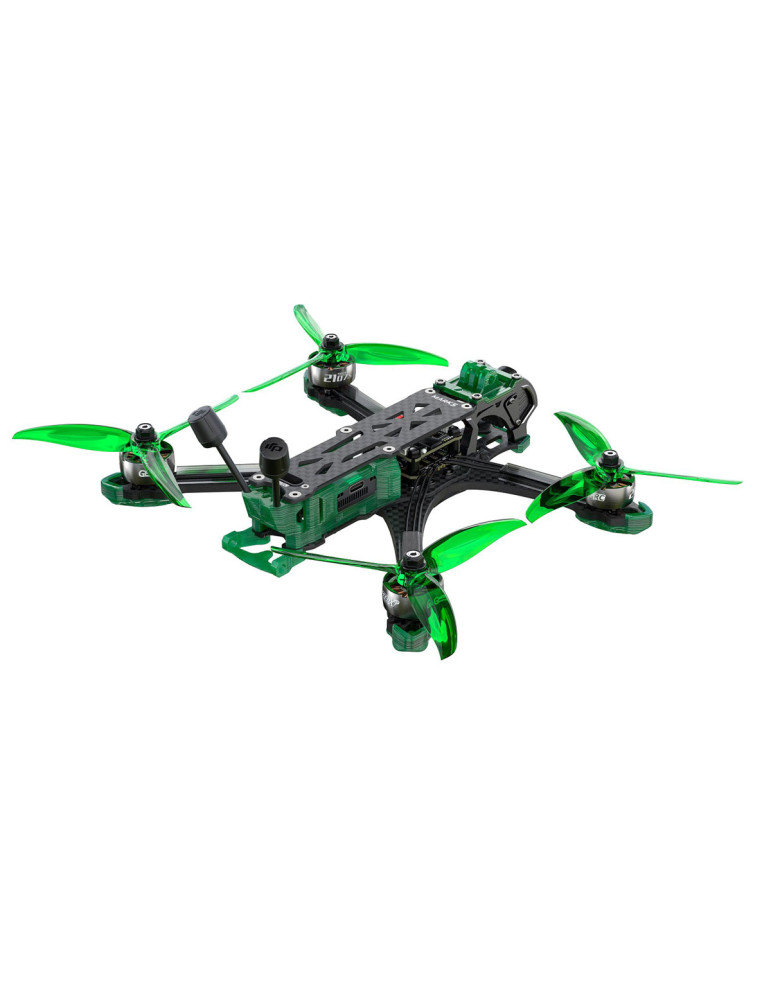

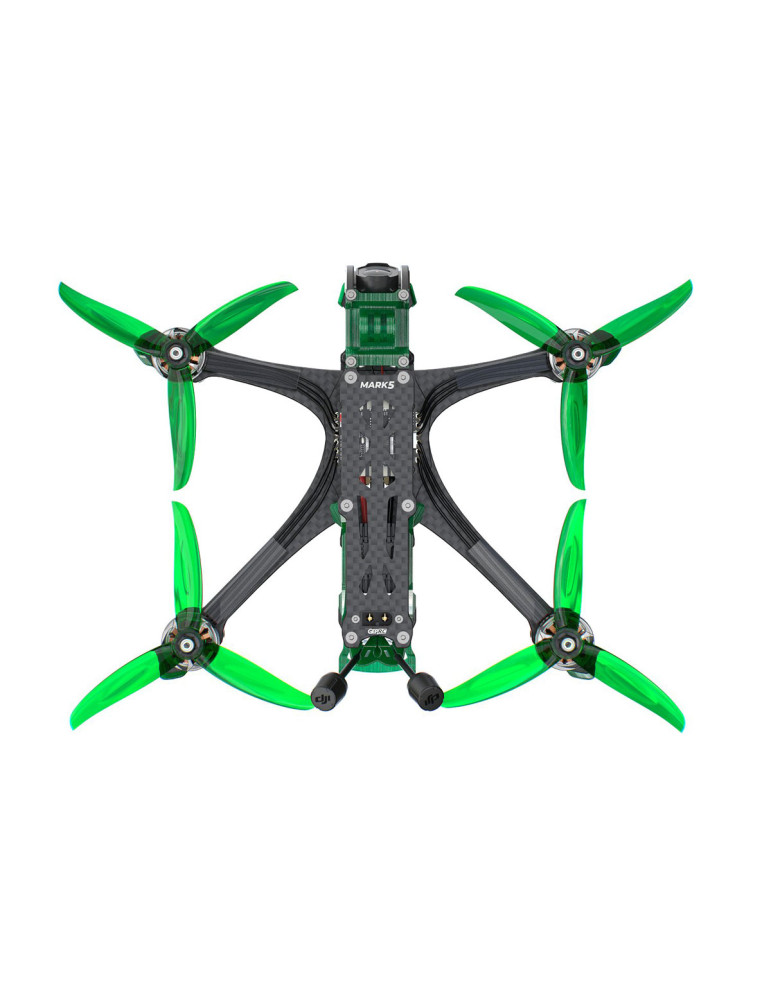

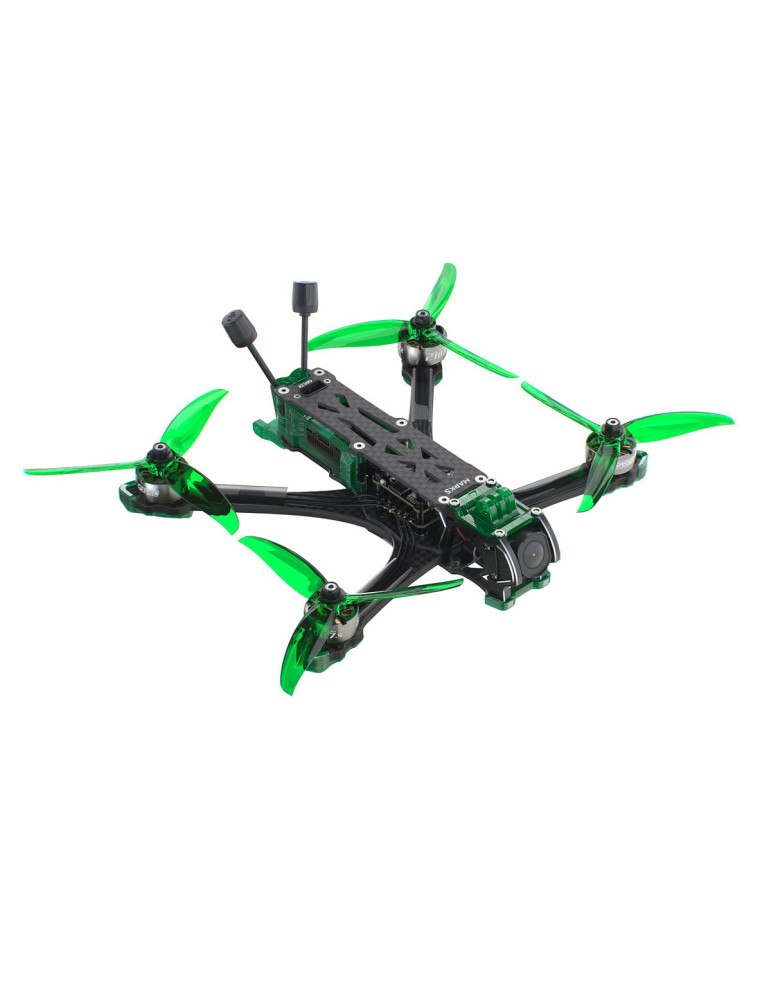

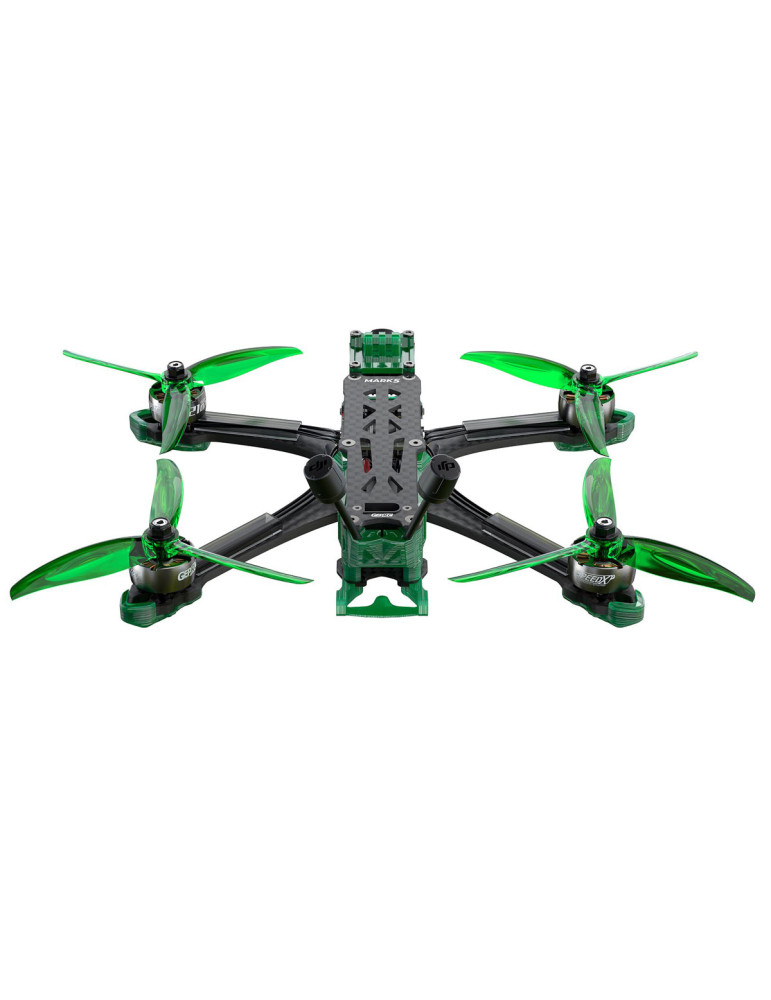

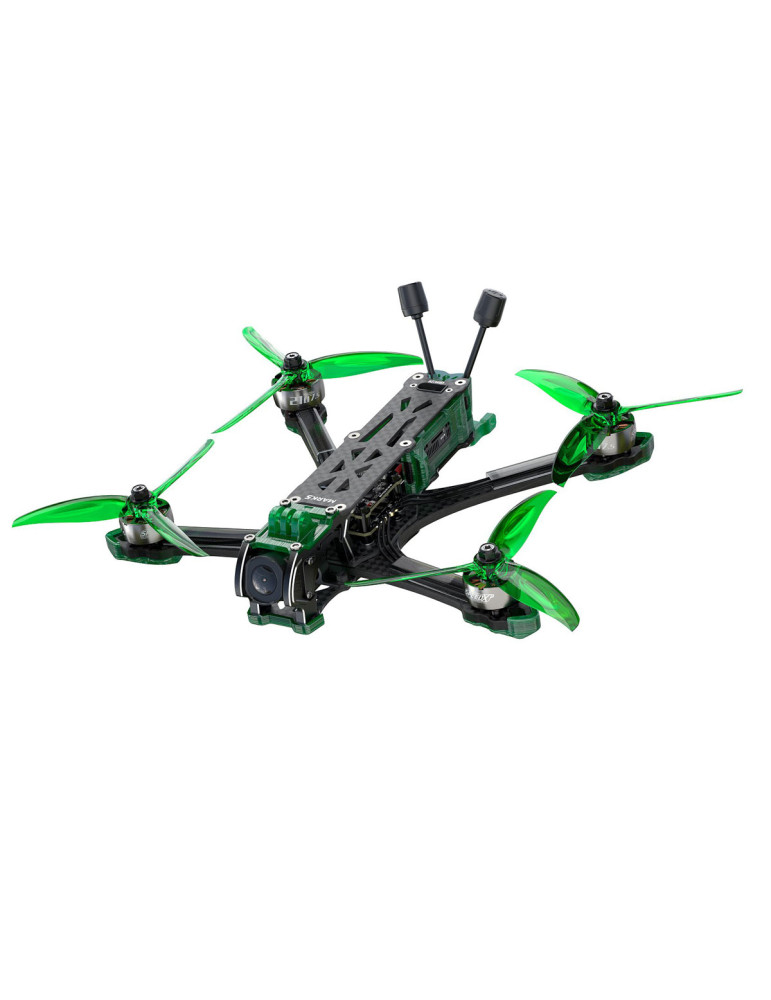

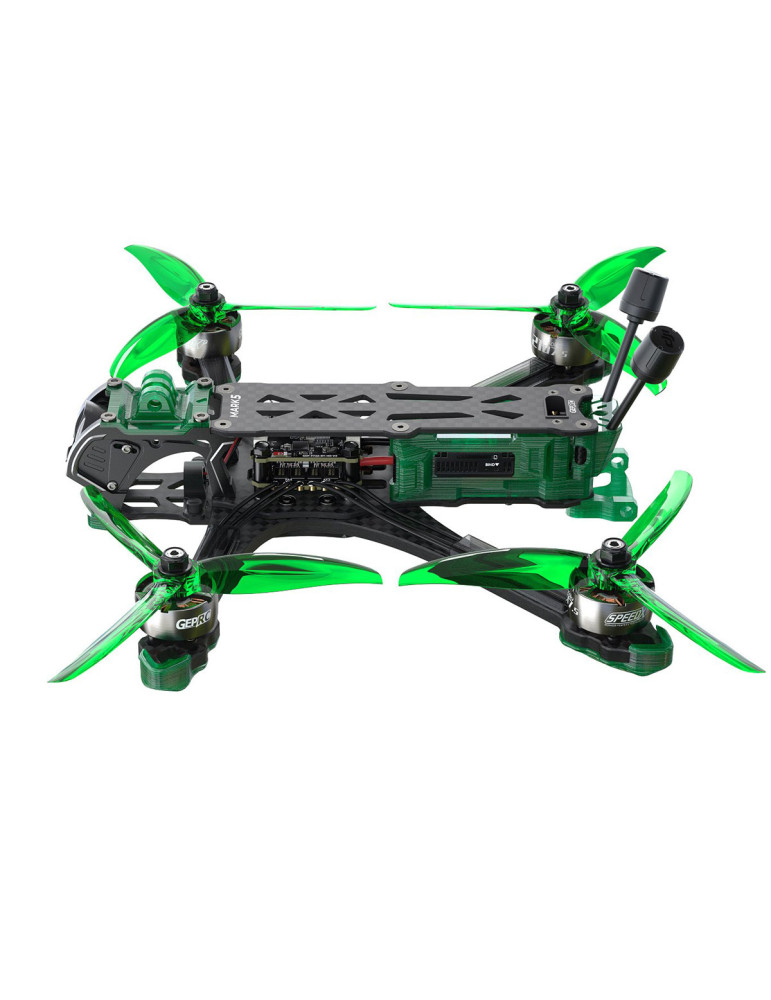

GEPRC Mark5 O4 Pro DC 6S with GPS (ELRS)
5" HD Freestyle Copter - Equipped with DJI O4 PRO Air Unit - BNF for ELRS Remote Control. "Dead Cat" Frame Configuration.
333001
599.00 CHF
Tax included
|
Free shipping
Loyalty Points - You will receive 11.98 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
Mark 5 HD FPV drone with DJI O4 Pro Air Unit – high-quality FPV experience

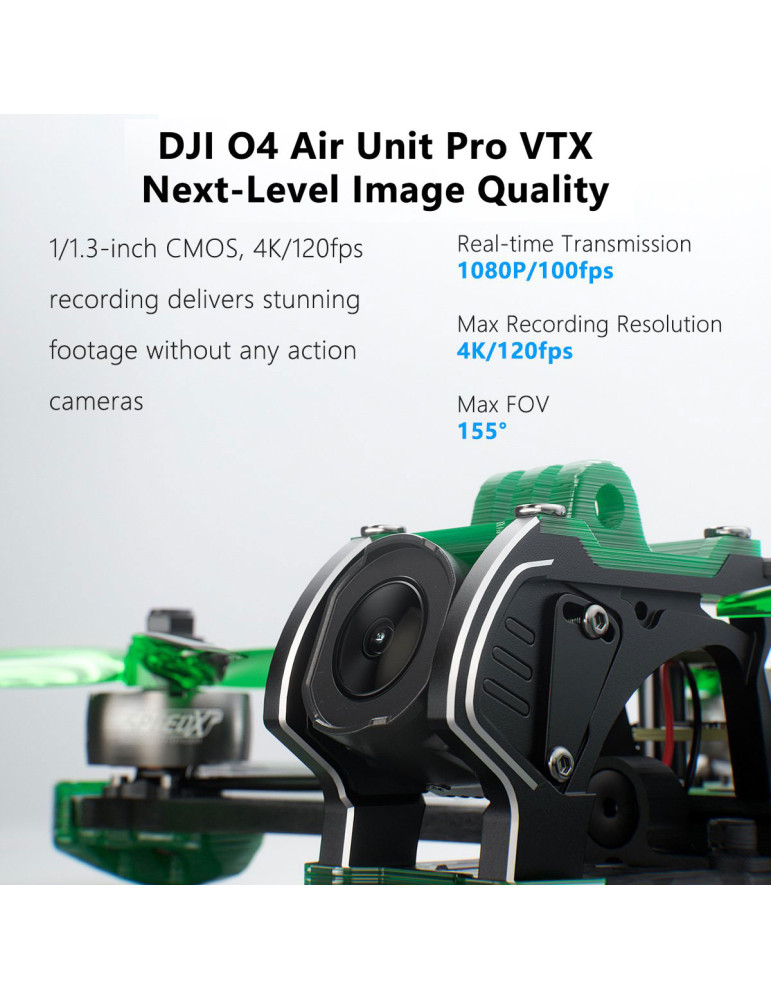

The GEPRC team has specifically developed the MARK5 O4 Pro series for the DJI O4 Air Unit Pro VTX. Featuring a 1/1.3-inch image sensor, the O4 Air Unit Pro sets a new standard in digital HD video quality, delivering improved low-light performance and sharper image reproduction. It supports video recording up to 4K at 120 fps, while real-time transmission reaches a resolution of 1080P at 100 fps.
The MARK5 O4 Pro is equipped with a newly designed aluminum camera mount and molded silicone dampers to minimize vibrations and reduce resonance for the O4 Pro camera.

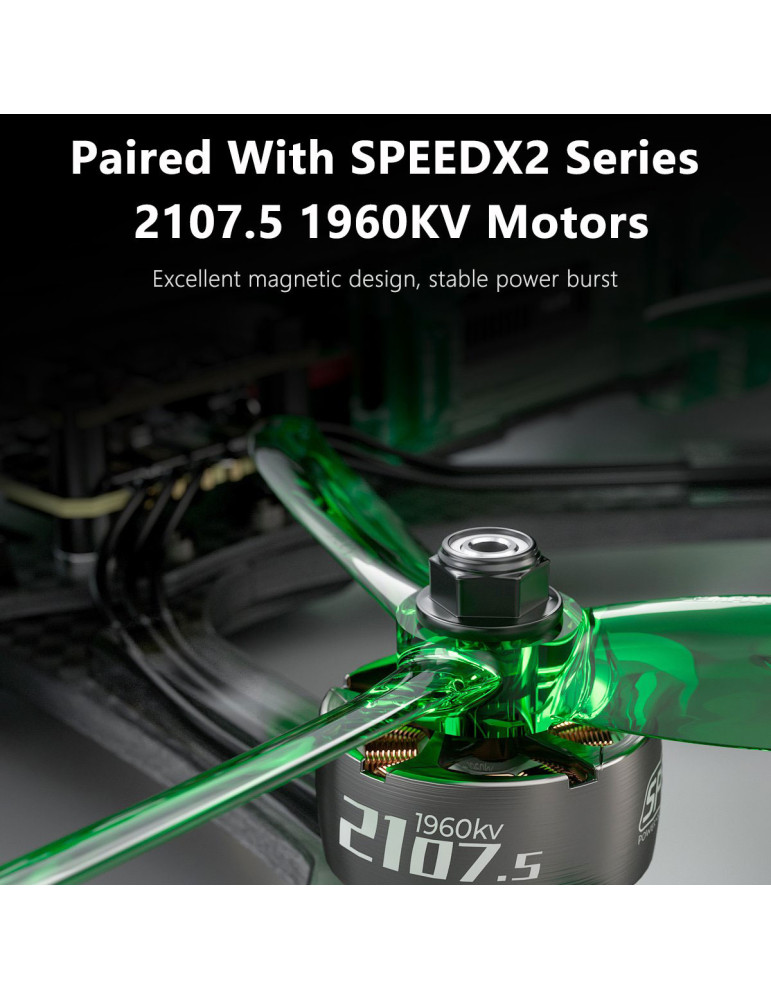

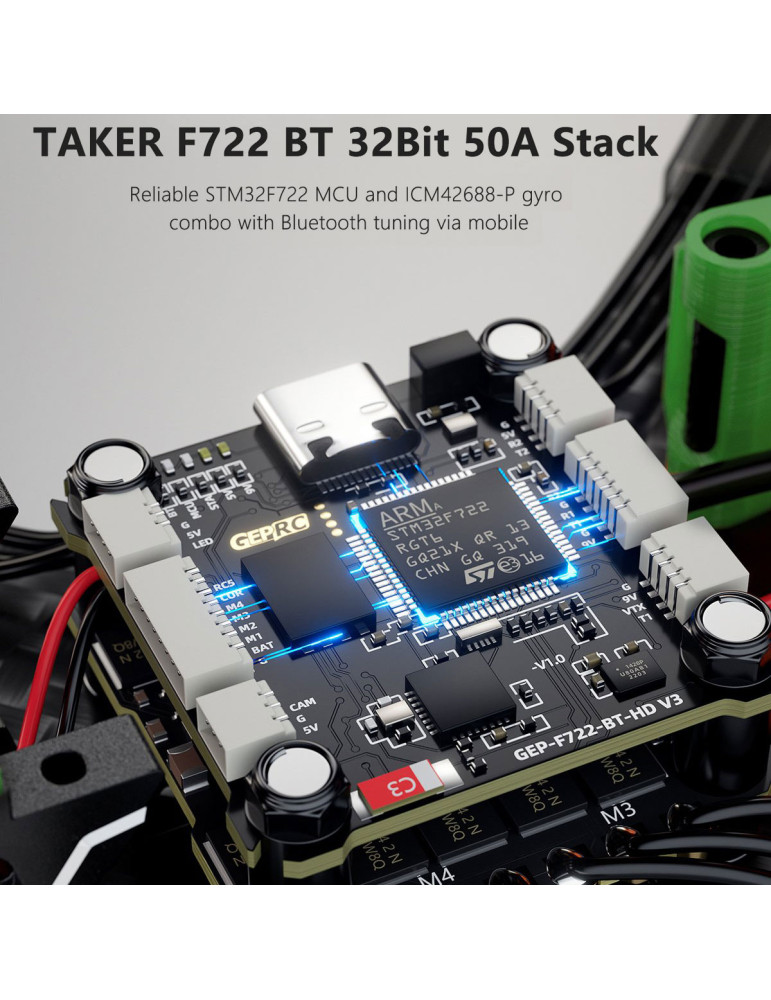

Powered by the TAKER F722 BT 32Bit 50A stack and 2107.5 1960KV motors, it offers smooth, responsive flight characteristics and ultra-stable video footage.
 Â
Tested and tuned by GEPRC R&D team!
 Â

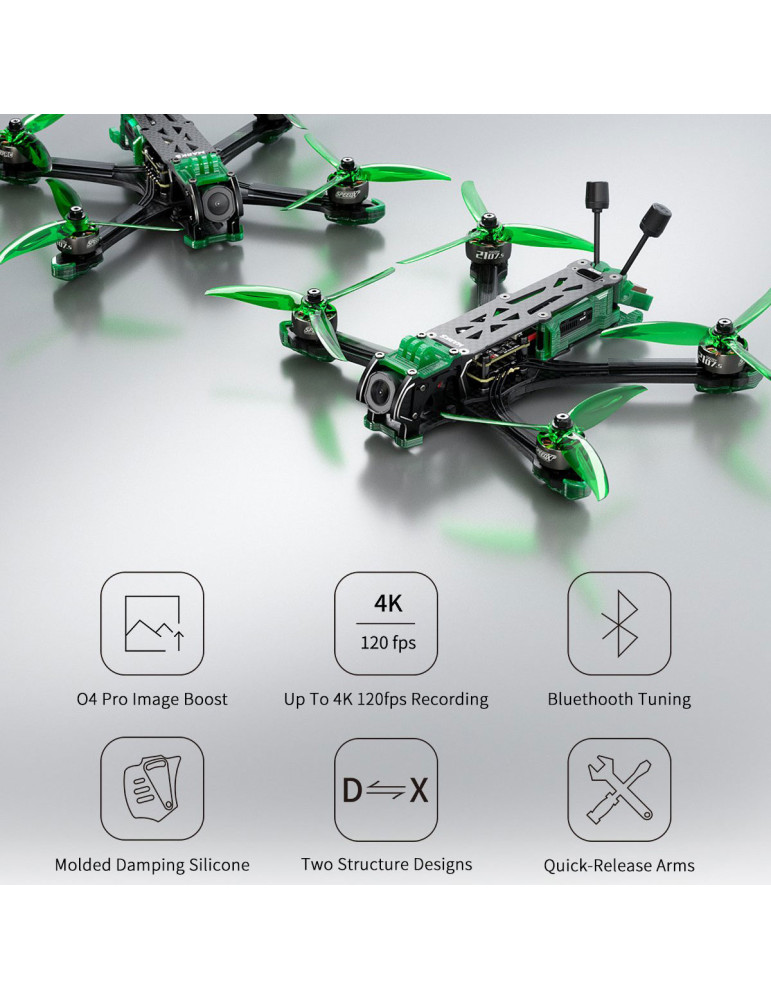

Features
- Equipped with the DJI O4 Air Unit Pro for clear and reliable video transmission.
- The combination of the TAKER F722 BT 32Bit 50A stack and 2107.5 1960KV motors delivers powerful performance.
- Bluetooth fine-tuning via the mobile app allows effortless adjustments.
- Quick-swap arms with a two-screw system simplify maintenance.
- The aluminum camera mount with silicone damping reduces vibrations and resonance for the O4 Pro camera.
- A dedicated compartment for the capacitor and buzzer ensures stable, interference-free operation.
- Optimized frame damping minimizes vibrations and ensures smooth electronic performance.
 Â
 Â
Â
Specifications
- Weight: ~433.4g ± 5g
- FC: GEP-F722-BT-HD V3
- ESC: GEP-BL32 50A 96K 4IN1 ESC

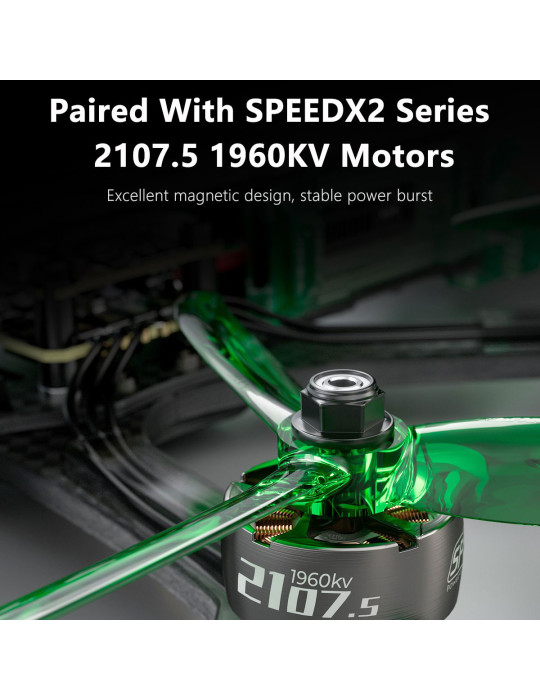

- Motors: SPEEDX2 2107.5 1960KV
- Props: GEMFANÂ 5136
- VTX/Camera:Â DJI O4 Air Unit Pro
- Frame: GEP-MK5 O4 Pro DC Frame
- Receiver:Â GEPRC ELRS24
- Connector: XT60
- Battery: Recommended 6S 1050mAh - 1550mAh (NOT included)
 Â

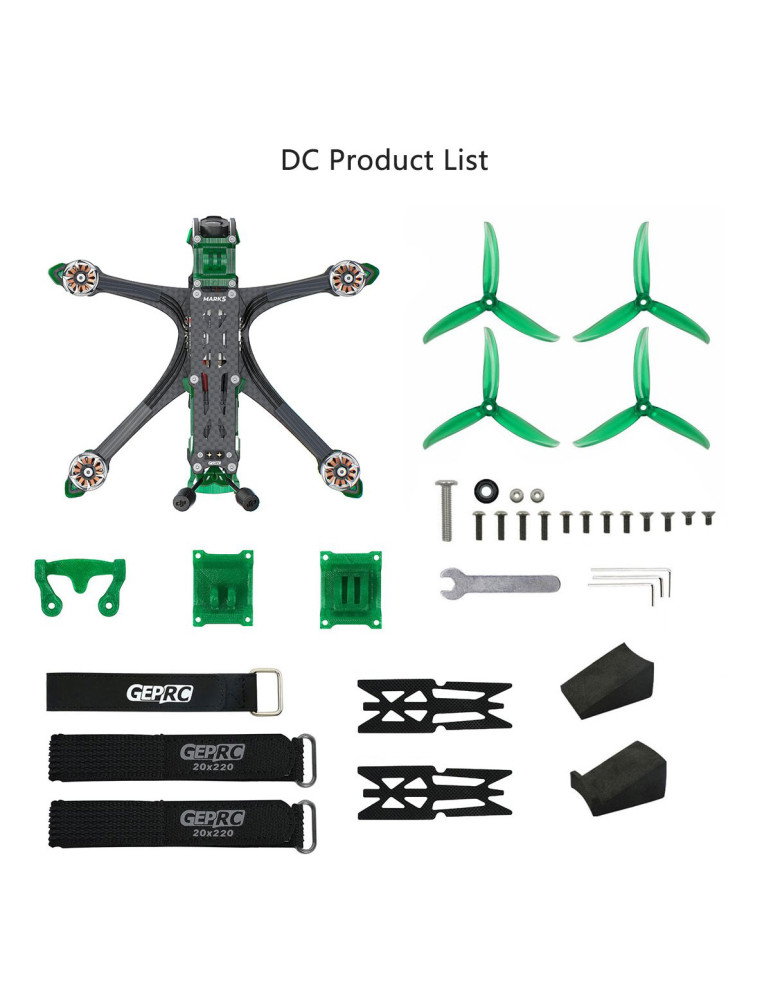

Shipping contents
- 1 × GEPRC MARK5 O4 Pro FPV
- 1 × GEMFAN 5136 Propeller Set
- 1 × 3D-Printed TBS Antenna Mount
- 1 × 3D-Printed Naked GoPro Mount
- 1 × 3D-Printed GoPro Mount
- 1 × Non-slip Battery Pad
- 1 × Flat GoPro EVA Pad
- 1 × Non-flat GoPro EVA Pad
- 2 × M20*220mm Battery Straps
- 1 × L-shaped Hex Wrench 1.5mm
- 1 × L-shaped Hex Wrench 2.0mm
- 1 × L-shaped Hex Wrench 3.0mm
- 1 × M8 Wrench
- 1 × Spare Screw Set
Data sheet
- GEPRC
- GEPRC MARK5 O4 Pro DC FPV Drone
- 433.4g (w/o battery)
- 2107.5 Brushless
- 6S
- 5"
- Carbon Fiber
- 1960
- 50A
- ELRS
- HD DJI O4 PRO
