Walksnail Moonlight Camera / VTX Kit

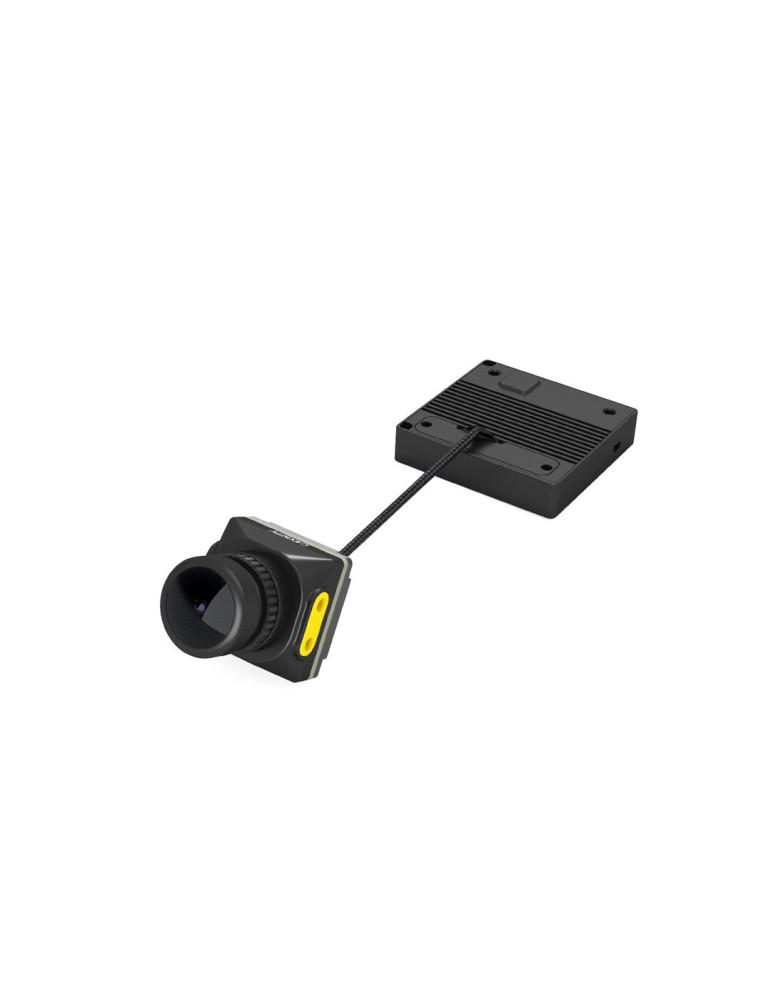

Name: Walksnail Moonlight Camera / VTX Kit
Brand: Walksnail
SKU: 294005
Price: 199 CHF
Availability: OutOfStock

The Walksnail Moonlight Kit delivers razor-sharp 4K footage at up to 60 fps, impressive low-light performance thanks to the starlight sensor, integrated EIS, gyroflow support and an ultra-wide 160° field of view.

199.00 CHF

Tax included | plus shipping costs

Quantity

Add to Wishlist

Add to Compare

Out of Stock

Loyalty Points - You will receive 3.98 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.

Categories: Home, FPV, Digital HD, Walksnail

Description

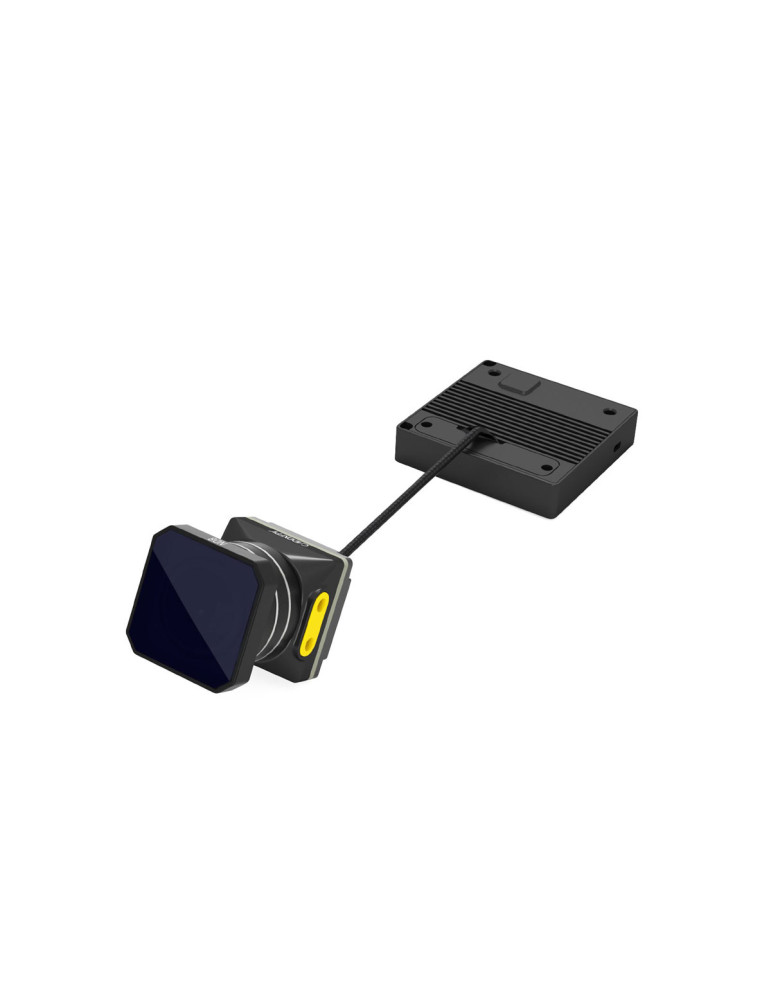

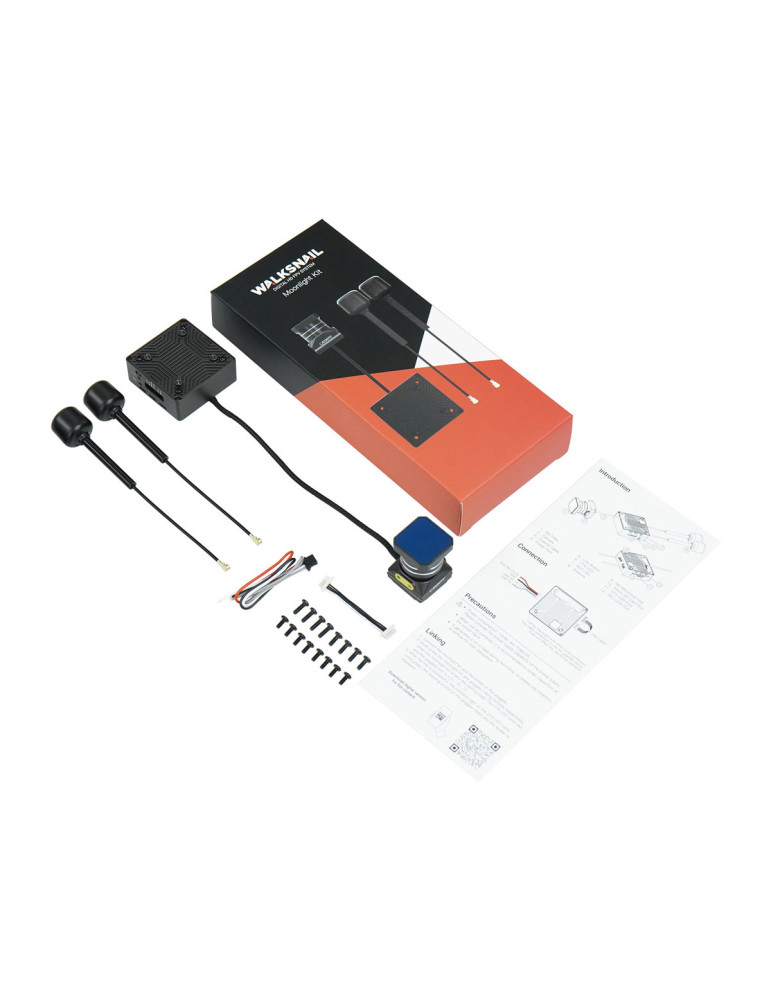

The Walksnail Avatar Moonlight Kit delivers impressive 4K recordings at up to 60 fps, supported by a powerful starlight sensor, integrated electronic image stabilization (EIS) and gyroflow compatibility. Thanks to dual antennas and a wide voltage range from 7.4 V to 25.2 V, it is versatile in use. A microSD card slot enables the storage of videos at up to 150 Mbps on cards up to 256 GB. The supplied ND8 filter lens ensures optimum exposure during daylight flights.

Features

Enables video recordings in impressive 4K resolution with up to 60 FPS

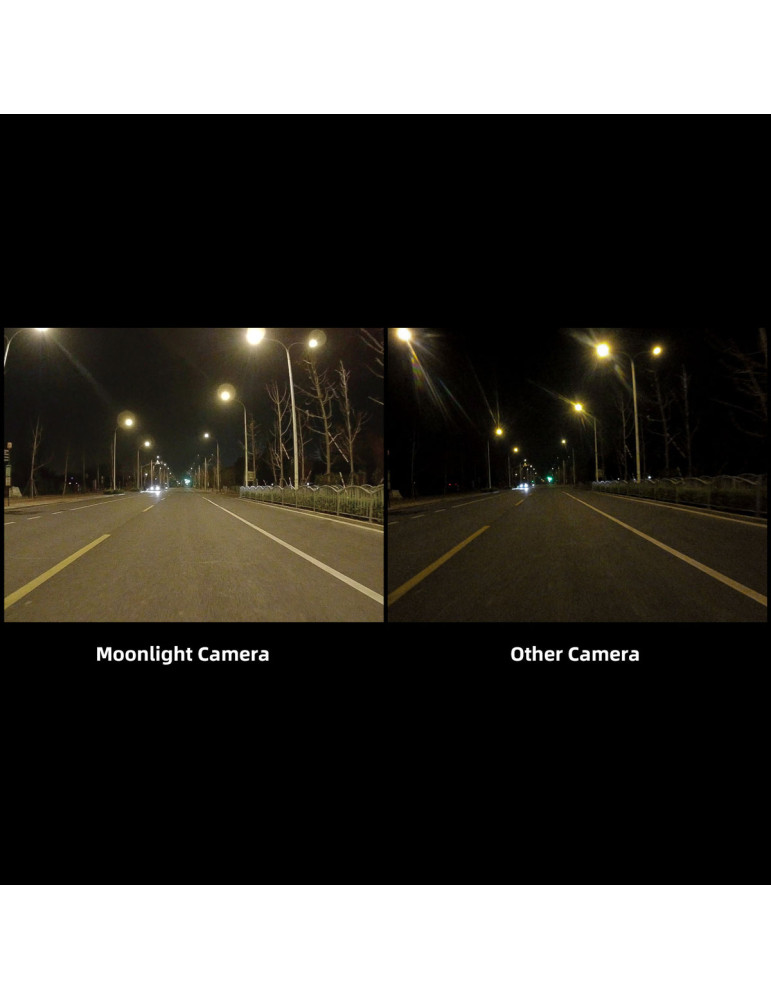

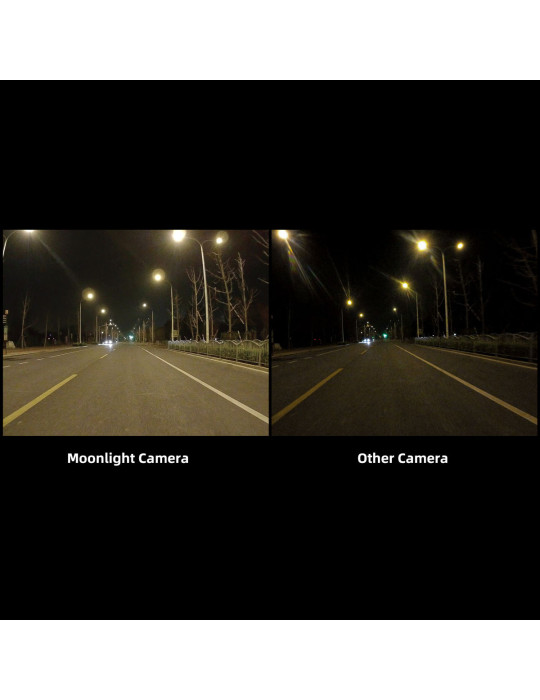

Highly sensitive Starlight image sensor for excellent low-light performance
Integrated electronic image stabilization (EIS) for smooth recordings
Compatible with Gyroflow for additional stabilization in the post-production process
Supports microSD cards with up to 256 GB
Wide-angle field of view of 160° for an immersive FPV experience

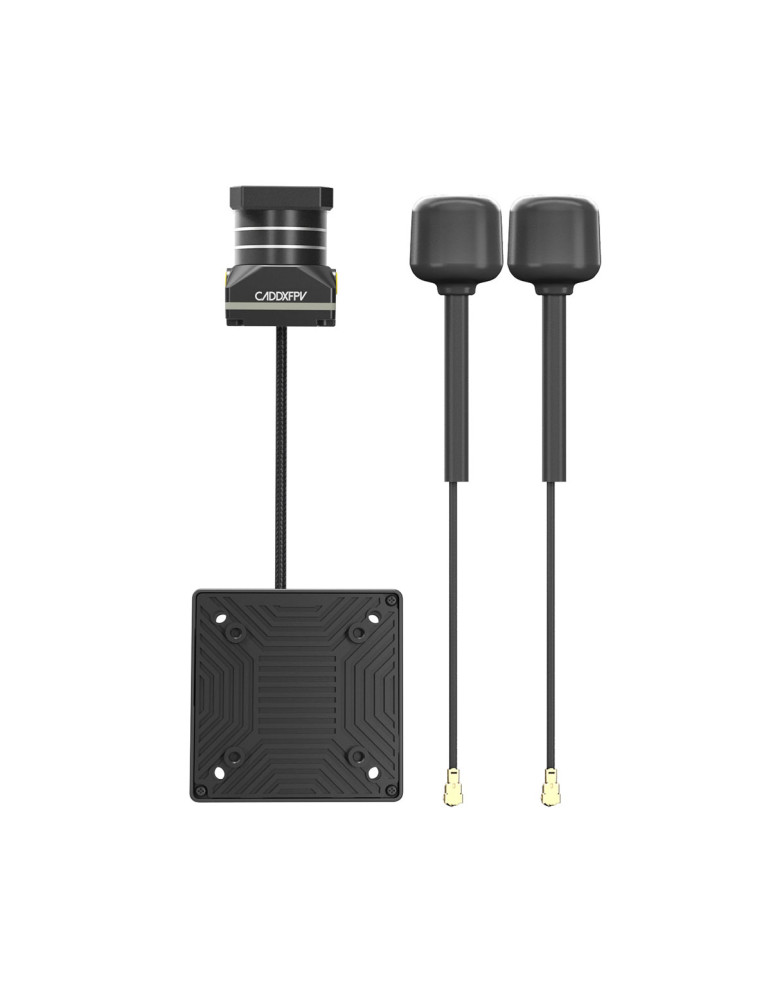

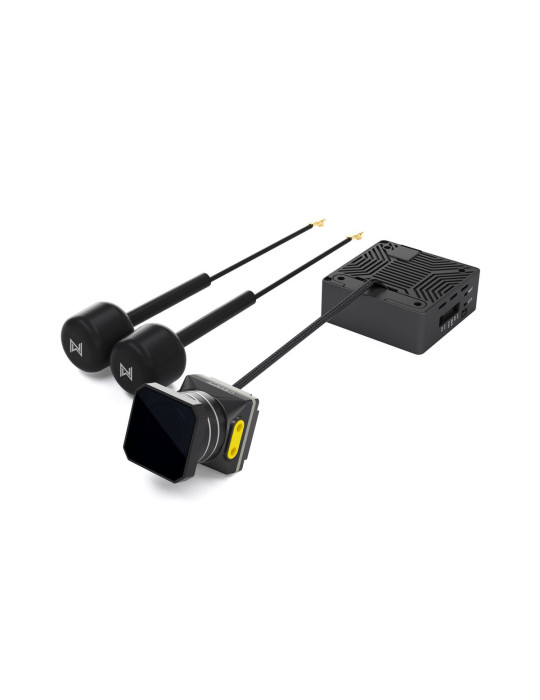

Dual antennas for stable signal transmission and extended range
Wide voltage range from 7.4 V to 25.2 V for flexible application options

Specifications

Moonlight Camera

Model: Moonlight Camera
Image Sensor: 1/1.8" Starlight image sensor
Ratio: 16/9
FOV: max. 160°
Aperture: F2.1
Shutter: Rolling shutter
Weight: 8.9g

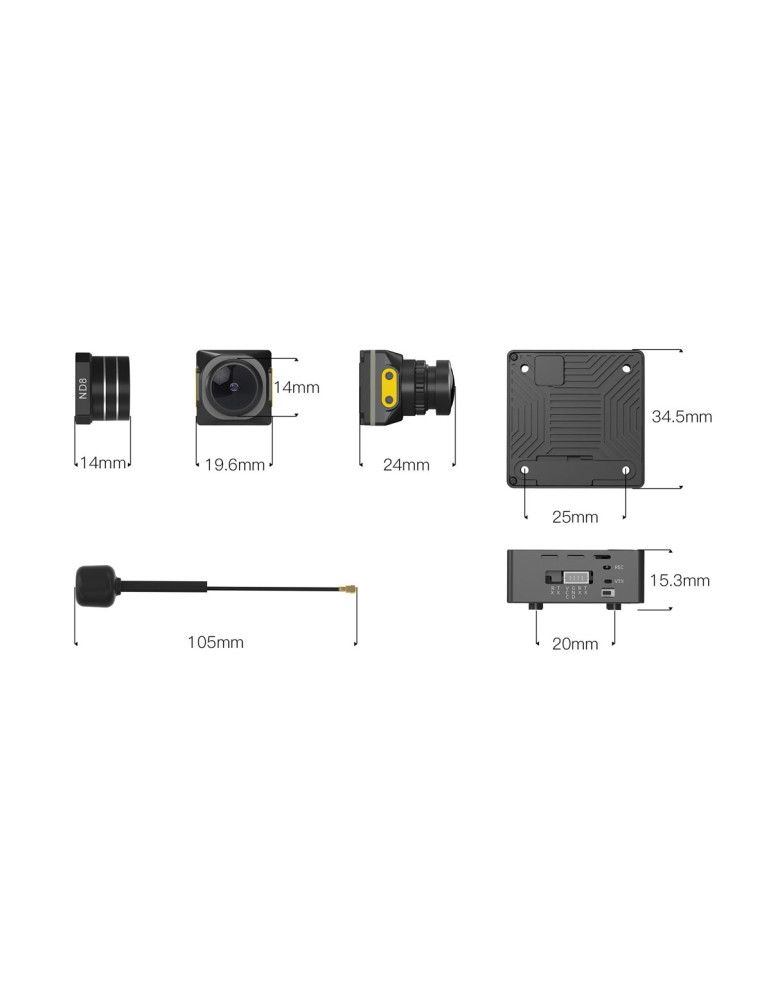

Dimension: 19.5x19x24mm

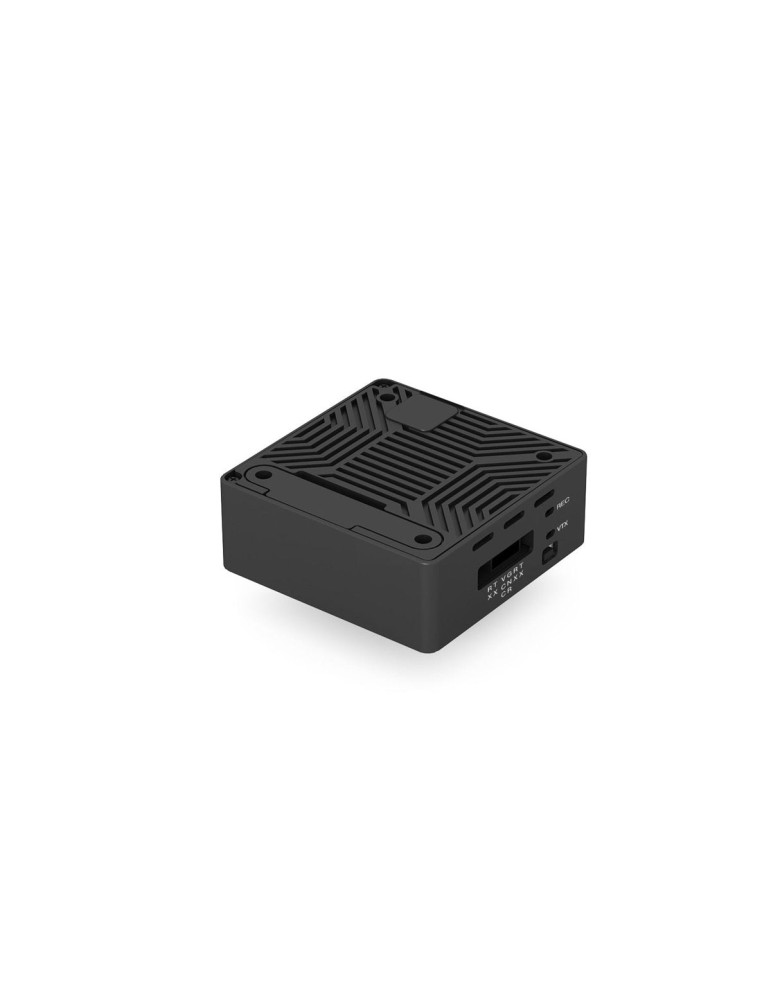

VTX

Model: Moonlight
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP):
- CE: <14dBm

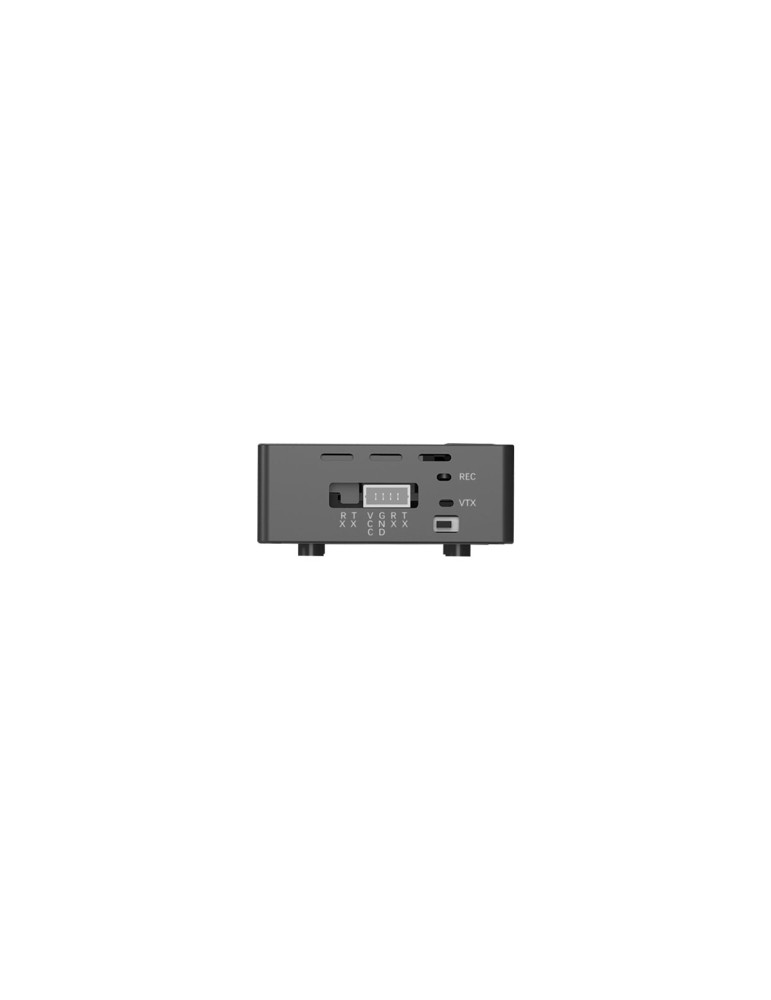

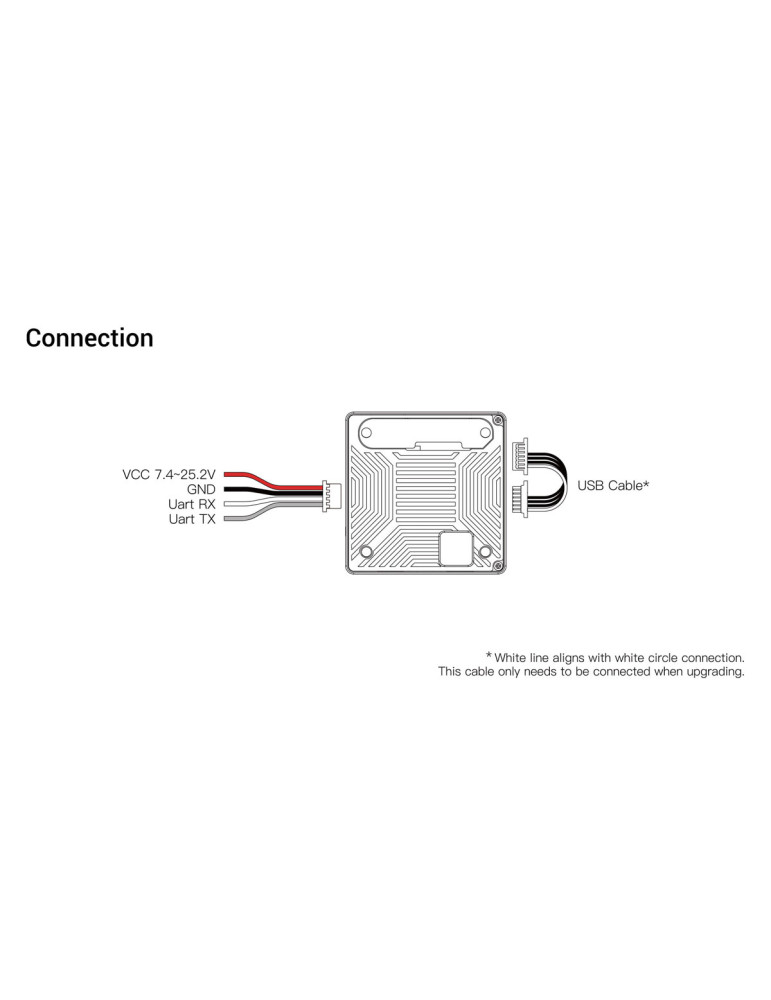

I/O Interface: JST1.0x4(Power in), JST0.8x6(USB)
Mounting Holes: 25x25mm / 20x20mm
Dimension: 34.5x34.5x15.3mm
Recording:
- 4K@30/60fps
- 2.7K@30/60fps
- 1080p@100/60fps
- 720p@60fps
Weight: 10g
Power Input: 7.4V-25.2V
Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss

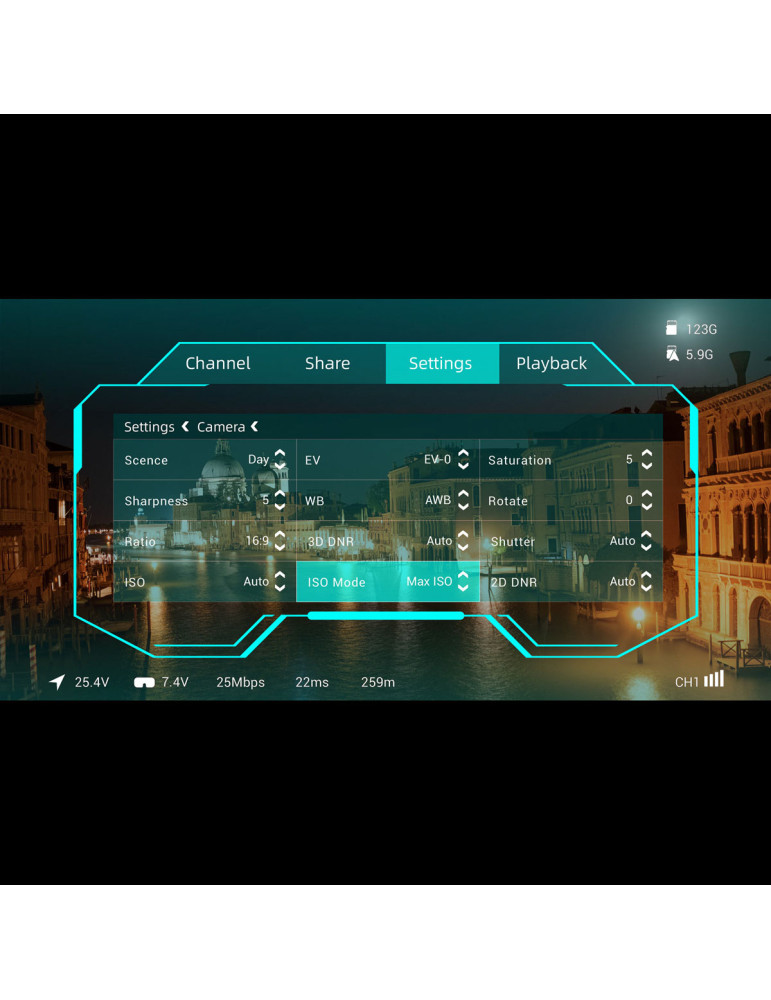

OSD: Canvas mode
Latency: Average delay 22ms
Antenna: 2 (IPEX)
- Polarization: LHCP
- Bandwidth: 5.6-6.0GHz
- Average Gain: 1.9dBi
- Radiation Efficiency: >= 98%
- VSWR: <= 1.5
- Connector: IPEX-1
- Dimension: 45mmxR15mm
- Weight: 2g
