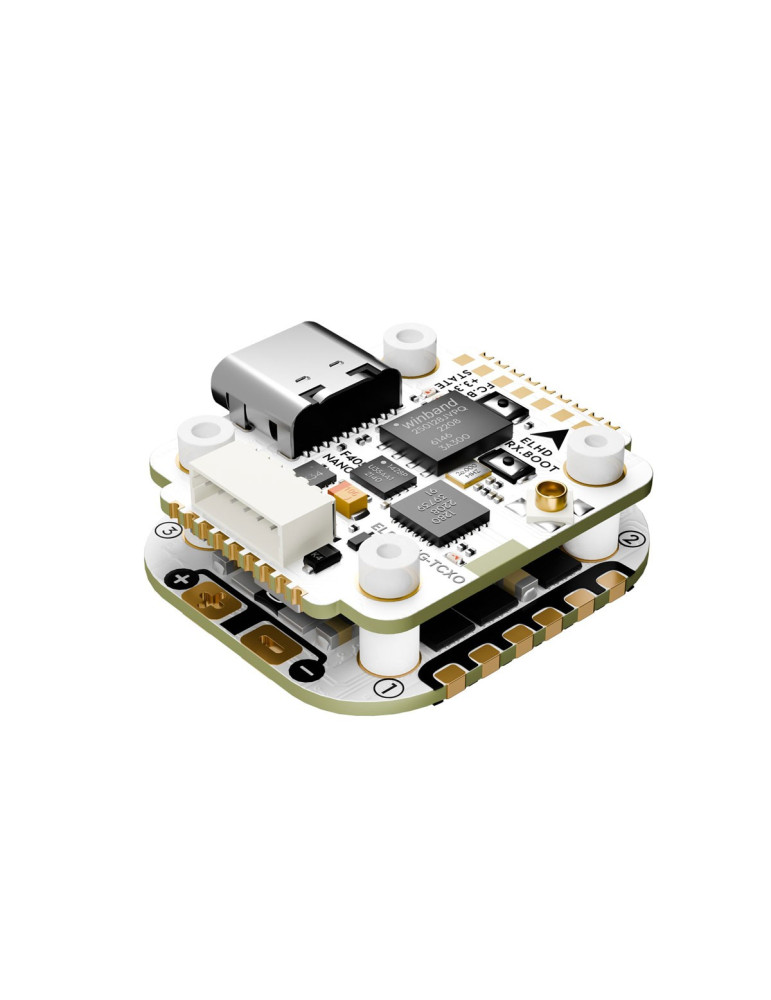

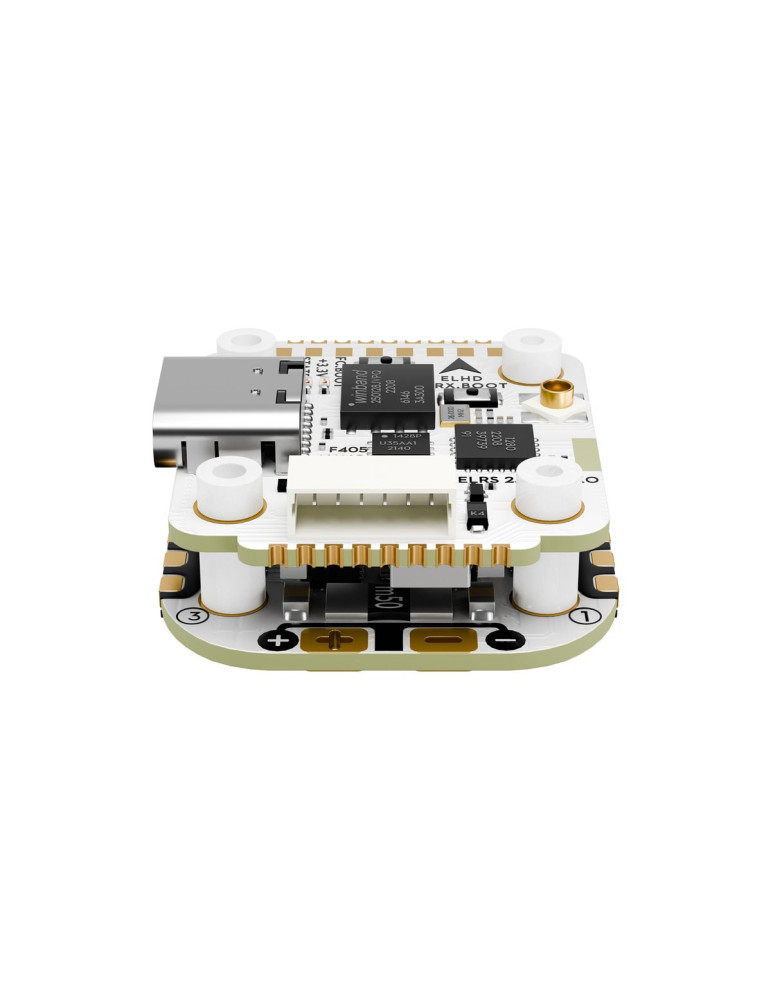

Flywoo GOKU GN405 Nano HD 2-6S 35A w/ ELRS Stack V3

The new Flywoo GOKU GN405 Nano FC V3 with ELRS 2.4GHz is compact and features a USB-C universal port compatible with standard data cables. It also supports the DJI O3/O4 interface, making it compatible with high-quality digital video transmission modules. Additionally, it offers a full set of six UART ports. A standout feature is the inclusion of a TCXO-ELRS high-precision receiver, making this flight controller the ideal solution for space-saving micro drones.

Features

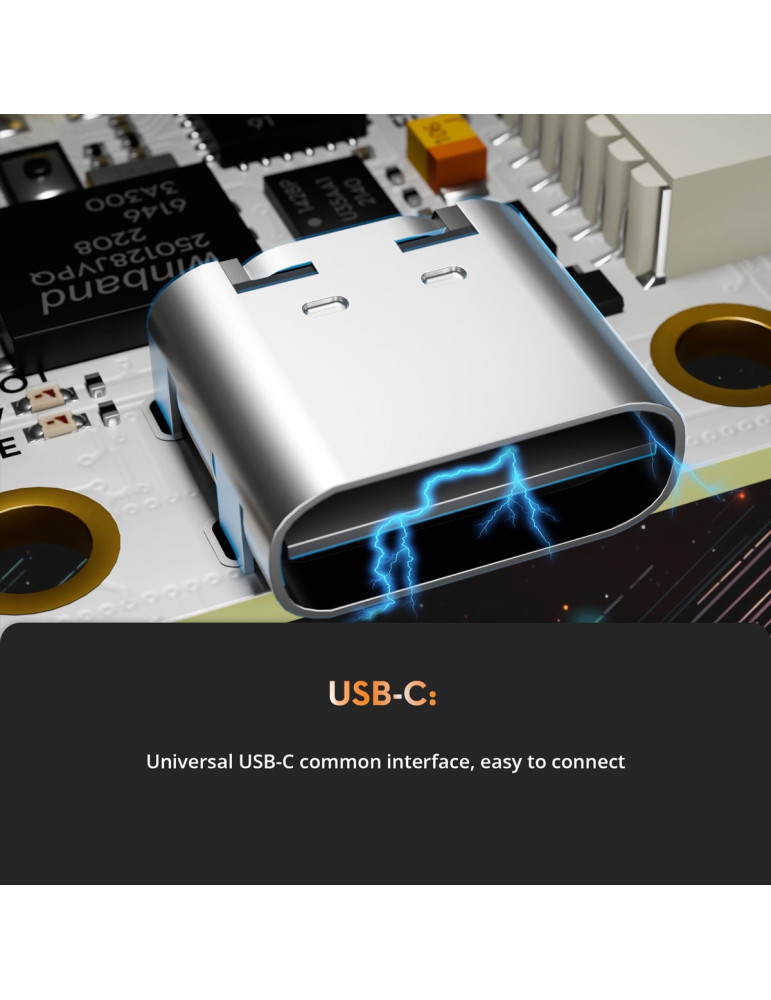

• Type-C Design: Utilizes Type-C connectors for a more convenient and reliable connection.
• 16x16mm Mounting Holes: Designed for small micro-FPV drones with compact installation requirements.

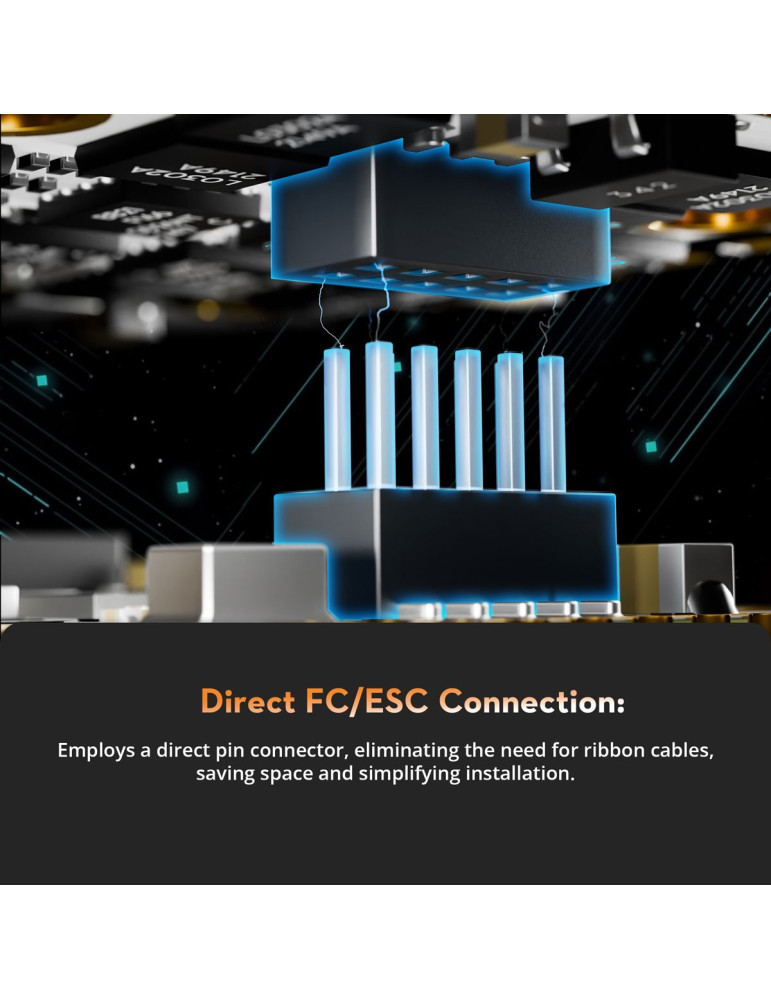

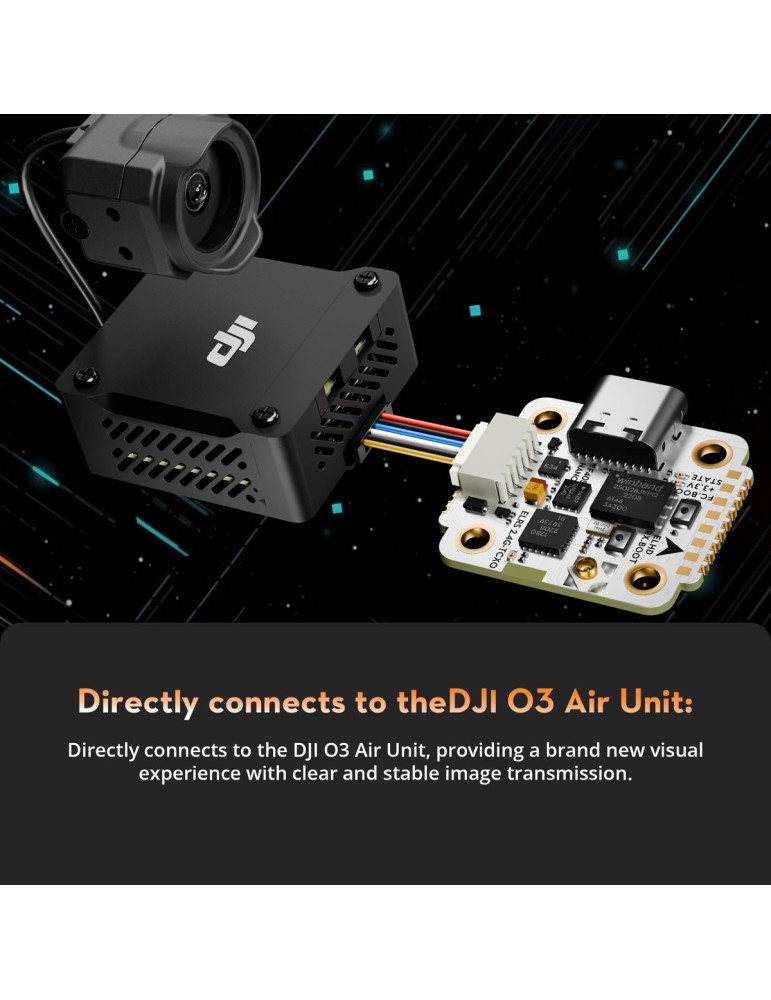

• Plug-and-Play O3/O4 Connector: Direct plug-in connection for the O3/P4 Air Unit, eliminating the need for complex soldering.
• Integrated TCXO ELRS Receiver: Features a built-in 2.4GHz ELRS receiver with TCXO (Temperature Compensated Crystal Oscillator) technology, ensuring frequency accuracy and stability while saving space.
• Integrated Barometer: Enables altitude measurements, supporting altitude-hold and waypoint navigation for INAV.

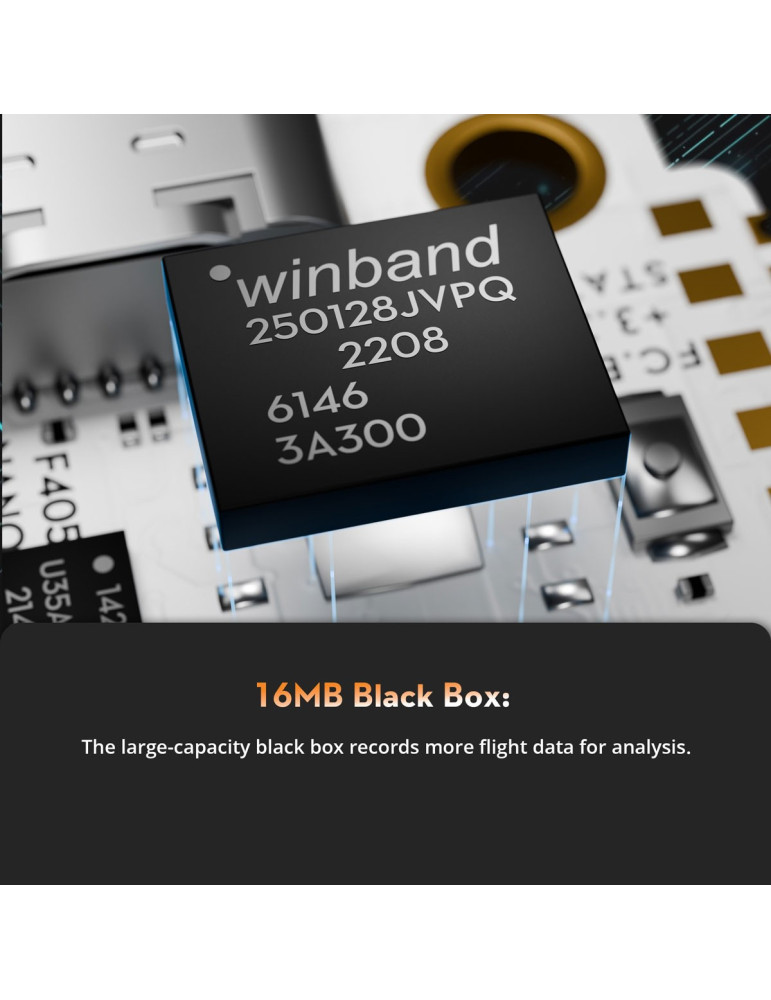

• Integrated 16MB Blackbox: Provides flight data storage for analysis, making it easier to diagnose issues and optimize flight performance.

Specifications

Flight Controller

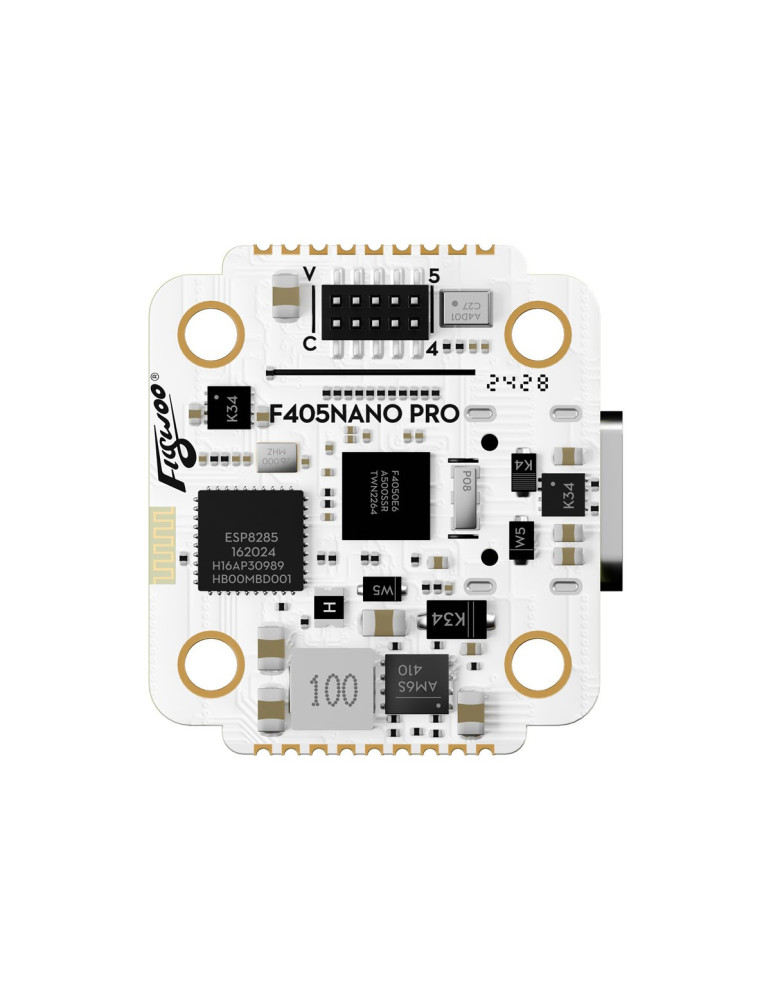

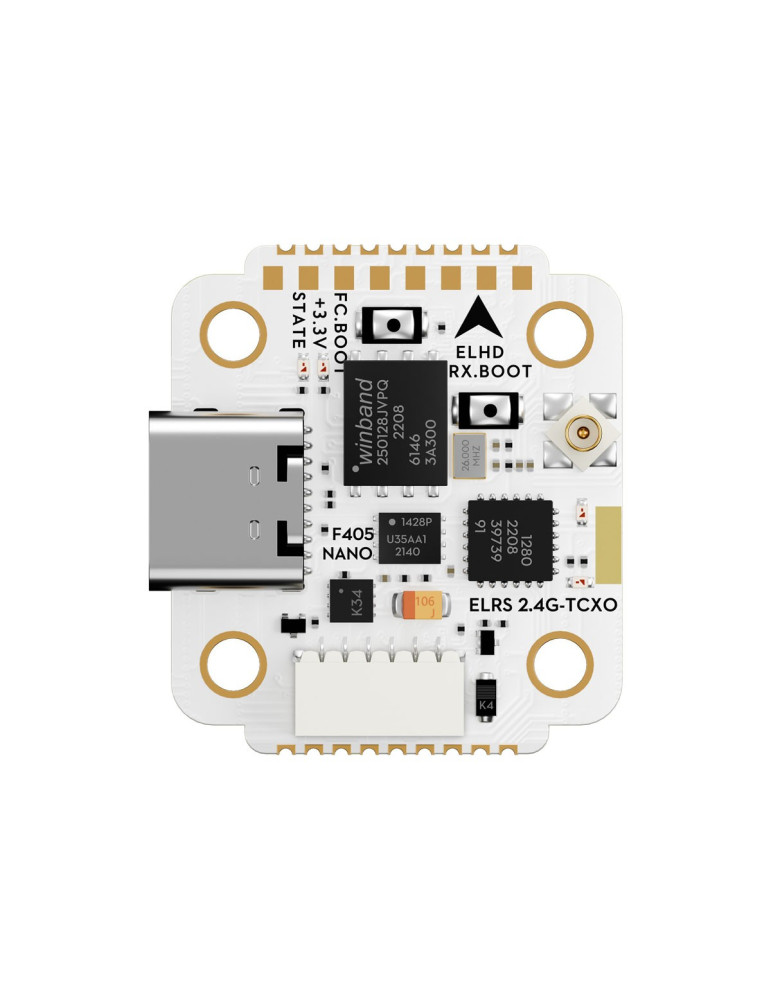

• Name: Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16x16
• MCU: STM32F405 BGA
• BEC: 5V 2A/3.3V 0.5A
• Flash: 16MB
• Barometer: DP310
• Gyro: ICM-42688P(SPI)
• Motor: M1-M6 (for Quad or Hex)

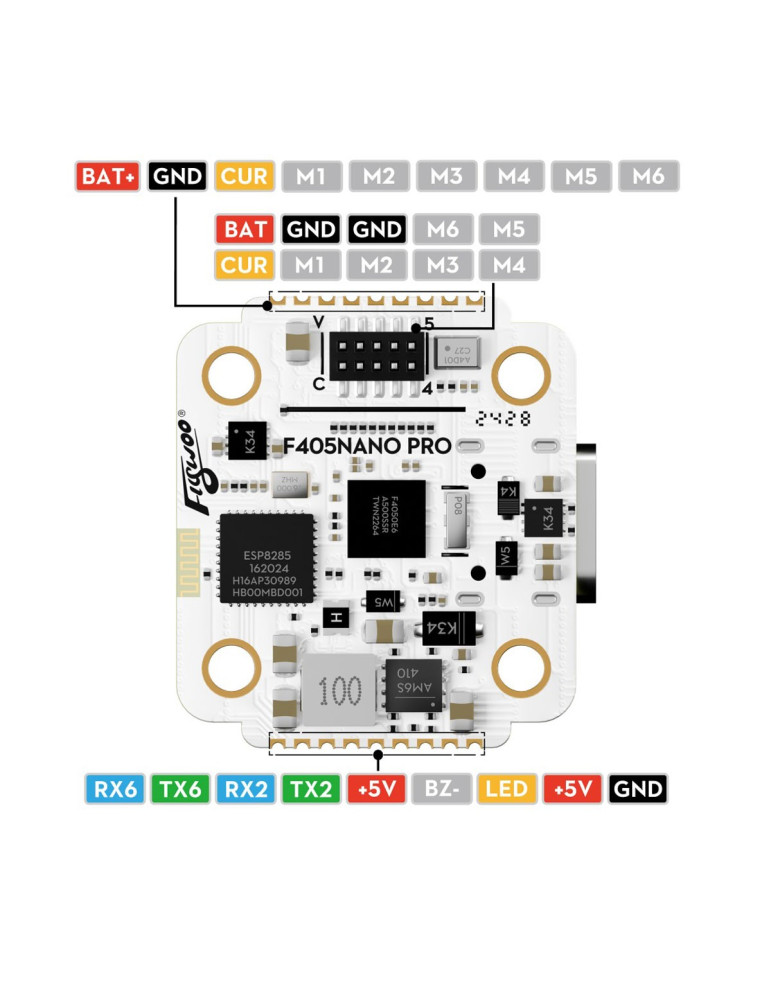

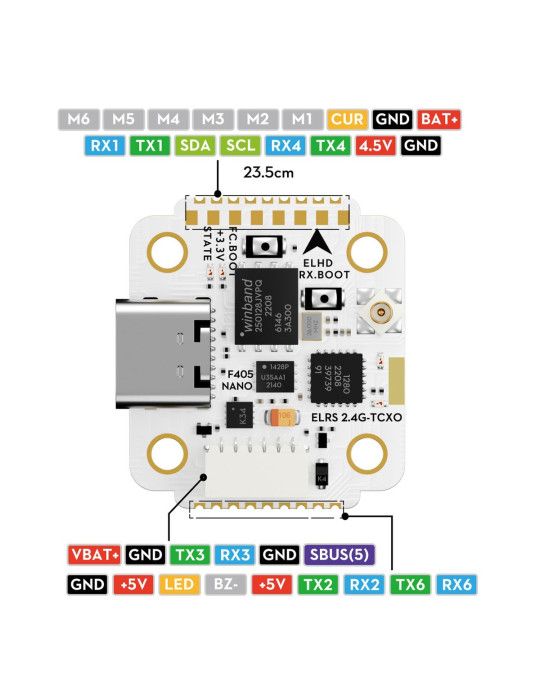

• Uarts: 1,2,3,4,5,6
• connector： Type-C
• OSD: NO
• Mounting-Hole: 16*16mm

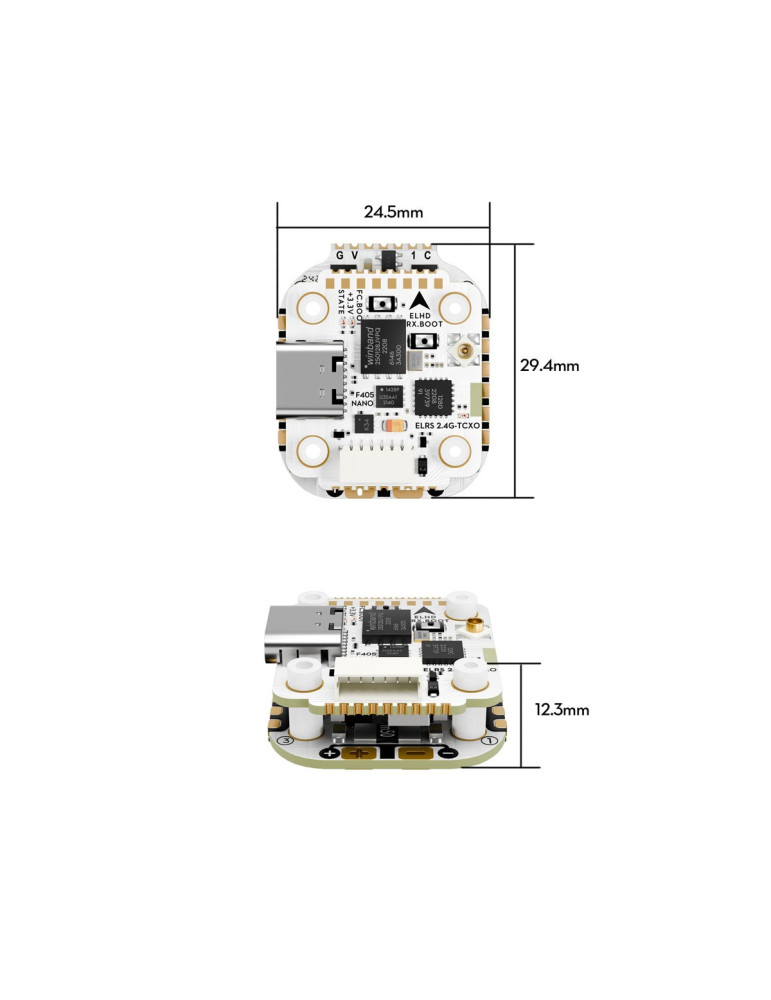

• Size: 25*23*8mm
• Weight: 3g

Onboard 4in1 ESC

• ESC MCU: BB21F16G
• Continuous Current: 35A
• Firmware: BLHeli / BLHeli_S
• Supports: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Motor Outputs: 4
• Input Voltage: 2-6S LiPo
• Mounting Holes: 16x16mm
• Dimensions: 27x33mm
• Weight: 3.6g

Onboard ELRS RX

• TCXO 2.4GHz ELRS

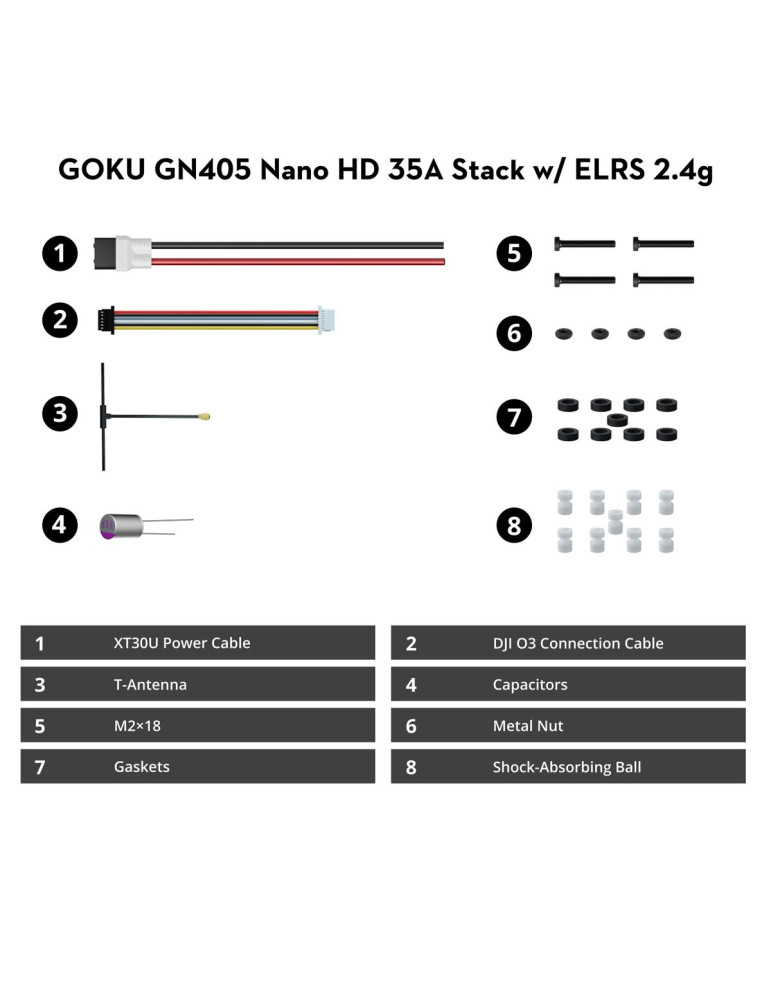

Package Contents

• 1 x Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16x16
• 1 x GOKU BS 35A ESC V3 16x16 (for Quad)
• 1 x XT30 Power Cable
• 1 x Flywoo ELRS 2.4g T-Antenne UFL
• 1 x DJI O3 Connection Cable
• 4 x M2*18mm screw
• 4 x M2 nuts
• 1 x capacitor
• 4 x M2 Gasket
• 4 x M2 shock-absorbing ball
