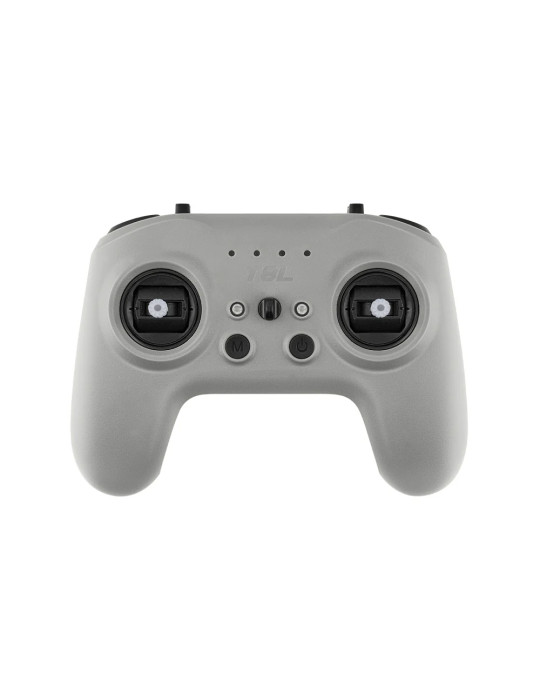

RadioMaster T8L Radio Controller (ELRS)

The RadioMaster T8L packs dependable ExpressLRS 2.4 GHz performance into a clean, ultra-portable transmitter with no screen to get in the way, making it the first screenless radio officially supported by ExpressLRS.

Ideal for compact projects, sim time, test benches, training, demos, or as a rock-solid backup you can throw in any bag.

With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge.

Web UI Access: https://radiomaster-rc.github.io/RM-Web-Page/Connection.html

 Plug into a PC or Mac via USB-C, open the web tool, and you can:

• Calibrate sticks and trims.
• Adjust the ExpressLRS settings and power output.
• Customize endpoint ranges and reverse directions.
• Remap channels and set operation modes (Mode 1 / Mode 2).
• Customize switch behavior (click, single, double).
• Adjust audio prompts and update firmware.
• Update both the T8L and its built-in ELRS module.
• No apps. Just plug in, connect, and configure.

Features

• Built-in ExpressLRS 2.4GHz module
• Single button press binding to any ExpressLRS receiver
• Quad bearing Hall-effect gimbals for smooth, precise stick control
• 5-way trim buttons with LED and audible feedback
• Available in three colors: Blue, White and Grey
• USB-C port for charging, firmware updates, and simulator use
• Web-UI support (no screen required) for full configuration
• Up to 10 channels supported (receiver-dependent)
• Rear potentiometer slider for extra input or tuning
• Compact, lightweight design (just 204g) for easy transport
• LED-based interface for system status, battery level, and calibration
• Simulator-compatible via USB-C
• Custom button and switch behavior settings via Web UI



Specifications

• Size: 165x120x70mm
• Weight: 204g
• Frequency: 2.400GHz-2.480GHz
• RF Module: ELRS 2.4GHz
• Battery: 2 x 18650 Li-Ion (Not included)
• Charging: Build in USB-C charging
• Firmware: T8L (Special T8L Edition, non-configurable)
• Channels: Up to 10 channels (depending on the receiver)
• Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals
• Operational Voltage: 6.6-8.4V DC
• Operating system: T8L
• Display: None
• Module Bay: None
• Firmware Upgrade Method: Web-UI via USB-C Port

EU LBT Version

• ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Shipping Contents

• 1 x RadioMaster T8L Radio Controller (ELRS)

Note: Receiver not included! Battery not included!
