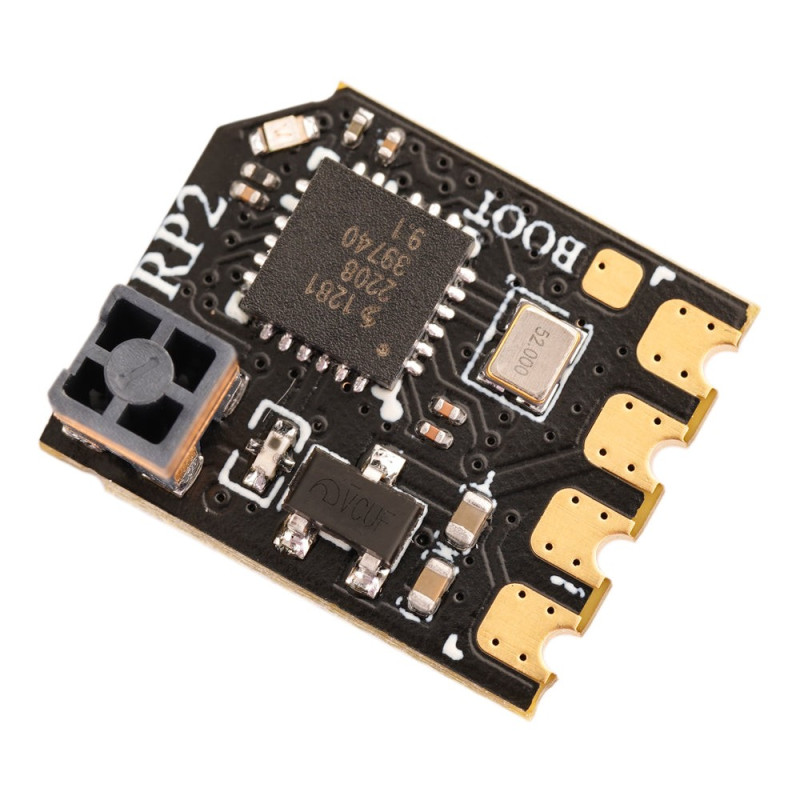

RadioMaster RP2 ELRS 2.4GHz Nano Receiver
The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS.
173007
21.90 CHF
Tax included
|
plus shipping costs
Delivered in 1-2 working days
You will receive 0.44 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.

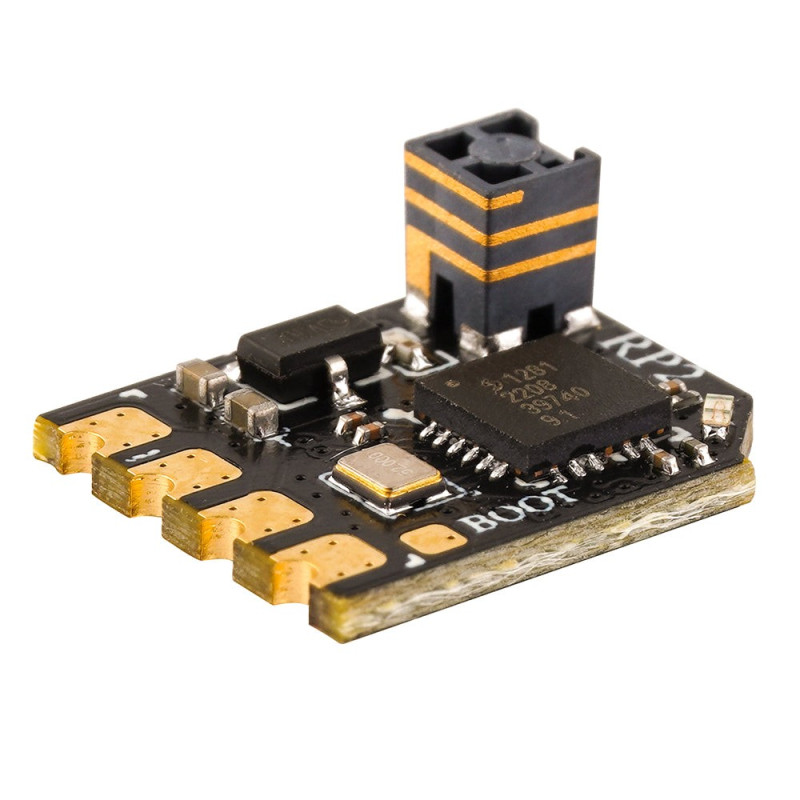

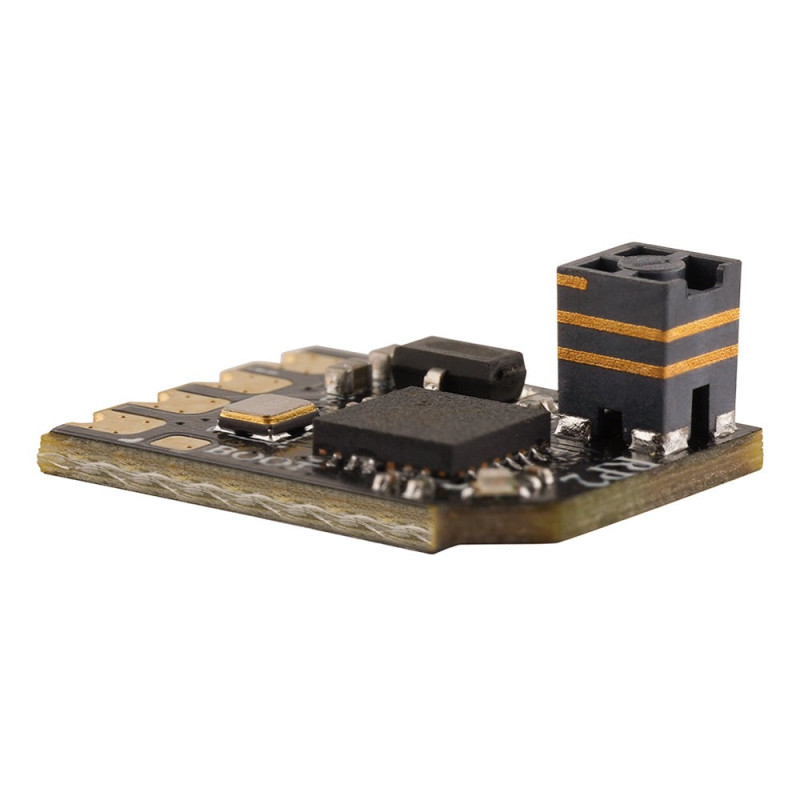

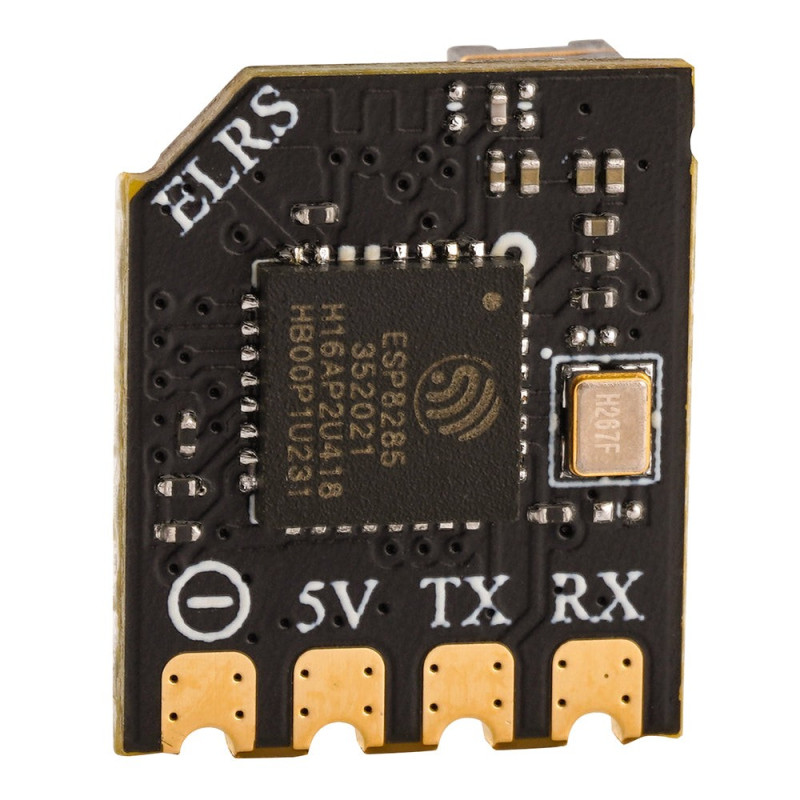

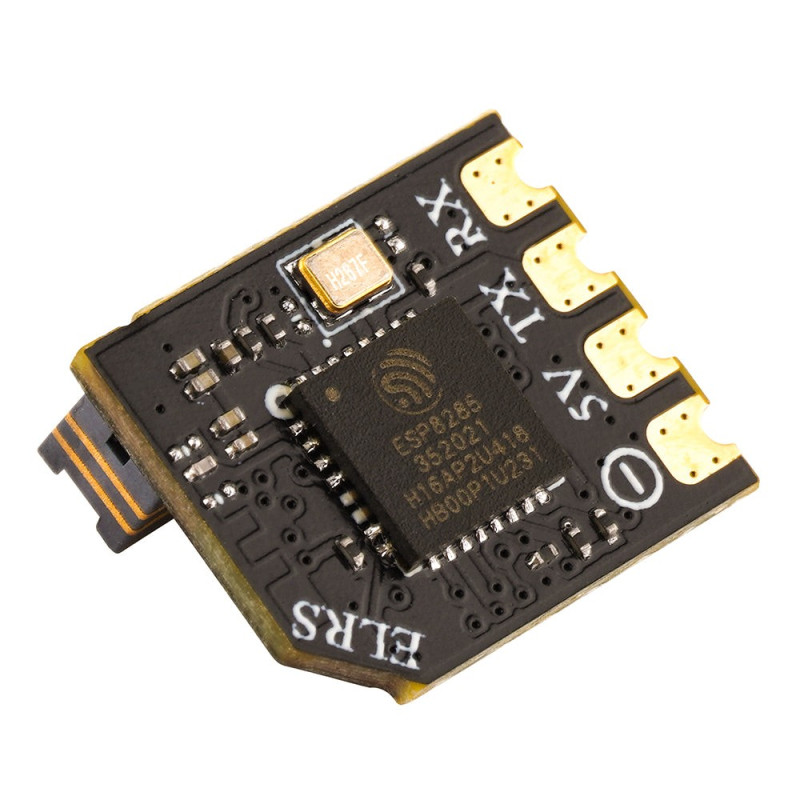

The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Features
- Improved PCB design is better for heat dissipation.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
Specifications
- Type: ISM
- Antenna: On Board SMT Antenna
- Maximum receive refresh rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working Voltage: 5V

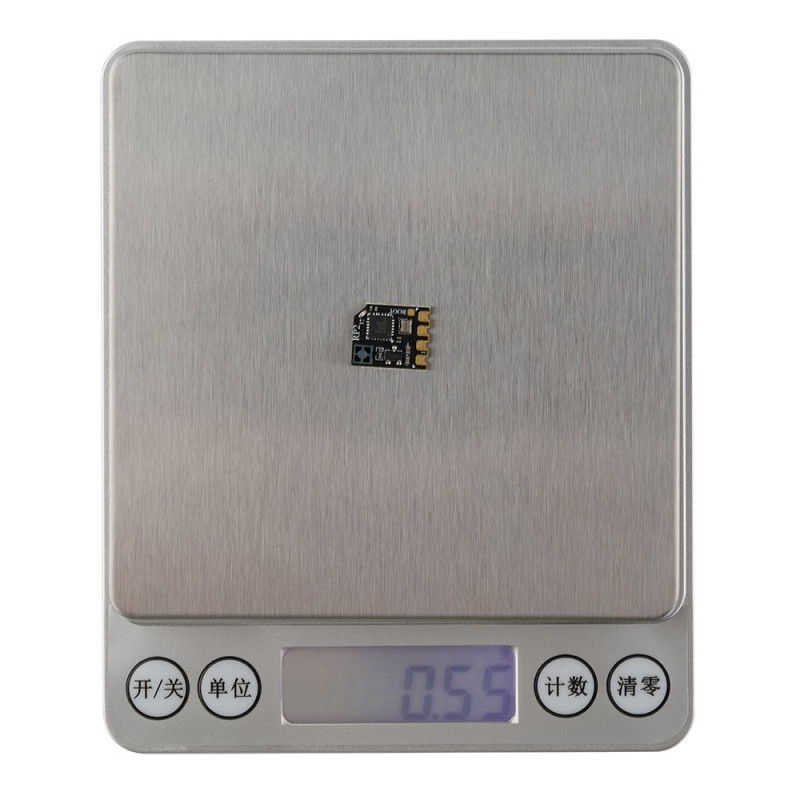

- Weight: 0.55g (On Board antenna)

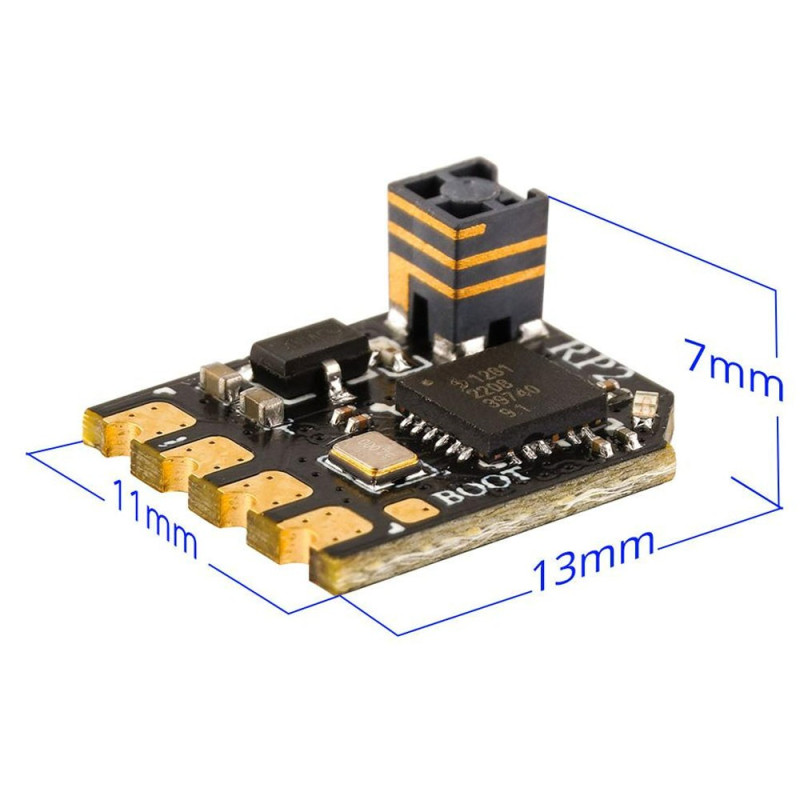

- Dimension: 13mm*11mm*7mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
Shipping Contents
- 1 x RP2 ExpressLRS 2.4GHz Nano Receiver
- 1 x User Manual
Data sheet
- ERLS 2.4GHz
