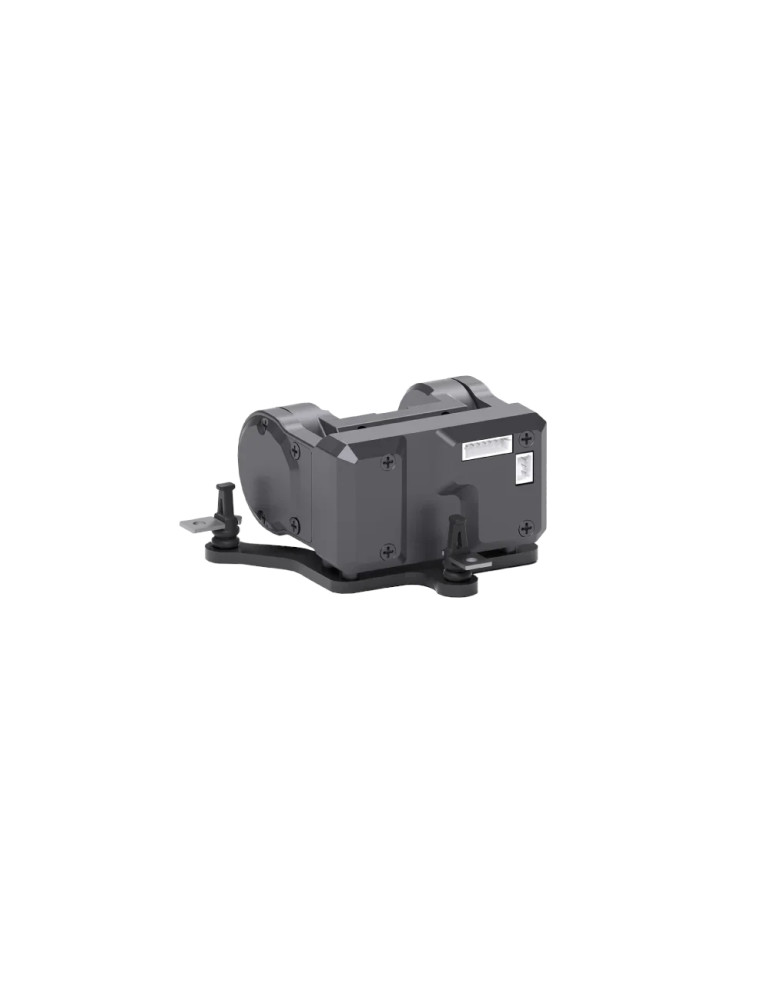

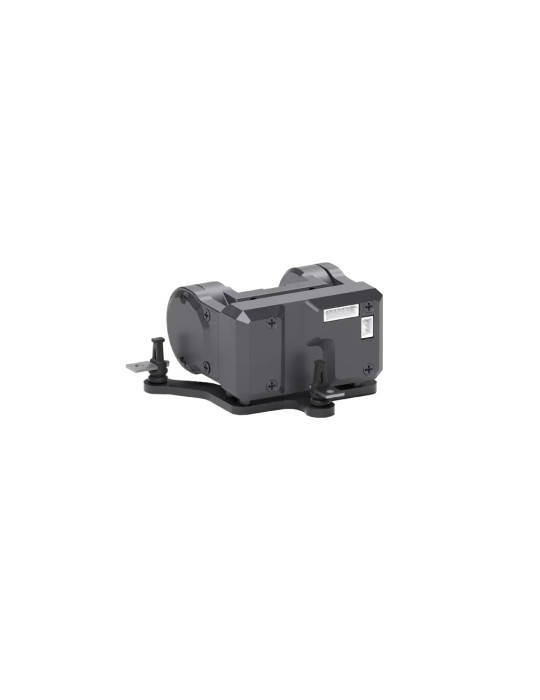

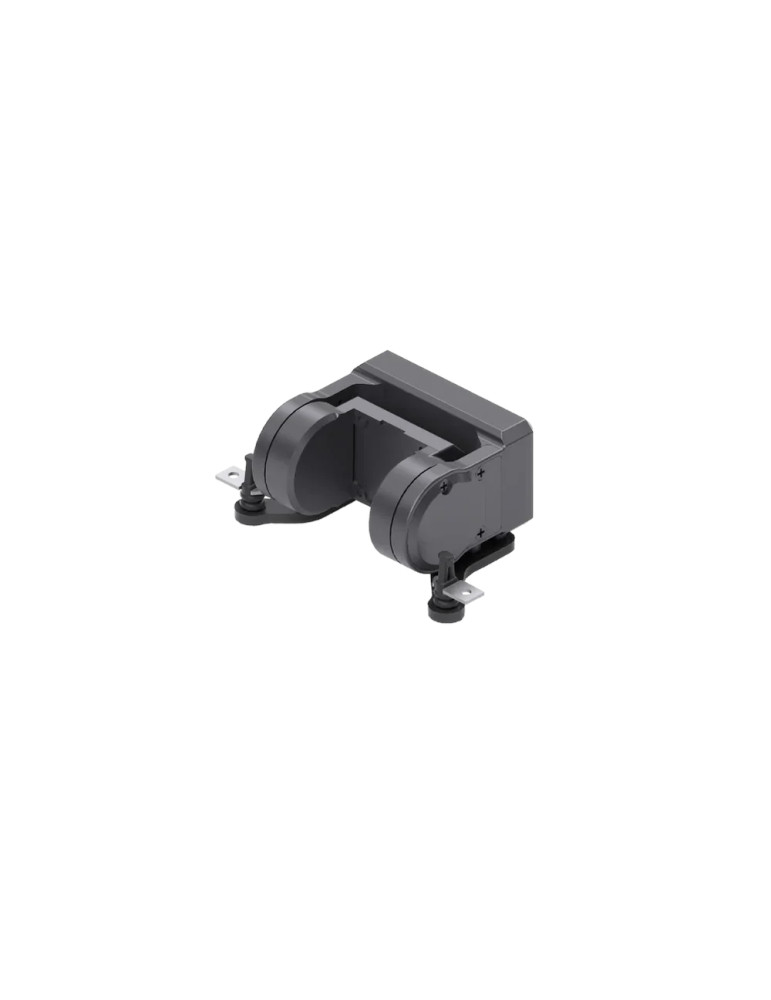

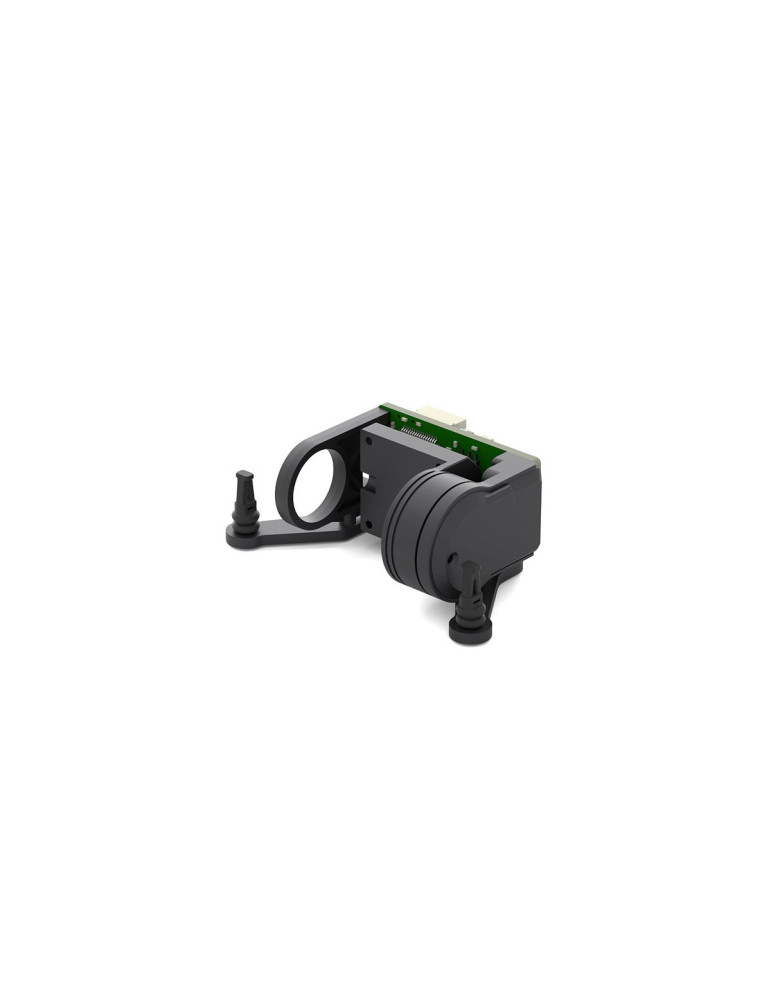

CaddxFPV GM1 V2

The CaddxFPV GM1 V2 is a compact 1-axis gimbal designed for stabilizing and controlling FPV cameras. It enables precise tilt (pitch) control and supports head tracking with compatible Walksnail Avatar HD goggles. This allows the camera to follow the pilot's head movements, providing an immersive FPV experience.

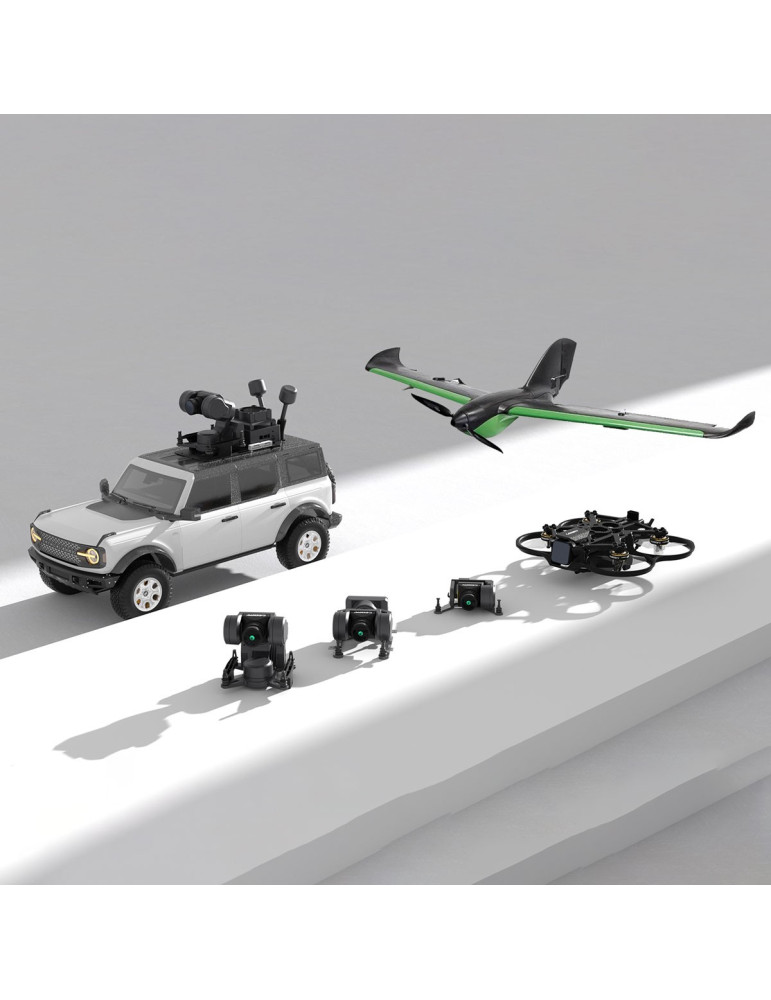

The upgraded V2 version supports S.Bus, CRSF, and MAVLink control protocols in addition to PWM and UART. The gimbal is compatible with 19mm FPV cameras from the Walksnail Avatar and Ascent series and can be used on various FPV platforms, including drones, RC airplanes, and RC vehicles.

Compatibility

Head tracking via Walksnail is supported with the Avatar V2 VTX, V2 VTX Dual, and Moonlight VTX. The Avatar V1 VTX, Mini 1S, Nano V3, and GT VTX are not compatible.

Specification

• Model: GM1 V2

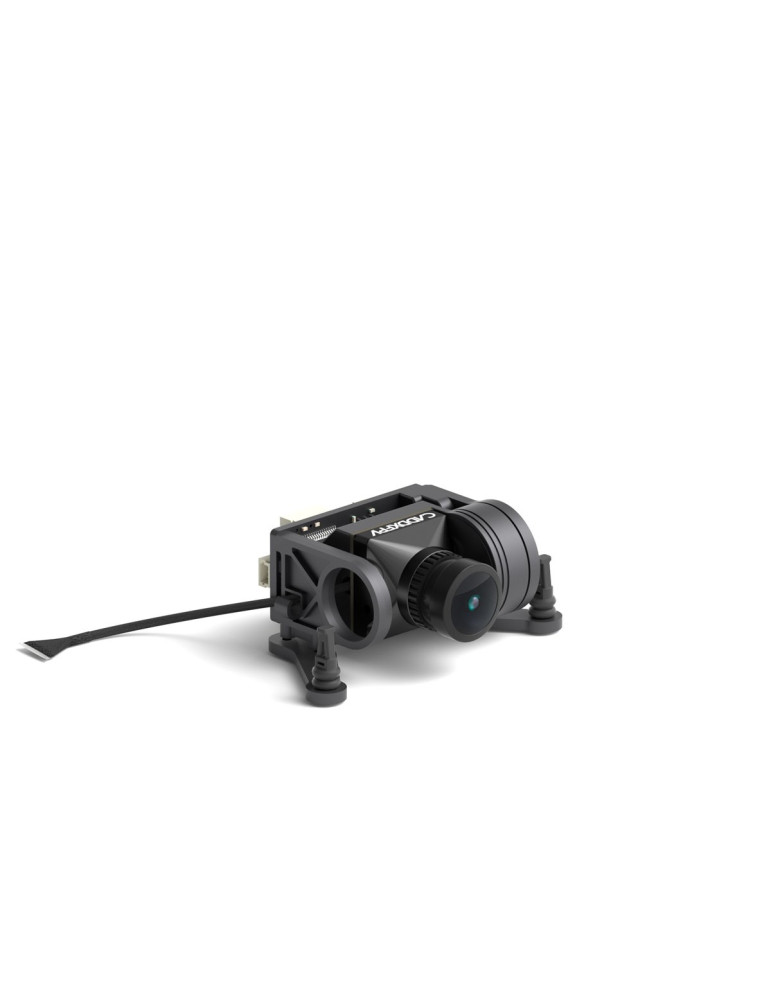

• Camera Compatibility: Walksnail Avatar / Ascent 19mm cameras
• Stabilization Accuracy: ±0.005°
• Max. Controllable Speed: ±1500°/s

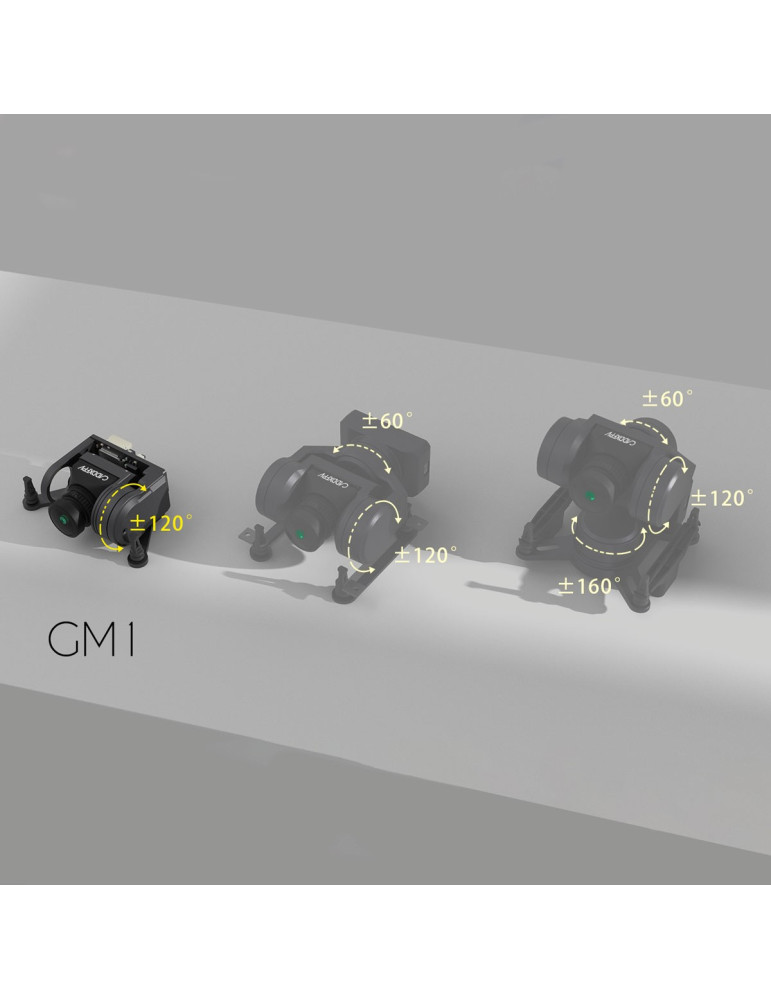

• Max. Controllable Rotation Range (Pitch): ±120°
• Dimensions: 42.2 × 46.4 × 56.9mm
• Weight: 32g
• Control Modes: UART, S.Bus, CRSF, MAVLink, PWM
• Head Tracking Control: Supported
• Input Voltage: 7–26V
• Static Power Consumption: 1.0W

Shipping Contents

• 1 × CaddxFPV GM1 V2 Gimbal (camera/VTX not included)
• 1 × 7-Pin Connection Cable
• 1 × User Manual
