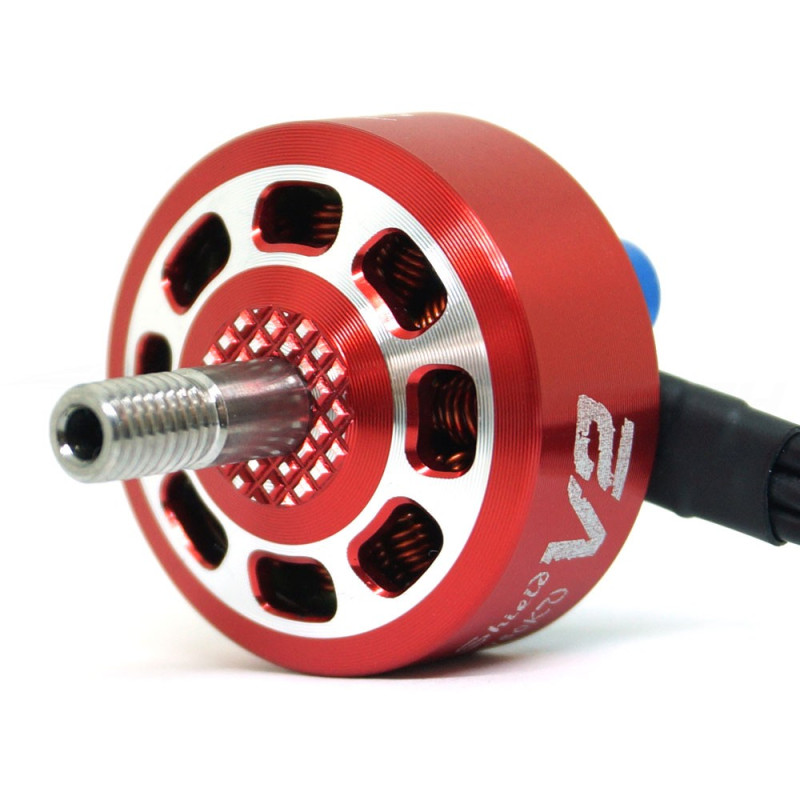

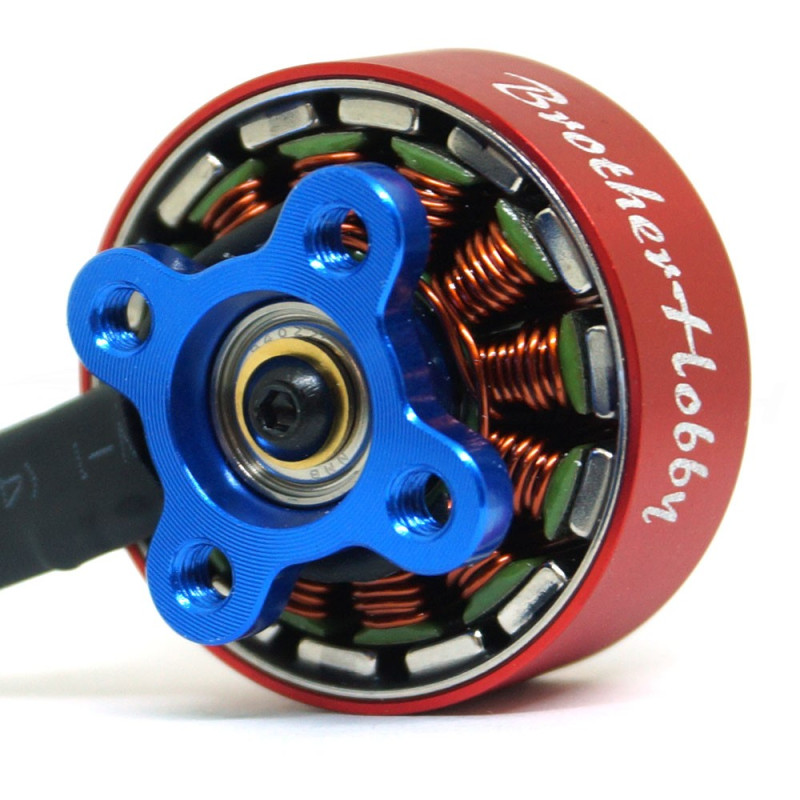

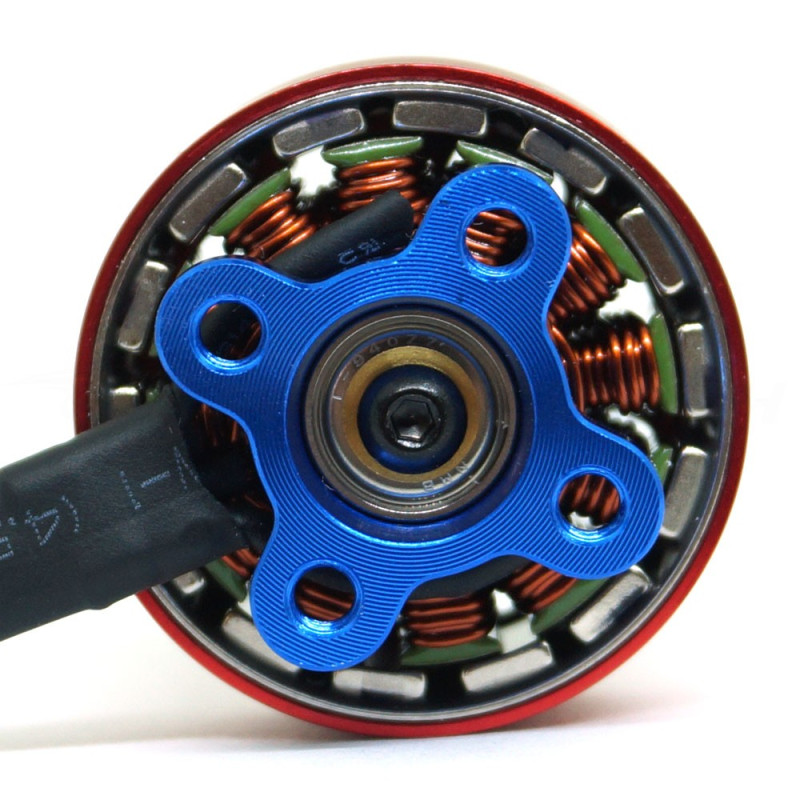

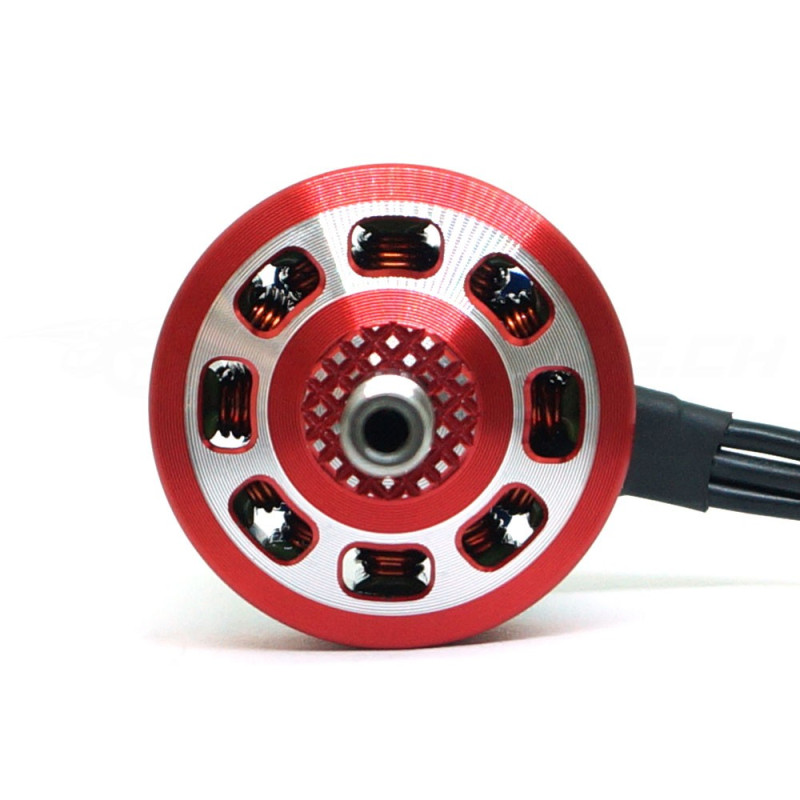

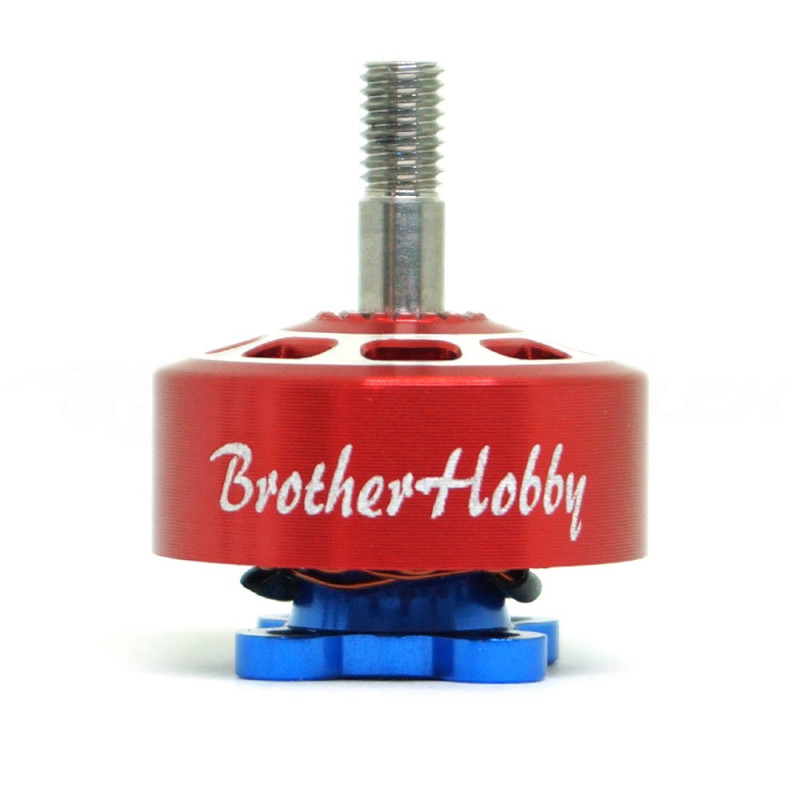

BrotherHobby Speed Shield V2 2207.5 1560Kv

142003

The BrotherHobby Speed Shiel V2 2207.5 Brushless Motor for 6S racing

More details

BrotherHobby

Delivery: 1-2 working days

26.90 CHF

incl. 8.1% VAT
Shipping excluded

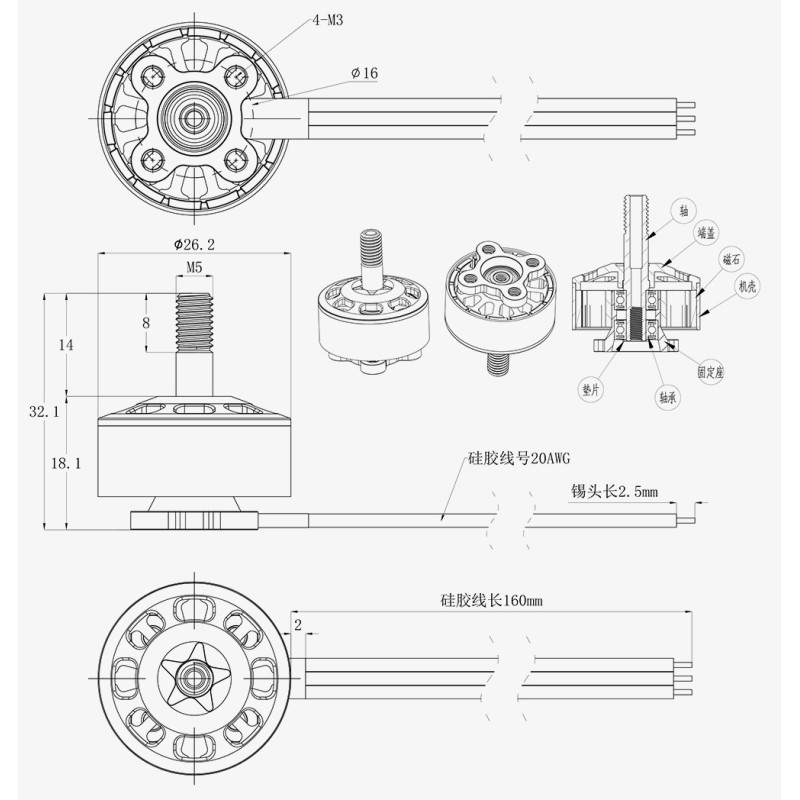

Data sheet

Manufacturer BrotherHobby
Type Complete
Weight 31g
Motor diameter 26.5mm
Motor length 18.1mm
Suitable propeller 5"
KV 1560
Stator Diameter 22mm
Stator Height 07mm
Input Voltage 5S, 6S, 4S
Magnet Pole Configuration 12N14P
Shaft Diameter M5
Hollow Shaft Yes
Cable Length 160mm
Bell Retaining Bell Screw
Mounting Holes M3 16x16mm

More info

The Speed Shield from Brotherhobby looks reminiscent of a certain superpowered shield, and while it may not give you superpowers, the engineers from Brotherhobby have been able to fit a unique stator size of 2207.5 inside a rather small bell. The result is an amazingly powerful motor in a small package that only weighs 31g.



Features

  • N52H Arc Magnets
  • Titanium Alloy hollow shaft
  • 0.15mm Nippon Steel silicon steel Stator
  • Japanese NMB 9x4x4mm bearings
  • Bell cap made of Al 7075



Shipping Contents

  • 1 x BrotherHobby Speed Shield V2 2207.5 1560Kv
  • 1 x CW Lock Nut
  • 4 x Motor Screws
