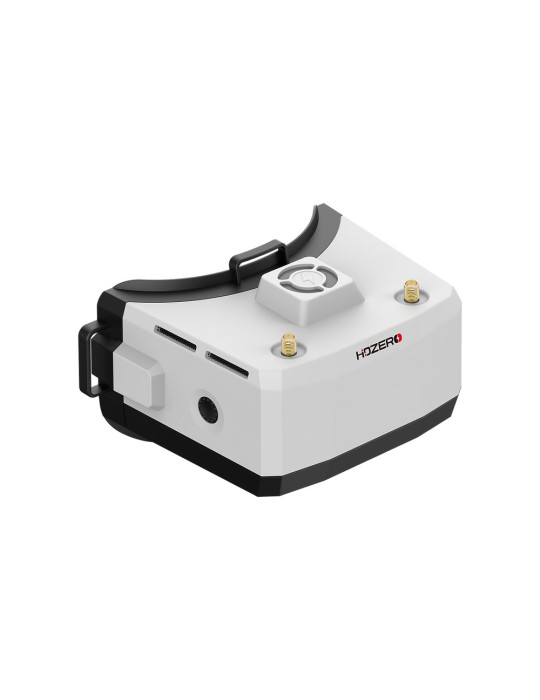

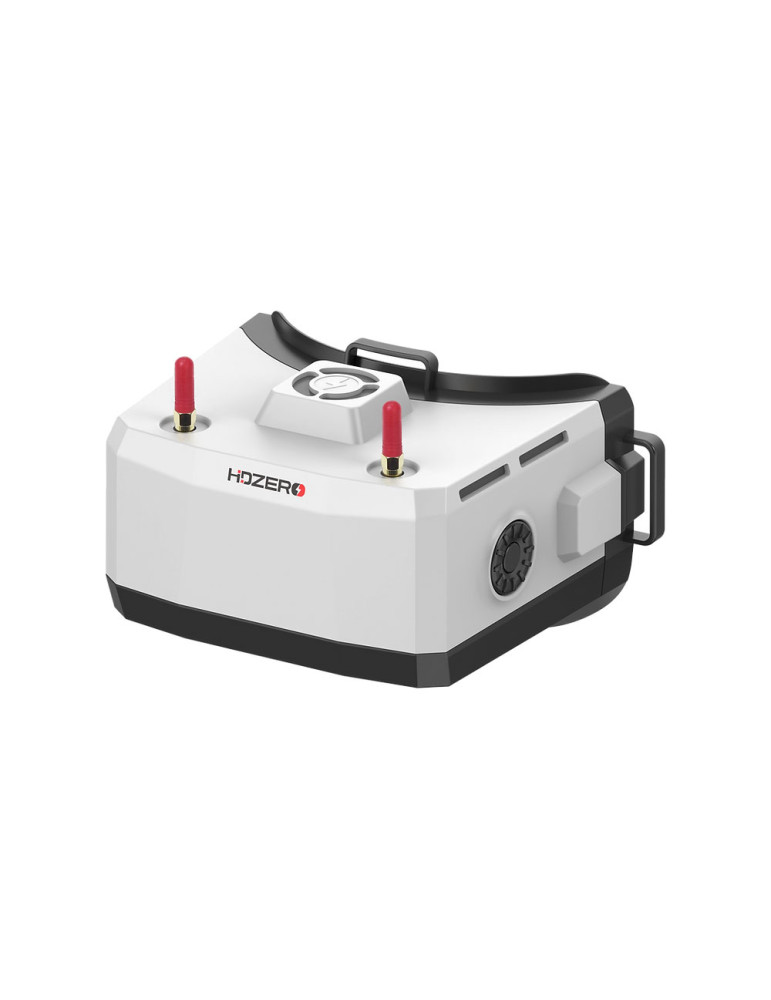

HDZero BoxPro+

The HDZero BoxPro is a high-performance FPV headset designed for smooth, low-latency flying at an unbeatable price. This all-in-one box-style headset supports digital, analog, and HDMI video signals and features a 100Hz LCD display with 1800 nits of brightness. The result is a bright, fluid, and immersive viewing experience.

Equipped with all the inputs and outputs of the flagship OLED model, the BoxPro offers remarkable versatility at a fraction of the cost. Unlike other box-style goggles, the BoxPro is the only one with a 100Hz refresh rate display and a 100Hz HDMI input, ensuring an exceptionally responsive flight experience with minimal latency. It also features a built-in, high-sensitivity analog receiver and comes with four antennas: two integrated high-performance patch antennas and two linear SMA antennas—providing excellent reception right out of the box.

Whether you're flying an affordable analog tiny whoop or racing with HDZero at 90Hz, the BoxPro adapts to your evolving FPV needs. It impresses with smooth video, premium features, and outstanding value for money. Its brilliant, sharp image makes it ready for any challenge - without straining your budget.

Features

• Ultra-Low Latency & High-Performance Display

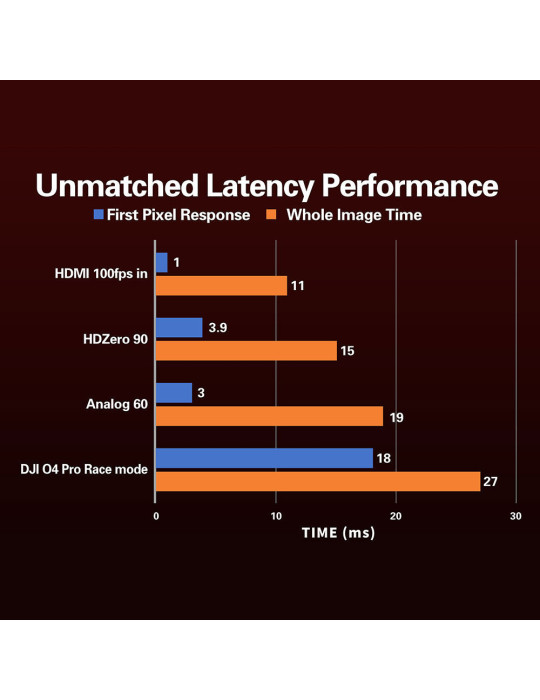

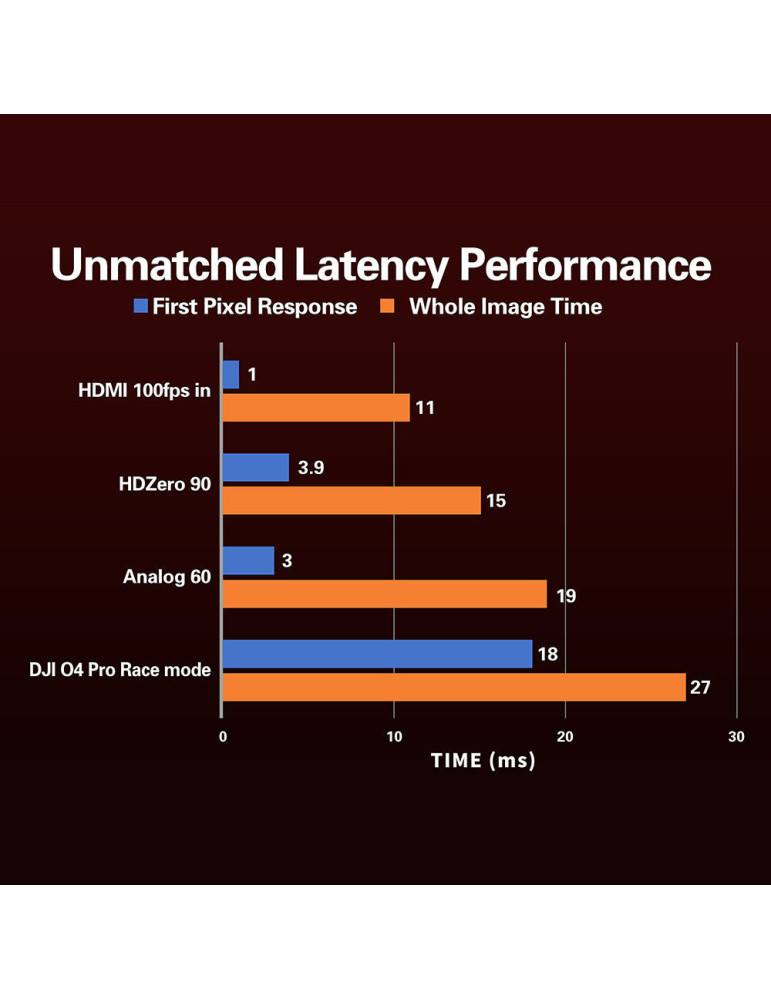

  • Near-instant video feedback: 1 ms HDMI input latency, 3 ms analog camera latency, and 4 ms HDZero camera latency

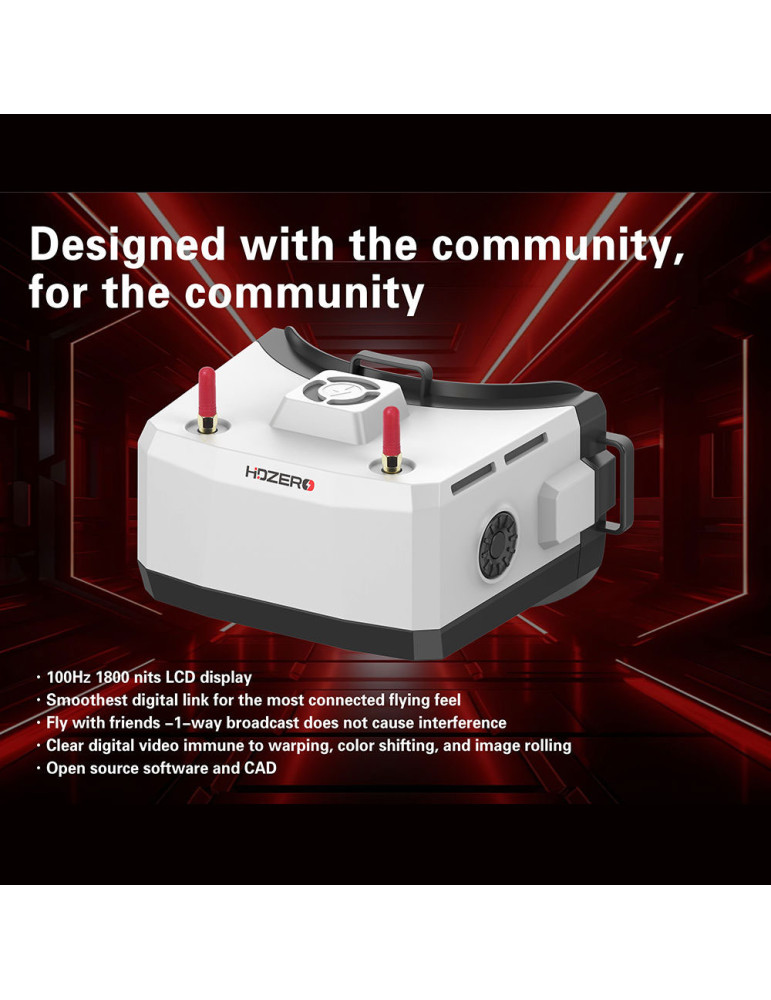

  • 100Hz LCD with 1800 nits brightness for crystal-clear visibility, even in direct sunlight
  • 56° field of view (FOV) for a sharp and immersive visual experience
• Comfort & Optics for All Pilots

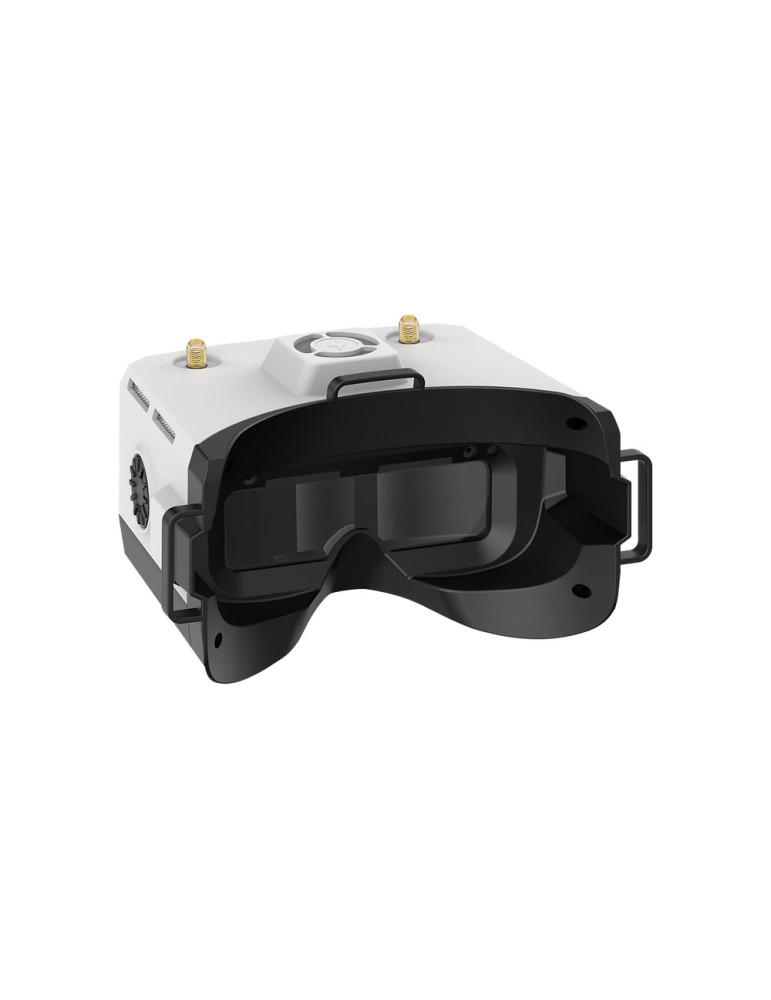

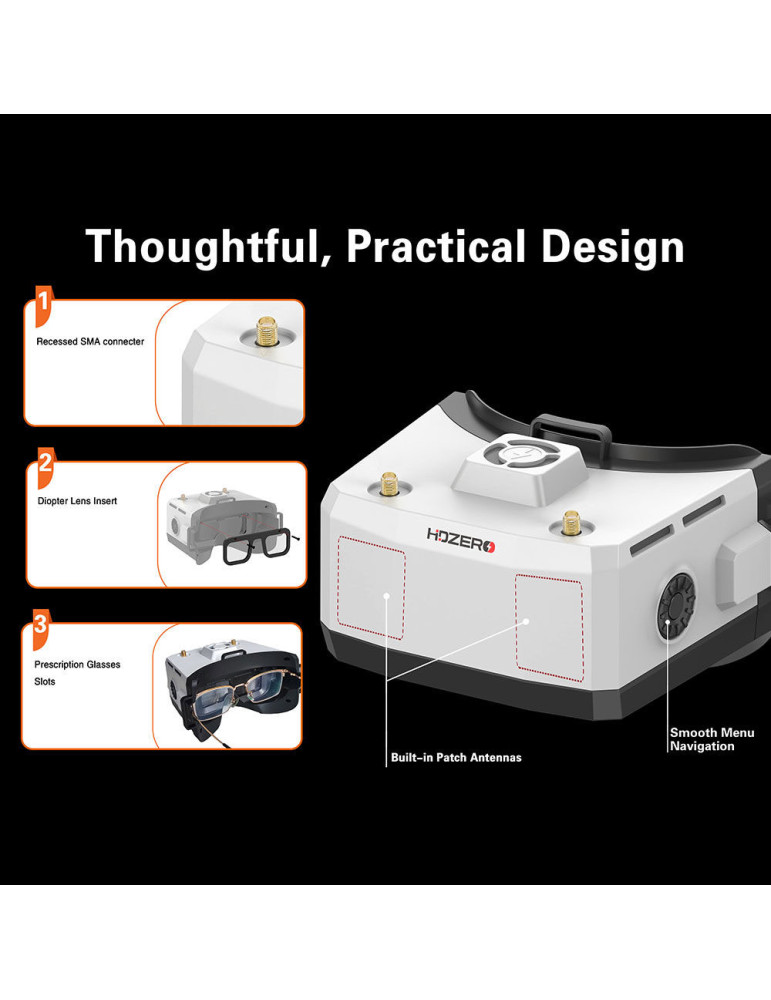

  • Eyeglass-friendly design for comfortable use inside the headset

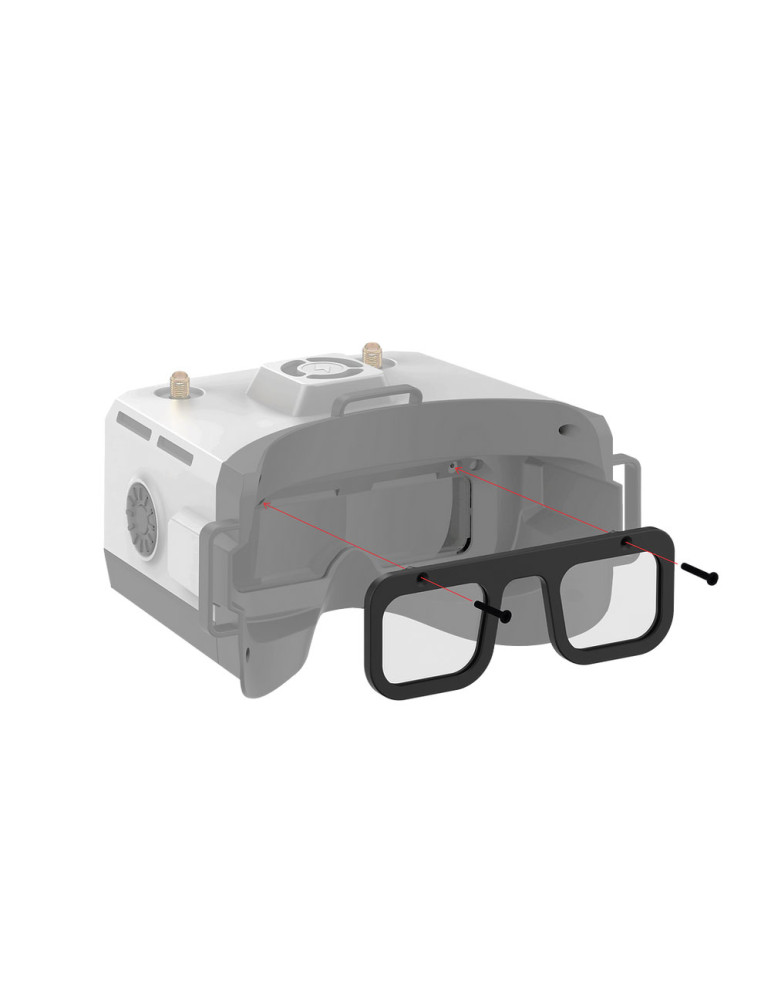

  • Optional diopter lenses to match individual vision, securely screw-mounted into the faceplate

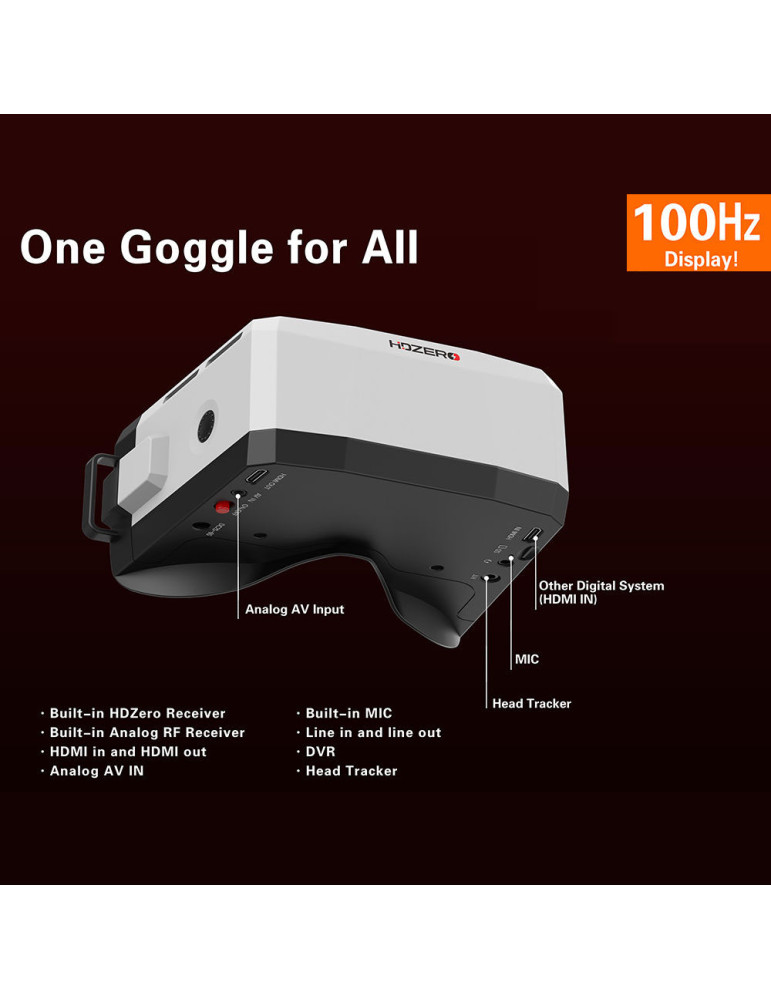

• Versatile Video Support
  • Integrated HDZero digital receiver with 4 antennas, compatible with all HDZero modes
  • Built-in high-sensitivity analog receiver for outstanding analog FPV performance

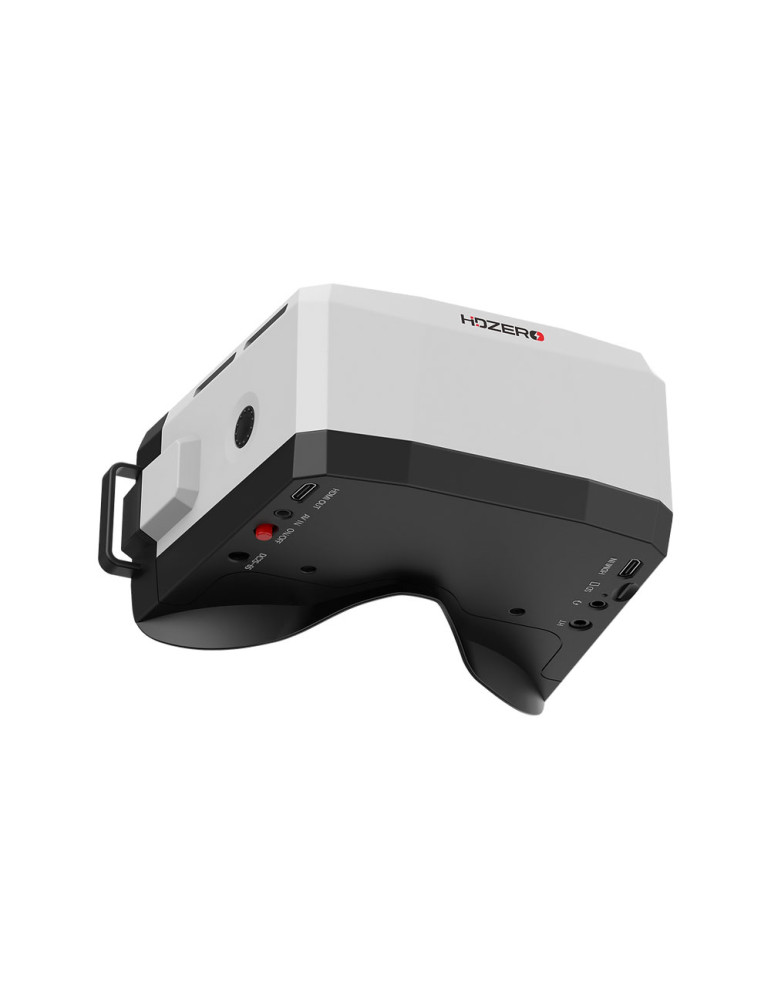

  • Mini HDMI input and output for seamless external video connections
  • 3.5mm AV input and head tracker output for extended connectivity
• Enhanced Analog Resolution & Advanced DVR Functions

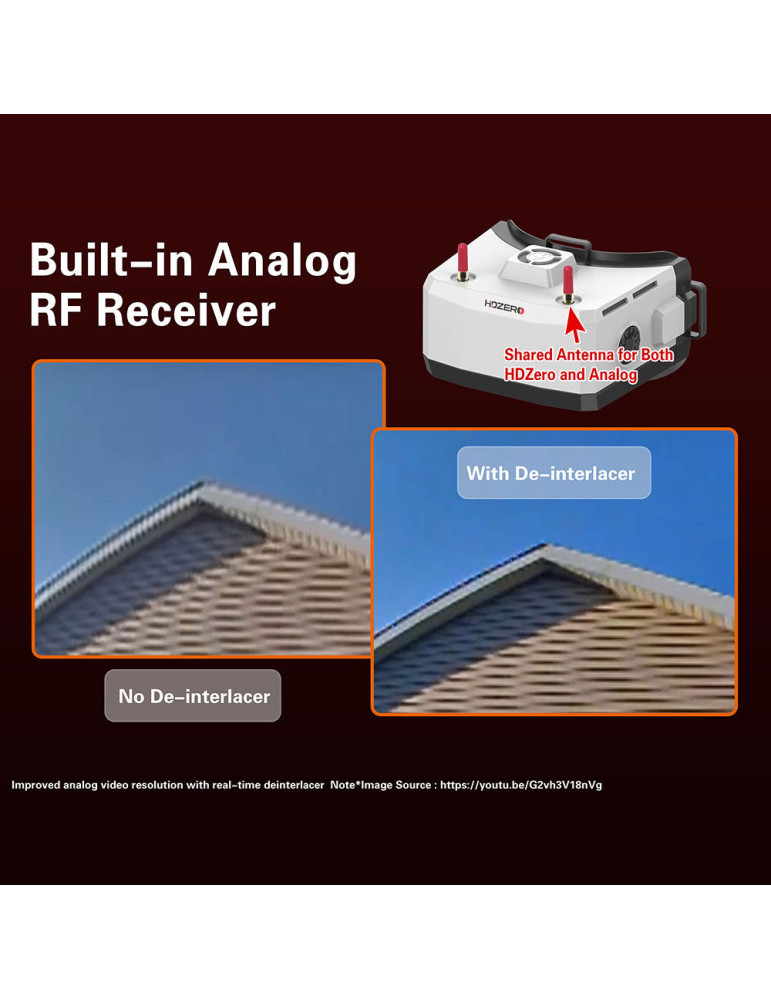

  • Improved analog video quality with real-time deinterlacer
  • Integrated H.265 DVR supports recording of HDZero, analog, and HDMI video
  • Automatic and manual recording modes for maximum user convenience
  • H.264/H.265 encoding with support for 1280x720p60, 1280x720p90, 1280x720p100, and 1920x1080p60
  • Multiple audio sources (built-in microphone, line-in, AV-in) for flexible audio capture
• WiFi Video Streaming & ELRS Backpack (BoxPro+ Only)
  • WiFi streaming to smartphone, desktop, or laptop (available with BoxPro+ model only)
  • iPhone: connect via VLC or FPV Mate App (https://fpvmate.com/)
  • Android: connect via VLC
  • PC/Mac: connect via VLC
  • ESP32 ExpressLRS backpack module for wireless integration with ELRS radio systems—synchronizing video channel, DVR control, and head tracking (BoxPro+ only)
• Optimized Power Management & Cooling
  • Compatible with 2S–6S batteries via XT60 connector (battery not included)
  • Adjustable fan speed for internal cooling and anti-fog function
• Open-Source Software & Customization
  • Linux-based open-source system allows firmware customization, new feature integration, and performance optimization
  • Full access to the user interface code makes it one of the most flexible FPV goggle platforms
  • Community-driven development ensures continuous improvements and broad support

Shipping Contents

• 1 x HDZero BoxPro Goggle
• 2 x Linear 5.8GHz SMA Antennas (with 2 inbuilt high-gain patch antennas inside the goggle)
• 1 x Foam Face Pad
• 1 x Adjustable Head Strap with Battery Pocket
• 1 x 1200mm XT60 Power Cable
• 1 x Durable Canvas Goggle Bag
• 1 x Lens Cleaning Cloth
