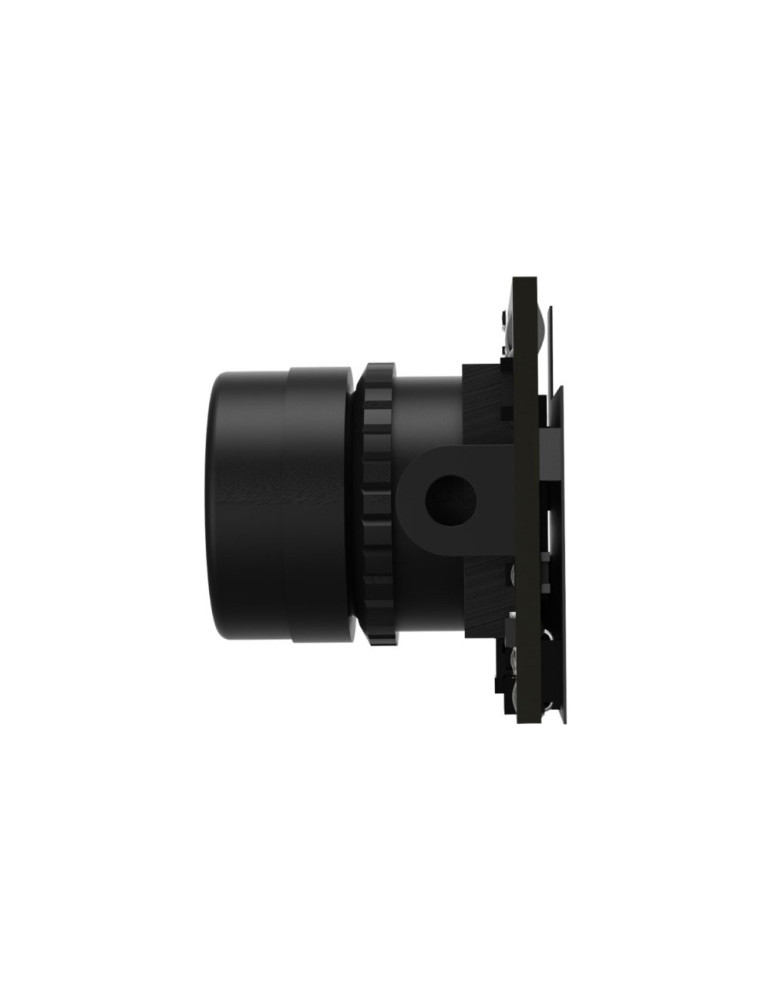

Flywoo 1S Nano Camera V3

102022

The Flywoo 1S Nano Camera V3 for lightweight builds.

More details

Flywoo

Delivery: 1-2 working days

19.90 CHF

incl. 8.1% VAT

Data sheet

Size 14x14x10mm
Manufacturer Flywoo
Weight 2.1g
Horizontal Resolution 1200TVL
OSD No
Image Sensor CMOS
Power 5-36V DC
Input Voltage 4S, 3S, 2S, 1S
Video Standard PAL / NTSC Switchable
Lens 1.8mm
Form Factor Nano
Min Illumination 0.001Lux
Aspect Ratio 4:3

More info

The Flywoo 1S Nano Camera V3 is a compact, high-performance camera designed for small drones. It features a 1/3" CMOS sensor, 1200 TVL resolution, and supports both NTSC and PAL formats. With a 4:3 aspect ratio, global WDR, 3D DNR, and a wide power input range (DC 3.7-18V), it excels in capturing clear visuals even in low-light conditions (0.001 Lux). Weighing just 2.1g and measuring 14x14mm, it’s perfect for lightweight builds like the Flywoo Firefly FR16 Analog.



Specifications

  • Model: Flywoo 1S Nano Camera V3
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC and PAL(switchable)
  • MENU: Support
  • IMAGE: 4:3
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 1.8mm/F2.5
  • Min. illumination: 0.001Lux
  • Auto Gain Control: YES
  • BLC: YES
  • WDR: Global WDR
  • DNR: 3D DNR

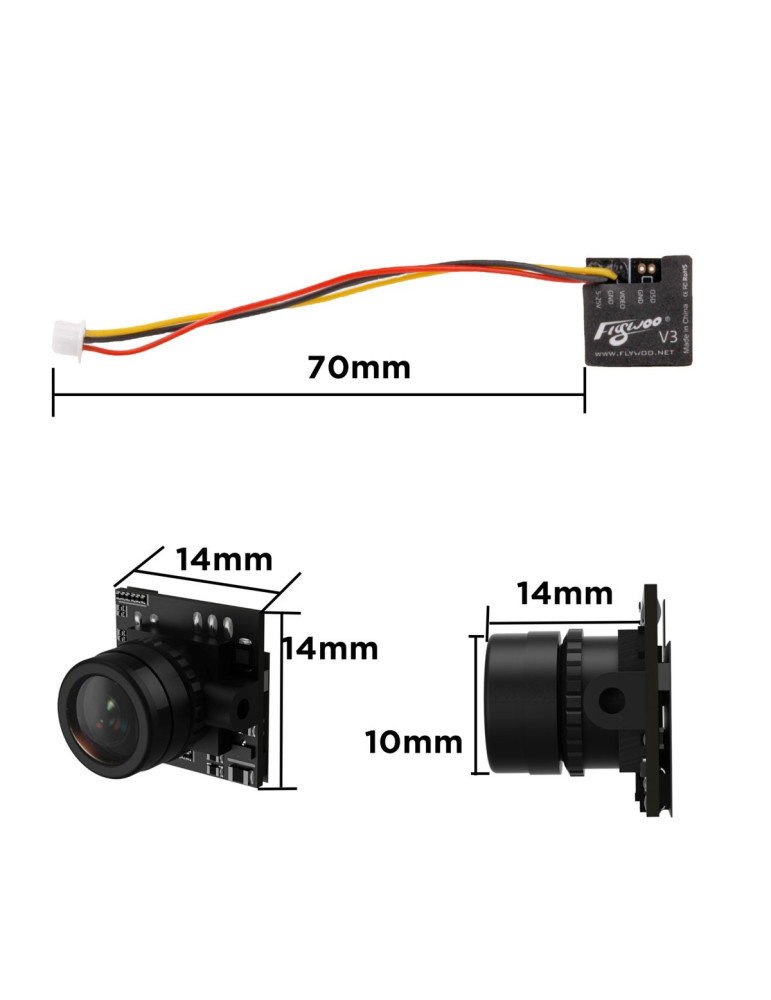

  • Dimensions: 14* 14mm
  • Wide Power Input: DC 3.7-18V
  • Work Temperature: -20°C~+60C
  • Work Humidity: 20%~80%

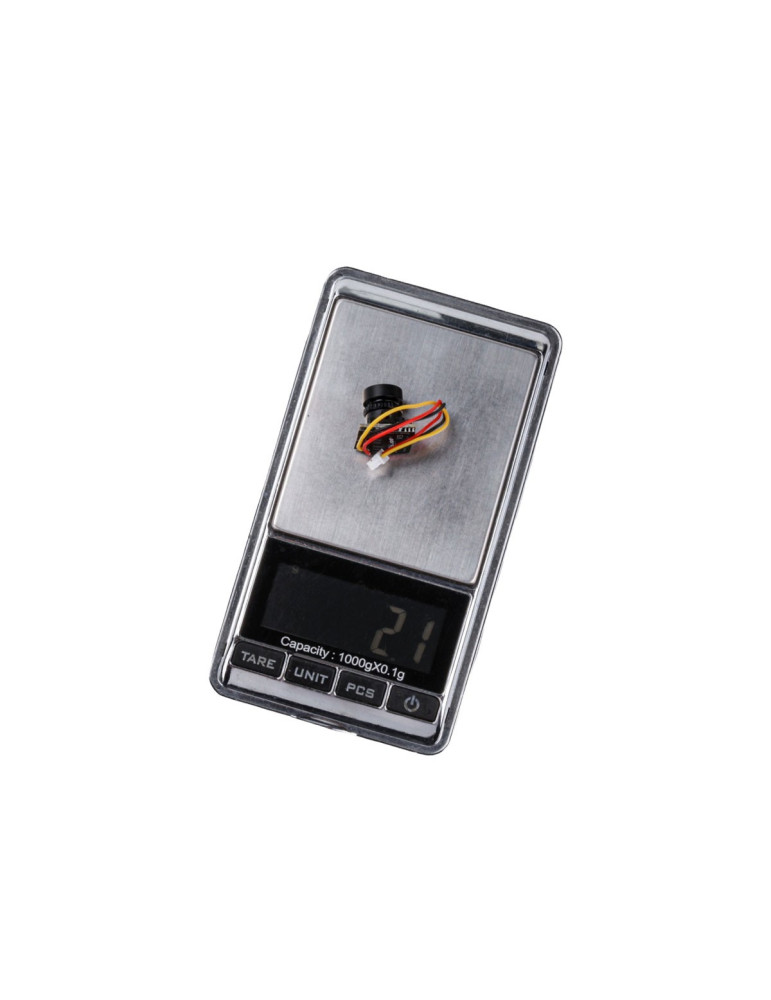

  • Weight: 2.1g



Shipping Contents

  • 1 x Flywoo 1S Nano Camera V3
