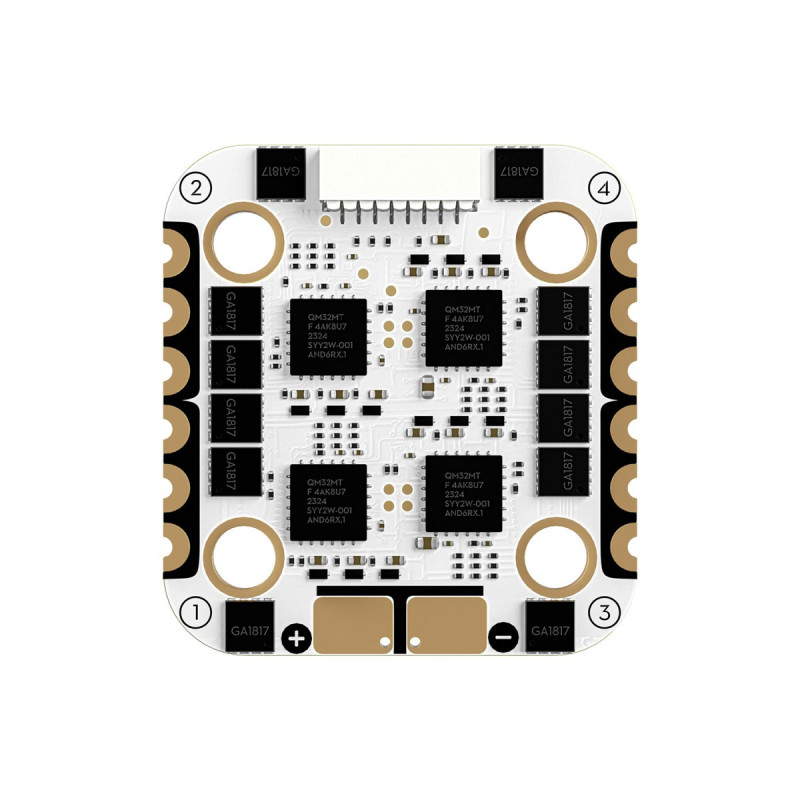

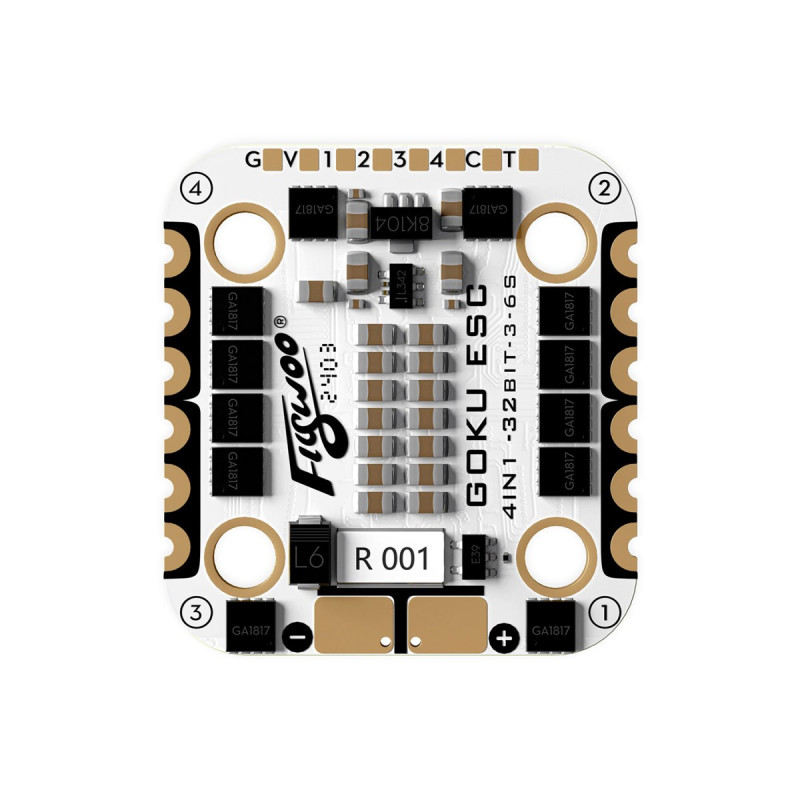

Flywoo GOKU G45M 45A Mini ESC 2-6S

123002

The Flywoo GOKU G45M 32BIT 128K 2-6S 45A 4in1 ESC brings serious power to the 20x20 class! Stackable with other mini FCs like the GOKU F722 Mini F7 Flight Controller.

More details

Flywoo

Delivery: out of stock

44.90 CHF

incl. 8.1% VAT

Data sheet

Manufacturer Flywoo

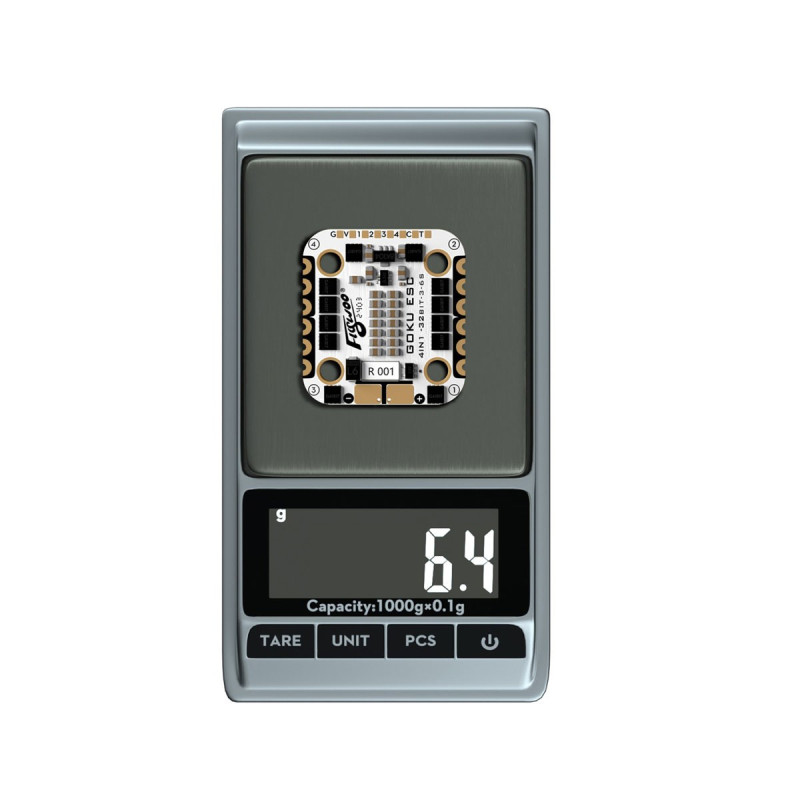

Weight 6.4g
Cell configuration 6S, 5S, 4S, 3S, 2S
Continuous Current 45A
Burst Current 50A

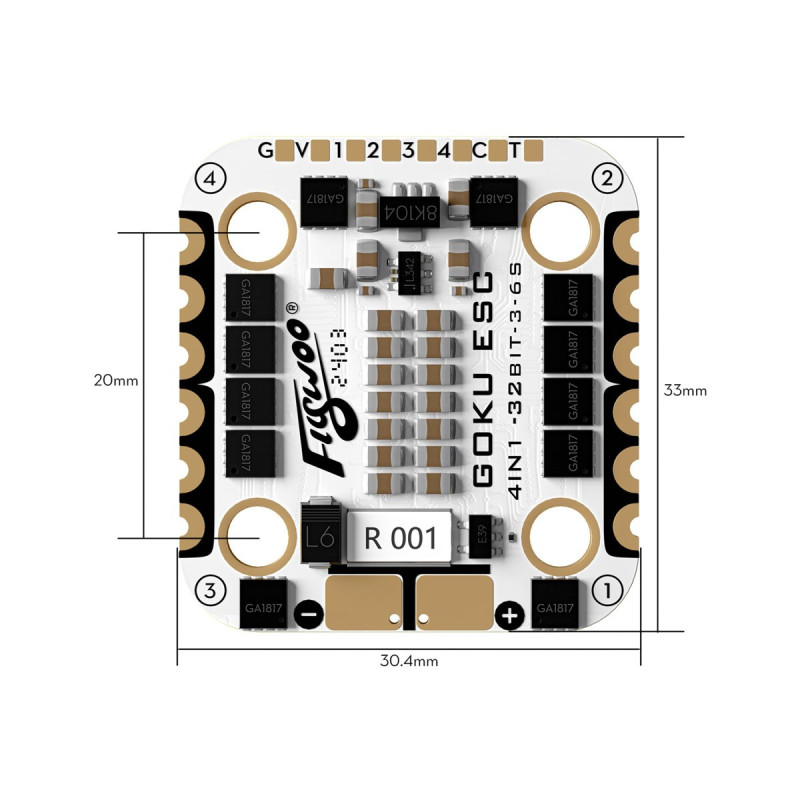

Mounting Holes 20x20mm
Current Sensor No
ESC Outputs 4
ESC Protocol Support Dshot300, Dshot600,Dshot1200
ESC Typ 4-in-1

More info

The GOKU G45M is a high-performance ESC with a 45A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K.


Key features include the AT32 dual-in-one chip, imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G45M ensures an exceptional flying experience.



Features

  • High-Performance Chip: Utilizes the new generation AT32 dual-in-one main control chip.
  • Quality Components: Imported MOSFETs and high-quality ceramic capacitors for improved efficiency and performance.
  • Powerful Functions: Supports bi-directional DSHOT and data telemetry for easy flight control.
  • Compatibility: Supports various setting and upgrading methods, compatible with multiple throttle signals.



Specifications

  • Firmware: GOKU_F4A32_PRO

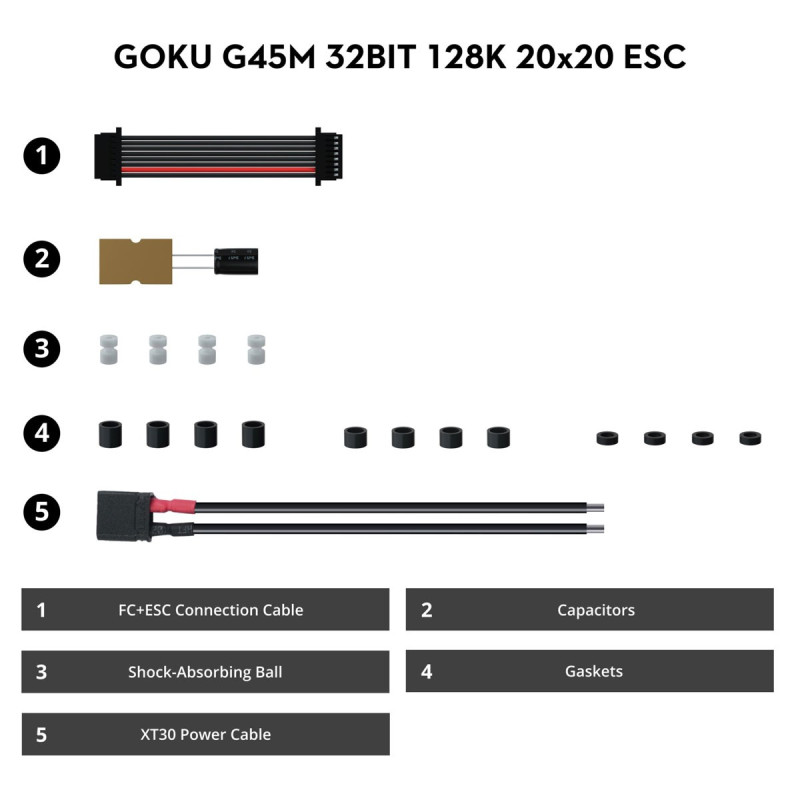

Package Contents

  • 1 x Flywoo GOKU G45M 32BIT 128K 2-6S 45A 4in1 ESC
  • 1 x FC to ESC connection Cable
  • 1 x Capacitor
  • 4 x M2 Shock-Absorbing Ball
  • 1 x XT30 Cable
