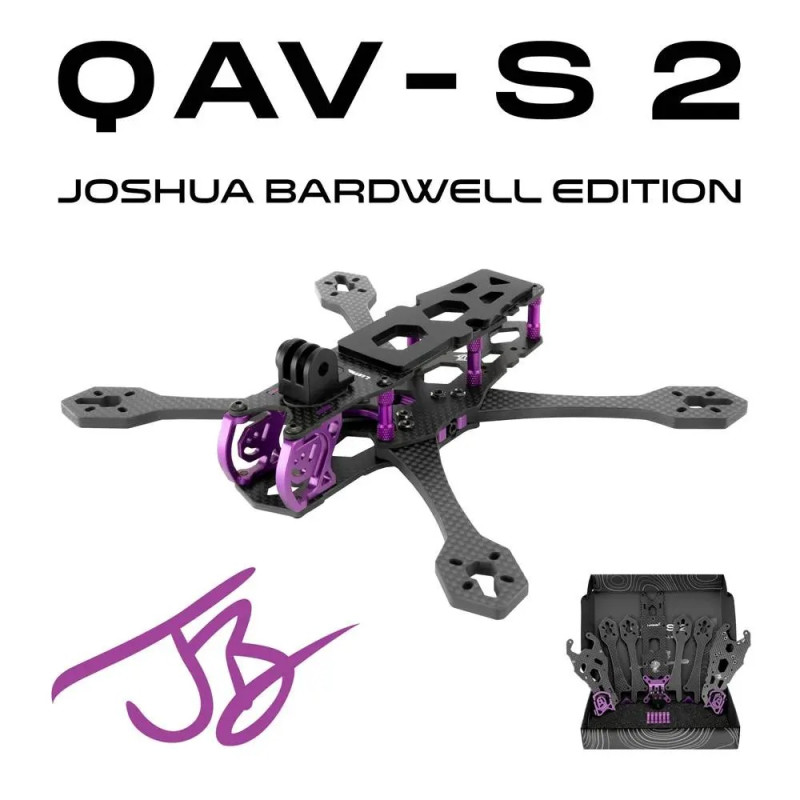

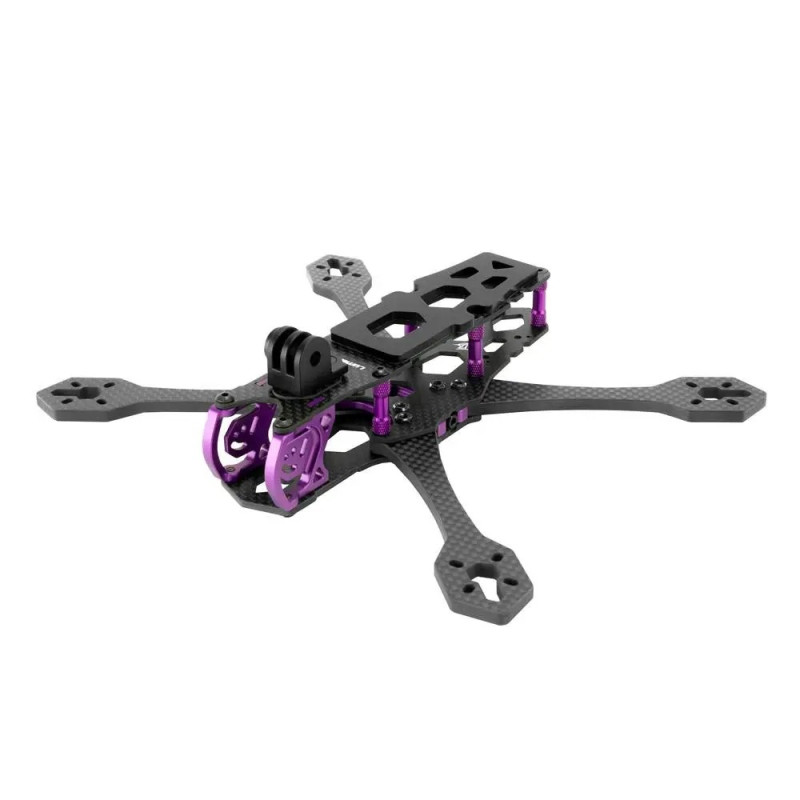

Lumenier QAV-S 2 Joshua Bardwell SE Frame (5")

Introducing the Lumenier QAV-S 2 5" Freestyle Quadcopter Frame - Joshua Bardwell Special Edition, a custom-designed drone frame for FPV Freestyle flying!

This frame was designed in collaboration with Lumenier and world-renown FPV guru Joshua Bardwell to bring you the "perfect" FPV freestyle frame. Building upon the success of the QAV-S series, the QAV-S 2 takes it a step further with optimized design to save weight, X-Lock arm retention for added strength and rigidity, an aluminum FPV camera mount, injection molded GoPro mount, O3 compatibility, and much more!

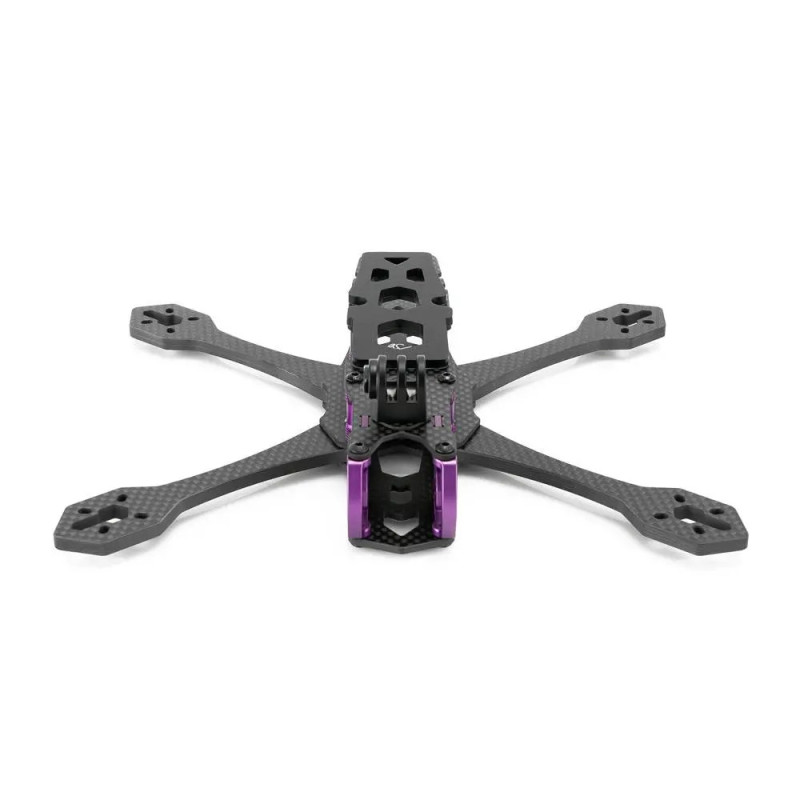

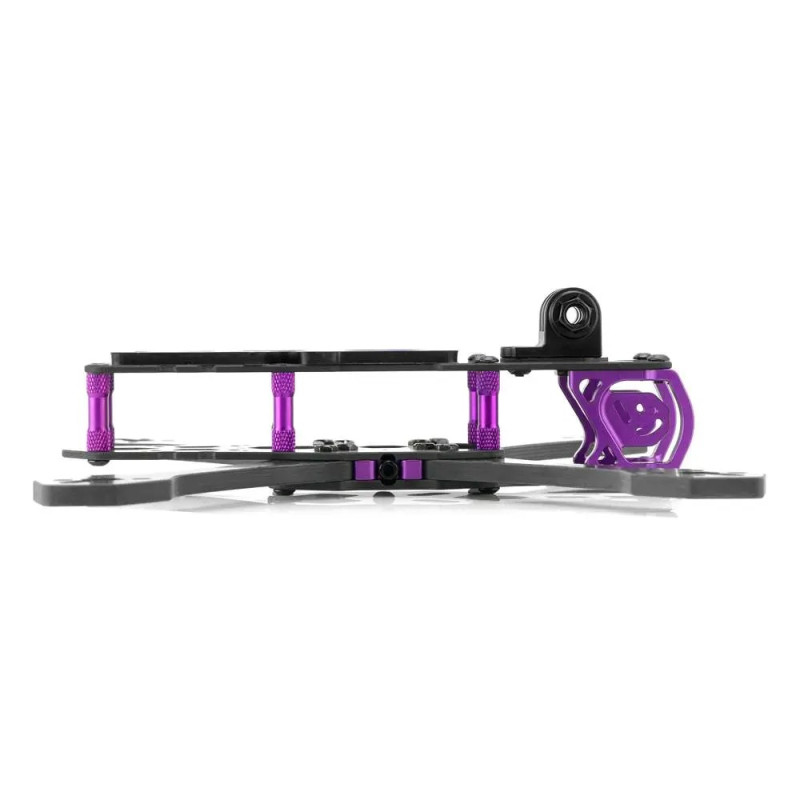

The QAV-S 2 is a 5-inch freestyle airframe that is ultra-durable, easy to work with, and locked-in to perform and provide the best flight feel. The QAV-S 2 has many small details that were well-thought-out - including premium Lumenier carbon fiber with finished and chamfered edges in all the plates, 7075 colored aluminum standoffs to give the quad a sleek look.

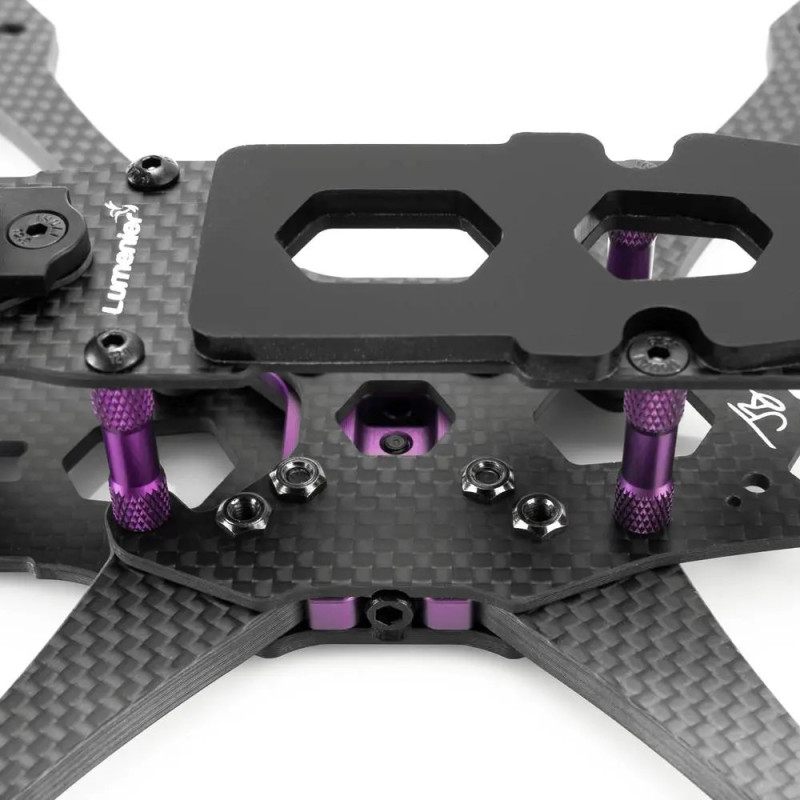

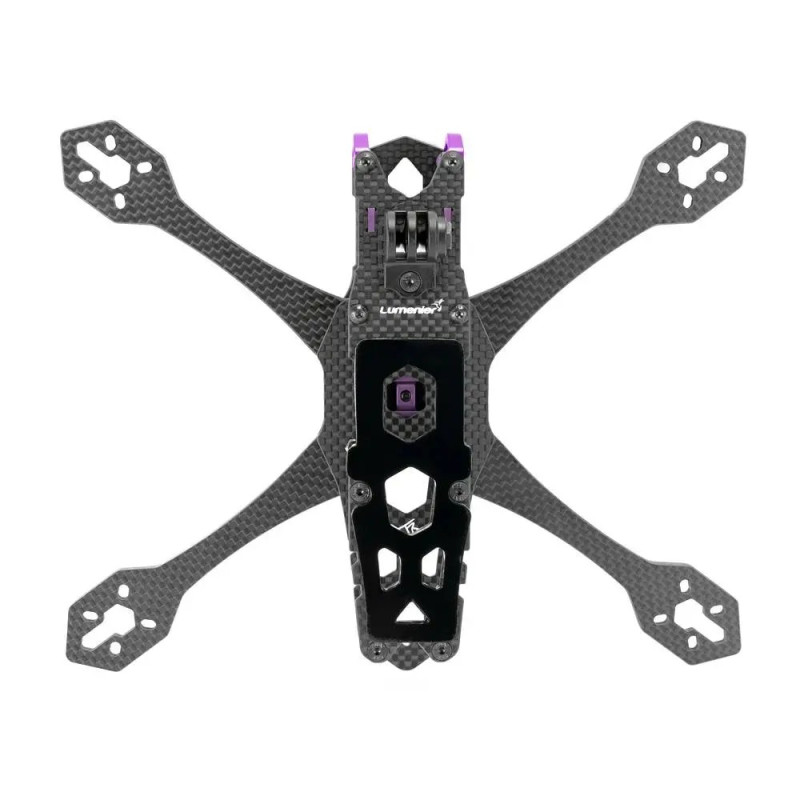

The QAV-S brings several new innovations to the table. The first innovation is the arm locking system which includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. This is a convenient feature when maintenance is needed. The second feature is a split bottom plate that gives enough room for a micro camera, while also reducing the rear deck space for components. Lastly, the QAV-S 2 has isolated 20x20 and 30x30 stack mounting in the center (and 20x20 mounting in the rear) that lets you take care of your electronics stack without the need to alter the frame structure and overall build.

 _________________

"The QAV-S is the perfect balance of lightweight agility, ease of build and maintenance, and freestyle-bashing durability. I'm so thrilled to show you the improvements we've made in V2!"

-Joshua Bardwell

 _________________

Features

• Made in Collaboration with FPV expert Joshua Bardwell
• Frame made of High-Quality Lumenier components
• Backward-compatible mounting patterns
• Aluminum FPV Camera Side Plates
• Injection-Molded GoPro Mount
• O3 Compatible Mounts
• X-Lock Mechanism

Recommend Parts (Not Included)

• FC: 30.5x30.5 / 20x20 hole size
• Battery: 4-6S 1300-1800mAh
• Camera : Micro(19mm) Size / DJI O3
• ESC: 40-60A 4in1 ESC
• Motor : 20xx-22xx

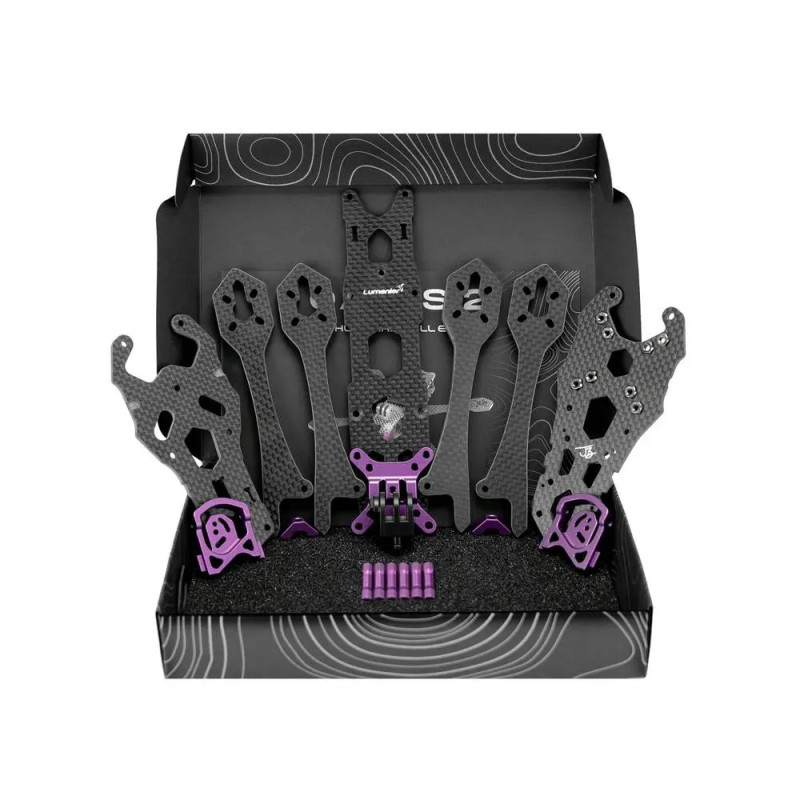

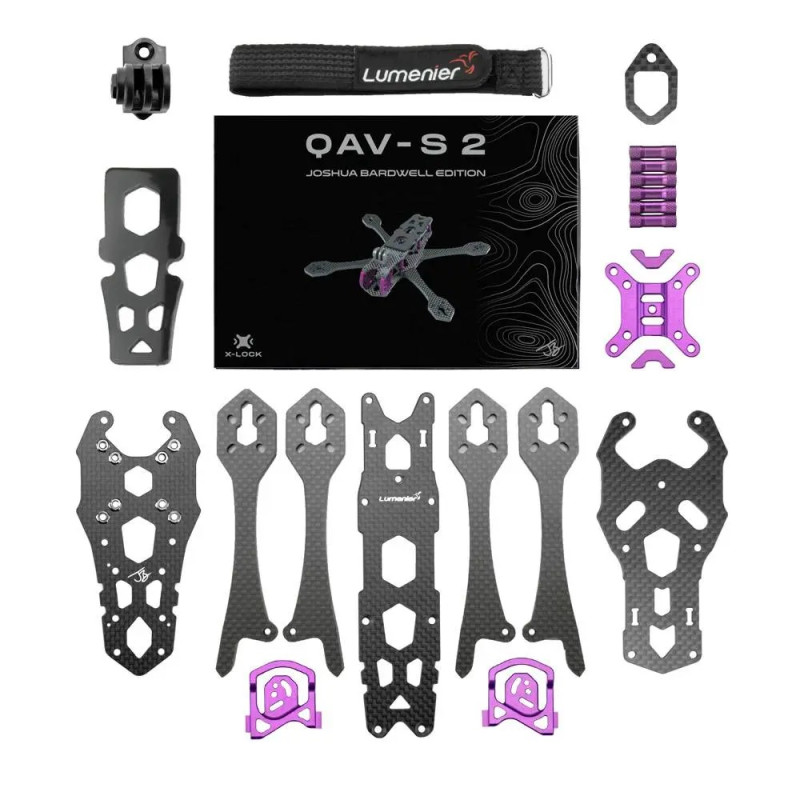

Shipping Contents

• 1 x Lumenier QAV-S 2 Joshua Bardwell SE Frame (5")
