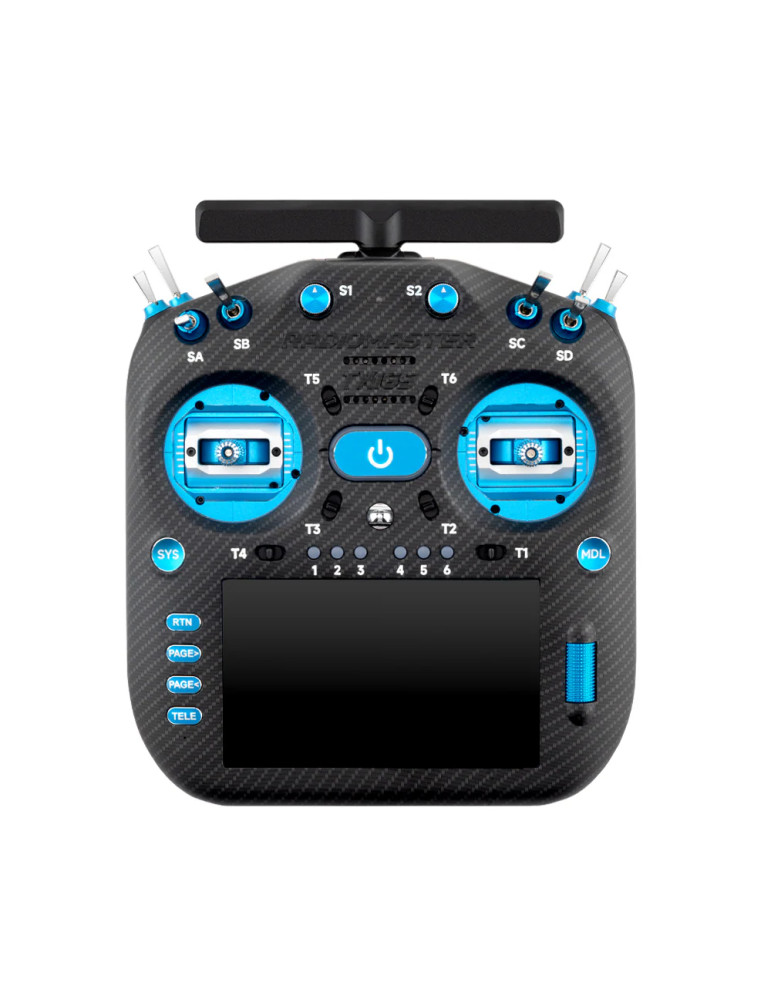

RadioMaster TX16S Mk3 MAX Radio Controller (ELRS)

RadioMaster continues to lead the way in the development of open radio control systems, building on the globally proven concept of the TX16S series. The TX16S MK3 delivers enhanced performance, precision, and ergonomics.

Equipped with the powerful STM32H7 processor, it impresses with rapid response times, smooth operation, and a precise control feel. The bright 5-inch touchscreen with a resolution of 480×800 pixels ensures clear visibility even in direct sunlight and allows for intuitive navigation and easy programming.

Thanks to the new Gemini-X ExpressLRS system with dual LR1121 transceivers, the TX16S MK3 offers a stable and reliable connection over both 2.4GHz and 900MHz – ideal for demanding applications requiring low latency and long range.

The familiar TX16S layout has been retained: all switches, sliders, and potentiometers are exactly where pilots expect them to be. Modular switch panels allow the transmitter to be flexibly adapted to different flying styles.

The MAX version features AG02 gimbals made from fully CNC-machined aluminum – setting the global standard for control feel, precision, and durability. The carbon-look housing, combined with CNC-machined aluminum switches, rotary controls, and scroll wheel, delivers a premium tactile experience and a sophisticated appearance. Programmable RGB light rings on the gimbals provide additional customization options and serve as visual status indicators, which can be precisely tailored to individual preferences.

Also available as a standard version, featuring a rugged housing design, precise V6 Hall-effect gimbals with four ball bearings, as well as classic switches and rotary controls – delivering reliable performance, high precision, and a well-balanced control feel. Ideal for those who value quality and functionality.

Features

• High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
• Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals.
• RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.
• Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.
• Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
• Digital audio: Greater sound quality and reduced interference.
• Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Automatic back light adjustment: Makes the screen easier to read indoors and out.
• Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Removable shoulder switch panels: Customize your setup with modular switch panels.

Specifications

• Size: 200x178x88mm
• Weight: 864g (without battery)
• Frequency: ISM 2.4GHz and Sub-G 900MHz
• RF Module: Internal ExpressLRS 2 x LR1121
• SD card slot: yes (card not included)
• Battery: 1 x 6500mAh 2S Li-Ion (Not included) or 2 x 18650 Li-Ion (Not included)
• Charging: Built in USB-C charging
• Firmware: EdgeTX (require 3.0.0 or higher)
• Channels: Up to 16 channels (depending on the receiver)
• Gimbal:   AG02 CNC Hall sensor
• Operational Current: 1.10A (at max RF output power)
• Operational Voltage: 6.6-8.4V DC
• Display: 5-inch IPS touchscreen with a resolution of 800 * 480
• Module Bay: JR compatible module bay
• Firmware Upgrade Method: USB / EdgeTX Companion PC software

Shipping Contents

• 1 x RadioMaster TX16S Mk3 MAX Radio Controller (ELRS) (Mode 2)

Note: Receiver not included! Battery not included!
