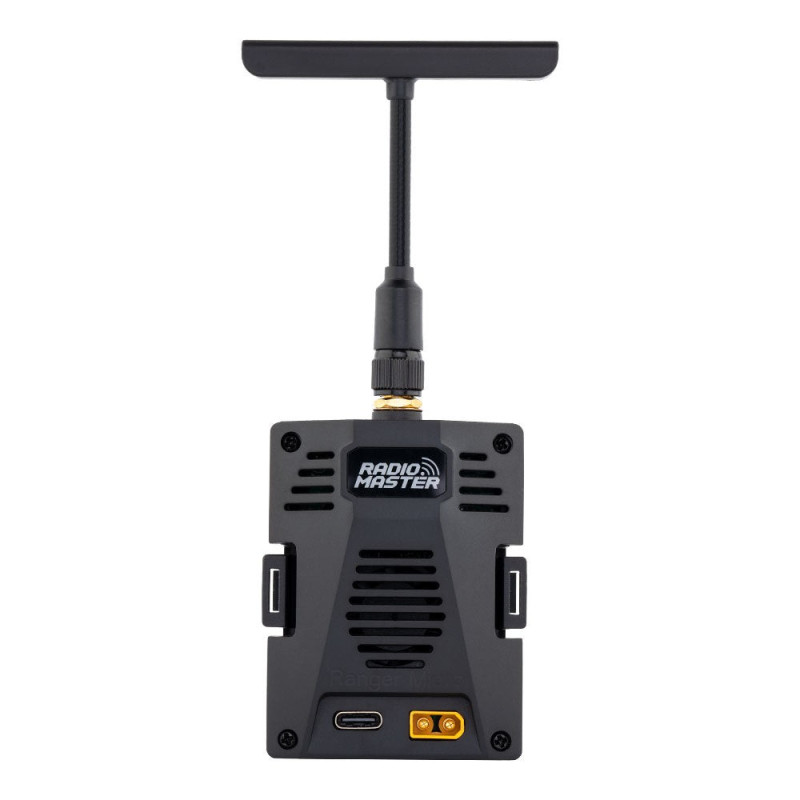

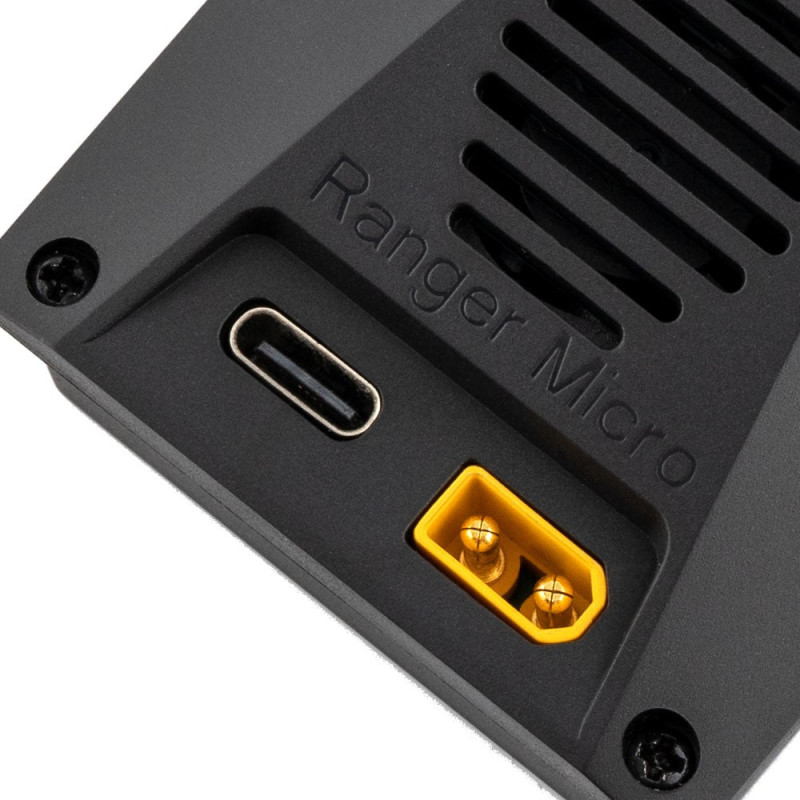

RadioMaster Ranger Micro - ELRS RF Modul LBT
Ranger Micro 2.4GHz ELRS Module for JR style micro module bays.
125006
49.90 CHF
Tax included
|
plus shipping costs
Delivered in 1-2 working days
You will receive 1.00 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
The RadioMaster Ranger Micro 2.4GHz ELRS Module is your gateway to experiencing the efficiency, long range, and low latency of the ELRS protocol without the need for a new radio, featuring powerful output, high refresh rates, and a cooling system, and compatible with a range of radios for seamless integration, while offering a T-shape antenna for signal coverage.
The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.
Features
- High-efficiency cooling system
- Up to 1Watt Power output
- Wifi and Bluetooth support
- Packet rates up to F-1000Hz
- T-antenna included
- With the Micro connector, support TX16S MKII and TX12 MKII radio
Specifications
- Size: 74*49*33mm (without antenna)
- Weight: 40.5g (without antenna)
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Wifi Support: Yes
- Bluetooth support: Yes
- XT30 Power supply voltage: DC 6V - 16.8V
Shipping Contents
- 1 x RANGER Micro Module
- 1 x T Antenna
Data sheet
- External Module
- ERLS 2.4GHz
