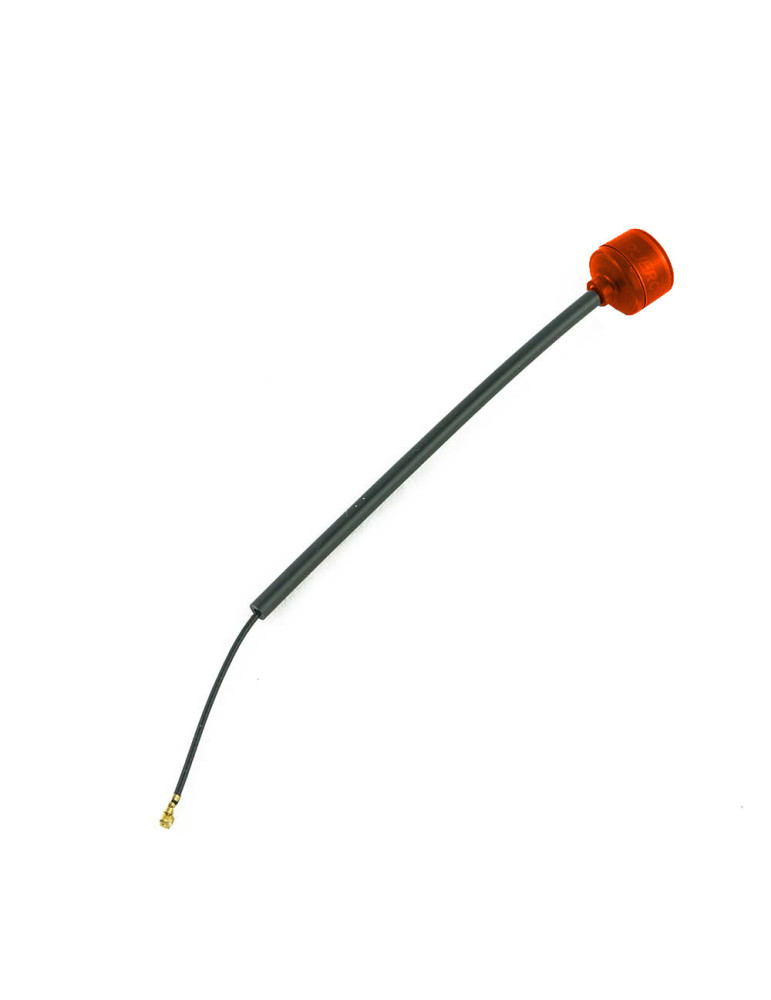

TrueRC CORE 5.8GHz Antenna U.FL with Tube RHCP

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC then added a very durable outer shell that protect the antenna from the inevitable crashes.

Tube Version. The flexible 4mm thick tube helps with clean mounting while reducing stress on the U.FL connector.

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Exclusive knurled True-SMA for easy tightening
• With tube for clean mounting

Specifications

• Gain: 1.9dbic
• Cross-Polar Rejection: -10 to -20dB (3.2%)
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: 2.5g (35mm) / 3.4g (100mm)
• Cable Length: 35mm (tube) + 50mm or 100mm (tube) + 50mm
• Connector: U.FL
• Polarization: Right Hand Circular (RHCP)

Package Contents

• 1 x TrueRC CORE 5.8GHz Antenna U.FL with Tube RHCP
