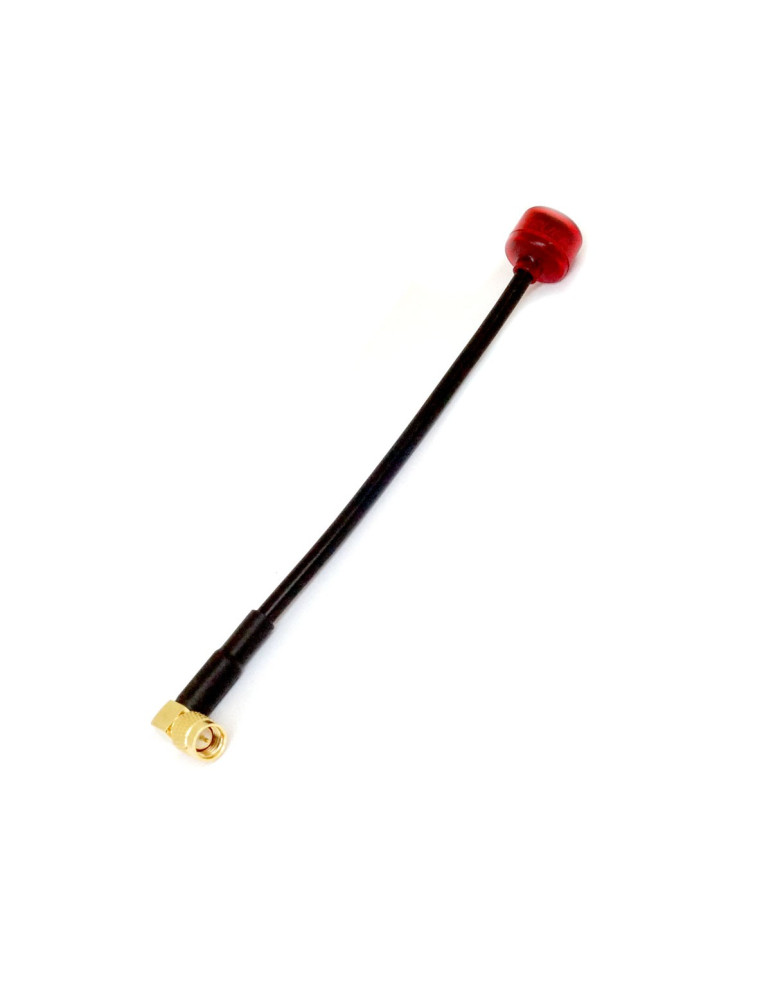

TrueRC CORE 5.8GHz Antenna SMA 90° (155mm) RHCP

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike.

TrueRC
115001
16.90 CHF
Tax included | plus shipping costs
Loyalty Points - You will receive 0.34 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
Close
HomeFPVFPV AntennasRHCP
Description

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. TrueRC then added a very durable outer shell that protect the antenna from the inevitable crashes



Features

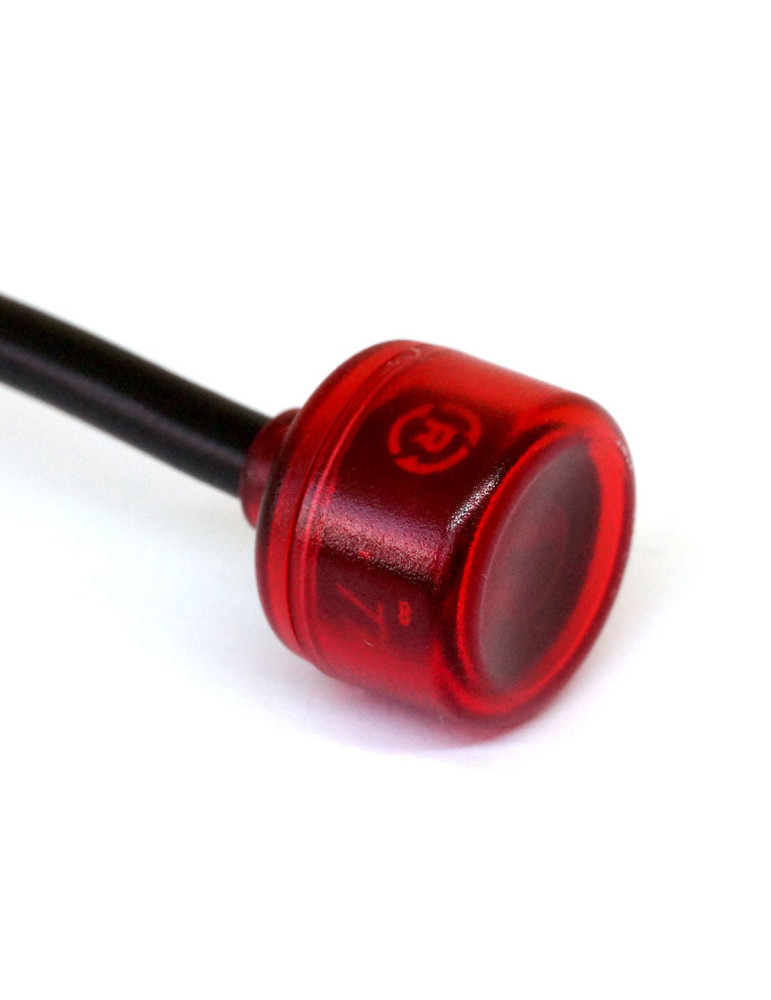

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency

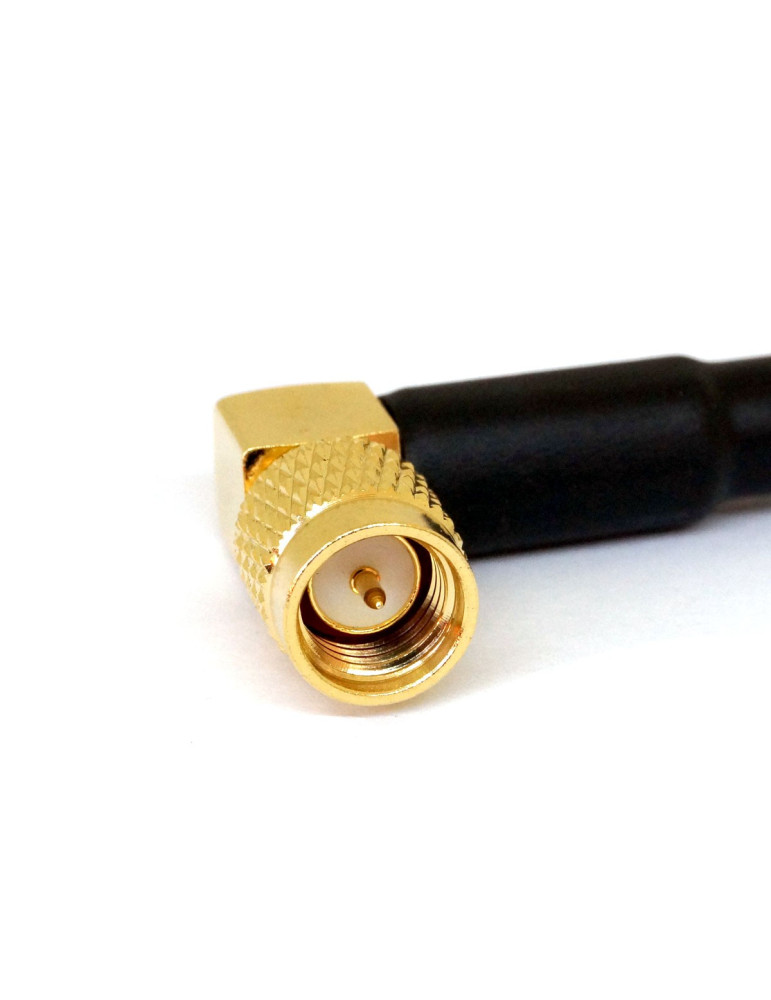

  • Exclusive knurled True-SMA for easy tightening



Specifications

  • Gain: 1.9dbic
  • Cross-Polar Rejection: -10 to -20dB (3.2%)
  • Bandwidth: 5.5GHz-6.1GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: 14g
  • Cable Length: 155mm
  • Connector: SMA 90°
  • Polarization: Right Hand Circular (RHCP)



Package Contents

  • 1 x TrueRC CORE 5.8GHz Antenna SMA 90° (155mm) RHCP
Product Details
TrueRC
115001

Data sheet

  • TrueRC
  • 14g
  • 5.8GHz
  • 1.9dBic
  • SMA
  • RHCP
