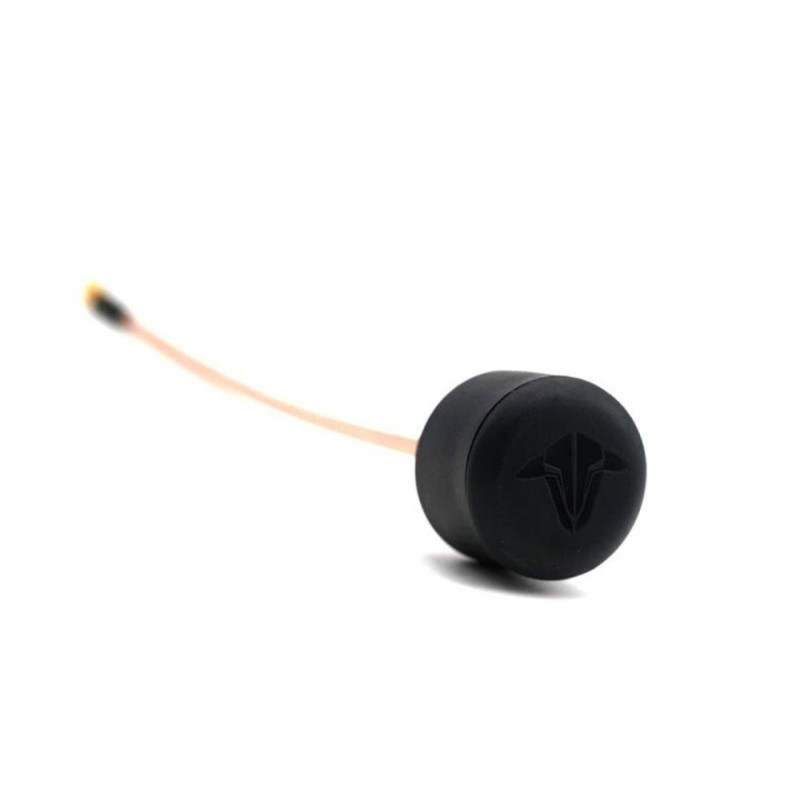

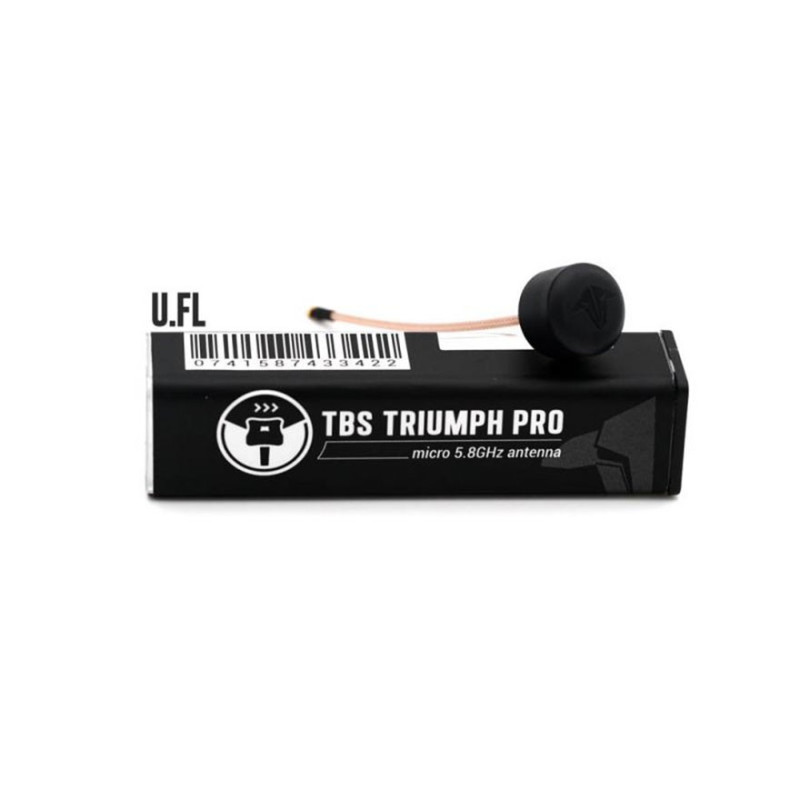

TBS TRIUMPH PRO (U.FL)

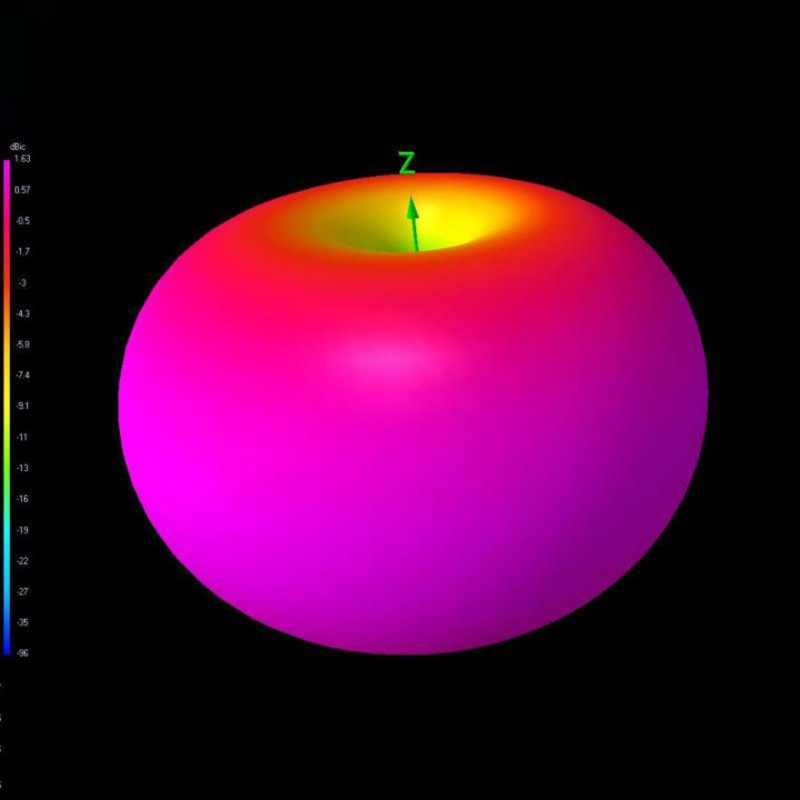

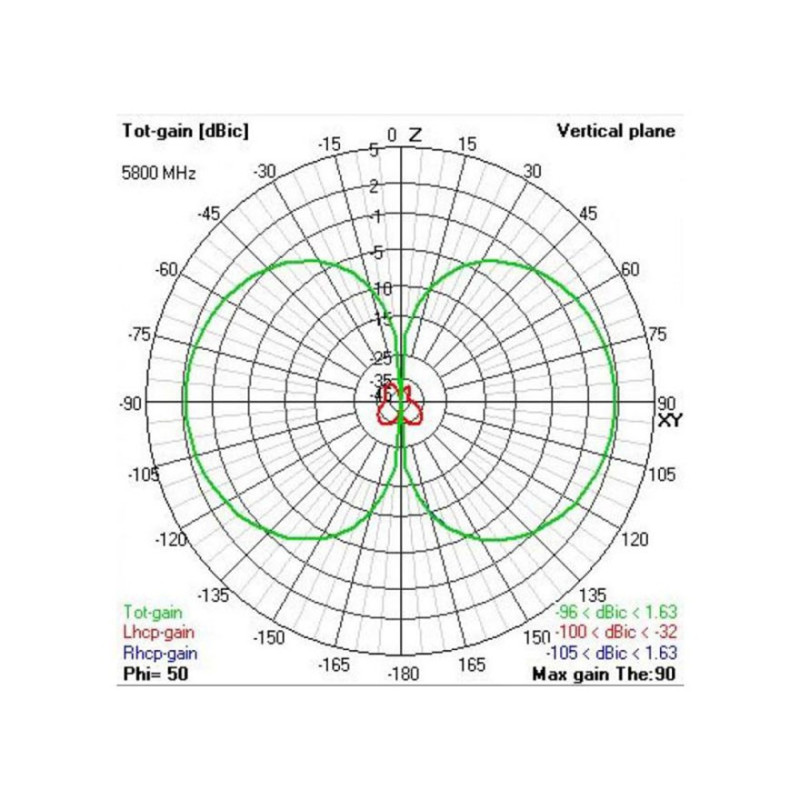

The next revolution in circular polarization technology, the Triumph Pro gives professional performance in a compact, durable package.  Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance.  Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

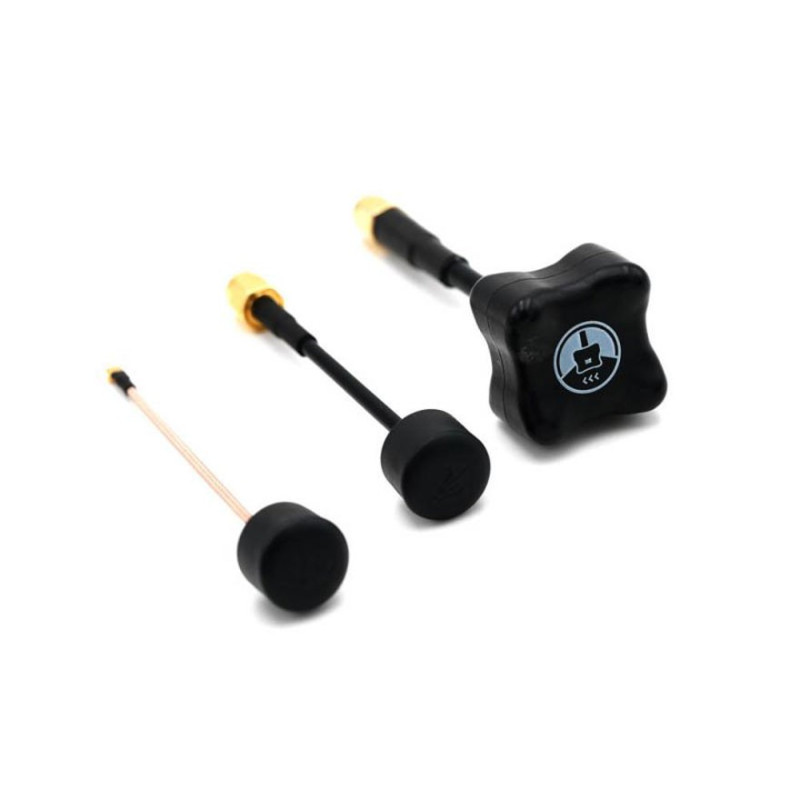

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

Features

• Manufactured and tested to highest standards
• Best in class range and signal quality
• Incredibly small and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

Specifications

• Frequency range: 5500-6000 MHz
• Gain: 1.6 dBiC
• Axial Ratio: 0.99
• Cable: RG405
• Weight: 2-3g
• Height: 85mm, 3.3 in
• Connector: U.FL

Shipping Contents

• 1 x TBS TRIUMPH PRO (U.FL)
