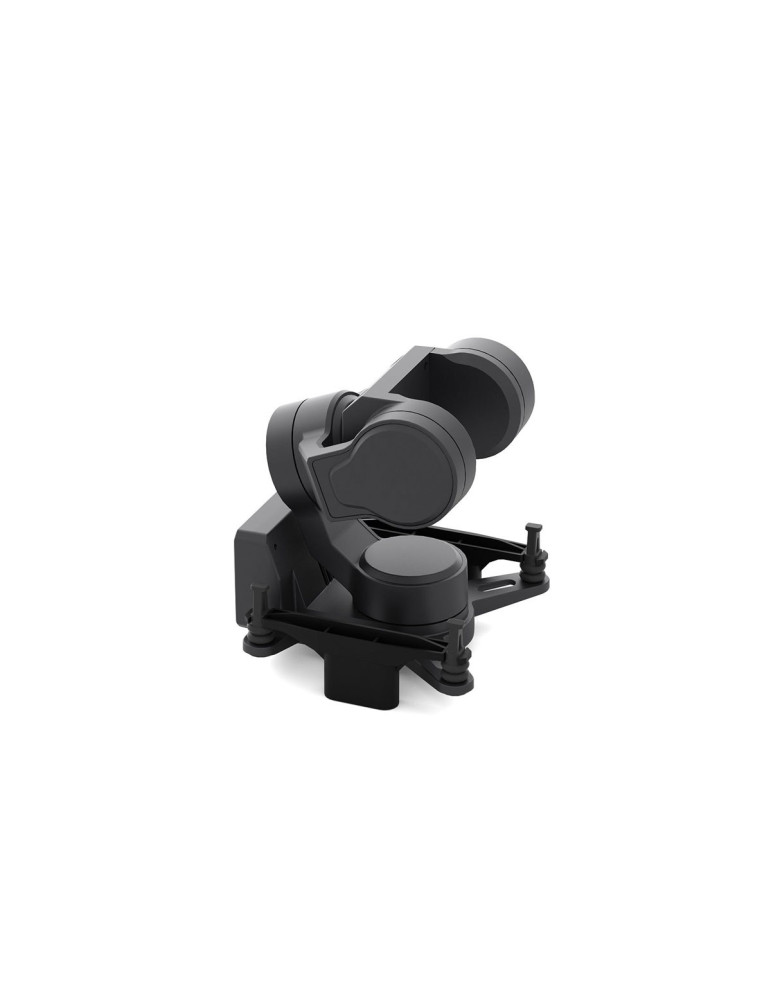

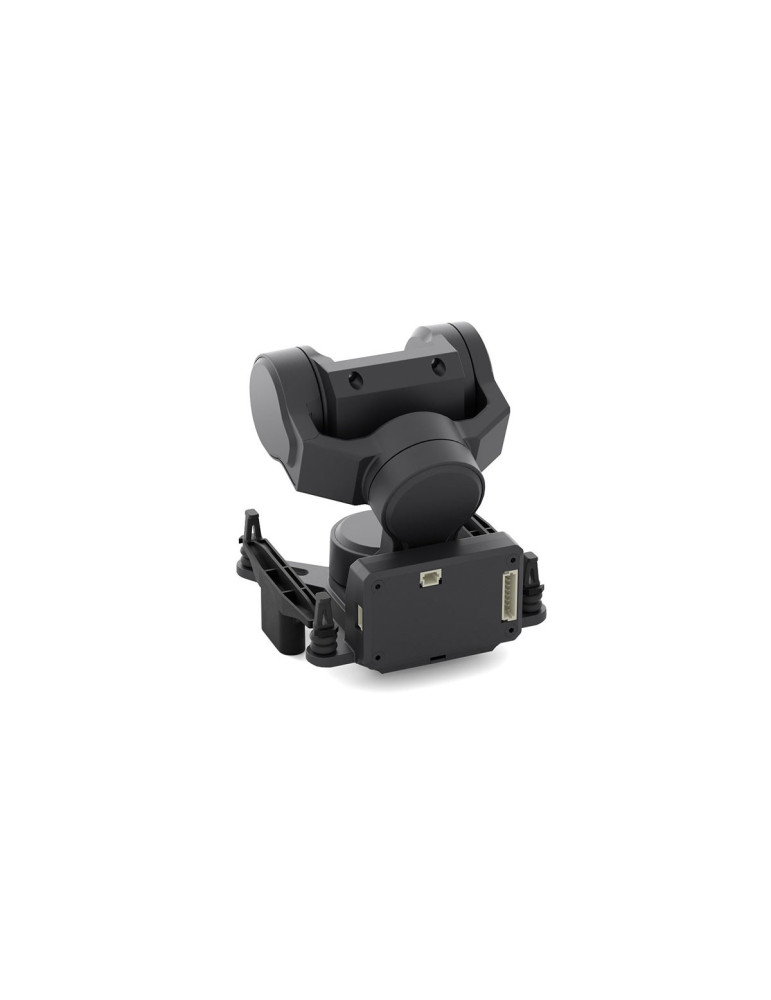

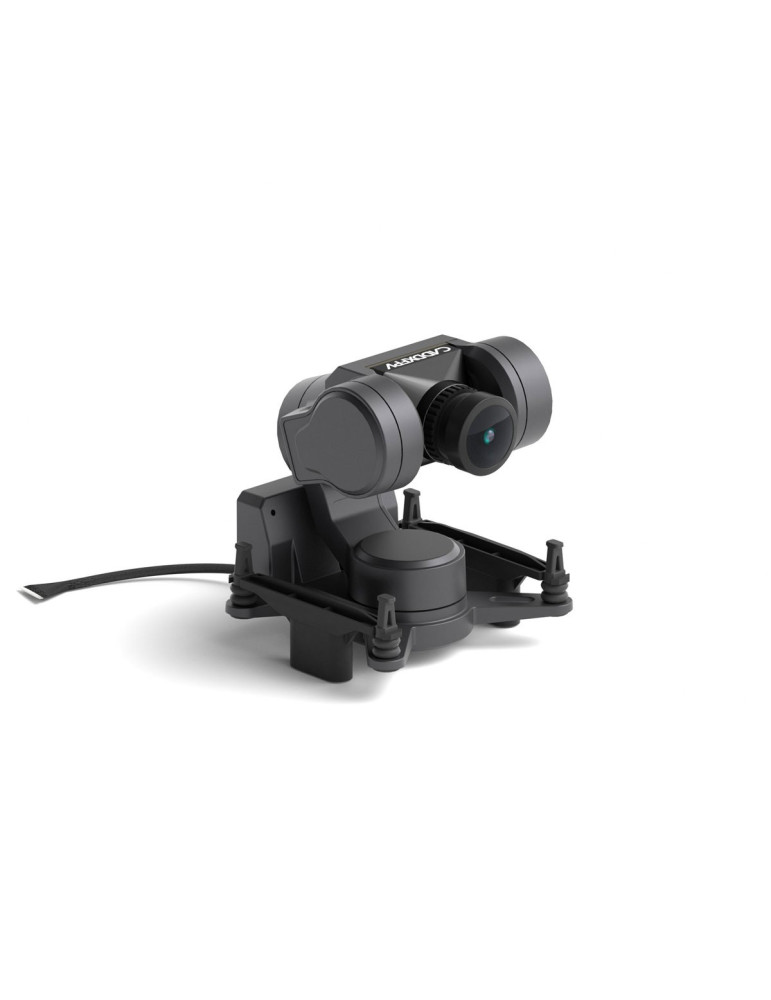

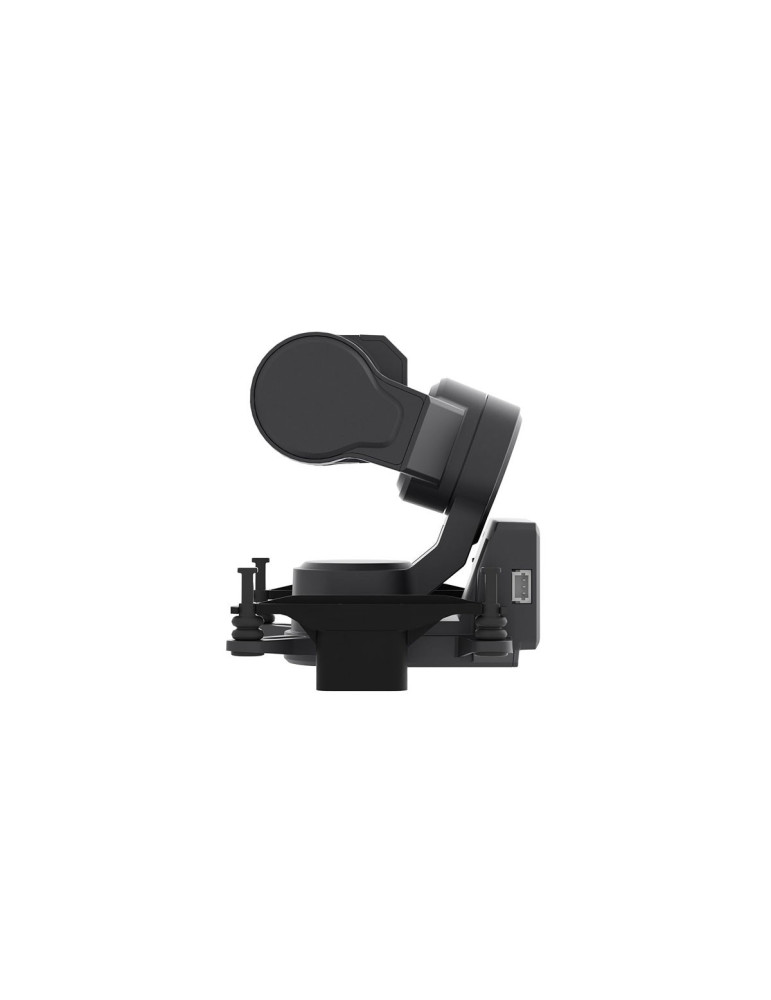

CaddxFPV GM3

The CADDXFPV GM3 gimbal is designed for FPV (first-person view) setups and provide enhanced stability, camera control, and head-tracking functionality. The GM3 gimbal is a tri-axis model, there are also dual-axis (GM2), and single-axis (GM1) models, each catering to different stabilization needs. They are compatible with 19mm FPV cameras and the Walksnail Avatar HD goggles for seamless head-tracking, offering a more immersive FPV experience. The gimbals are lightweight, offer easy assembly, and are suited for various FPV platforms like drones and RC cars.

The Gimgal is suitable for Walksnail V2 VTX, V2 VTX Dual and Moonlight VTX (Can't be used with the V1 VTX, Mini 1s, Nano V3 and GT VTX)

Specification

• Model: GM3
• Camera Compatibility: 19mm FPV Camera
• Image Stabilization: ±0.005°
• Max Controllable Speed: ±1500°/s
• Max Controlled Rotational Range
  • Pitch: ±120
  • Roll: ±60
  • Yaw: ±160°
• Size: 50x46.5x53mm
• Weight: 46g
• Control Mode: PWM /UART
• Head Tracking Control: Support
• Voltage: 7-26V
• Static Power Dissipation: 1.5W

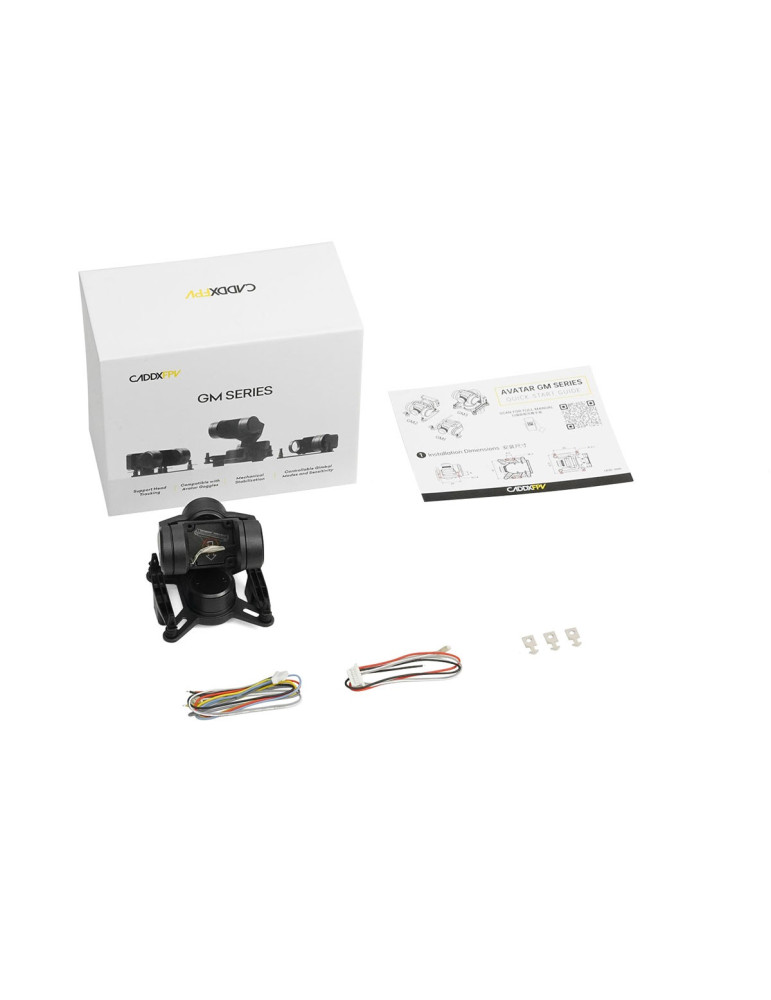

Shipping Contents

• 1 x CaddxFPV GM3 (Without camera/VTX)
