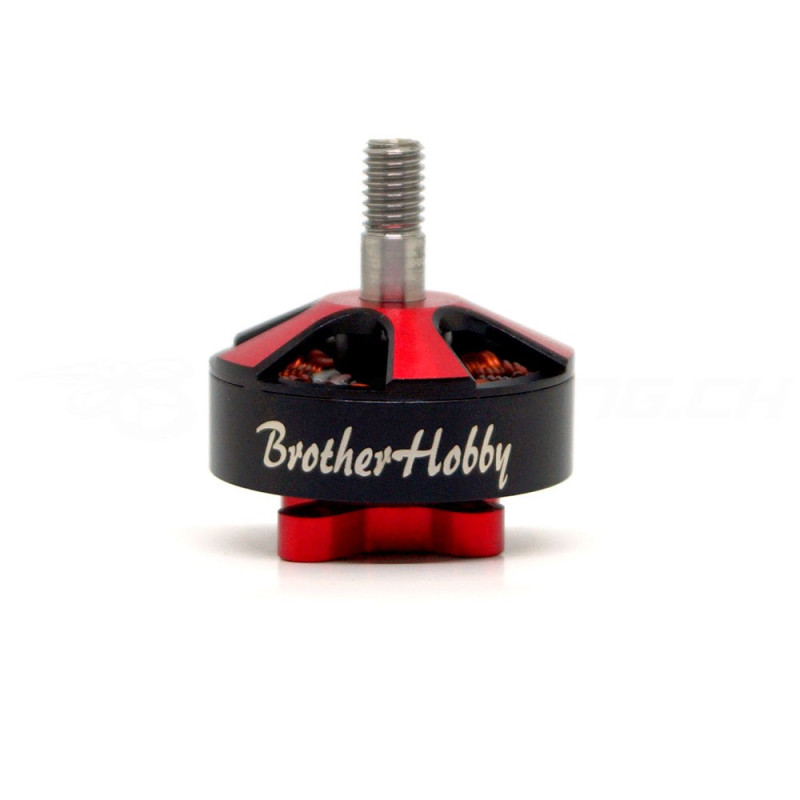

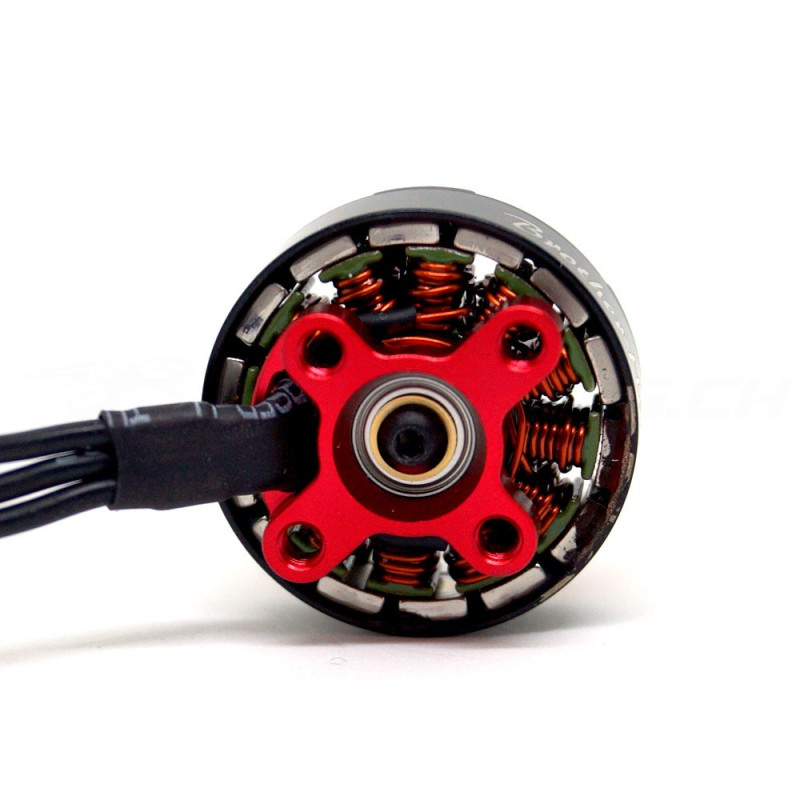

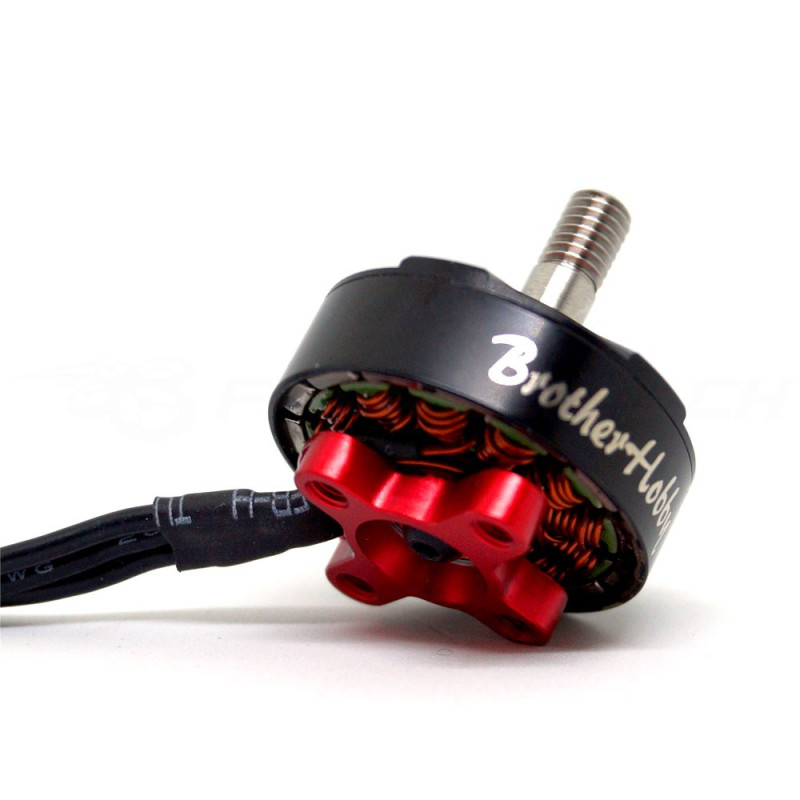

BrotherHobby Returner R5 2306 2650Kv Deadpool Edition


The BrotherHobby Returner R5 2306 2650Kv Brushless Motor with Naked Bottom for saving weight.

More details


Delivery: 1-2 working days

23.90 CHF

incl. 8.1% VAT

Volume discounts

Quantity Discount You Save
4 10% Up to 9.56 CHF

Data sheet

Manufacturer BrotherHobby
Type Complete
Label Returner R5 2306 2650kv
Weight 30.8g
Cell configuration 3S, 4S, 5S
Motor diameter 28mm
Motor length 18.7mm
Suitable propeller 5"
KV 2650
Configuration 12N14P

More info

The BrotherHobby Returner R5 2306 2450Kv Brushless Motor with N52H Arc Magnets and Naked Bottom - top performance while keeping the Amps low. These Motors, in comparison to the R5, have a so-called Naked Bottom, which is 3mm thick for increased durability while keeping the weight the same. Apart from that, the motor is slightly bigger with a stator diameter of 23mm, for even more Power!


Incredibly responsive and powerful motor at a fair price.



  • Kv: 2450
  • Configuration: 12N14P
  • No.of Cells (Lipo): 3-5S
  • Rotor: N52H arc magnets
  • Shaft: Titanium Alloy hollow shaft
  • Stator: 0.15mm Nippon Steel silicon steel
  • Bearings: Japanese EZO 8x4x3mm
  • Base cap/ casing: Al 7075
  • Motor wire length: ~155mm
  • Weight: 30.8g (with motor wires)

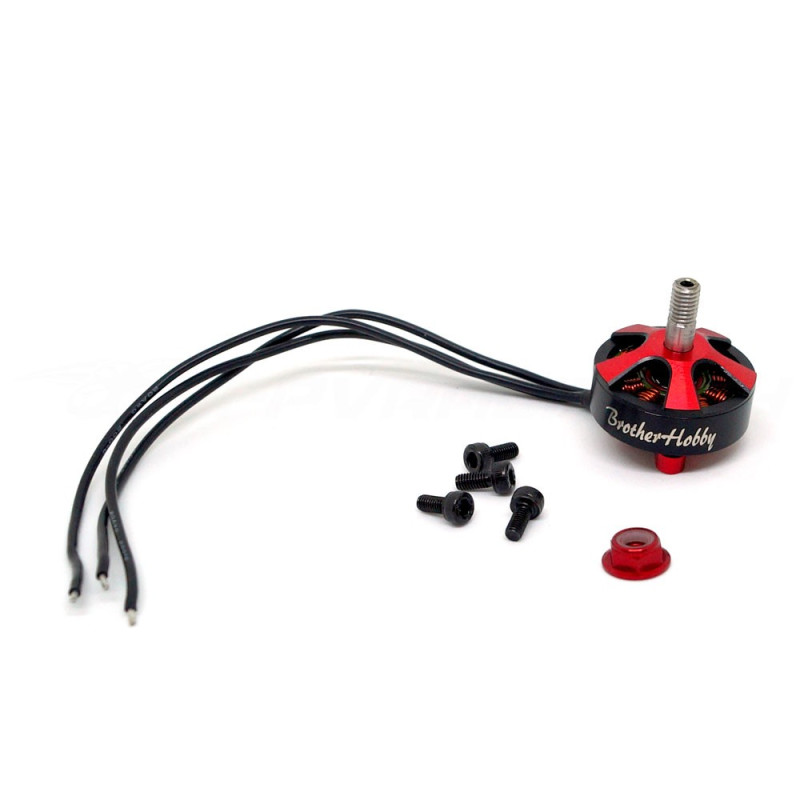

Shipping Contents

  • 1 x BrotherHobby Returner R5 2306 2450Kv Deadpool Edition
  • 1 x CW Lock Nut (red)
  • 4 x Motor Screws
