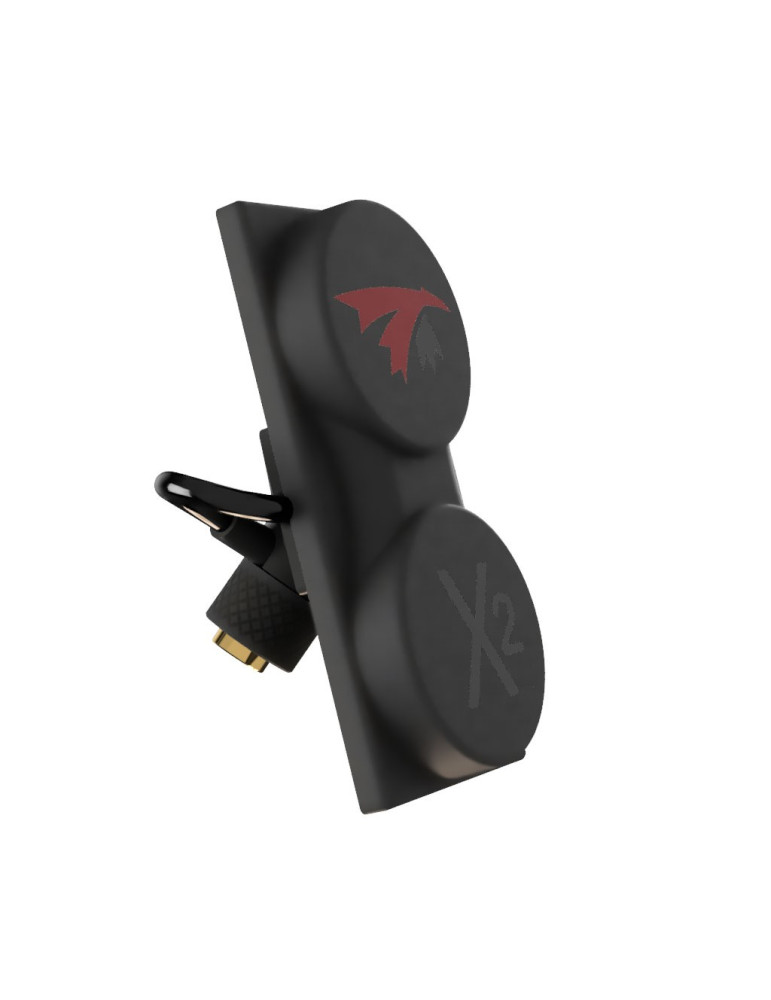

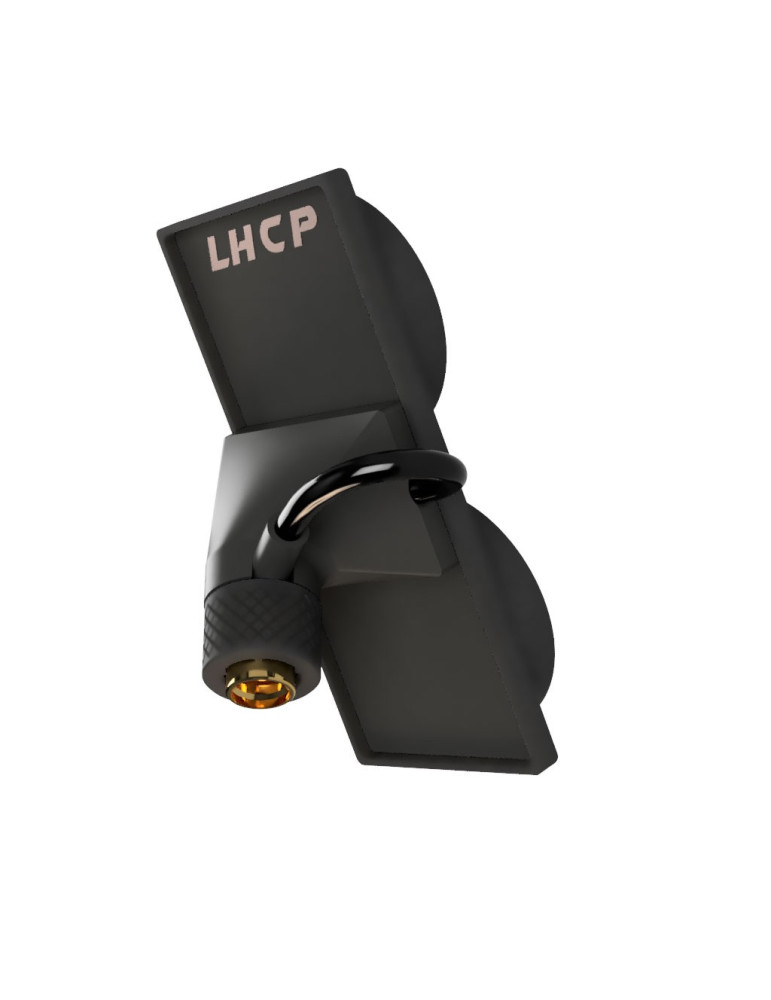

TrueRC X²-AIR 5.8 MK II for Walksnail X - LHCP

The high efficiency X²-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yield an amazing flight experience in compact and low profile package. Fill the remaining ports with singularity stubby and you got the antennas full house.

As with all other components of X²-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.

A pair of singularity stubby antennas can be included as a combo for the ultimate in performances and convenience!

Features

• Circularly Polarized
• Mount direct on Walksnail avatar HD goggles X
• Sector type beam shape (widest on horizontal)
• High 13 dBic for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 150 degree Sector type beam (widest on horizontal)
• Custom RP-SMA connectors with compound angle to have the X²-air antenna face forward

Specifications

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 13 dBic
• Beam-width Horizontal*: 150deg
• Beam-width Vertical*: 62deg
• Hor. beam @-3dB**: 75deg.
• Vert. beam @-3dB**: 34deg.
• Connector: Custom knurled RP-SMA

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Shipping Contents

• 2 x TrueRC X²-AIR 5.8 MK II for Walksnail X - LHCP
