TrueRC DUALITY 2.4/5.8 Stubby for DJI FPV - LHCP single

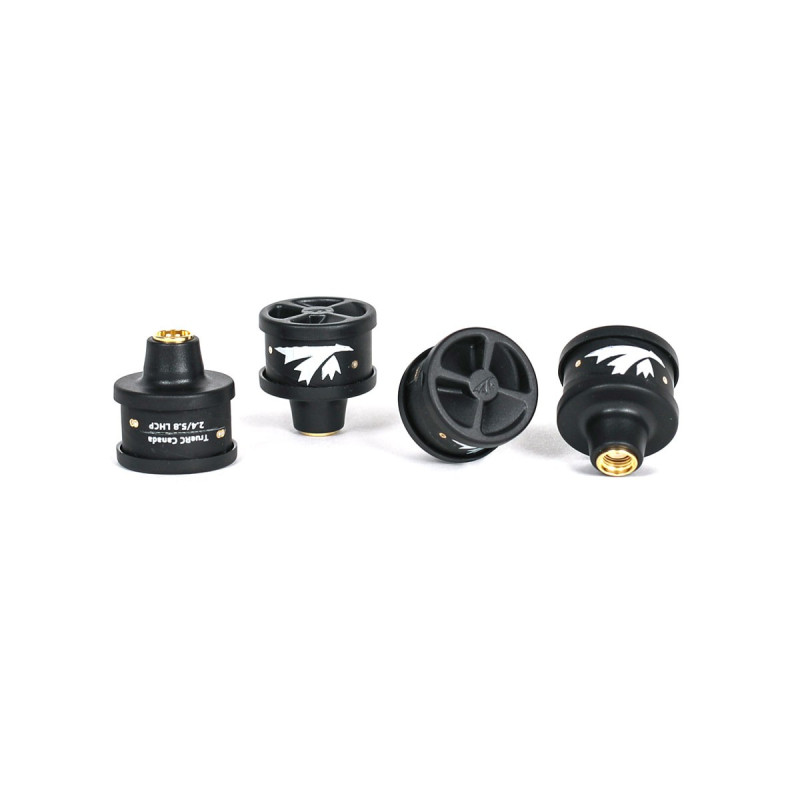

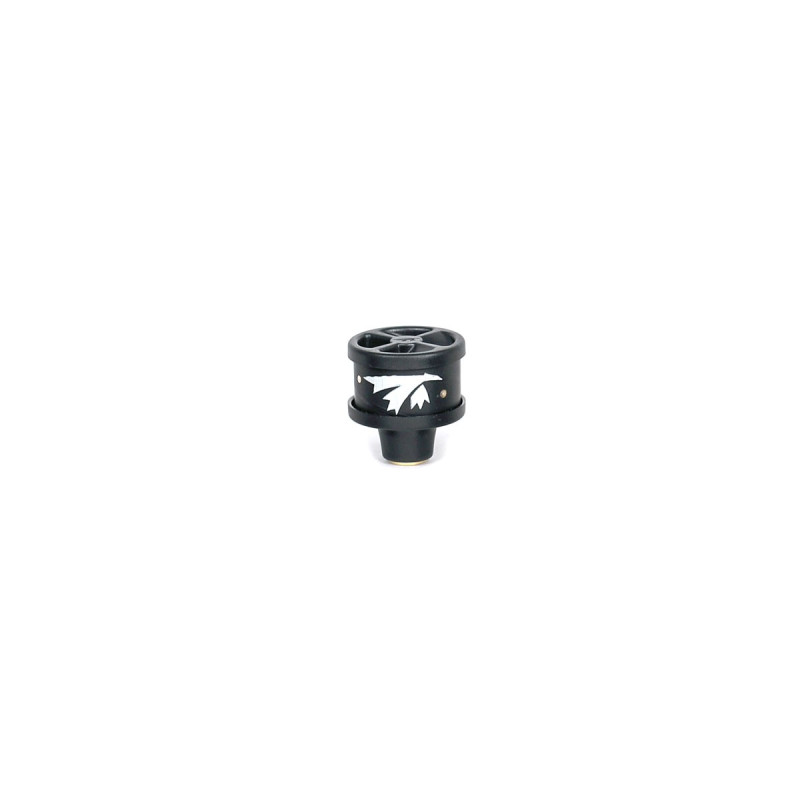

The duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package.

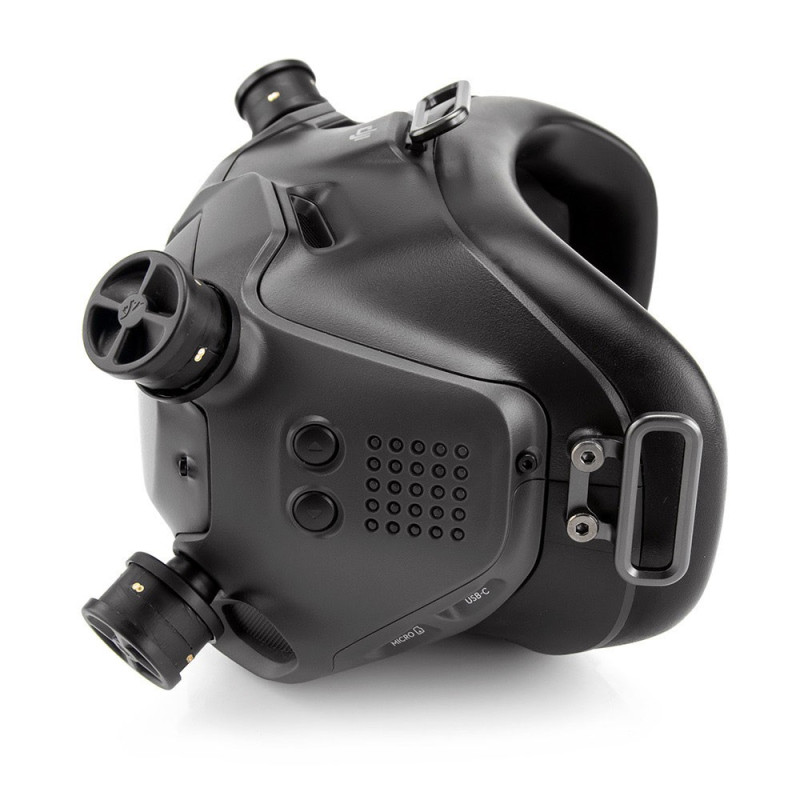

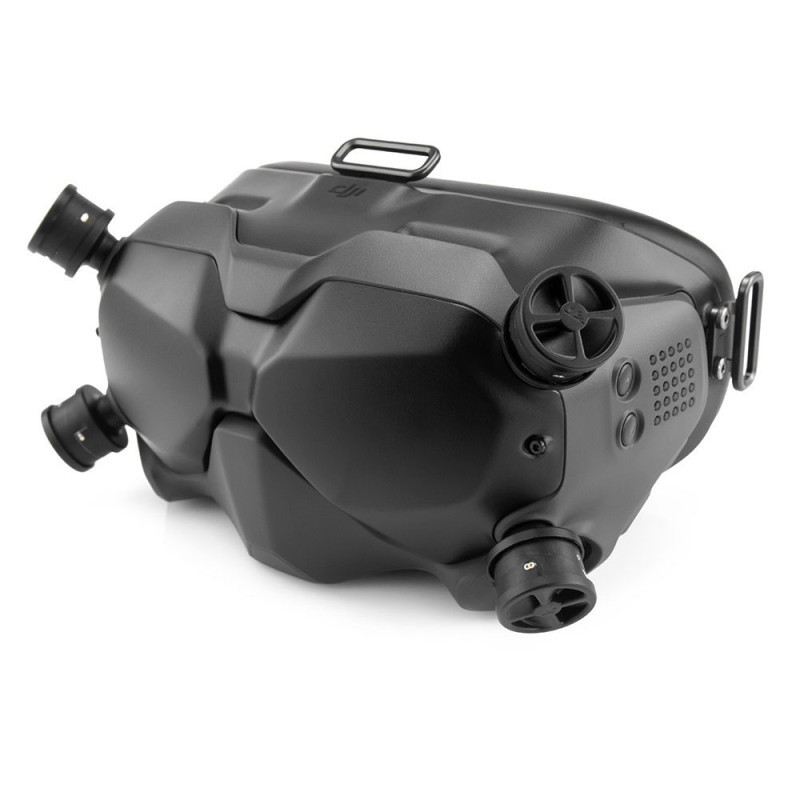

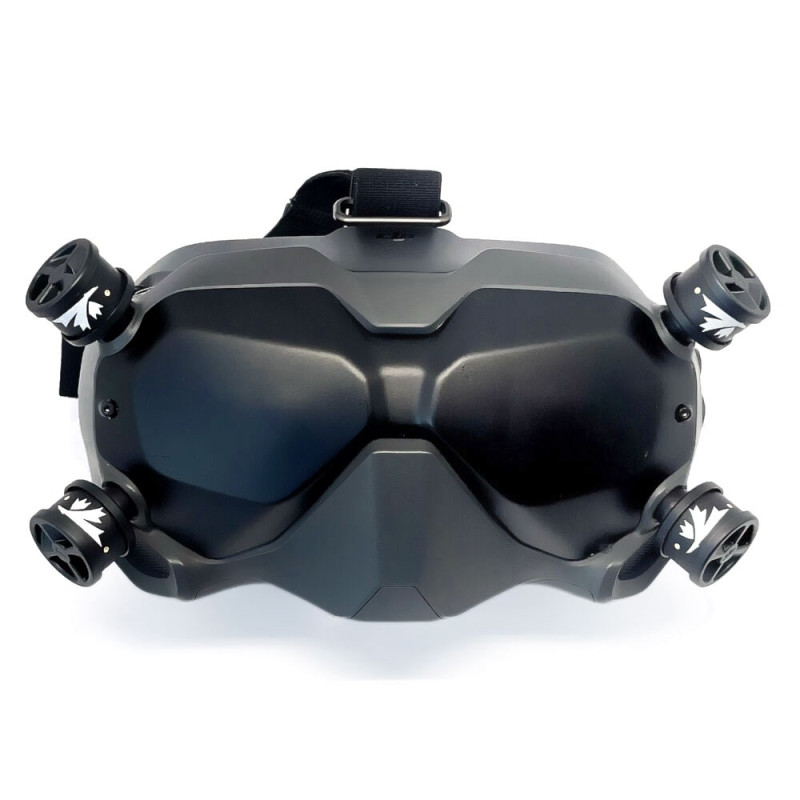

The Duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas. Each unit is hand tuned on a professional analyzer so you get the most of your digital HD system.
 Â
Specifications
- Gain:Â 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
- Cross-Polar Rejection: -15 to -30dB (2.2%)
- Bandwidth:Â 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 5.25 g
- Size: 23.3mm x 22mm
- Connector: RP-SMA
Â
Shipping Contents
- 1 x TrueRC DUALITY 2.4/5.8 Stubby for DJI FPV - LHCP single
Data sheet
- TrueRC
- 3.7g
-
2.4GHz
5.8GHz -
1.7dbic
2.8dBic - RP-SMA
- LHCP
- 12.7mm x 20mm
- Antenna
