Flywoo Firefly 20PRO 4S Frame Kit

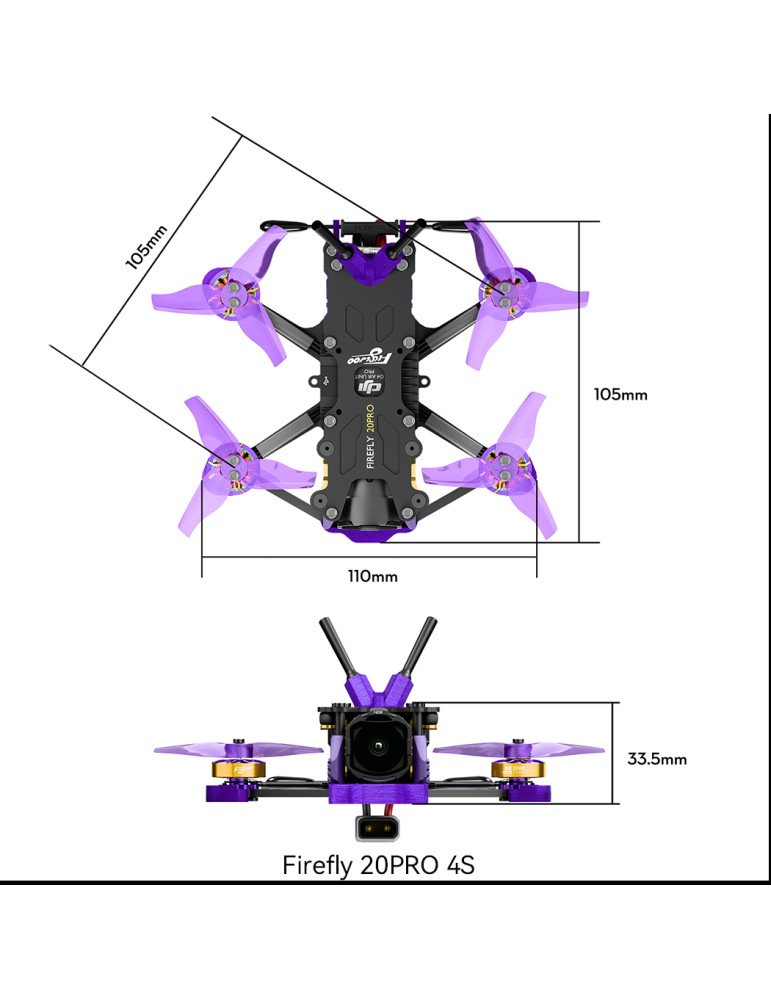

The Flywoo Firefly 20PRO Frame Kit is the compact 2-inch platform in the Firefly series, designed for high-performance micro FPV builds with a focus on high-speed flying, racing, and aggressive freestyle. With a frame weight of just 26 g and a 105 mm wheelbase, the 20PRO provides an exceptionally compact platform for powerful 4S setups.

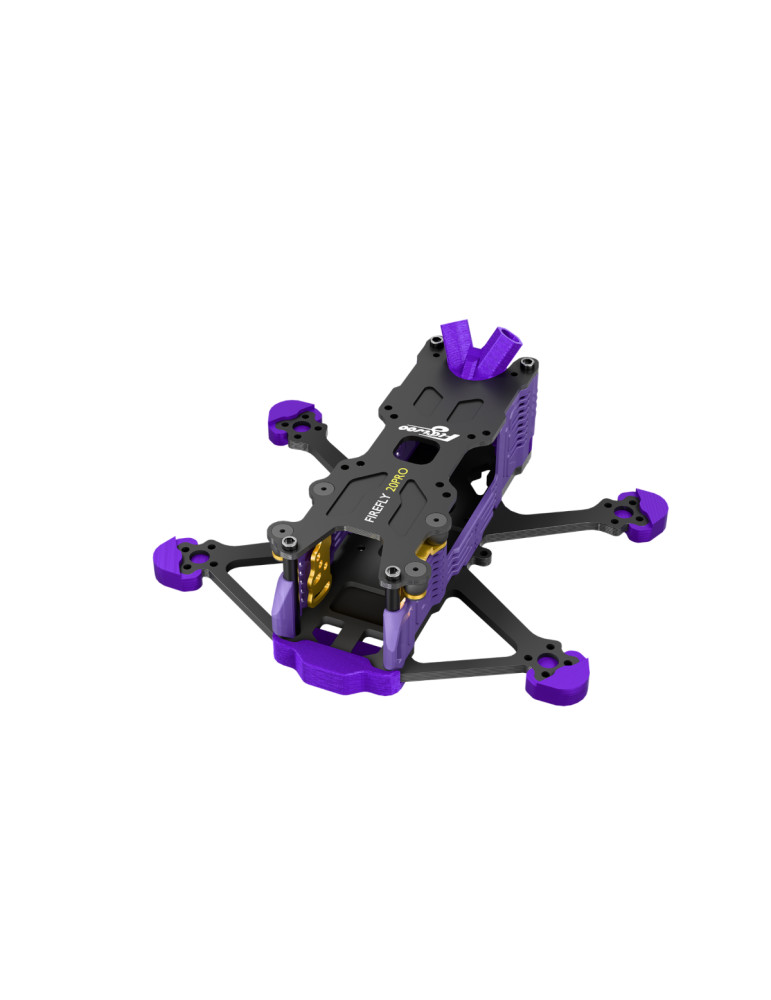

The 2.5 mm carbon fiber bottom plate with a reinforced front arm design provides high rigidity and durability while keeping weight to a minimum. Tool-free removable side guards protect the electronics, while protected motor wire routing helps ensure a clean and tidy build.

The Firefly 20PRO is specifically designed for modern digital FPV systems and supports DJI O4, DJI O4 Pro, Walksnail Avatar Pro, and HDZero. A vibration-damped 4-point camera mount with an adjustable camera angle from 0° to 25° allows the setup to be tailored for everything from fast freestyle flying to racing.

A particularly interesting feature is the modular concept shared with the Firefly 25MINI: the digital video system can be transferred between the two platforms via the top plate. This makes it possible, for example, to use the same HD system for both a compact 2-inch 4S performance build and a more efficient 2.5-inch build.

Features

• Compact 2-inch micro FPV frame
• Frame weight of just 26 g
• 105 mm wheelbase
• Designed for fast 4S racing and freestyle builds
• 2.5 mm carbon fiber bottom plate
• Reinforced front arm design
• Compatible with DJI O4 / O4 Pro, Walksnail, and HDZero
• Vibration-damped 4-point camera mount
• Adjustable camera angle from 0° to 25°
• Tool-free removable side guards
• Protected motor wire routing
• 20 × 20 mm FC mounting pattern
• 20 × 20 mm and 25.5 × 25.5 mm VTX mounting patterns

Recommend Configuration

• ESC/FC: Flywoo GOKU F405 SE 3-4S 20A AIO
• FPV System: DJI O4 Wide, DJI O4 Pro, Walksnail Avatar Pro, or HDZero
• Propellers: 2023-3
• Motor: ROBO 1303 6000KV Brushless Motor
• VTX Antenna: Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL

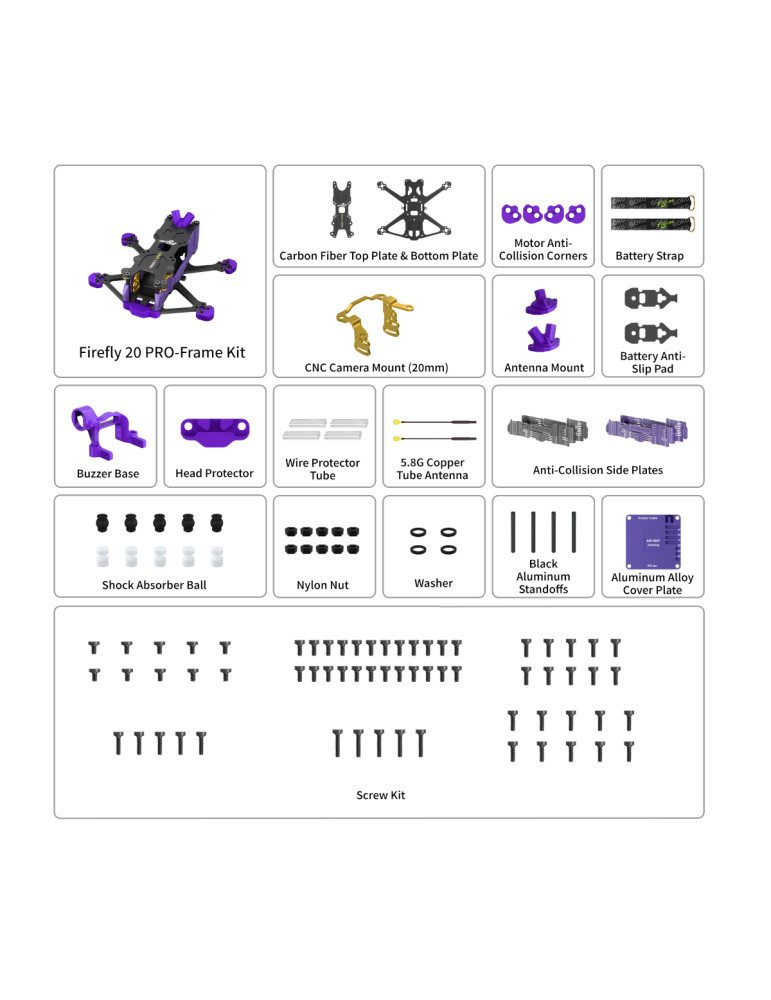

Includes

• 1 × Carbon Fiber Top Plate
• 1 × Carbon Fiber Bottom Plate
• 2 × Anti-Slip Battery Pads
• 1 × CNC Camera Mount
• 1 × Antenna Mount
• 1 × Buzzer Mount
• 1 × Front Guard
• 4 × Motor Wire Protection Tubes
• 2 × Battery Straps
• 2 × 5.8 GHz Antennas
• 2 × Side Guards, Purple
• 2 × Side Guards, Black
• Vibration dampers, nylon nuts, washers, and standoffs
• 1 × Aluminum Cover Plate
• 1 × Screw Set
