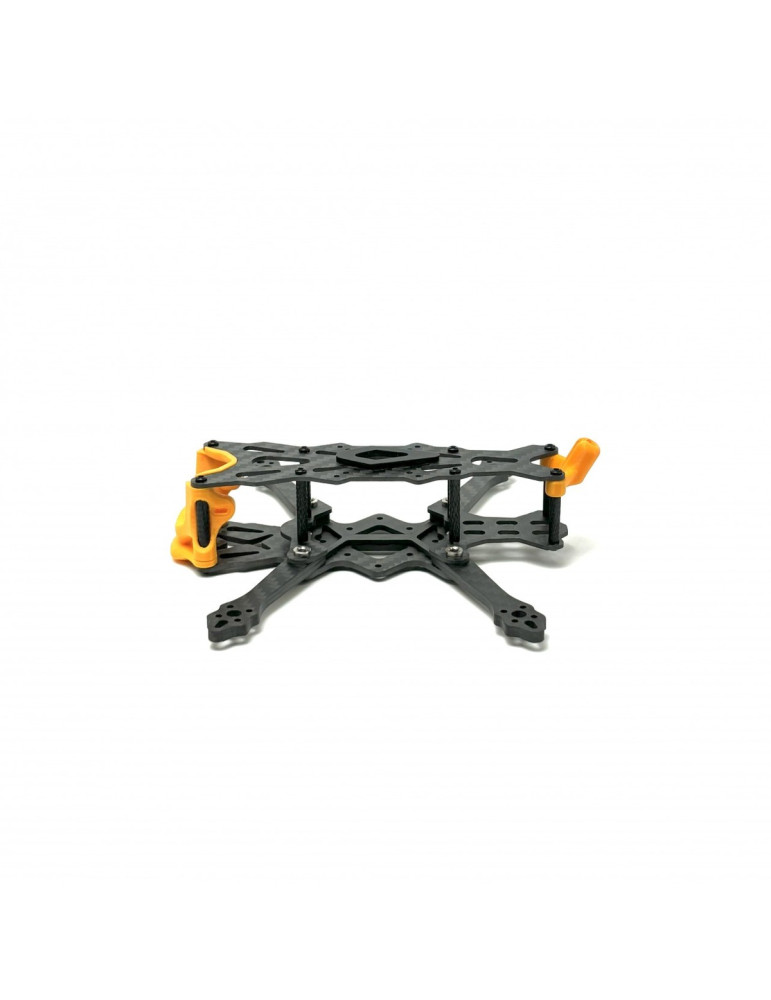

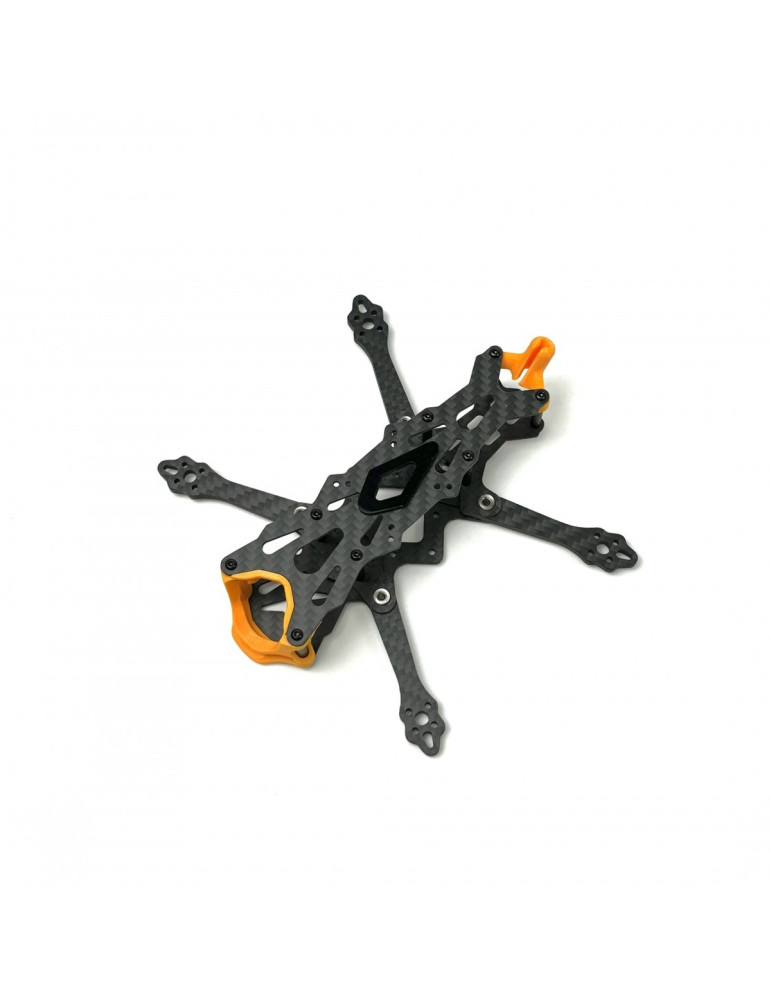

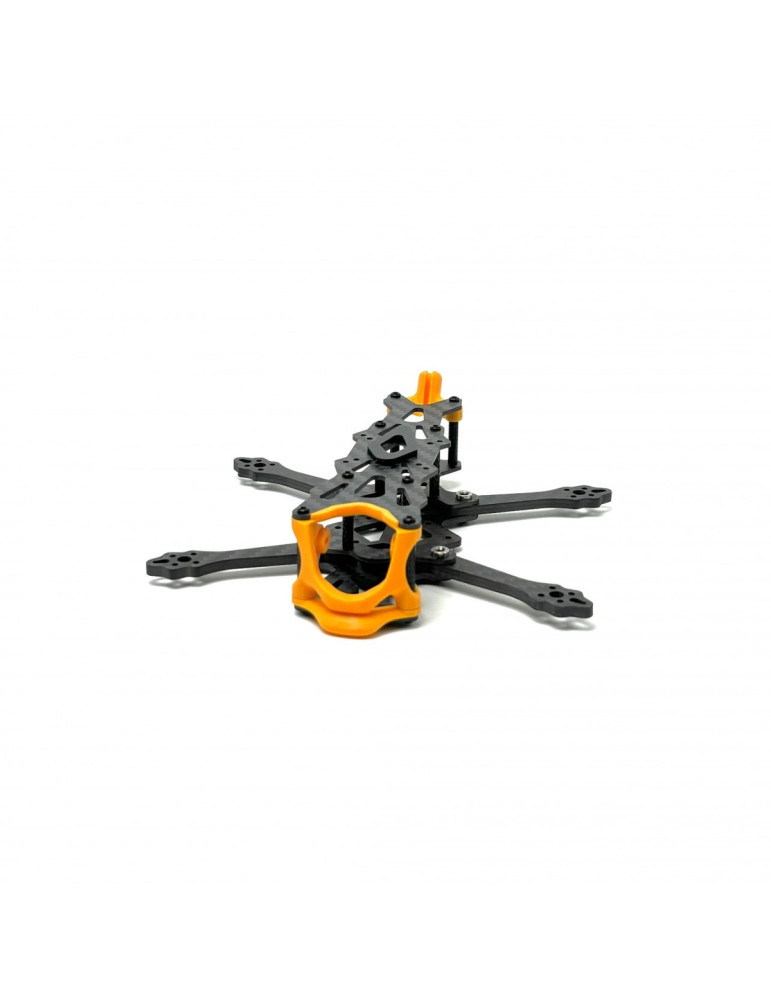

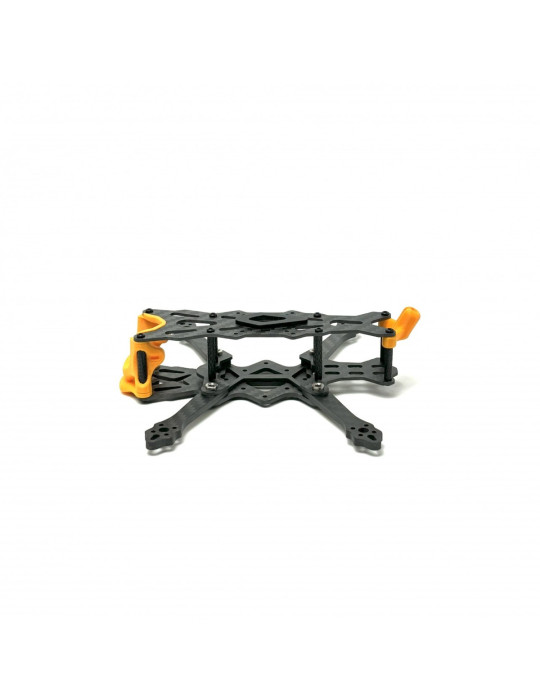

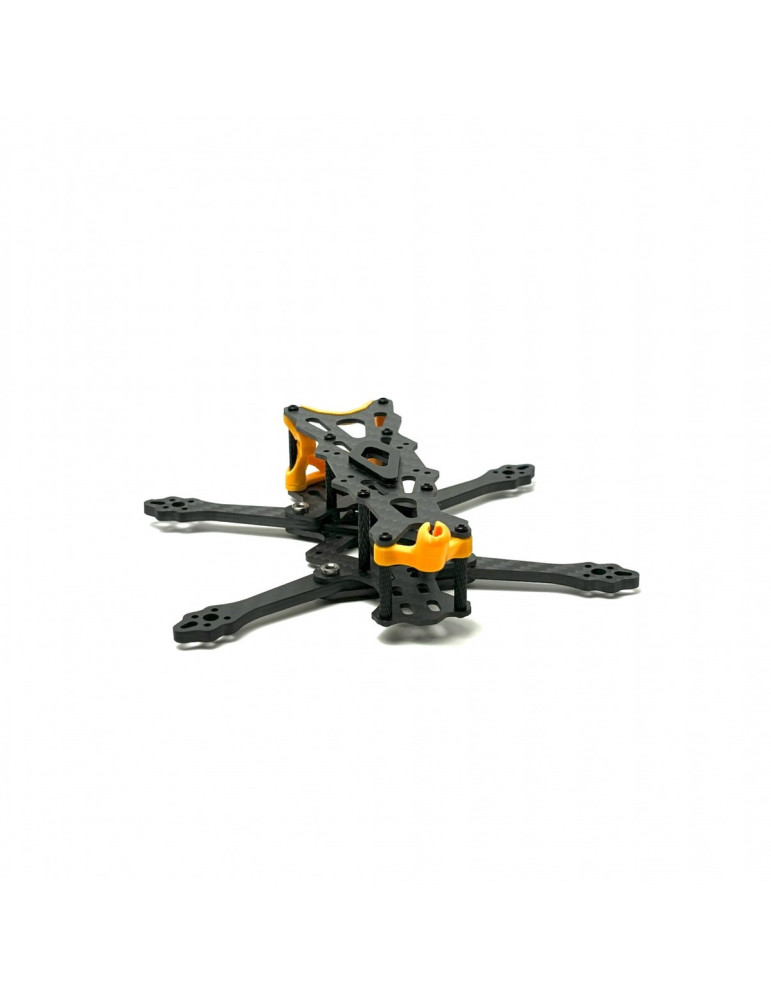

AVIONRC Ikon 3 Frame

AVIONRC Ikon 3 Frame – small, lightweight frame for sub-250 builds

The Ikon 3 Frame Kit from AvionRC delivers outstanding performance in a compact 3" copter format: With a motor-to-motor diagonal of 140 mm (Squished-X) and a total weight of only approx. 45 g with TPU parts, it is ideal for agile freestyle setups.

The construction features 3.5 mm thick arms, a 2 mm front plate, and a 1.5 mm top plate. Robust enough for dynamic maneuvers, light enough for efficient flying.

With numerous included 3D-printed TPU parts such as camera and antenna mounts, as well as a non-slip LiPo pad and LiPo strap, the Ikon 3 offers a well-designed complete package, perfect for builds with digital HD systems (e.g., DJI, Walksnail) or analog FPV systems.

Features

• Ultra-lightweight construction: Weighs only approx. 45g (with TPU parts), ideal for sub-250 g builds
• Squished-X geometry: Enables agile flight characteristics and precise freestyle tuning
• No props in view: Camera positioning prevents propellers from appearing in the footage
• Compatible with digital FPV systems: Including DJI O4 PRO, DJI O3, Walksnail, and HDZero
• Durable 3K carbon: 3.5 mm arms for maximum stability during aggressive freestyle maneuvers
• Optimized for 20×20 stack mounting: Includes additional M2 mounts for VTX or flight controller
• Slim design for compact builds: Perfect for setups with limited space and weight restrictions
• Fully customizable: Wide range of freely available 3D-printed parts for personalized builds

Specifications

• Motor to motor: 140mm
• Arms: 3.5mm
• FC mounting holes: 20mm x 20mm
• VTX mounting holes: 25.5mm x 25.5mm
• Motor mounting holes: 9mm
• Camera installation space: 19mm/20mm
• Recommended Battery Size: 550mAh-850mAh 4S
• Suitable propeller size (max): 3"
• Weight: 45g (incl. TPU parts)

Shipping content

• 1 x AVIONRC Ikon 3 Frame
