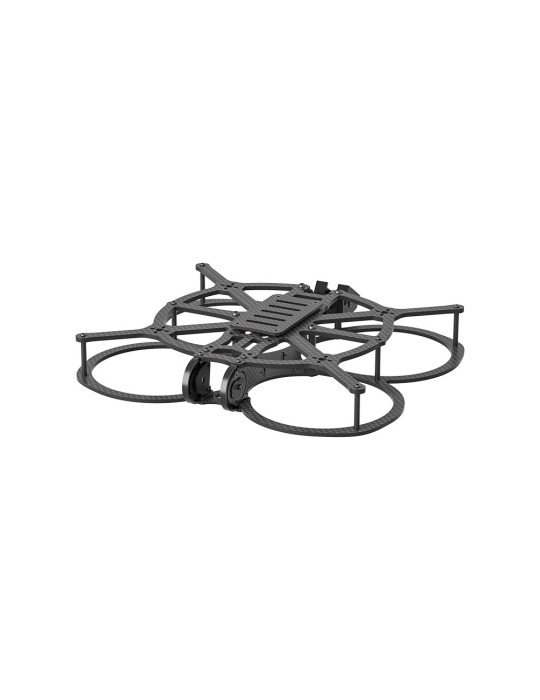

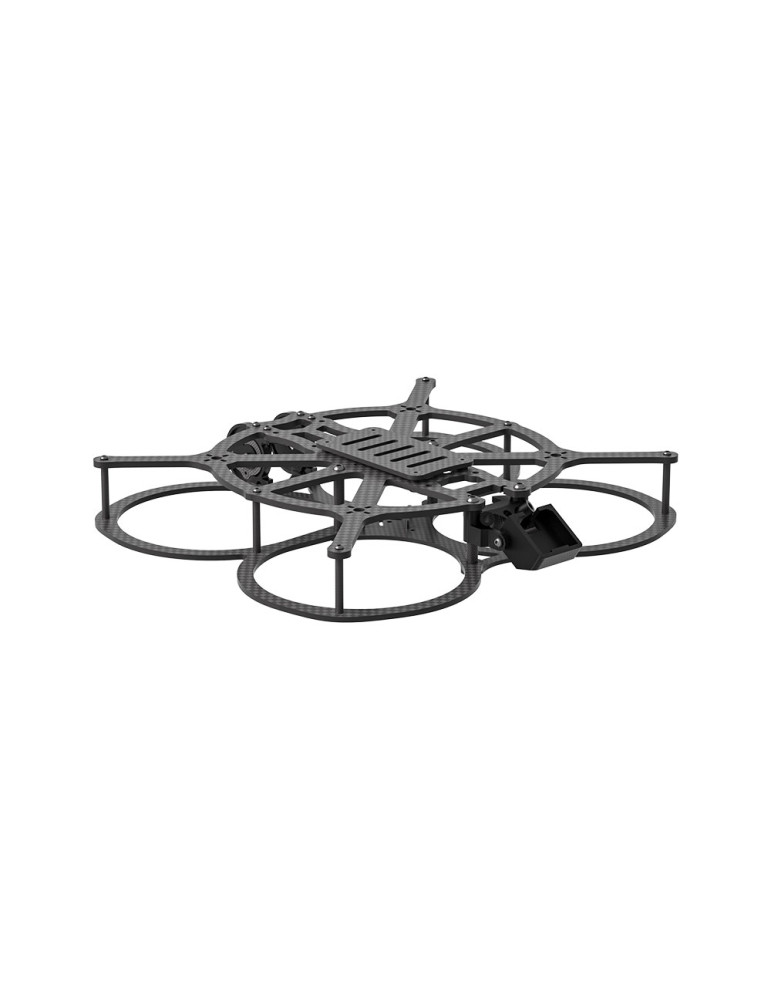

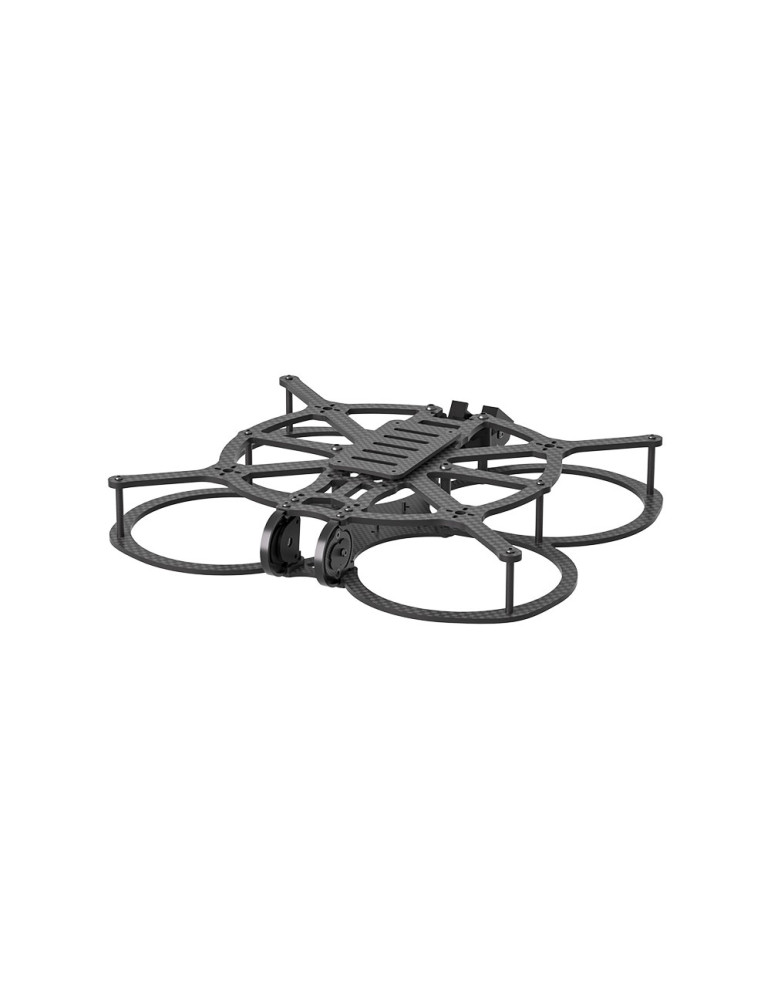

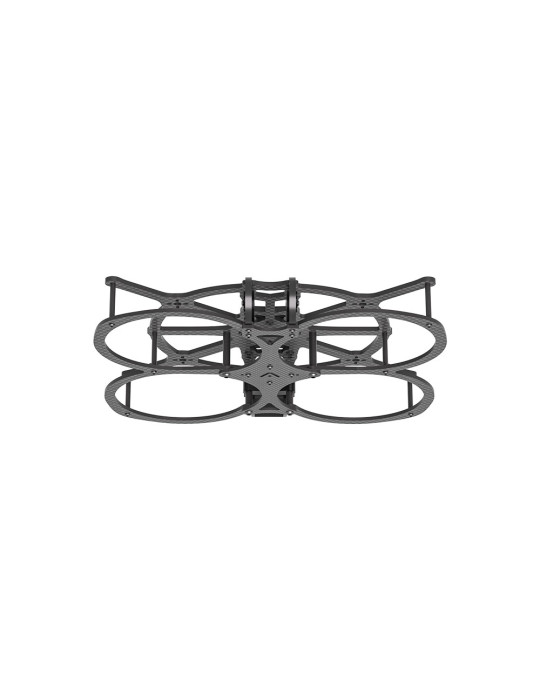

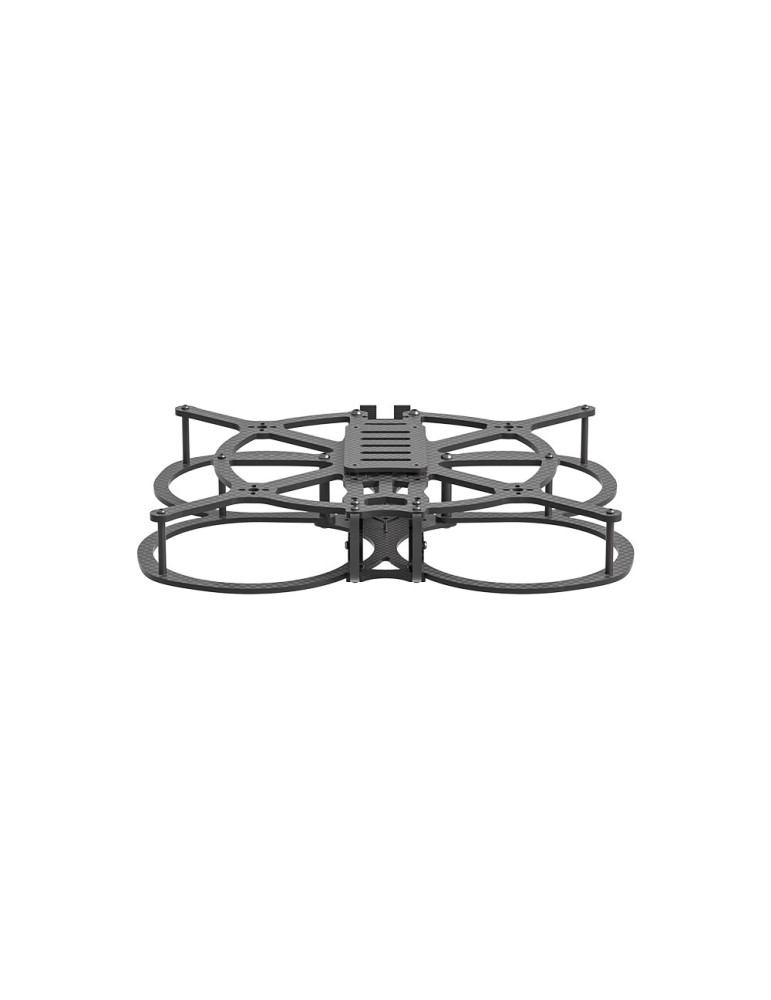

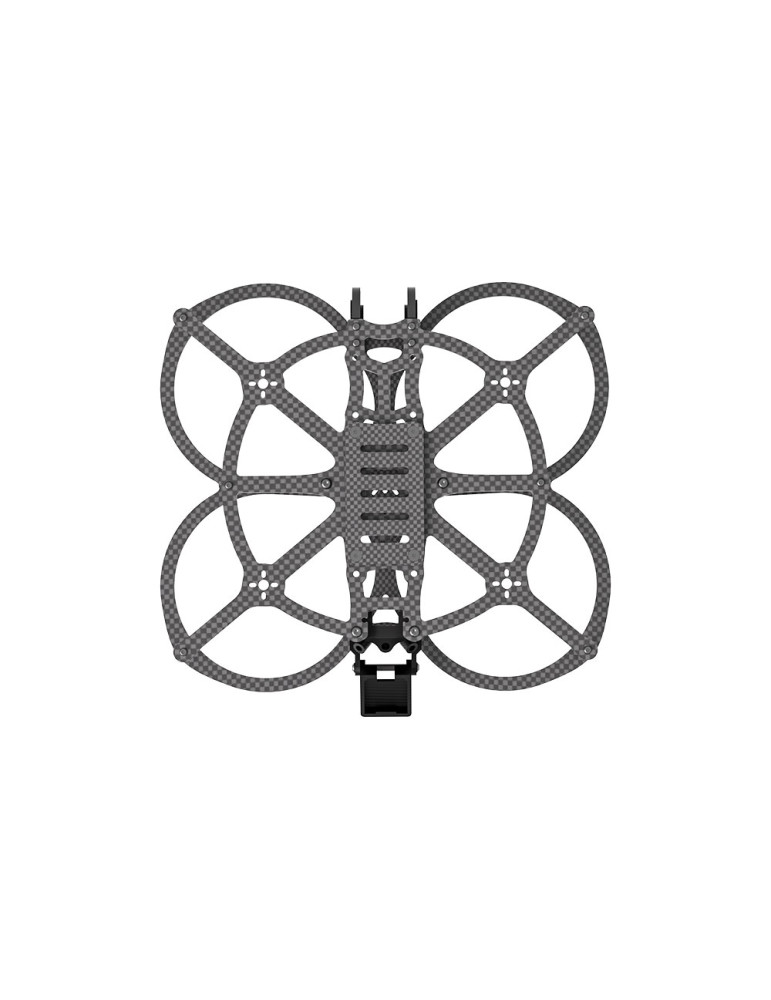

AOS Cine35 V5 Frame Kit

The AOS Cine35 V5 is a 3.5" Cinewhoop frame specifically designed for FPV pilots who demand the highest standards in stability, image quality, and versatility. Developed by Chris Rosser, this frame combines intelligent design with high-quality materials to deliver outstanding flight performance and maximum adaptability for both indoor and outdoor filming.

Features

• Camera Protection: Durable 7075 aluminum cage with soft mount (DJI O3/O4), also compatible with Analog, HDZero, and WS Avatar (hard mount). Supports 14 mm cameras via STL mount.
• FPV Experience: Immersive 155° field of view with no visible propellers – ideal for DJI O3/O4.
• Prop Guards: Integrated carbon fiber prop guards – lightweight, robust, and aerodynamically optimized.
• Low Vibration: Optimized frame structure minimizes vibrations for clear and stable footage.
• Stack Mounting: Central 25.5x25.5 mm mounting pattern with additional 20x20 mm mounting holes.
• Motor Mounting: Compatible with 9x9 mm to 12x12 mm (M2) motors; recommended motor sizes: 2004–2006.
• Flexible Battery Mounting: Supports both longitudinal and "toilet tank" style setups, with captive straps for quick battery changes.
• Versatile Action Camera Mounting: Front and rear GoPro mounting options for creative filming angles.

Shipping content

• 1 x AOS Cine35 V5 Frame Kit
• 1 x TPU Parts
• 1 x Screw Bag
• 2 x Battery Strap
• 2 x Anti-slip Battery Pad
