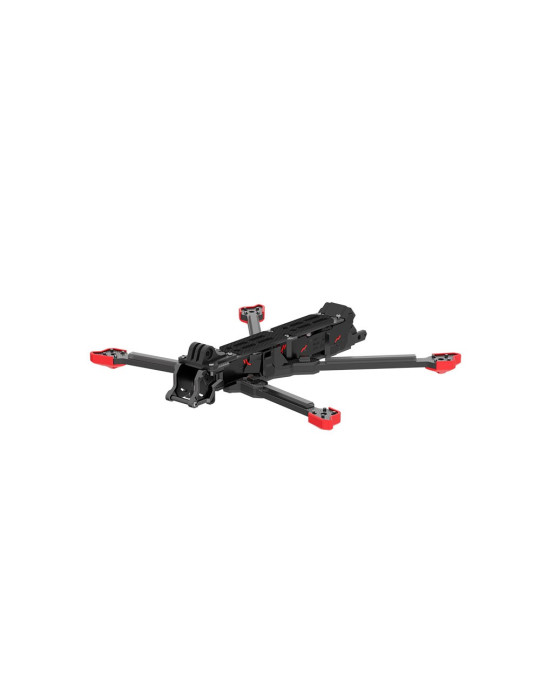

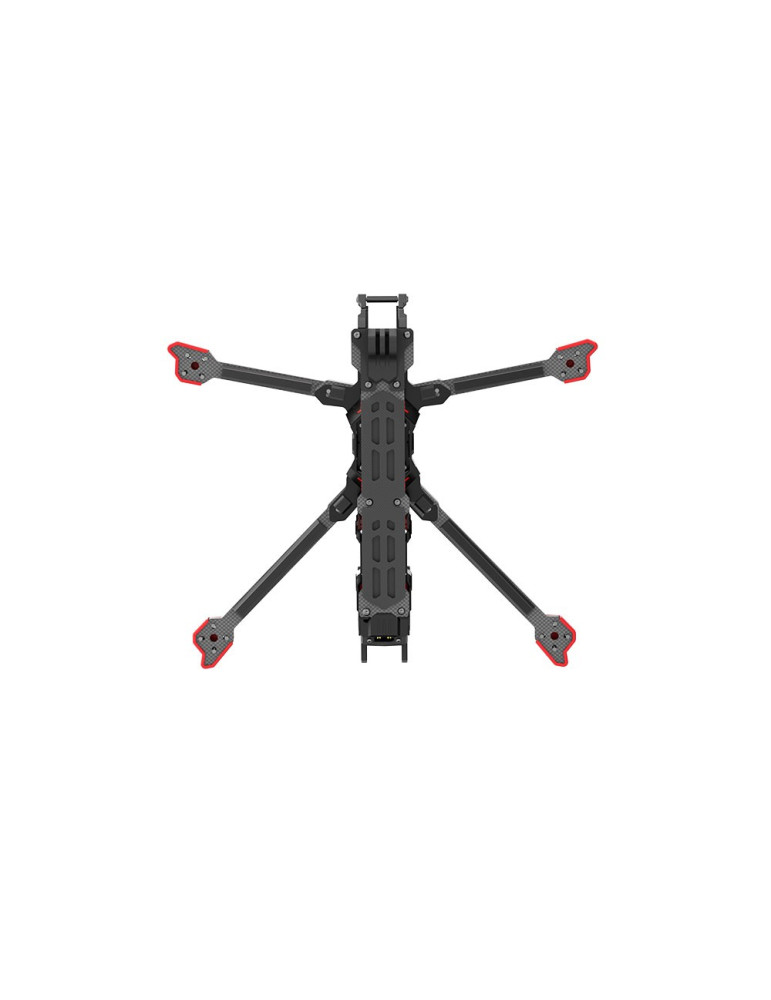

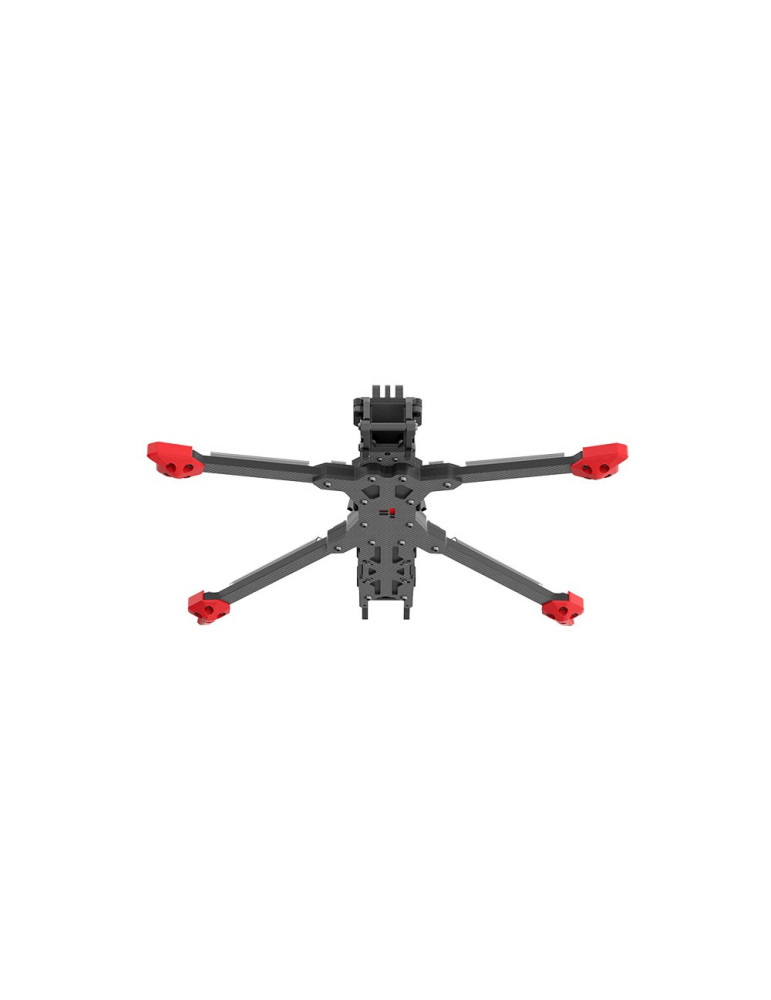

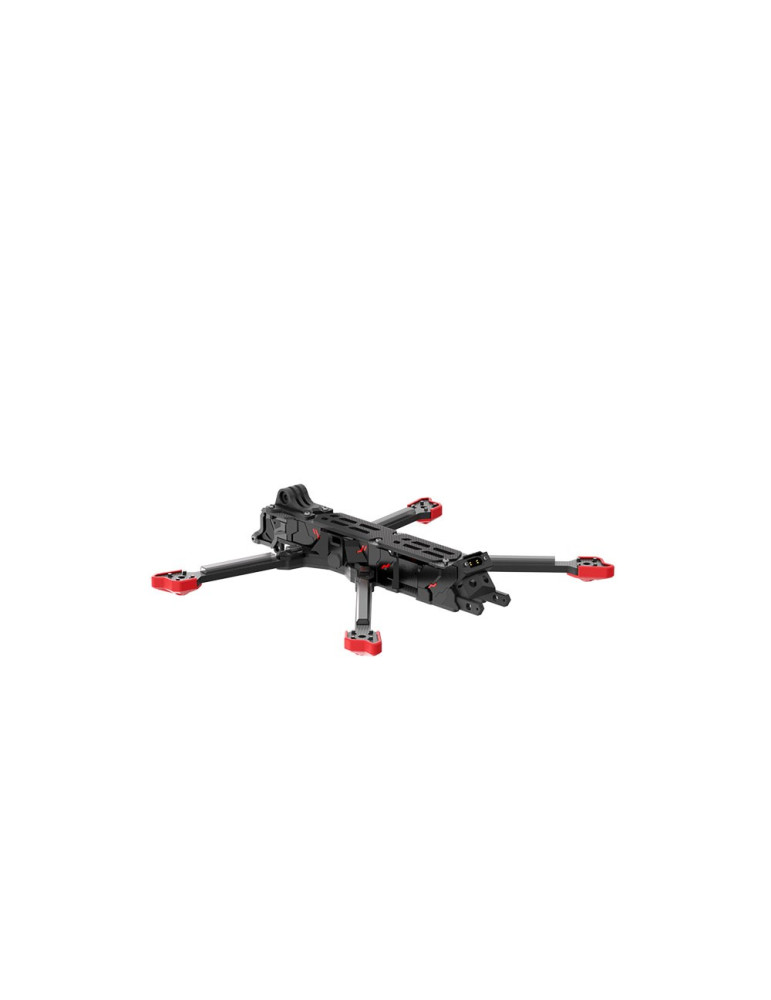

iFlight Chimera7 Pro V2 O4 Long Range Frame

The improved iFlight Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, offers exceptional stability and longer flight times, making it ideal for cinematic footage. Whether you're capturing serene waterfront scenes or the breathtaking vistas of the Swiss Alps, the Chimera7 ensures flawlessly smooth footage.

Constructed from ultra-stiff carbon fiber, this frame minimizes resonance, allowing for pristine video quality. It's optimized for 2806.5 motors, providing precise control over 7.5" propellers for smooth and responsive navigation. Choose your flying style with versatility in battery placement: mount large batteries on top for a balanced feel or go even bigger with bottom-mounted setups for enhanced endurance. The Chimera7 supports both 6-cell batteries for robust performance and 5-cell configurations for leisurely cruising. Compatible with both Lipo and Lion battery packs, this drone frame adapts to your specific flying needs and cinematic ambitions.

Features

• DJI O4 Air Unit Pro compatible
• New Camera Mount for DJI O4 Air Unit Pro
• New Side Panels to perfectly fit the 04 Air Unit Pro in the back
• Inclusive 220mm DJI O4 Pro MIPI Video Cable

Specifications

• Main body dimension: 270x199x34mm
• Arm thickness: 6mm
• Bottom plate thickness: 3mm
• Top plate thickness: 2mm
• Motor Mounting: 16x16mm / 19x19mm
• Stack options: 30x30mm
• VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
• Wheelbase: 327mm
• Weight: 355g

Shipping content

• 1 x Chimera7 Pro V2 O4 Frame Kit
  • 1 x 220mm O4 MIPI Digital Video Cable

  • 2 x O4 IPEX to RP-SMA Antenna Pigtails

  • 1 x Dual Antenna TPU
  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 4 x TPU Arm guard
  • 2 x Anti-Slip Battery Pad
  • 2 x Battery Strap
