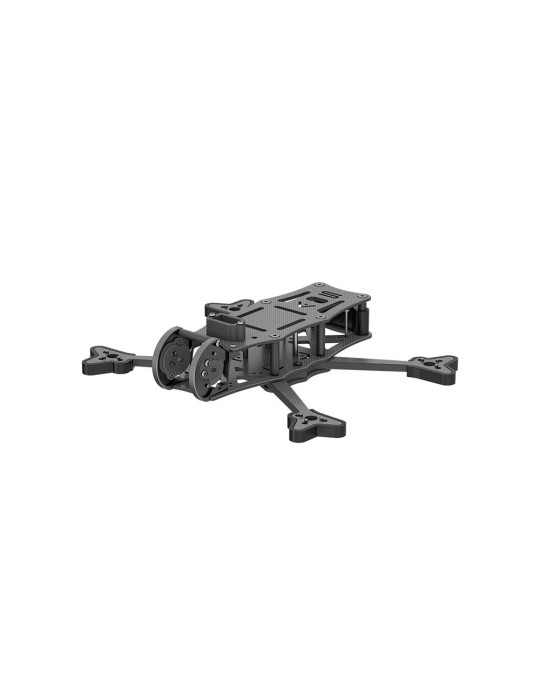

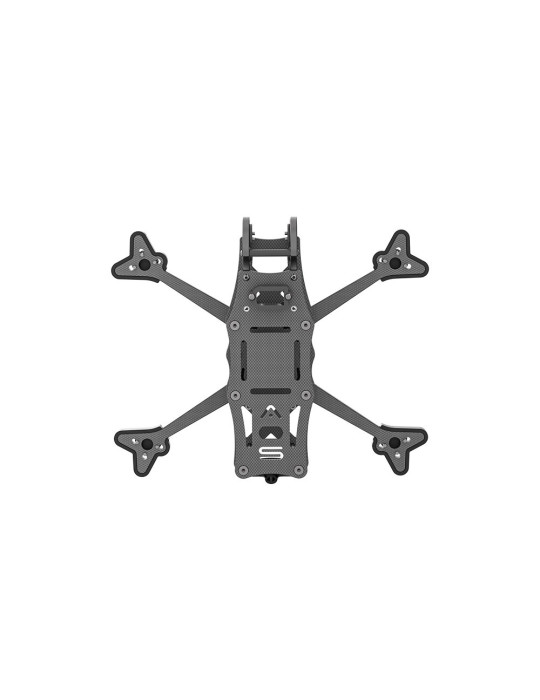

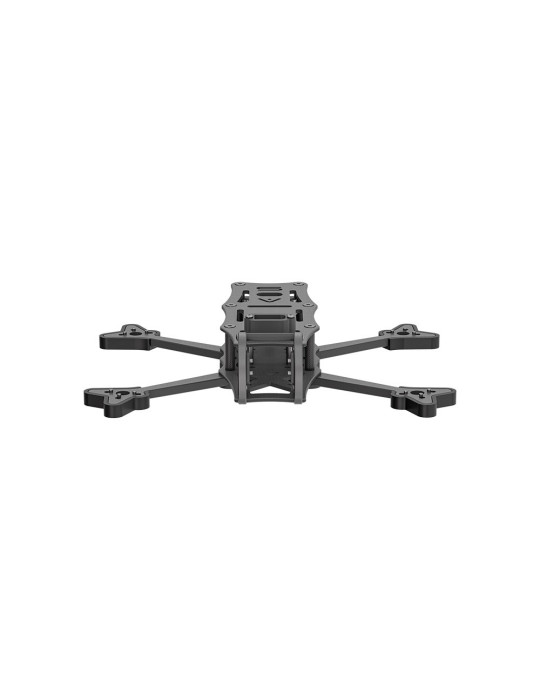

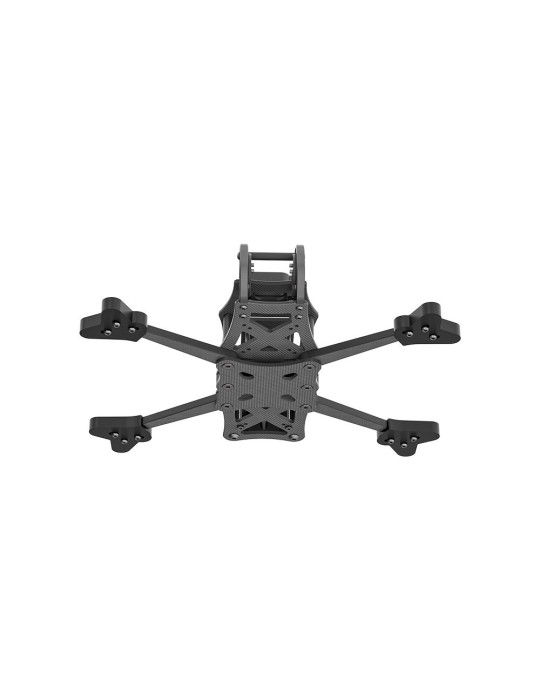

iFlight AOS 4 V5 Frame

The AOS 4 V5 Frame Kit by iFlight is meticulously engineered to deliver an exceptional blend of speed, power, and agility for FPV drone enthusiasts.

It accommodates 14-20mm cameras, ensuring compatibility with a wide range of FPV systems, including Analog, WS Avatar, HDZero, and DJI. Supports O3 ND filters for enhanced image quality.

The Frame incorporates the patent-pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50%. This innovation allows for lower filtering and higher PID gains, resulting in superior flight performance.

The AOS 4 V5 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners and experts alike with plenty of space, easy access to every screw and steel press-nuts to reinforce the arm and stack mountings.

Features

• Robust 7075 Aluminum Camera Cage for 14 - 20mm cameras
• Advanced Vibration Isolation
• User-Friendly Design
• Flexible Battery Mounting

Specifications:

• Frame Wheelbase: 180mm
• Dimensions: 145.5mm (L) x 106mm (W) x 31.5mm (H)
• Arm Thickness: 4.5mm
• Top, Bottom, and Upper Plate Thickness: 2mm each
• Maximum Flight Stack Height: 20mm
• Motor Mounting: 16x16mm with 3mm holes
• Flight Stack Mounting: 20x20mm with 3mm holes; 25.5x25.5mm with 2mm holes
• VTX Mounting: 20x20mm with 3mm holes; 25.5x25.5mm with 2mm holes
• Weight: 128g

Shipping content

• 1 x iFlight AOS 4 V5 Frame Kit
  • 1 x Screw Bag
  • 2 x Battery Strap
  • 2 x Battery pads
