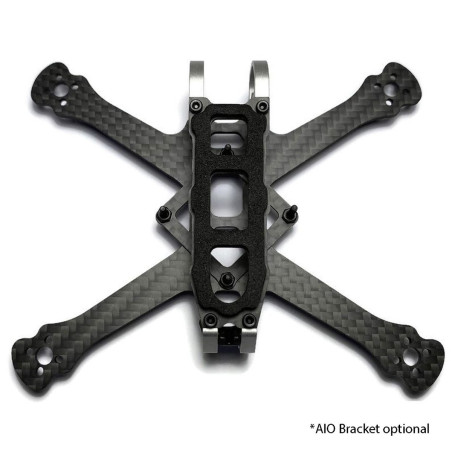

Armattan Tadpole 3" Frame

Model 193009

The Tadpole is Armattans answer to tiny builds. Featuring a light and strong frame with a top-mounted lipo.

More details

Marke: Armattan

Delivery: 1-2 working days

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

49.90 CHF

incl. 7.7% VAT

Shipping excluded

Quantity:

Data sheet

Manufacturer	Armattan
Type	Complete
Label	Armotte
Weight	19.5g
Suitable propeller	3"
Material	Alu, Carbon Fiber
Frame Configuration	Compressed X
Intended Use	Freestyle
Supported Camera Types	Nano cams (e.g. RunCam Racer Nano, Foxeer Predator Nano)
Arm Thickness	2mm

More info

Tadpole is a robust, small freestyle copter with an aluminum cage at the front and a slightly shorter aluminum post at the back for a slightly inclined LiPo top plate.

Specifications

Motor to Motor: 131.25mm
Hardware: M2
Motor Mount Pattern: 9mm
FC Stack Mount: 16x16 or optional whoop AIO bracket
FPV Camera Mount: Nano (14mm)
FPV Antenna Mounts: Customer rubber holder (1.8mm)
Max Stack Height: 16mm

Recommended Parts

Motor Size: 1106/5100Kv
Cams: Runcam Nano 2
ESC: 15A 4in1
Prop Size: 3 inch
LiPo: 4S 450mAh

Warranty

In the unfortunate instance that you meet the ground at a high rate of speed (and breakage does occur), Armattan is offering a full bumper-to-bumper warranty for the Tadpole frame. Included in the list price is a warranty that covers all of the pieces (both Carbon Fiber AND Aluminum) for that added peace of mind.

Shipping Contents
